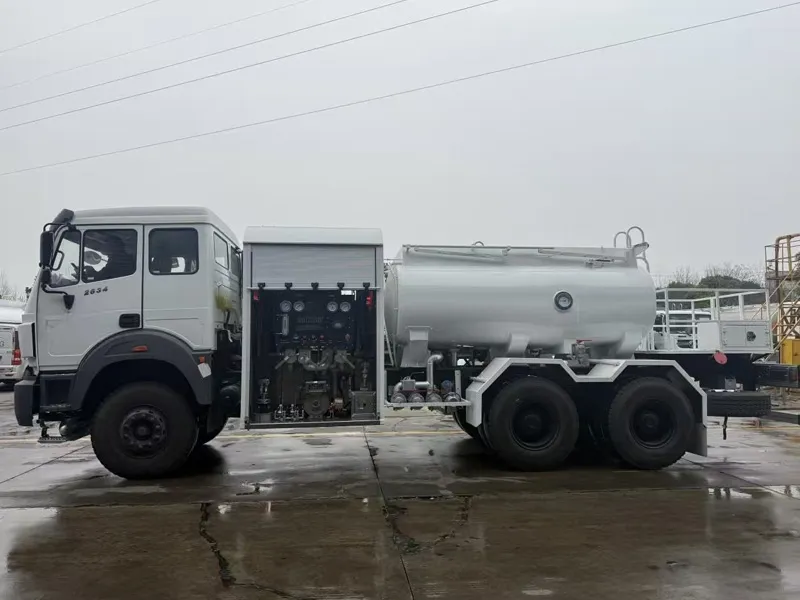

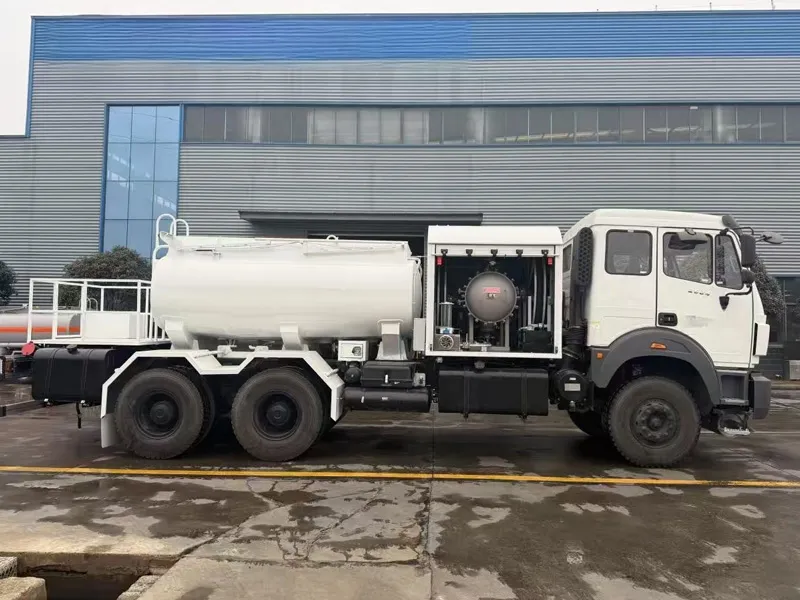

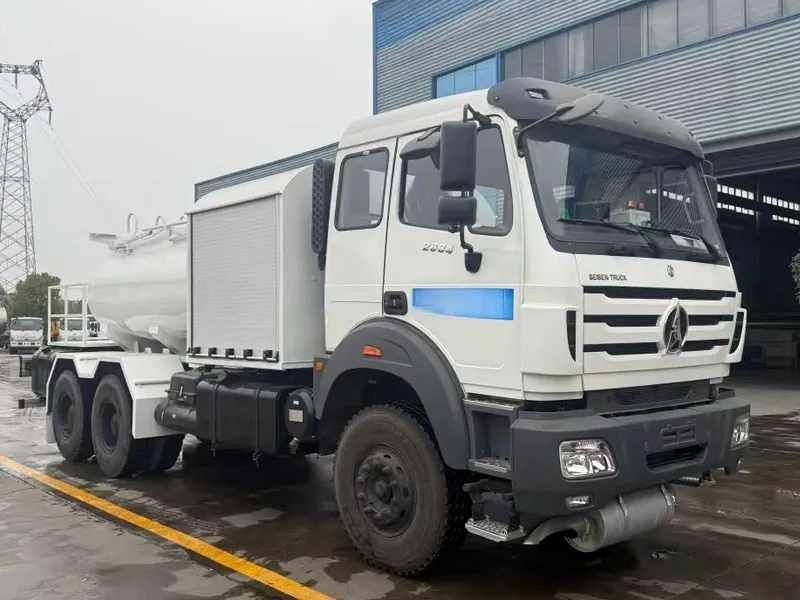

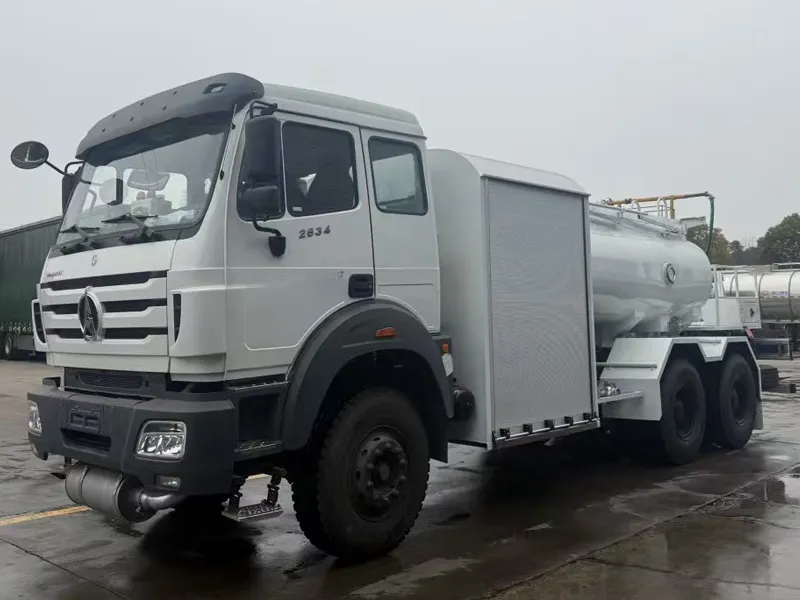

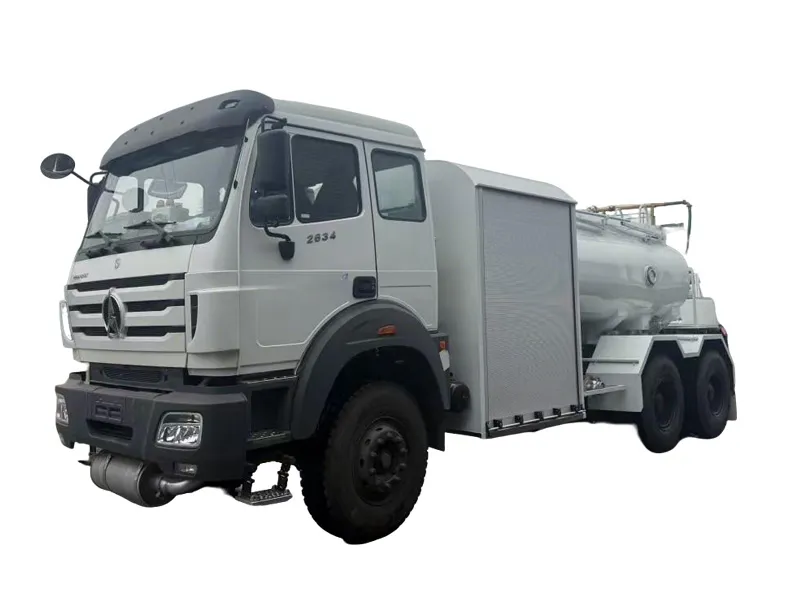

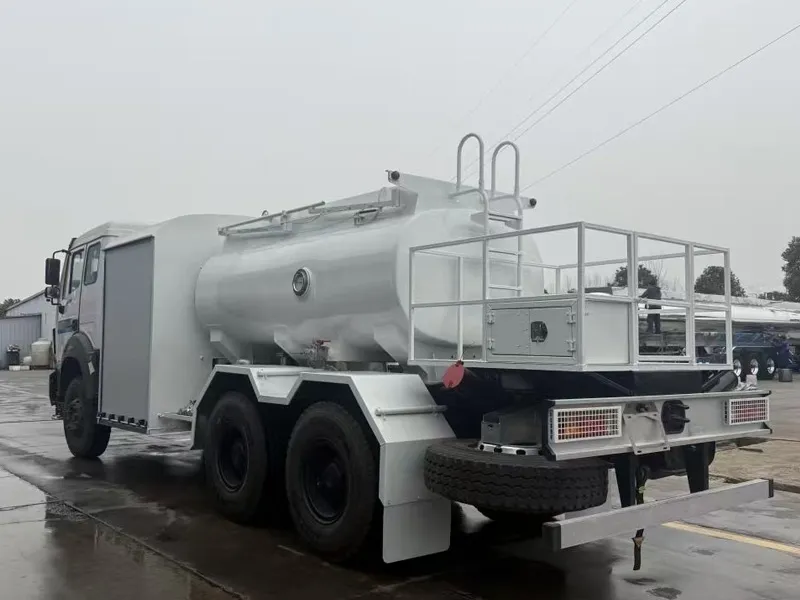

Beiben aircraft refueling trucks are specially designed for refueling various large and small aircraft with aviation kerosene. The tanks are made of aluminum alloy, which provides better insulation, making them safer and more efficient.

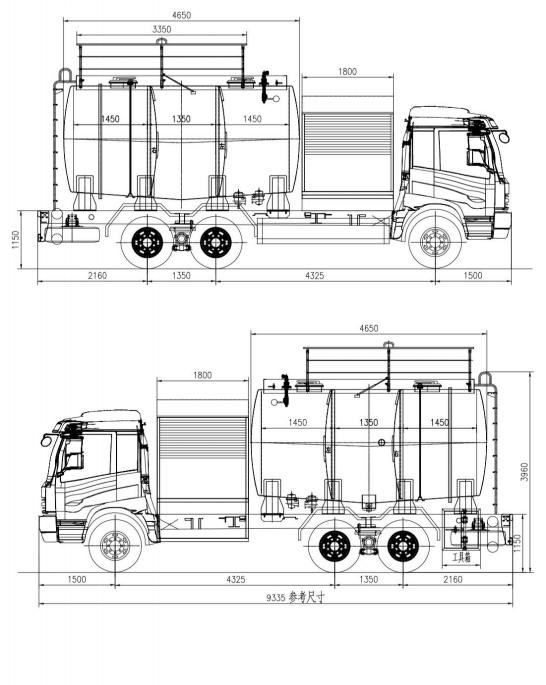

Beiben 20m³ aircraft refueling truck product technical parameters | |||||
Vehicle Model | 20 cubic meter aircraft refueling truck | Effective volume | 20m3 | Loading medium | Aviation kerosene |
Overall vehicle dimensions | According to design | Tank Dimensions | According to design | Tank material | aluminum alloy（5182） |
Tank thickness | 5.6mm | Head thickness | 5.7mm | Lining thickness | / |
Number of partitions | According to the manufacturer's label | Distributed warehouse details | / | Ladder requirements | Back ladder |
feed inlet | 2 European standard can openings | Installation location | According to the manufacturer's label | Breathing valve | 2 |
Discharge port and installation location: Tank body 5.6mm, end cap 5.7mm, baffle 5.7mm, single compartment, one set of fuel truck-specific nozzle, DN38 hydraulic reel 20 meters, flow rate ≥350L/min, [optional DN50 hydraulic reel 20 meters, flow rate ≥500L/min]; dedicated DN65 hydraulic reel 20 meters with aviation pressure stabilizing connector (single pipe flow rate ≥1200L/min), with large-character code flow meter 0.2 grade accuracy; explosion-proof light; with coalescing separator (90F/hour); self-priming centrifugal pump (pump in, pump out) with auxiliary drive shaft driving hydraulic station; 6-inch float level gauge; one HYJ-63X connector valve each on the left middle and tail, flexible soft connection; operating equipment box: remote magnetic control switch, hand throttle (including cylinder); DeadMan Control system; internal pressure control valve; Venturi tube, high level control valve, magnetic refueling programmable controller. Vacuum gauge, pressure gauge, differential pressure gauge, Venturi pressure gauge, hydraulic pressure gauge. Pre/post/drainage sampling (closed-circuit sampler); and self-made sampling recovery cylinder. [Optional: Hydraulic lifting platform installed between equipment compartment and driver's cab, equipped with 2 sets of 4-meter DN65 hoses (stainless steel rotary joint connection) including pressure regulating valve and 2 Venturi tubes, equipped with distance sensor, coalescing separator (150F/hour), protective netting on tank top with movable guardrail, internal/external ladders; 2 unloading boxes/1 toolbox/1 operating equipment box; 2 sets of single bridge plate mudguards, side protection/rear protection/pipes/ball valves/gaskets/bolts complete; other accessories according to factory standards; internal passivation treatment, surface clean, markings/reflective stickers according to factory standards.] | |||||
