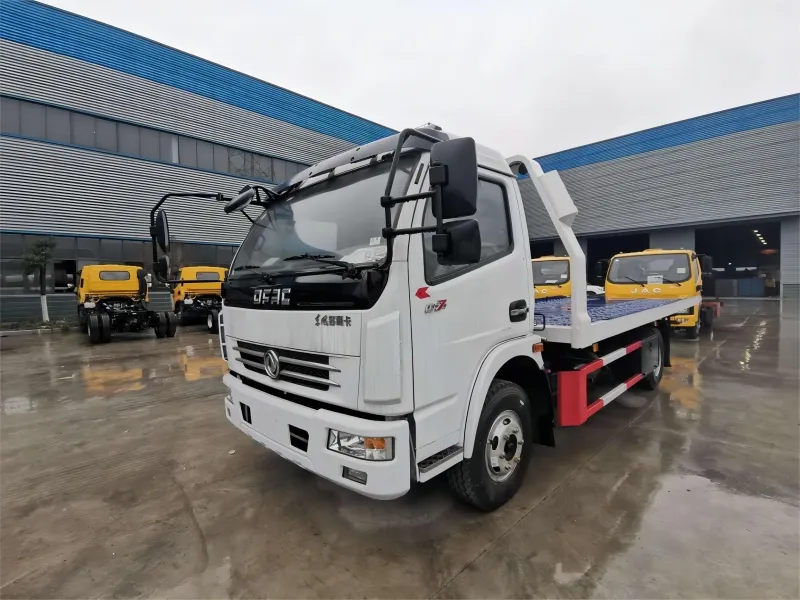

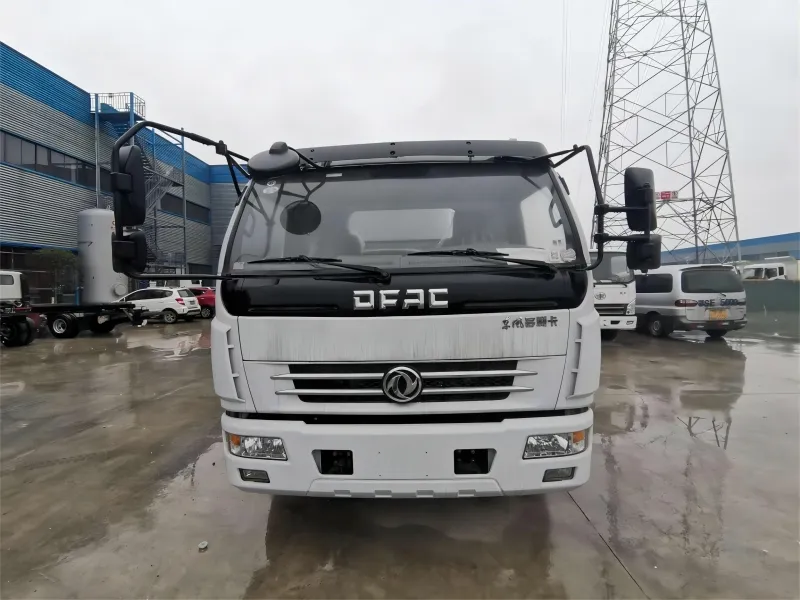

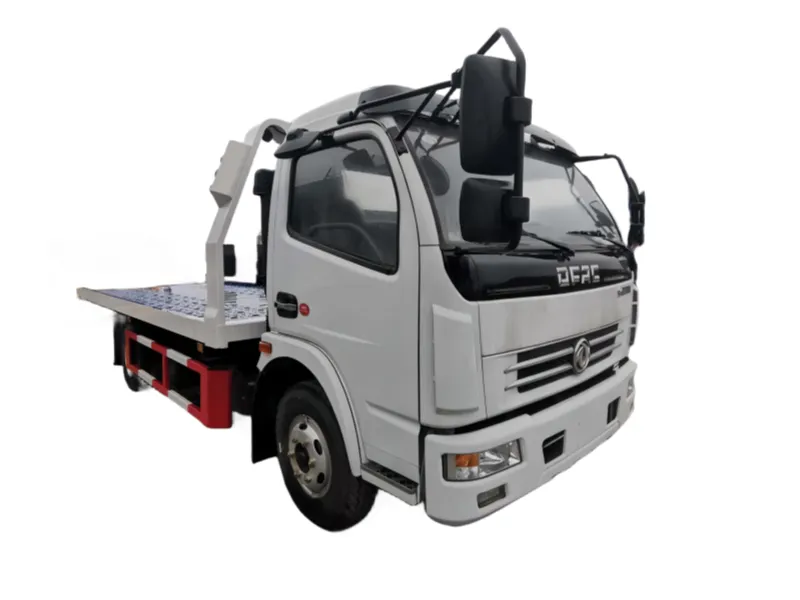

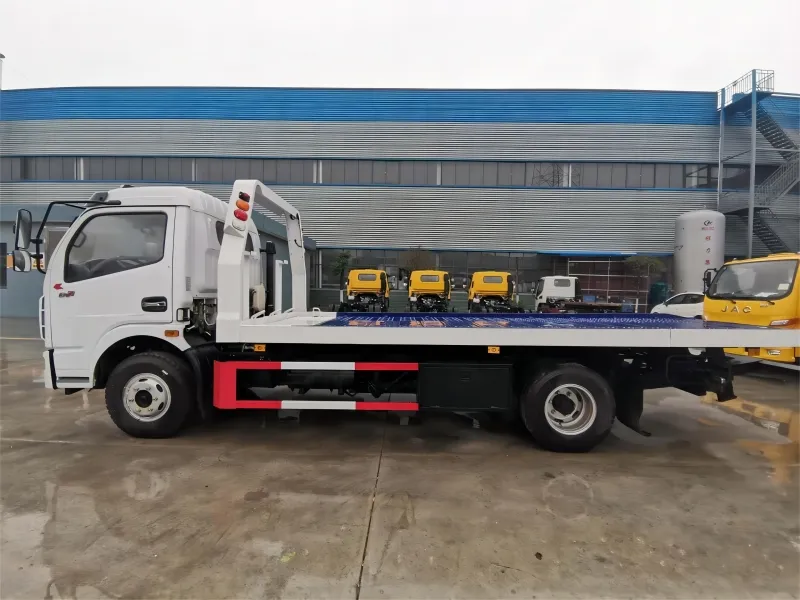

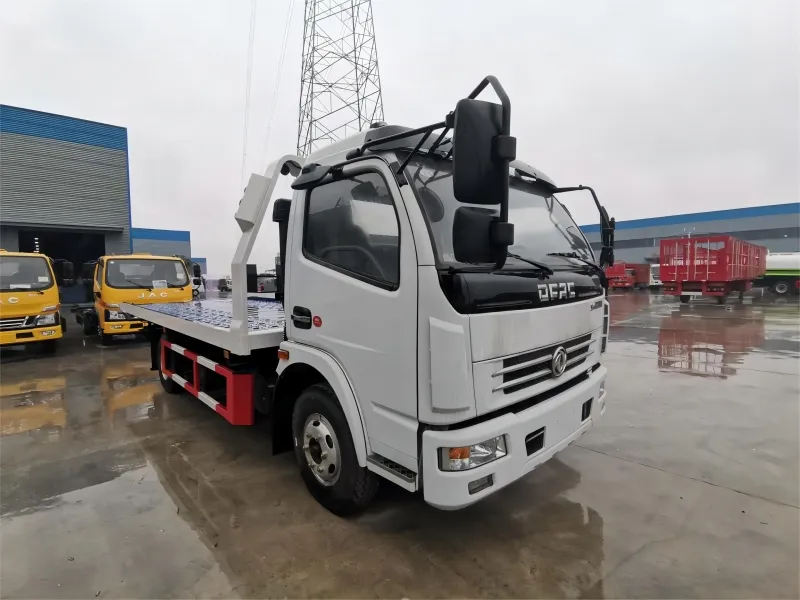

The Dongfeng wrecker truck is capable of towing two vehicles simultaneously — one positioned on its flatbed and the other hitched to the rear.
GVW Driving Type 4x2 | |||||
Model | Luke truck | ||||
Cab | One row cab, tilted | ||||
Engine(Hp) | 120 | ||||
Power(Kw) | 88 | ||||
Wheelbase | 3800 | ||||
Front/Rear Suspension | 1180/2410 | ||||
Steering | Power steering | ||||
Approach/departure angle | 20/13 | ||||
Wheels & tire | 7.5R16 | ||||
Tire number | 6+1 | ||||
Loading capacity(kg) | 4000 | ||||
Plate dimension(mm) | 5600×2300 | ||||
RHD or LHD | optional | ||||
Overall Dimensions(mm) | 7390×2300×2630 | ||||
Curb weight (Kg) | 5480 | ||||
Engine | Model | CY4102BZQ | |||
Horsepower | 120 | ||||
Maximum output Kw | 88 | ||||
Maximum torque N.m | 324 | ||||
Type | 4 cylinders, in-line, 4-stroke, water-cooled, turbo, diesel engine | ||||
Displacement | 3.856L | ||||
Chaoyang brand, Euro 2 | |||||
Driving passenger | 2, 3 | ||||
Transmission | 5 speed forward and one reverse, manual | ||||
Front Axle | 2.5T | ||||
Rear Axle | 4.5T | ||||
Brake System | air brake, exhaust brake | ||||
Color and LOGO | customized | ||||
Electric system | 24V | ||||
Major parameter | Winch capacity | 4000kg | Lift capacity | 2500kg | |
Platform | 5600×2300mm | Steel wire rope | 21m | ||
Standard configuration | 2 units of towing wheel, 1 unit of 4 ton winch, 1 unit of steel wire rope, 1 unit of spare tire, 1 unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp. | ||||
Optional configuration | Flexible tail plate | ||||
Delivery date | Within 30 days after receipt advance | ||||
Packing | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||||
