Category | Item | Specification |

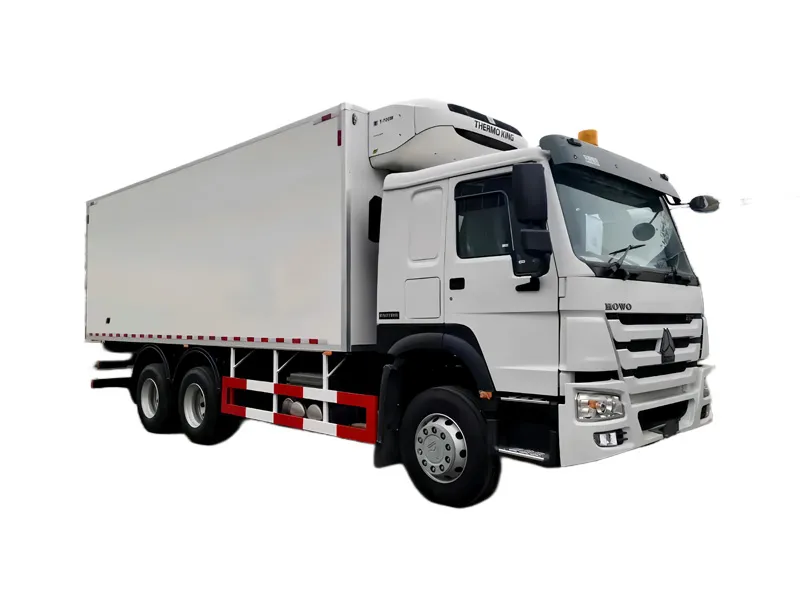

Basic Parameters | Model | Sinotruk Howo ZZ5317XLCV466HF1 |
Rated Loading Capacity | 20 tons | |
Refrigerated Compartment Volume | ~45 m³ | |
Overall Dimensions (L×W×H) | 11,995×2,550×3,980 mm | |
Wheelbase | 6,800 mm | |
Chassis & Power | Engine | Sinotruk WP10.5H430E68 (430 HP, Euro VI) |
Transmission | 12-speed manual (HW25712XSTL) | |
Axle Configuration | 6×4 (3 axles) | |
Tires | 12R22.5 18PR radial tires (8+1 spare) | |
Suspension | Leaf spring suspension + stabilizer bar | |
Braking System | Air brake + ABS + EBD + engine exhaust brake | |
Refrigeration System | Cooling Unit | Carrier X4 7300 (or Thermo King V-520) |
Temperature Range | -25°C ~ +15°C (adjustable) | |
Insulation Material | 80mm thick polyurethane foam (density ≥40 kg/m³) | |
Compartment Material | Inner/outer FRP (fiberglass reinforced plastic) | |
Door Structure | Double-layer airtight door with heating wire (anti-condensation) | |
Temperature Monitor | Digital display + remote monitoring (optional) | |
Safety & Auxiliary | Refrigeration Power Supply | Independent diesel engine (for stationary cooling) |
Compartment Features | Anti-slip aluminum floor + interior LED lights | |
Safety Devices | Fire extinguisher (2×8KG) + static grounding strip | |
Exterior | Reflective strips + refrigerated transport warning signs | |
Other | 400L fuel tank + maintenance-free battery + power steering |
