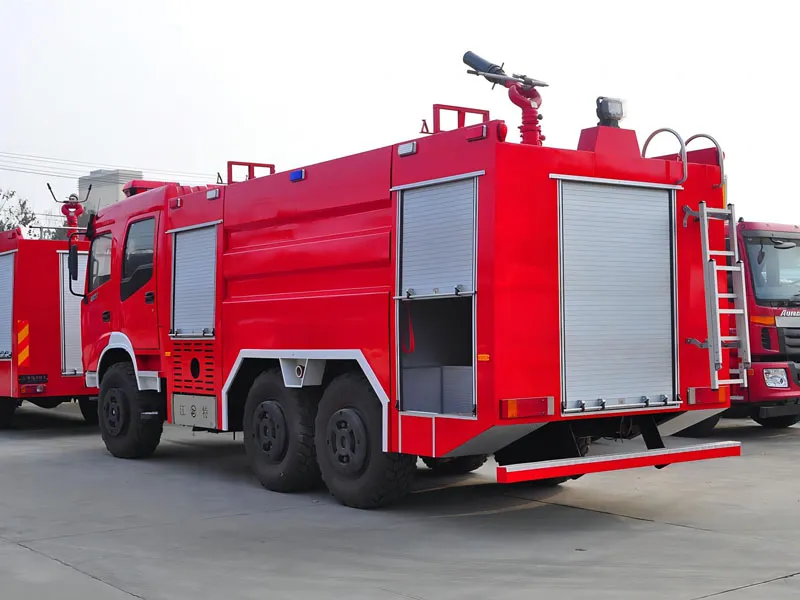

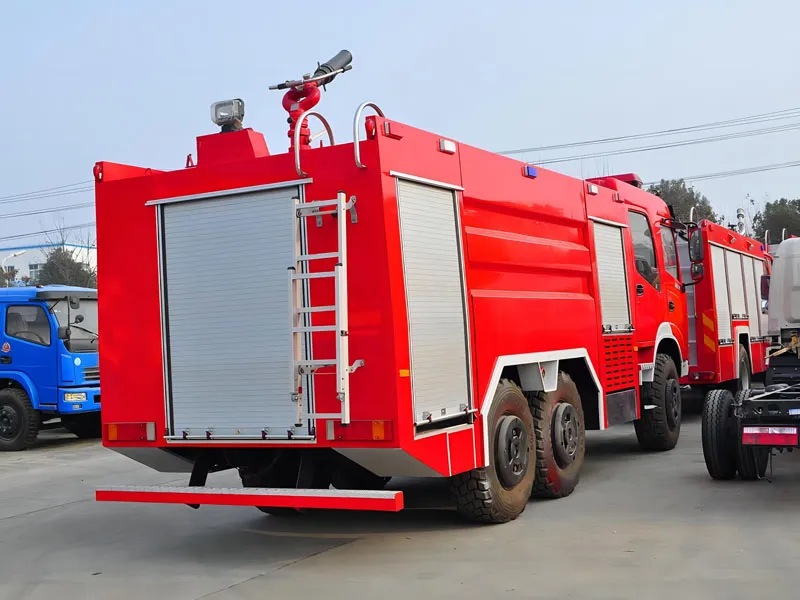

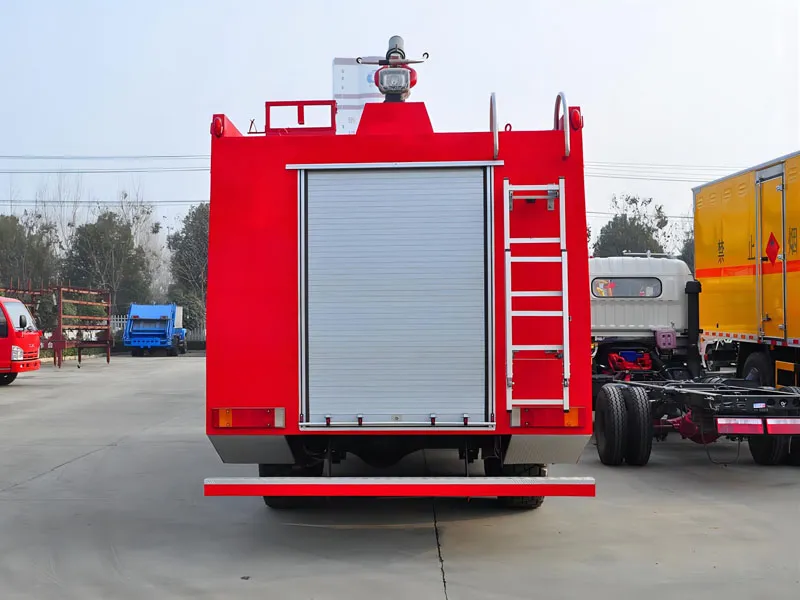

Dongfeng 6×6 fire truck is a rugged off-road vehicle built for versatile firefighting and rescue missions. It features a 10,000–12,000 L water tank, a CB10/40 pump delivering 40 L/s, and a PS30 fire monitor with a range over 50 m. Powered by a 160–210 hp Cummins diesel engine and 6×6 all-wheel drive, it handles forests, deserts, and urban or industrial emergencies with ease. Its durable steel frame and military-grade components ensure reliable performance in extreme conditions.
| GVW13450kg | Driving Type 6x6 | ||
Model | Luke5135GXFSG30 | ||
Cab | Double row, allowable 2+4 passengers, air con | ||
Engine(Hp) | 190 | ||
Power(Kw) | 140 | ||
Wheelbase | 3500+1250 | ||
Front/Rear Suspension | 1250/2070 | ||
Steering | Power steering | ||
Approach/departure angle | 23/14 | ||
Wheels & tire | 12.5R20 | ||
Tire number | 6+1 | ||
Tank Dimensions(mm) | |||
Cubage (m3) | 5 | ||
RHD or LHD | optional | ||
Overall Dimensions(mm) | 8100×2500×3400 | ||
Curb weight (Kg) | 9925 | ||
Engine | Model | B190 33 | |
Horsepower | 190 | ||
Maximum output Kw | 140 | ||
Maximum torque N.m | 640 | ||
Type | 6 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, diesel engine | ||
Displacement | 5.900L | ||
Cummins brand, Euro 3 | |||
Driving passenger | 2+4 | ||
Transmission | FAST 8 speed forward and one reverse, manual, with transfer case | ||
Front Axle | 5T | ||
Rear Axle | 5Tx2 | ||
Brake System | Air brake Exhaust brake | ||
Color and LOGO | customized | ||
Electric system | 24V | ||

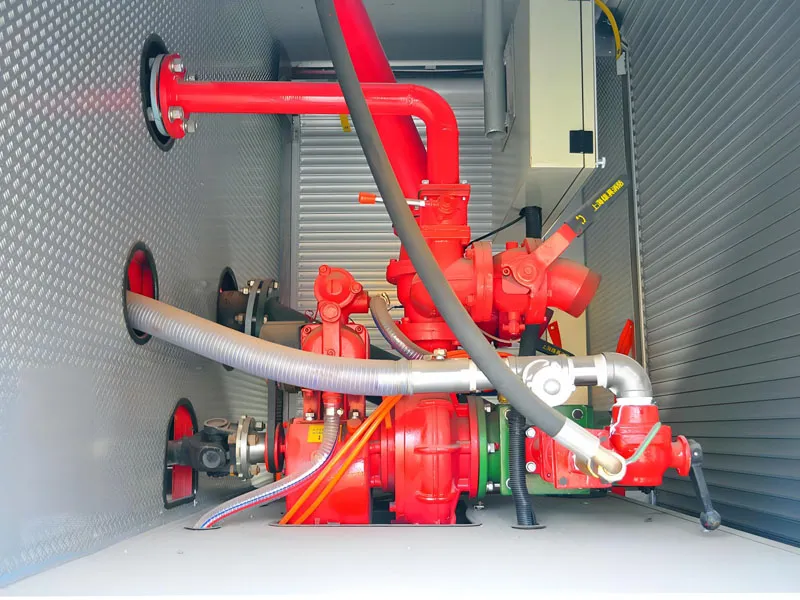

Fire equipment part | Fire pump | CB10/30, rated pressure 1.0MPa, flow30L/s | |
Fire gun | PS30, flow 30L/s, jet distance ≥55m | ||
Standard configuration | national standard equipment box, with national standard fire-fighting equipment, fire pump, fire gun, fire power take off, sliding gate, row type lights, reel, common tools, rear climbing ladder, water tank. | ||
Optional configuration | foam type, dry powder type, stainless tank, other requirements. | ||
Delivery date | Within 40 days after receipt advance | ||
Packing | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||
