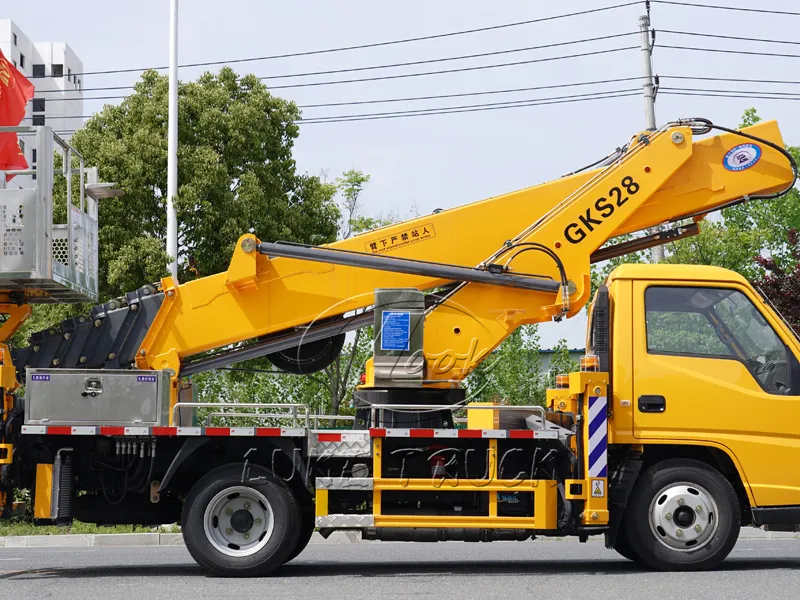

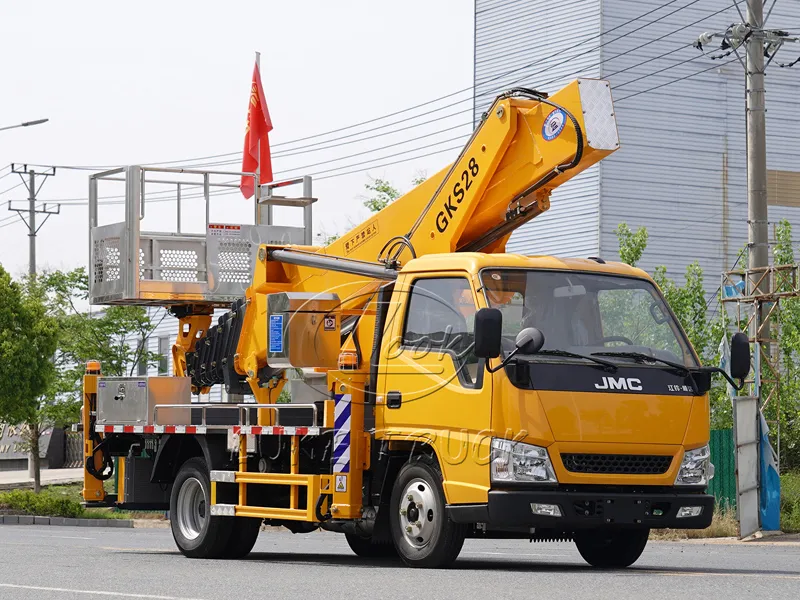

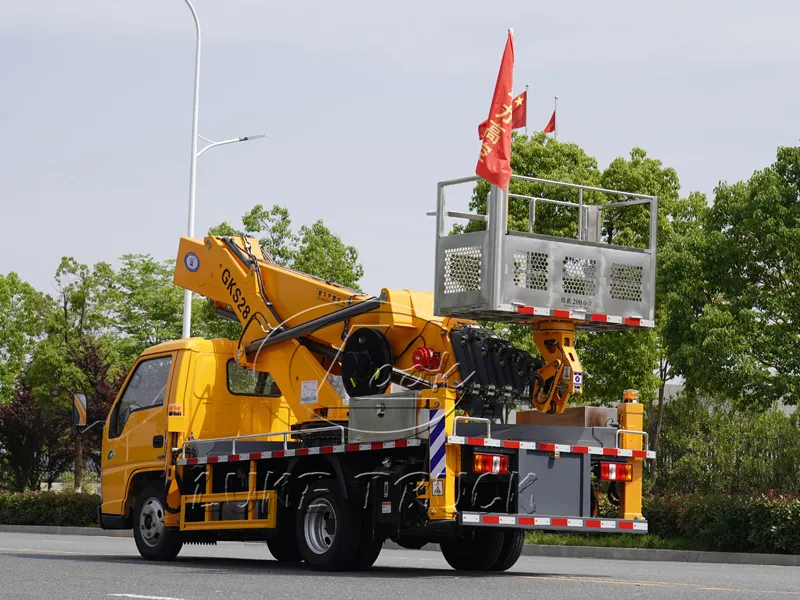

The Jiangling Shunda 28-meter Aerial Working Platform Truck features dual-position operation on both the work bucket and turntable, with individually adjustable four outriggers to ensure level adjustment on uneven terrain.
| [Technical Parameters of Jiangling Shunda 28m Aerial Working Platform Truck] | |||
| Product trademark | Casal card | Announcement batch | 398 |
| product name | Aerial Working Platform Truck | product model | LOOK5040JGK6J21S |
| gross mass （Kg） | 4495 | outline dimension （mm） | 5980×2090×3300 |
| Number of passengers in the cab (per person) | 2,3 | curb weight （Kg） | 4365 |
| Approach Angle/Departure Angle (°) | 19/12 | Front/rear suspension (mm) | 1075/1800 |
| axle weight （Kg） | 1675/2820 | Maximum speed (Km/h) | 100 |

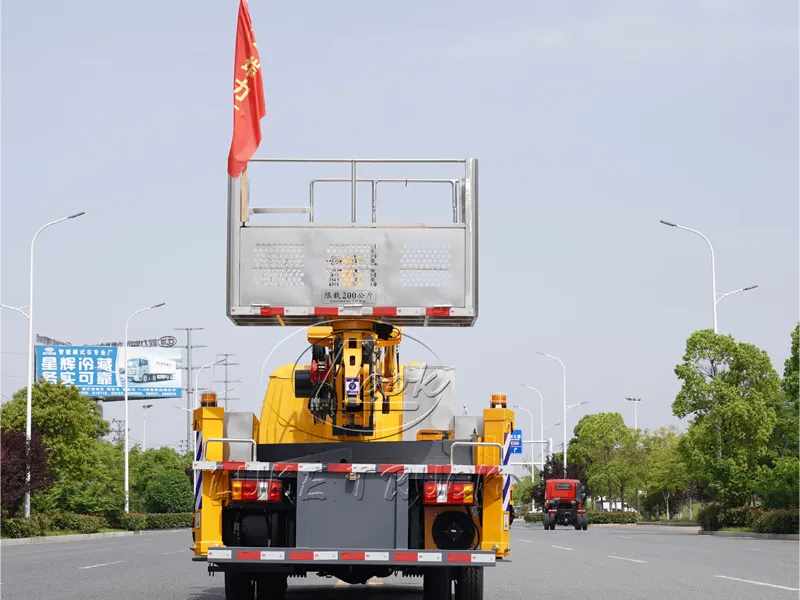

| This vehicle is designed for high-altitude operations including power grid repairs, telecommunications maintenance, and street lighting installations. Its core components comprise hydraulic mechanisms, boom systems, rotating platforms, work platforms, and outriggers. The work platform is positioned at the target location through boom extension and platform rotation. Both side and rear protective panels are constructed from Q235 steel, with bolted connections on the side and welded panels at the rear. Optional features include: customizable cab designs and door panel configurations available with the chassis. Work warning lights mounted on outriggers are activated only during operations and remain off during movement. Optional cab options feature black door frame film removal. Front fascia and lighting enhancements are available. Black wheel rims are optional. Trunk styles, boom arm designs, and winch configurations are selectable. Tool box placement and styling are customizable. Right-side ladder removal is optional. Upper-level cab designs and boom cylinder guards are available. Tail styles, winches, and turntable support structures are optional. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | JX1041TCD26 | Chassis name | truck chassis |
| brand name | Jiangling brand | manufacturing enterprise | Jiangling Automobile Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 2800 | tyre size | 6.50R15LT 10PR |
| Number of leaf springs | 7/6+5 | front gauge （mm） | 1400 |
| fuel type | diesel oil | rear track （mm） | 1425 |
| standard of emission | GB17691-2018 National VI | ||
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| JX4D30B6H | Jiangling Automobile Co., Ltd. | 2892 | 85 |
With their reliable performance and flexible operation, Jiangling Aerial Working Platform Trucks are widely used in various high-altitude operations. Here are the key features of some common models:
The main components: ① The working arm consists of an upper folding arm, a main arm, and a balancing mechanism. The main arm forms a maximum horizontal angle of 70° with the upper folding arm, which in turn forms a maximum angle of 140° with the main arm. This operating system supports dual-position operation on both the working bucket and the turntable. The four legs are individually adjustable, enabling the entire vehicle to level on uneven roads.

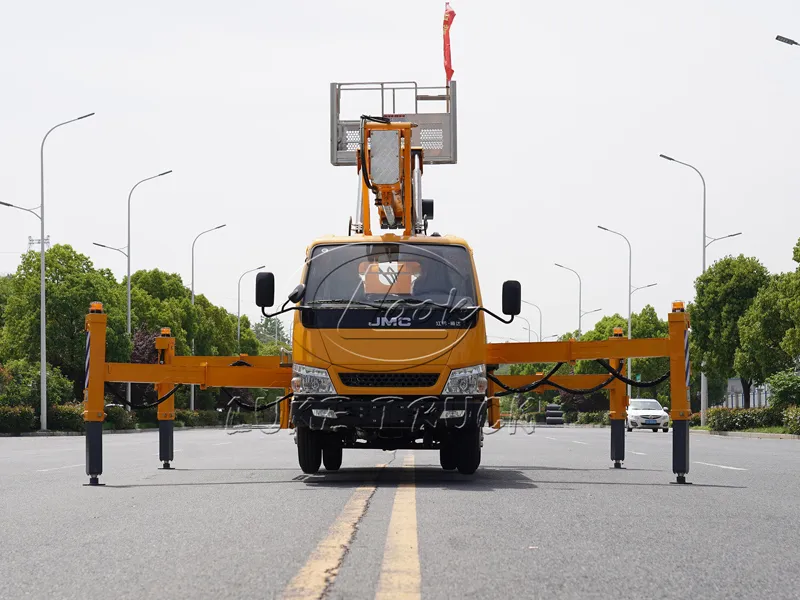

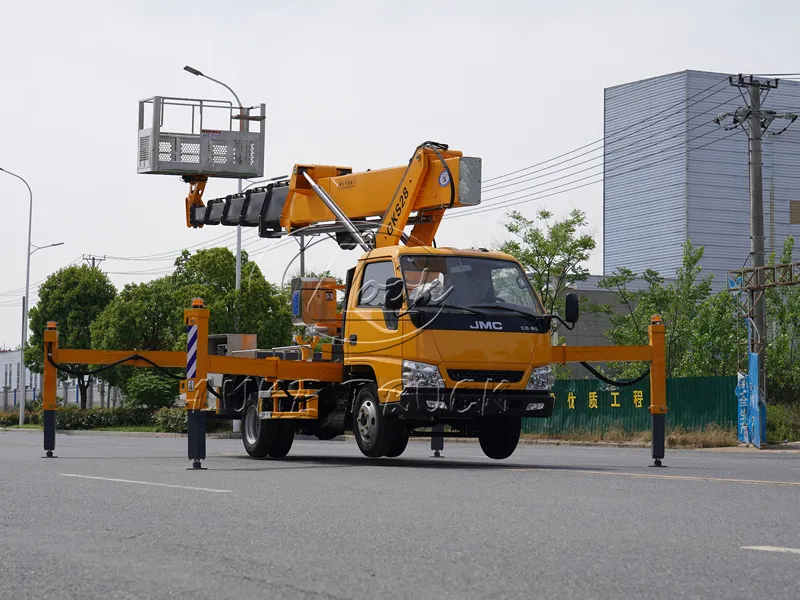

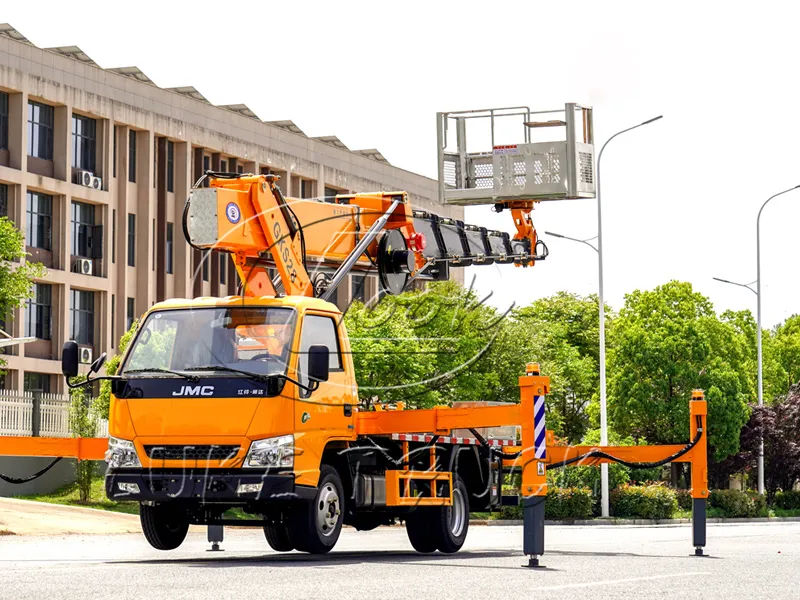

② Equipped with a four-section hexagonal working arm that extends/sinks synchronously, the turntable can be operated manually or remotely, with 360-degree rotation capability. The four hydraulic legs adopt a front V-back H configuration, adjustable individually or in linkage, and the working bucket has a rated load capacity of 200kg.
③ Equipped with an electro-hydraulic proportional control system for stepless speed regulation, along with multiple safety features including a hydraulic automatic leveling system and automatic interlock devices for boarding and alighting.
