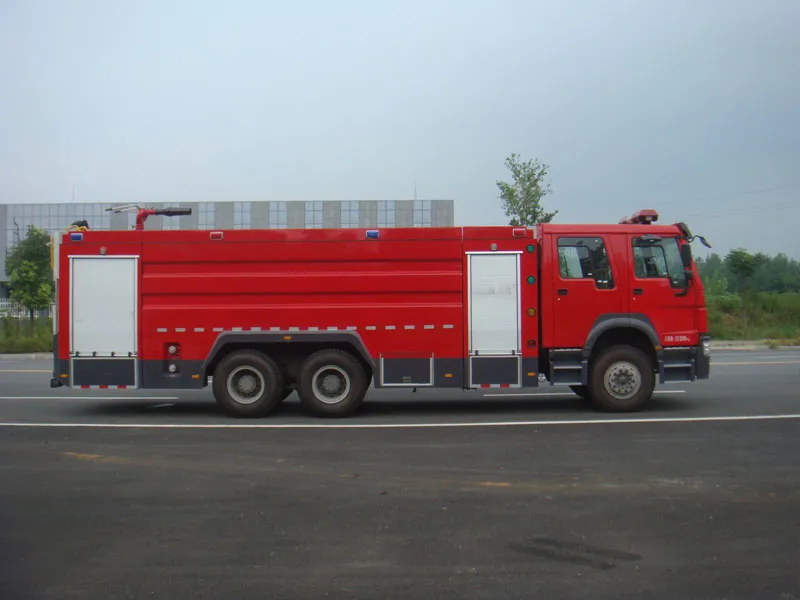

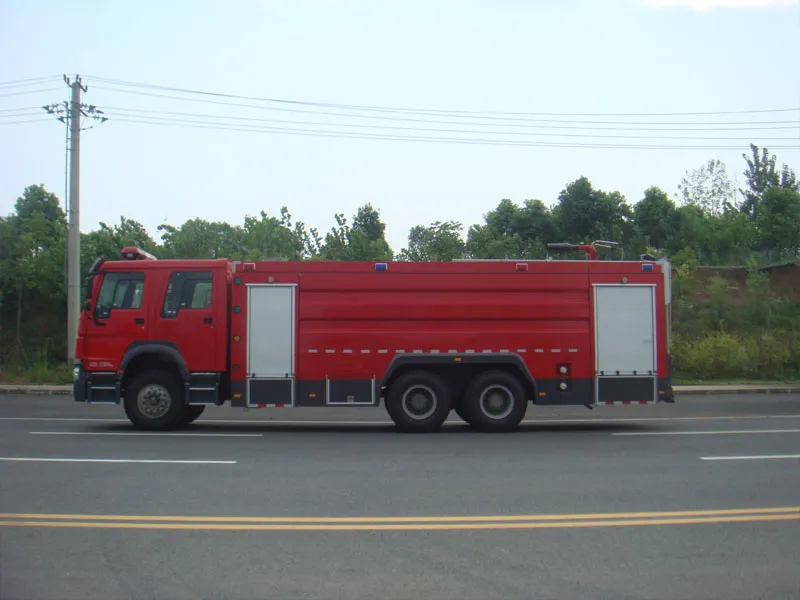

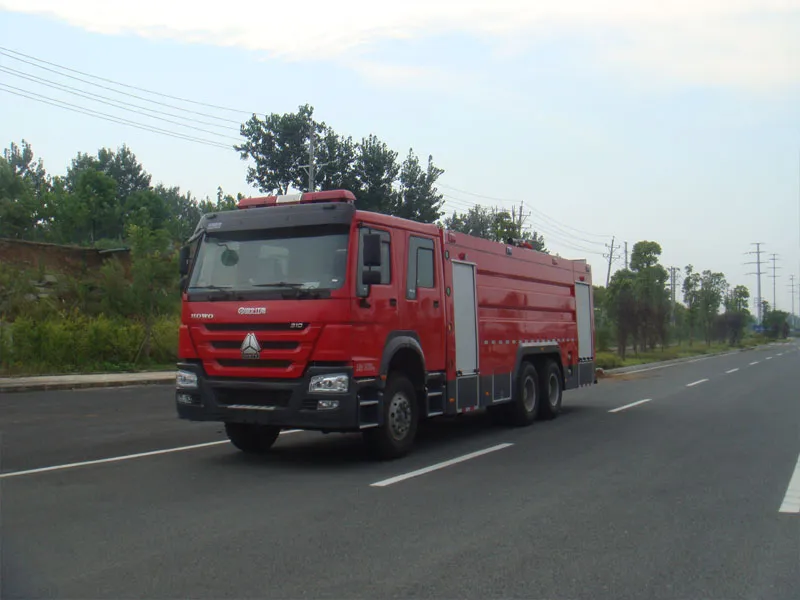

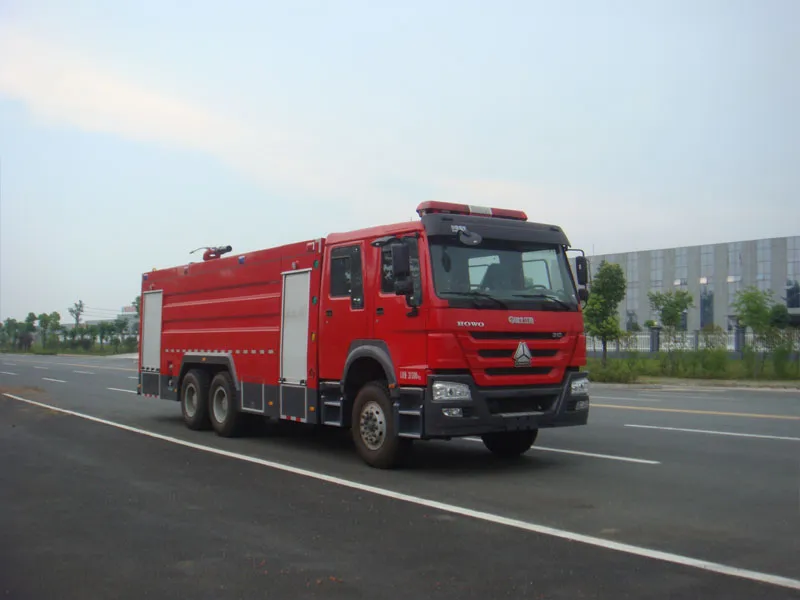

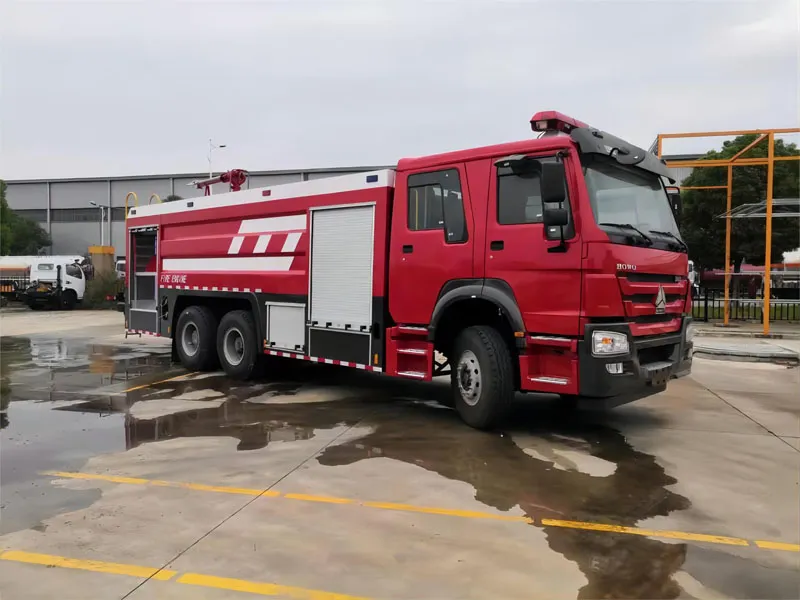

The Sinotruk Howo 6×4 fire truck features an 18,000L water tank, built for heavy-duty firefighting operations.
GVW Driving Type 6x4 | |||
Model | Luke Truck | ||
Cab | SINOTRUK HW76 cab, double row, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, air conditioner | ||
Engine(Hp) | 340 | ||
Power(Kw) | 250 | ||
Wheelbase | 4325+1350, 4600+1350 | ||
Front/Rear Suspension | 1500/2625 | ||
Steering | Power steering | ||
Approach/departure angle | 14/11 | ||
Wheels & tire | 295/80R22.5 | ||
Tire number | 10+1 | ||
Tank Dimensions(mm) | / | ||
Cubage (m3) | 15 | ||
RHD or LHD | optional | ||
Overall Dimensions(mm) | 10075×2500×3650 | ||
Curb weight (Kg) | 15250 | ||
Engine | Model | WP10.340E22 | |
Horsepower | 340 | ||
Maximum output Kw | 250 | ||
Maximum torque N.m | 1350 | ||
Type | 6cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, diesel engine | ||
Displacement | 9.726L | ||
Weichai brand, Euro 2 | |||
Driving passenger | 2+4 | ||
Transmission | HW19710, 10 forwards, 2 reverse | ||
Front Axle | HF 7T | ||
Rear Axle | ST 16Tx2 | ||
Brake System | Air brake Exhaust brake | ||
Color and LOGO | customized | ||
Electric system | 24V | ||
Fire equipment part | Fire pump | CB10/60, rated pressure 1.0MPa, flow 60L/s | |
Fire gun | PS50, flow 50L/s, jet distance ≥65m | ||
Standard configuration | national standard equipment box, full units national standard fire-fighting equipment, fire pump, fire gun, fire power take off, sliding gate, row type lights, reel, common tools, rear climbing ladder, water tank. | ||
Optional configuration | foam type, dry powder type, stainless tank, other requirements. | ||
Delivery date | Within 50 days after receipt advance | ||
Packing | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||
