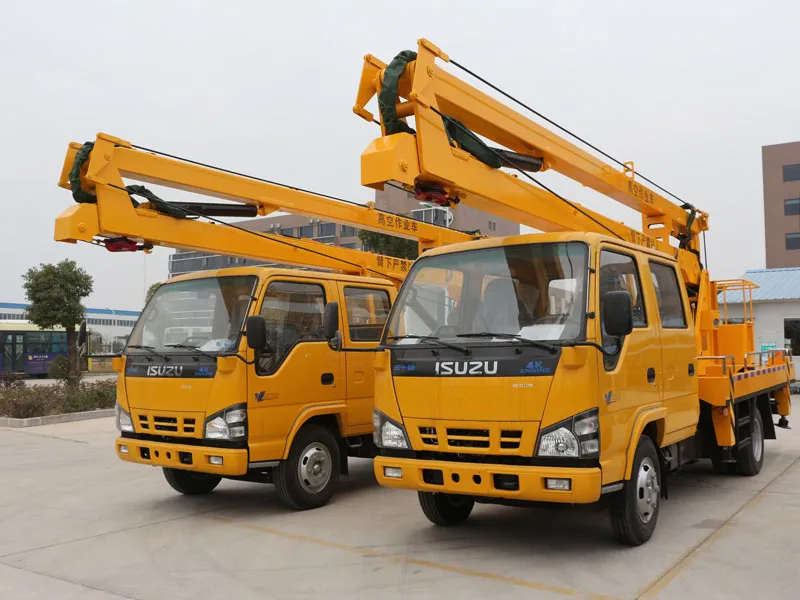

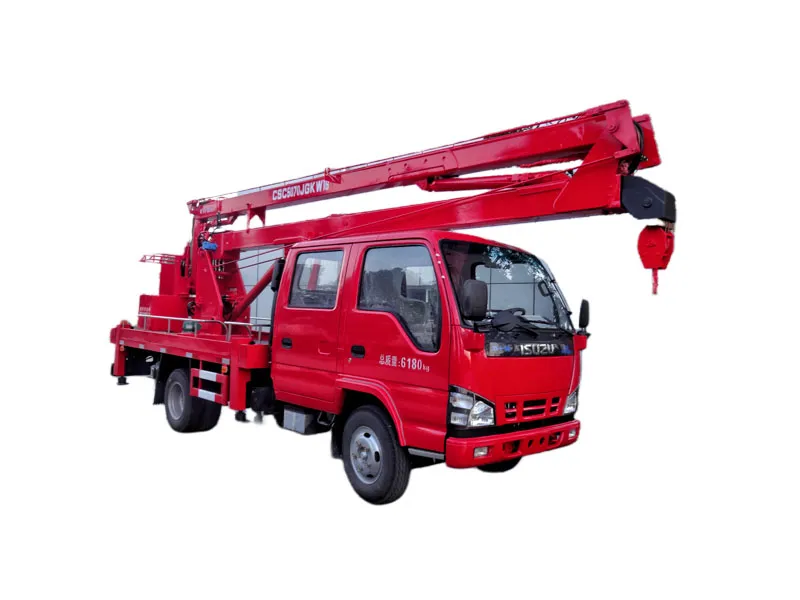

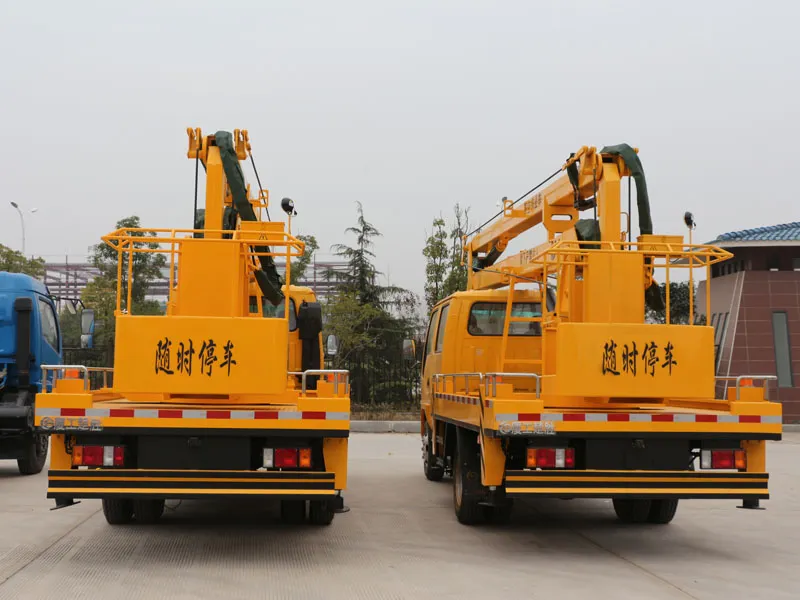

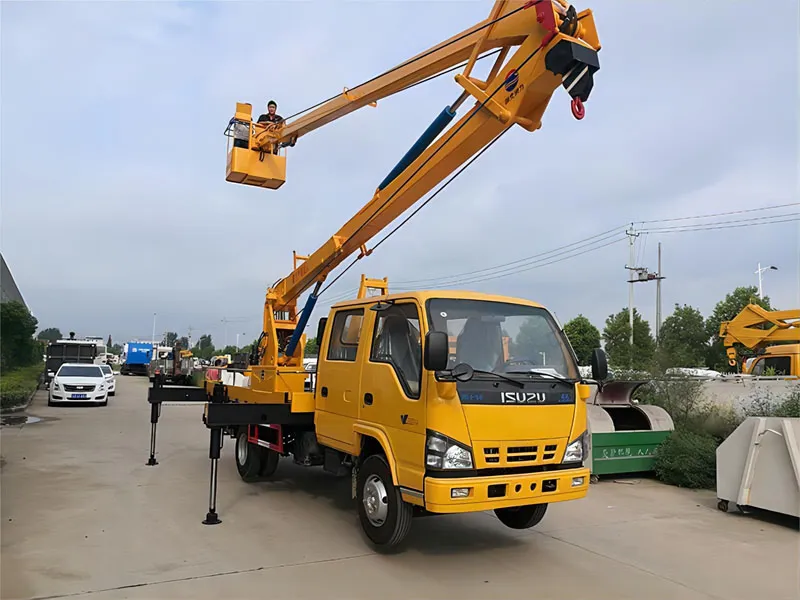

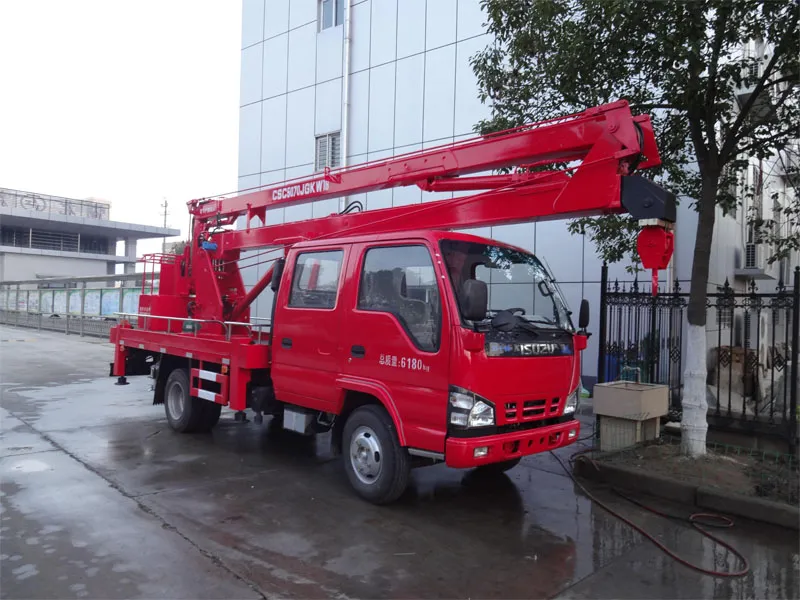

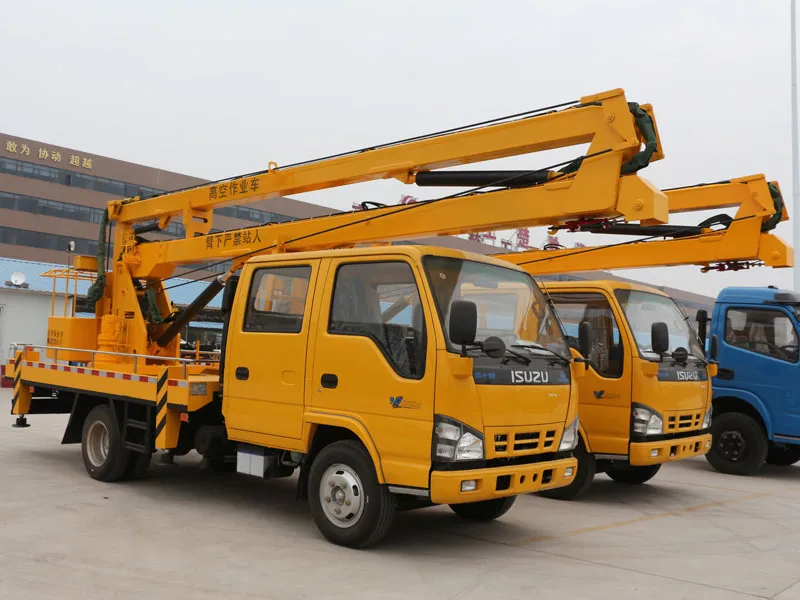

Isuzu double-cabin 12 m aerial work truck offers a 12 m working height and dual seating, ensuring reliable and efficient high-altitude operations.
GVW5405kg Driving Type 4x2 | |||
Model | DLQ5060JGKQ | ||
Cab | Isuzu 600P double row cab, allowable 2+3 passengers, air conditioner | ||
Engine(Hp) | 130 | ||
Power(Kw) | 96 | ||
Wheelbase | 3360 | ||
Front/Rear Suspension | 1015/2180 | ||
Steering | Power steering | ||
Approach/departure angle | 24/12 | ||
Wheels & tire | 7.00R16 | ||
Tire number | 6+1 | ||
Working height(m) | 12 | ||
RHD or LHD | LHD | ||
Overall Dimensions(mm) | 7400×2000×3100 | ||
Curb weight (Kg) | 5080 | ||
Engine | Model | 4KH1CN5HS | |
Horsepower | 130 | ||
Maximum output Kw | 96 | ||
Maximum torque N.m | 290 | ||
Type | 4 cylinders, in-line, 4-stroke, diesel engine | ||
Displacement | 2999ml | ||
ISUZU brand, Euro 5 | |||
Driving passenger | 2+3 | ||
Transmission | Isuzu MSB 5 speed forward and one reverse, manual | ||
Front Axle | 2.5T | ||
Rear Axle | 4.8T | ||
Brake System | Oil brake | ||
Color and LOGO | customized | ||
Electric system | 24V | ||
Standard configuration | Double operation systems, bucket insulation, 3 booms, hydraulic oil tank, 500kg lifting hook, box truck body design, 4 hydraulic H-shape legs, 2 signal lamps,2 tool boxes. | ||
Equipment | Platform Dimension | 1080X620X1100mm | |
Max Working Height | 12m | ||
Max Working Radius | 6.5m | ||
Angle Of Rotation | 360° | ||
Platform Loading | 200kg | ||
Platform Passenger | 2 | ||
Rotating Speed | 0-2m | ||
Delivery date | Within 40 days after receipt advance | ||
Packing | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||
