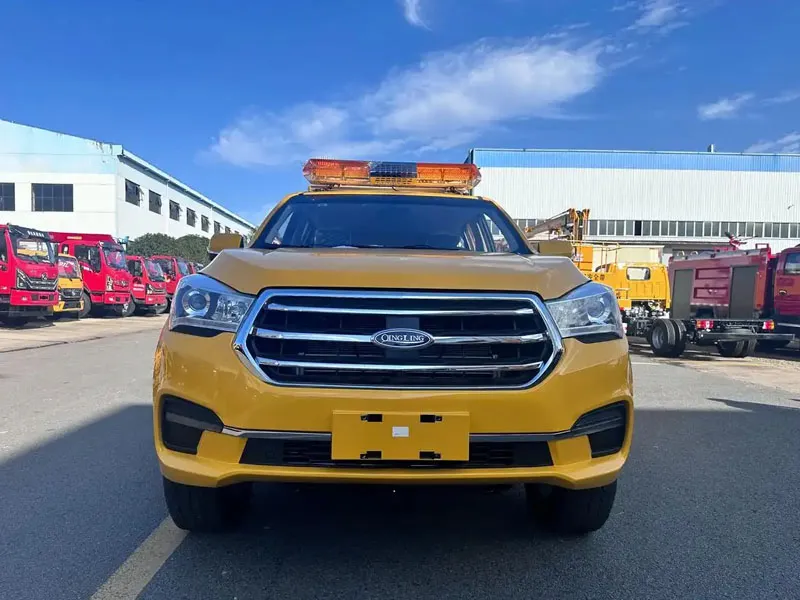

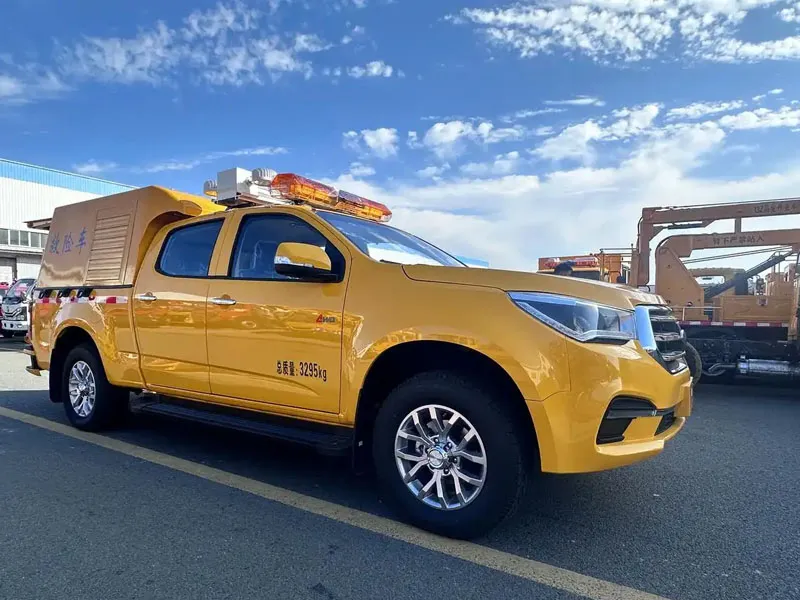

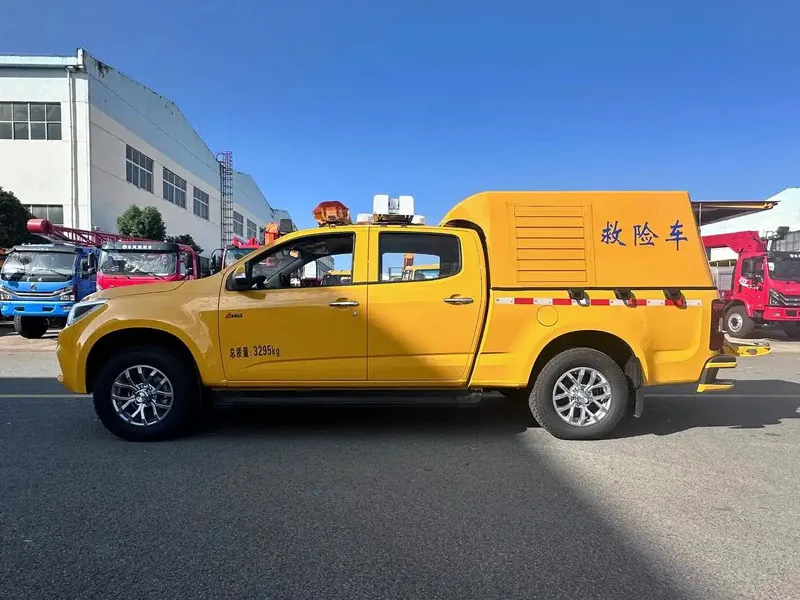

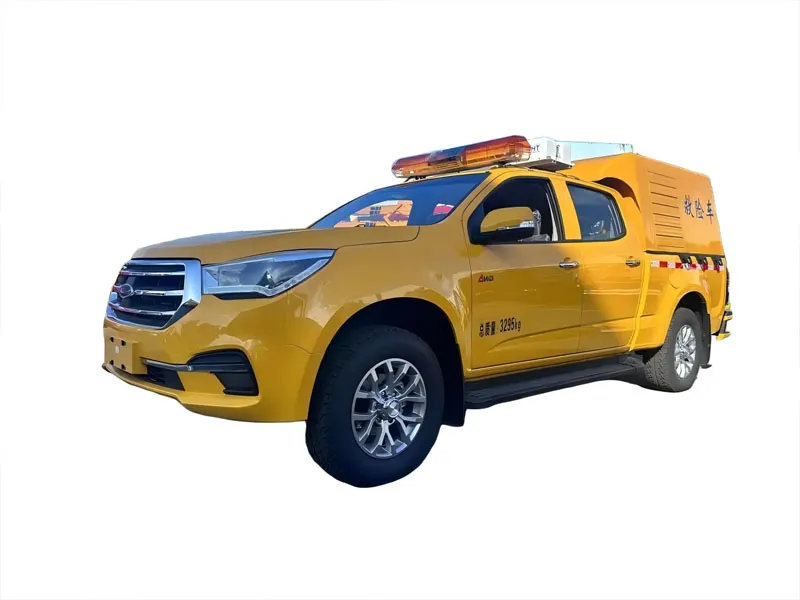

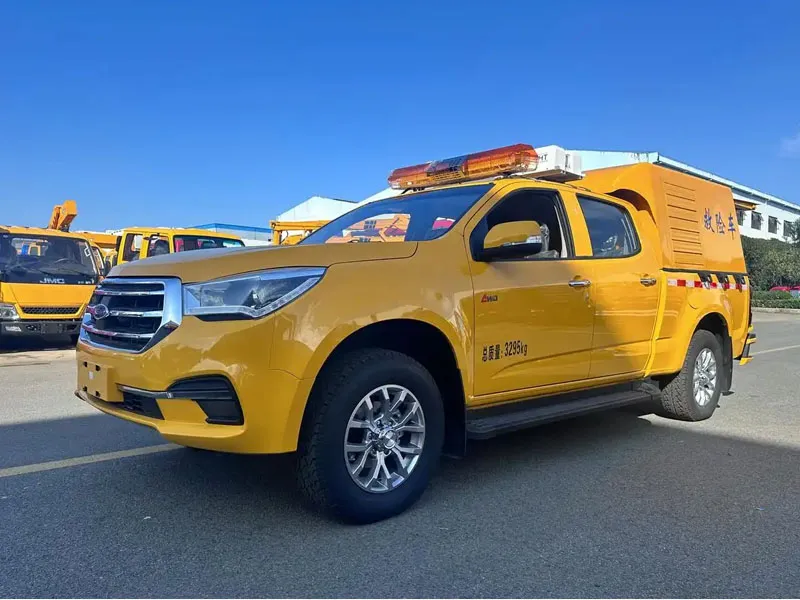

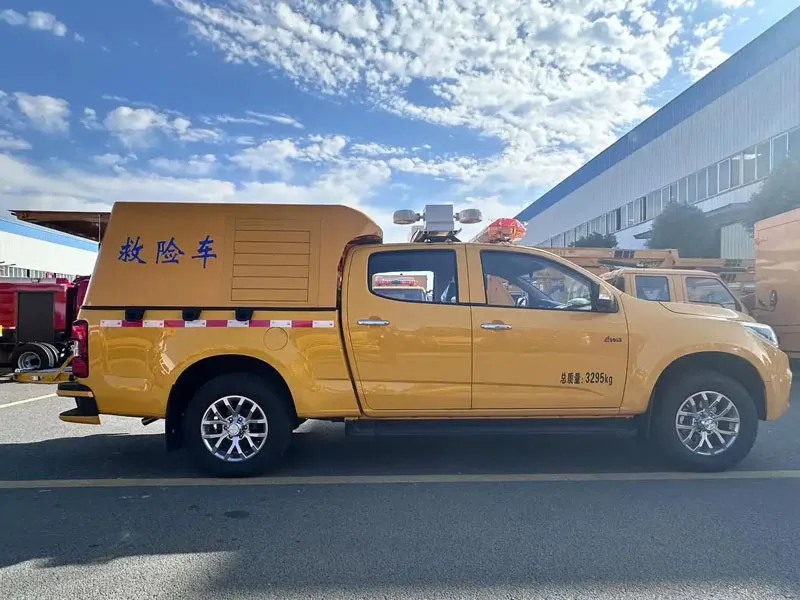

Pickup drainage truck is equipped with pumping gear, enabling rapid removal of stagnant water for emergency flood relief on narrow urban roads.
Parameter Category | Specification |
Vehicle Chassis | Isuzu Pickup Chassis, Model: QL1030CZHW2; Double-row Cab; National VI Emission Standard; 4WD Manual Transmission; Engine Power: 105KW; Displacement: 2999ml; Wheelbase: 3406mm; Tire: 245/70R17LT; Original factory air conditioner, hydraulic power steering, ABS, on-board tools |

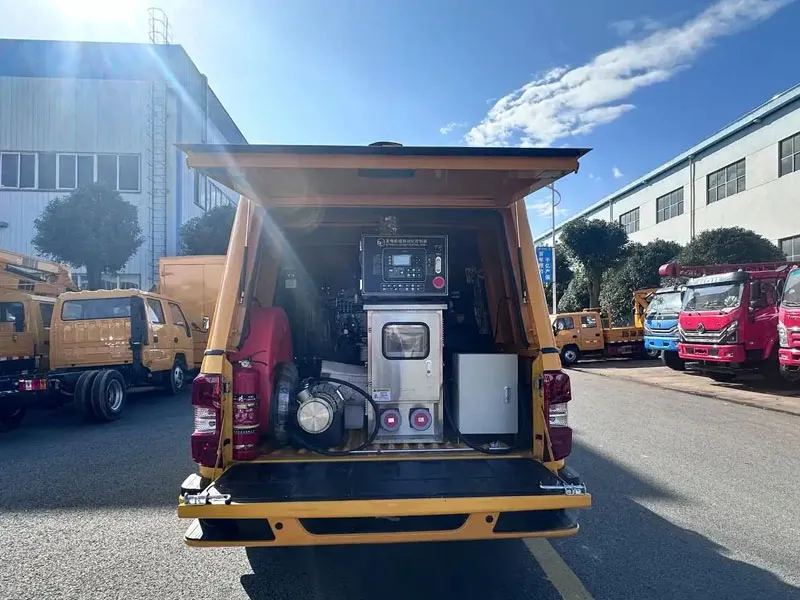

Generator Set | Yuchai Brushless Generator Set (National III); Rated Power: 30KW (supports full-load continuous safe operation of water pump); Rated Frequency: 50HZ; Rated Voltage: 220/400V; Speed Regulation: Electronic Speed Regulation; Equipped with starting battery and battery main switch; Base fuel tank capacity supports 8-hour full-load operation (easy refueling); Control system displays water temperature, oil pressure, speed, frequency, voltage, current, power, etc., with one-click intelligence |
Grounding Device | Grounding pole and grounding cable (connect to dedicated grounding terminal in carriage, easy connection); Leakage protection for electrical equipment; Low-voltage grounding wire (15mm², 10m long) with detachable grounding pin (diameter ≥10mm) for safe operation |
Ultra-light Portable Submersible Pump | 1 unit; Flow Rate: 500m³/h; Head: 10m; Power: 22KW; Weight ≤35KG; Equipped with 20m cable and quick connectors; Protection Class: IP67 |
Portable Pump Control Cabinet | Ultra-light variable frequency control cabinet per pump; Elegant appearance, lightweight; High-quality internal electrical components; Easy operation; Adjustable flow rate; Movable type |
Submersible Pump Floating Ring | 1 polyurethane high-strength floating ring per pump; One-piece molding; With bayonet lifting ring (connects to soft fixed sling); Load Capacity: 60KG; Provides protection for pump in deep-water operation |
Drainage Hose | 40m hose per pump (20m/section); Diameter: DN200mm; Material: Polyester filament woven (inner/outer coated with wear-resistant resin); Wear-resistant, pressure-resistant, puncture-proof; Foldable & rollable; Quick connector connection (easy operation) |
Long-row Warning Light | Yellow engineering long-row warning light installed on top of cab; Equipped with megaphone |
Fire Protection | 2 portable dry powder fire extinguishers; Placed in easily accessible location on the vehicle |

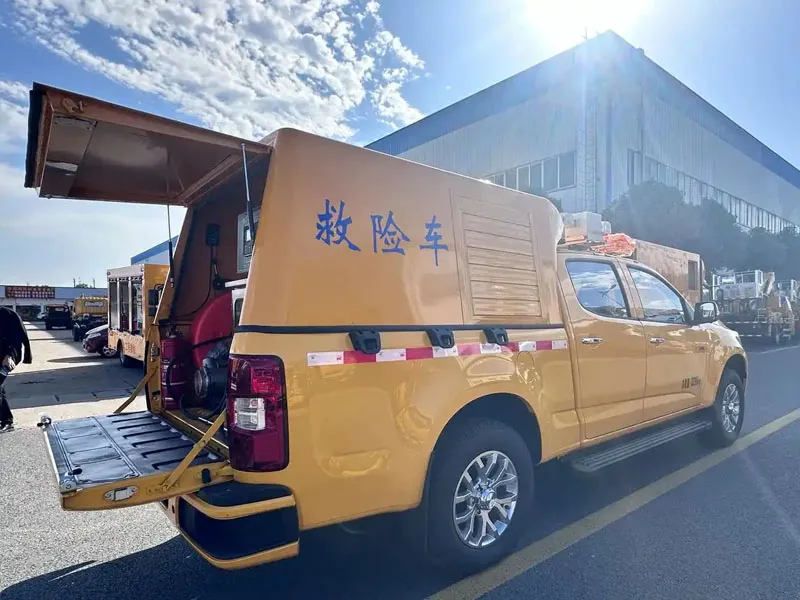

Cargo Box | Integrated fully enclosed structure; Fireproof, flame-retardant, rainproof, dustproof, rustproof, shockproof (long-term anti-seismic); High-strength outer layer; Circular muffling function; Reasonable design for generator heat dissipation, circuit and electrical control system (meets long-term continuous operation requirements) |
