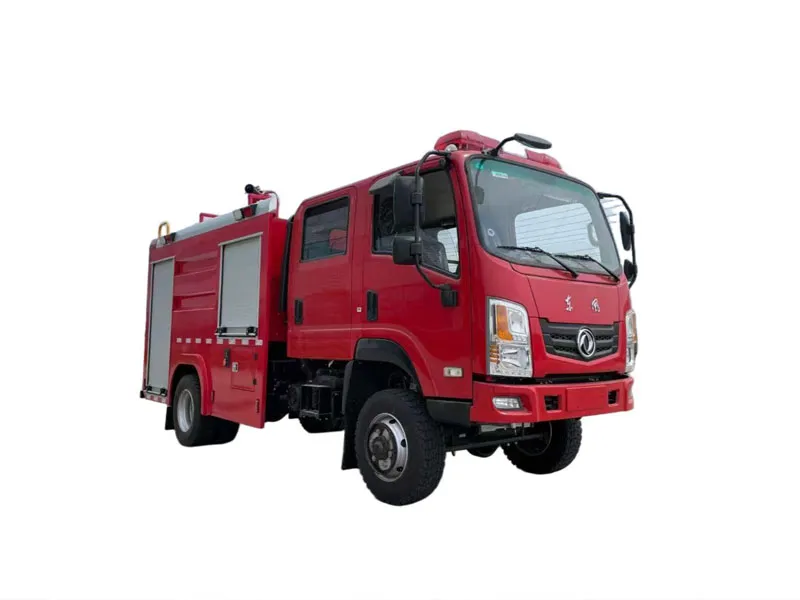

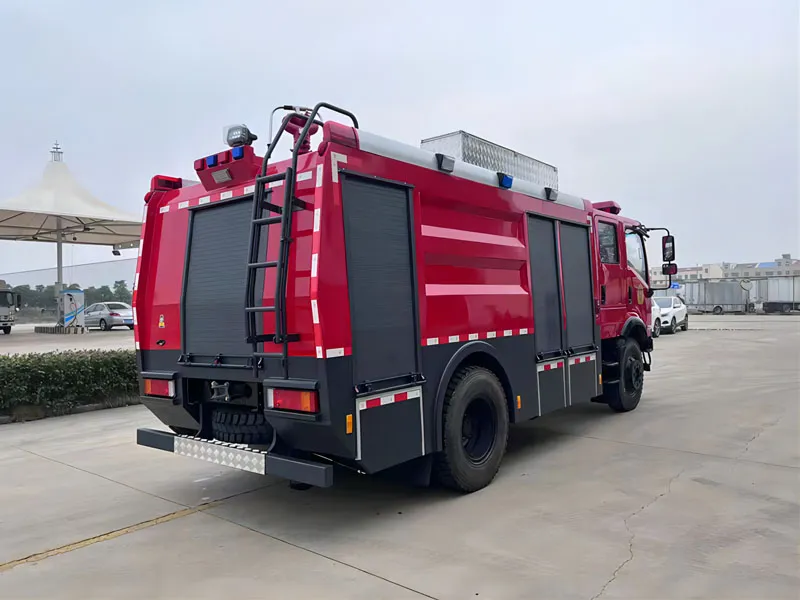

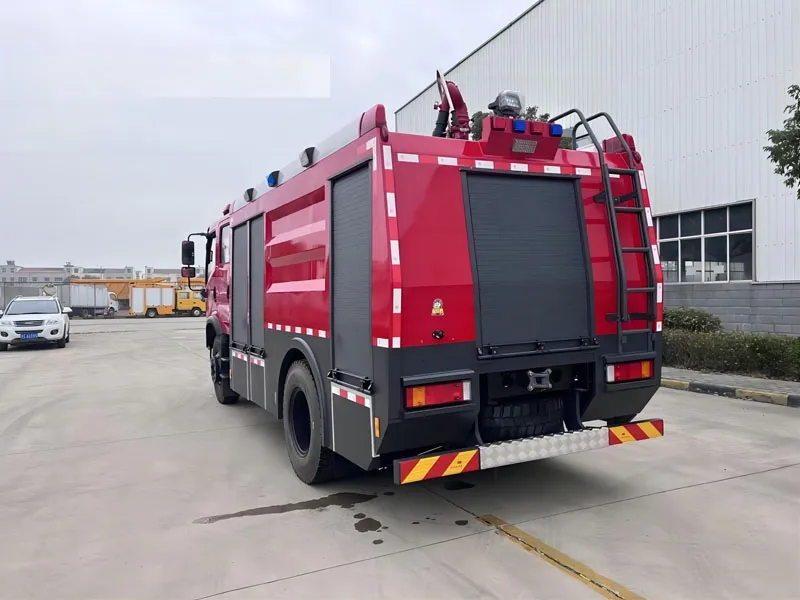

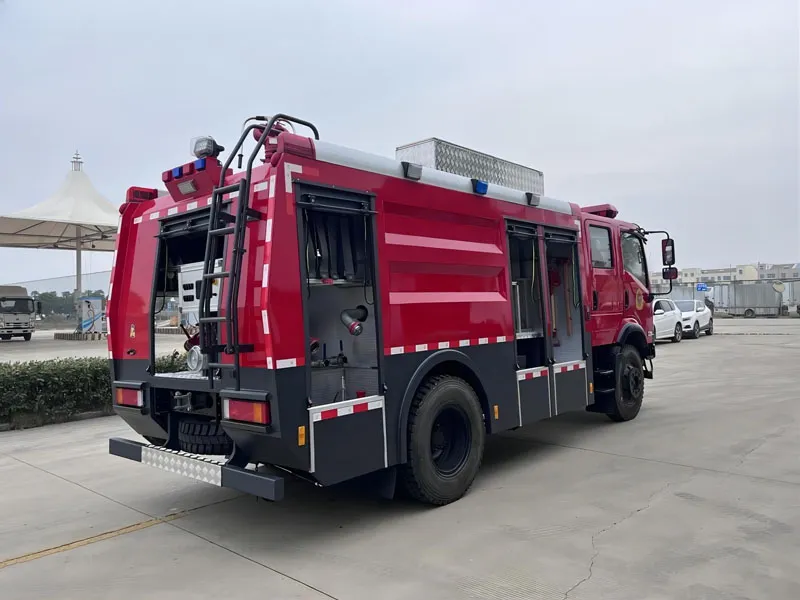

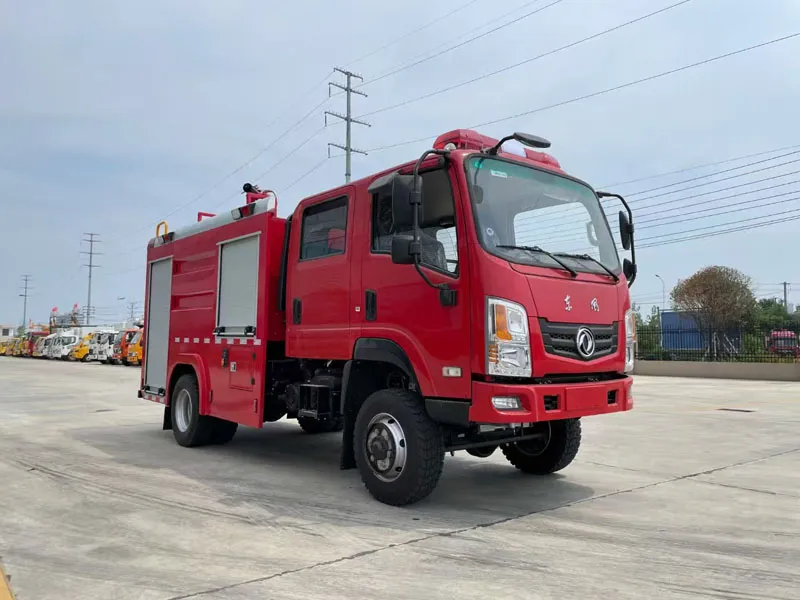

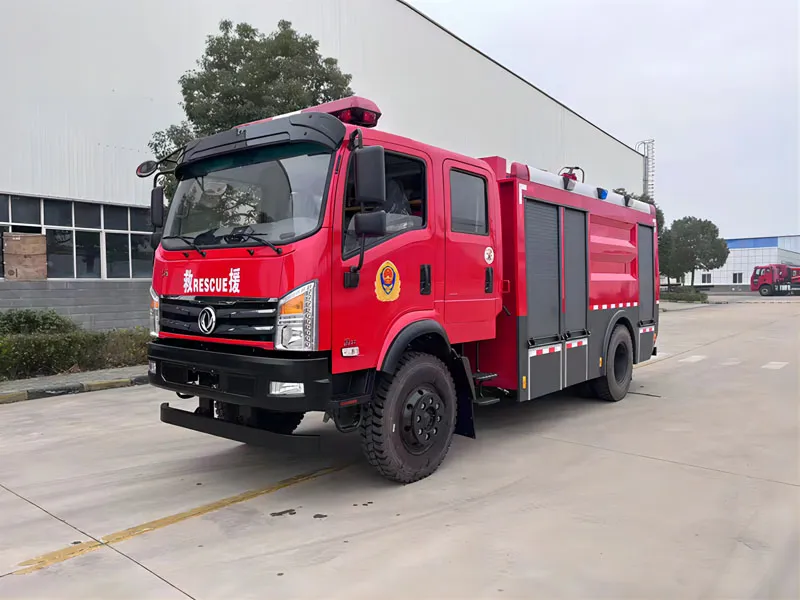

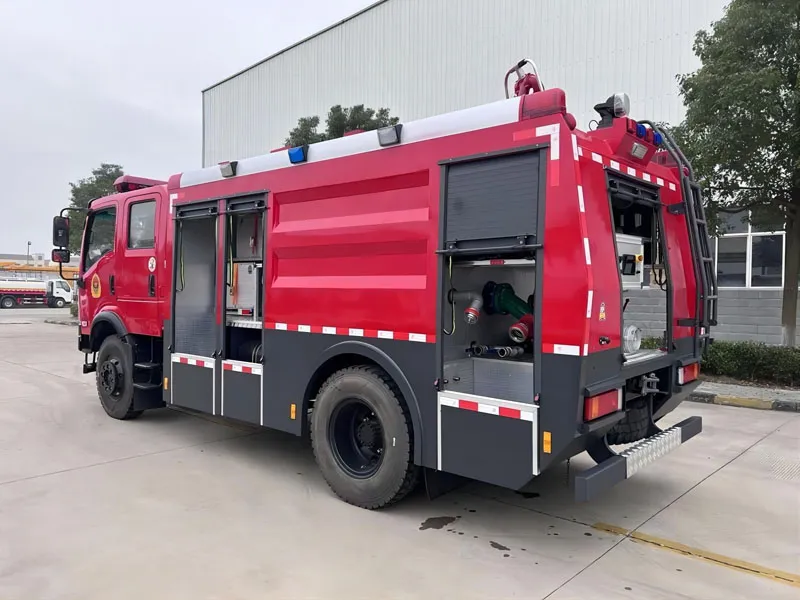

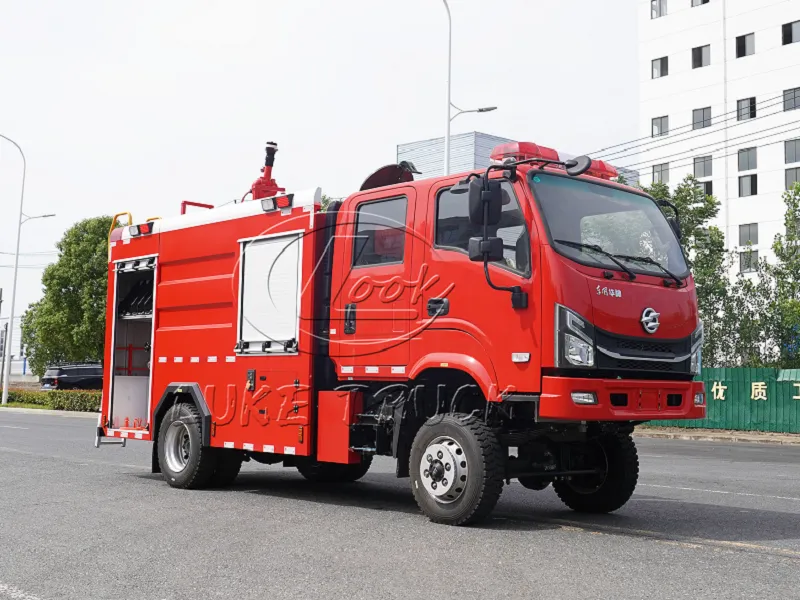

The Dongfeng fire truck features 4×4 all-wheel drive, a 5,000 L water-foam tank with adjustable ratio, a high-pressure pump, and a long-range monitor, making it reliable for rural, industrial, and remote-area firefighting.
Category | Parameters |
Basic Info | Product Name: Dongfeng Huashen 4×4 5000L Fire Truck Model: EQ5160GXFHF50 (Customizable) Application: Off-road firefighting in rural areas, mountainous regions, mines, forest zones, and remote industrial sites |
Chassis | Chassis Brand: Dongfeng Huashen Drive Form: 4×4 (all-wheel drive, off-road capable) Engine Options: - Yuchai YC6J180-52 (180hp/132kW, Euro 5) - Yuchai YC6J160-42 (160hp/118kW, Euro 4) - Dongfeng Cummins ISDe180 30 (180hp/132kW, Euro 3) - Dongfeng EQB160-20 (160hp/118kW, Euro 2) Transmission: 6-speed manual (DF6S650) Wheelbase: 3800mm Tires: 8.25R20 16PR off-road tubeless (6 pcs + 1 spare) |
Tank System | Total Capacity: 5000L (split into water tank + foam tank, customizable ratio) Ratio Adjustment: Water-foam mixing ratio adjustable (1:5 to 5:1) via manual/automatic proportioner Material: High-strength carbon steel (4-5mm thickness), optional 304 stainless steel (anti-corrosion) Structure: Seamless welded with anti-sloshing baffles; Inspection hole: φ500mm quick-opening cover with rubber gasket |
Firefighting System | Fire Pump: CB5/50 (Flow: 50L/s @ 1.0MPa; Max Pressure: 1.4MPa; Suction lift: ≥7m) Fire Monitor: PL32 (Max Flow: 32L/s; Horizontal range: ≥60m; Vertical range: ≥28m; 360° rotation, -10°~+75° elevation) Foam Proportioner: Adjustable (3%-8% mixing ratio), integrated with pump system Pipeline: Galvanized steel (φ80mm main pipe, φ65mm branches) with anti-rust coating Hoses: 3×20m φ65mm high-pressure hoses (Storz quick connectors); 1×25m φ80mm hose Nozzles: 2×φ19mm straight jet nozzles; 1×φ22mm fog nozzle (cooling/smothering) |
Performance | Max Speed: ≥85km/h Climbing Ability: ≥35% (off-road) Min Turning Radius: ≤8.0m Fuel Tank Capacity: 200L (diesel) Operating Temperature: -25°C ~ +55°C Ground Clearance: ≥280mm |
Dimensions & Weight | Overall Length: 7200mm Overall Width: 2480mm Overall Height: 3300mm Gross Vehicle Weight (GVW): 16000kg Curb Weight: 8800kg Payload Capacity: 7200kg |
Safety & Accessories | Safety: ABS, reversing camera with 7" display + 4 rear sensors, 2×4kg ABC dry powder fire extinguishers Warning System: 24V LED emergency light bar (100W), 80W electronic siren, front/rear strobe lights (red/amber) Cabin: 2-seat with air conditioning, adjustable seats, anti-slip floor Tools: Stainless steel toolbox (600×450×400mm), 3m aluminum folding ladder, fire axe, hydraulic cutter (optional) |
Emission Standards | Compliant with Euro 2, Euro 3, Euro 4, or Euro 5 (configurable based on export region) |
Customization | Optional: 304 stainless steel tank, remote-controlled fire monitor, foam heater (for cold zones), larger pump (60L/s), GPS tracking system |
