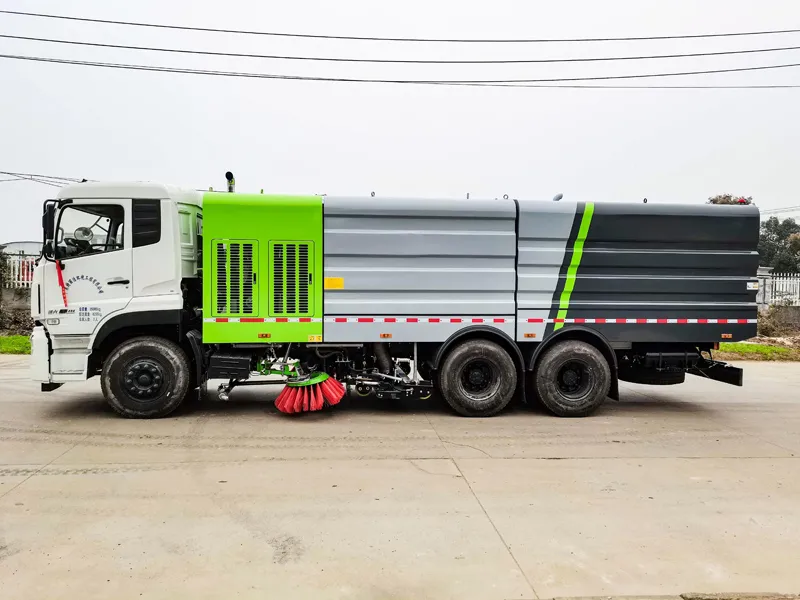

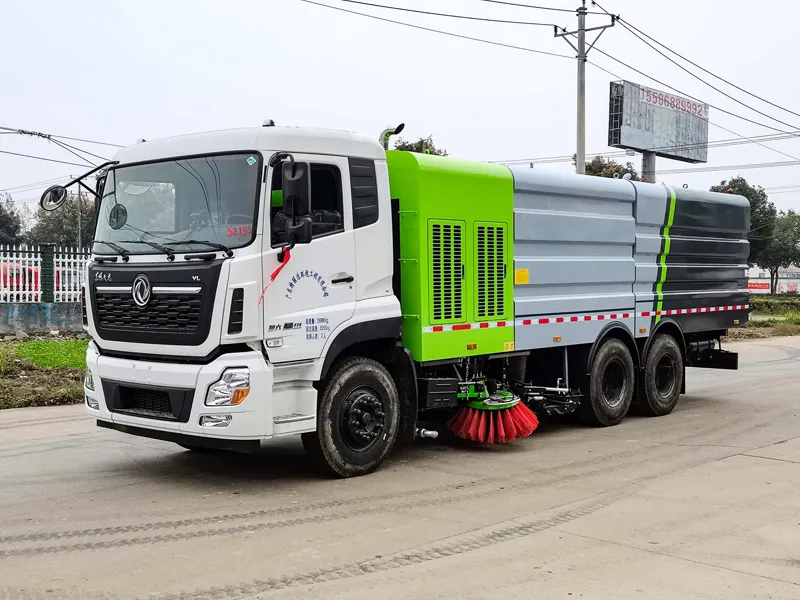

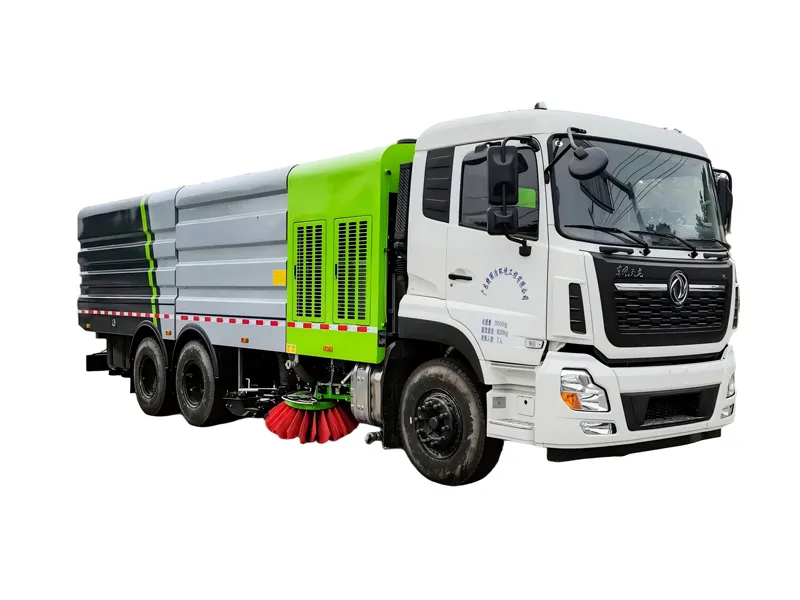

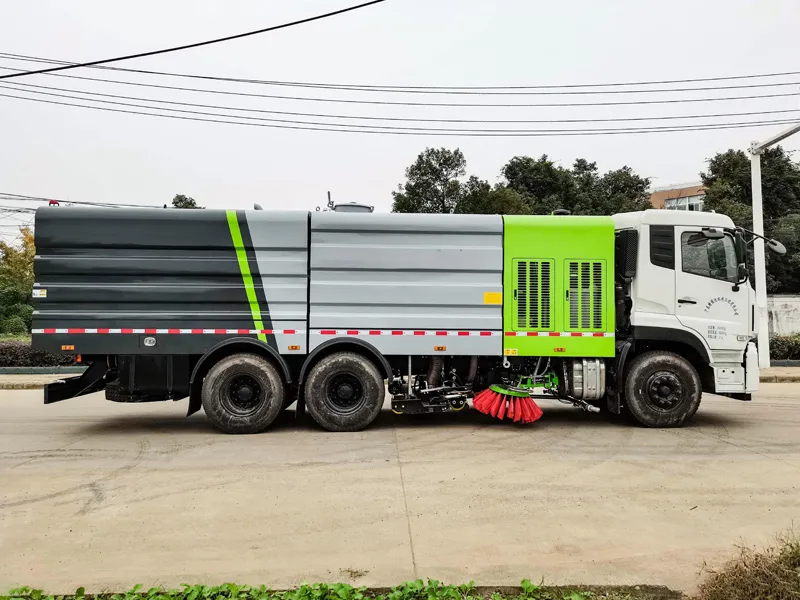

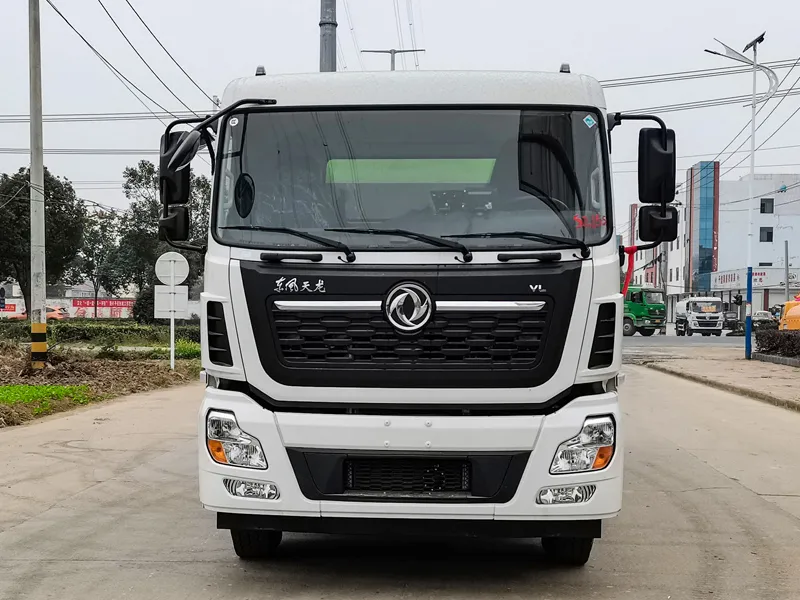

Dongfeng 25 ton road sweeper truck is designed for efficient debris removal, featuring a high-capacity refuse hopper, making it ideal for comprehensive and heavy-duty road maintenance.
| GVW | Driving Type 6x4 | ||||
Model | Luke | ||||
Cab | D310 standard flat roof a row and a half deluxe cab(with sleeping berth), air conditioner, electric glass, hydraulic mechanical flip, channel type instrument panel, central lock, allowable 3 passengers | ||||
Engine(Hp) | 260 | ||||
Power(Kw) | 191 | ||||
Wheelbase | 5350+1350 | ||||
Front/Rear Suspension | 1480/2320 | ||||
Steering | Power steering | ||||
Approach/departure angle | 18/12 | ||||
Wheels & tire | 10.00R20 | ||||
Tire number | 10+1 | ||||
Tank Dimensions(mm) | |||||
Cubage (m3) | Water tank 12, dust tank 10 | ||||
RHD or LHD | optional | ||||
Overall Dimensions(mm) | 10700×2500×3400 | ||||
Curb weight (Kg) | 17500 | ||||
Engine | Model | C260 33 | |||
Horsepower | 260 | ||||
Maximum output Kw | 191 | ||||
Maximum torque N.m | 1090 | ||||
Type | 6 cylinders, in-line, 4-stroke, turbo inter-cooling, diesel engine | ||||
Displacement | 8.300L | ||||
Cummins brand, Euro 3 | |||||
Driving passenger | 2, 3 | ||||
Transmission | 9 speed forward and one reverse, manual | ||||
Front Axle | 5T | ||||
Rear Axle | 10T X2 | ||||
Brake System | air brake, exhaust brake | ||||
Color and LOGO | customized | ||||
Electric system | 24V | ||||
Sweeper and washing | Water tank | 12m3 | Dust tank | 10m3 | |
Sweeping width | 3.5m | Cleaning efficiency | 98% | ||
Unloading angle | 45° | Maximum suction particle | 120mm | ||
Max cleaning ability | 70000 m2/h | Sweeping speed | 3-25km/h | ||
Standard configuration | 2 sweeping brushes, vacuum tank, water tank with anti-overflow or low water level alarm, German high pressure water pump, front and rear road flushing system, garbage tank self cleaning system. auxiliary engine, Siemens control switch, American sensor, hydraulic system and electrical system, reversing and cleaning state indoor monitor led arrow lamb and 18m high pressure cleaning reel and so on. | ||||
Delivery date | Within 30 days after receipt advance | ||||
Packing | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||||
