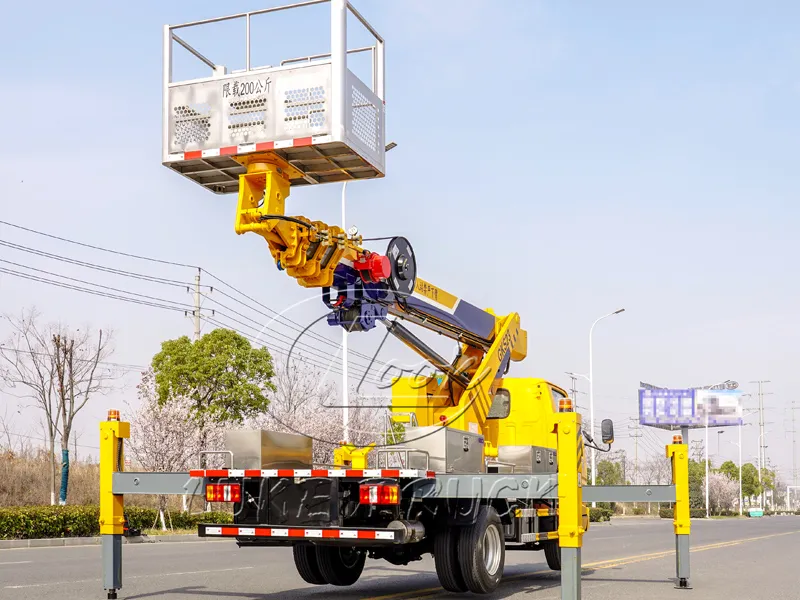

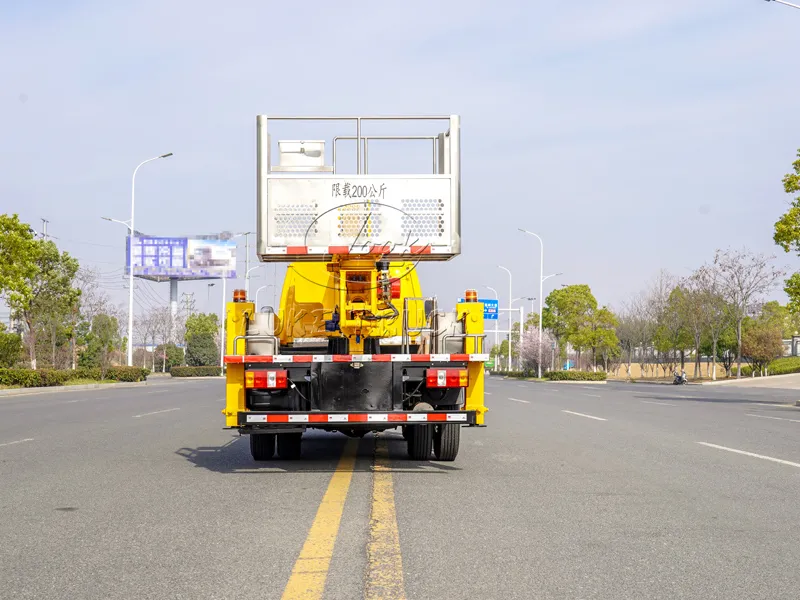

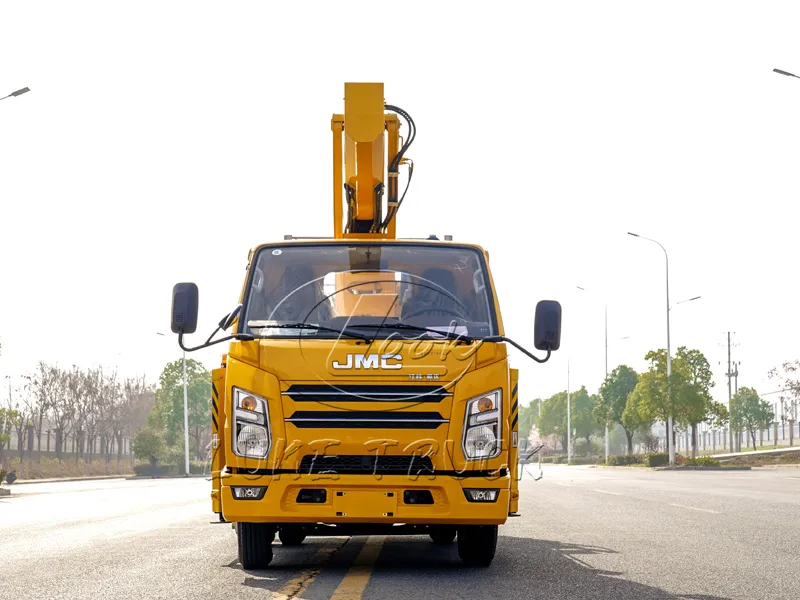

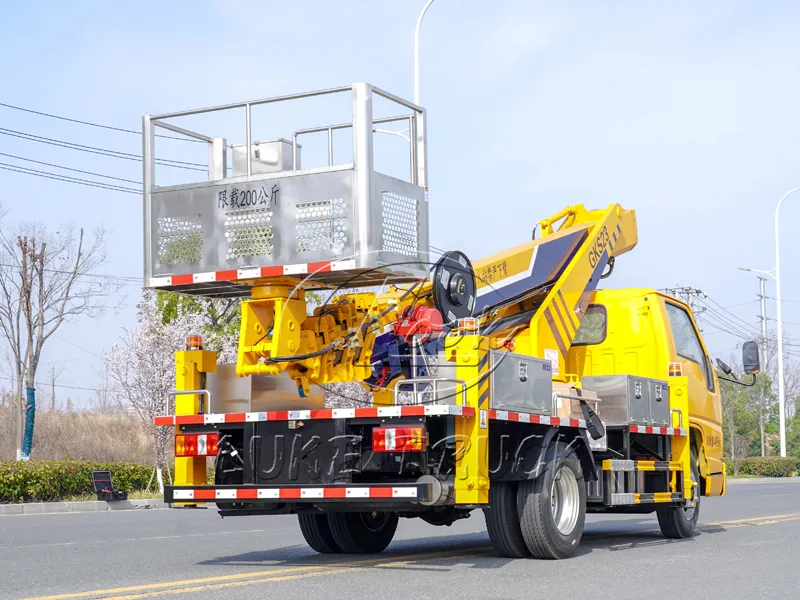

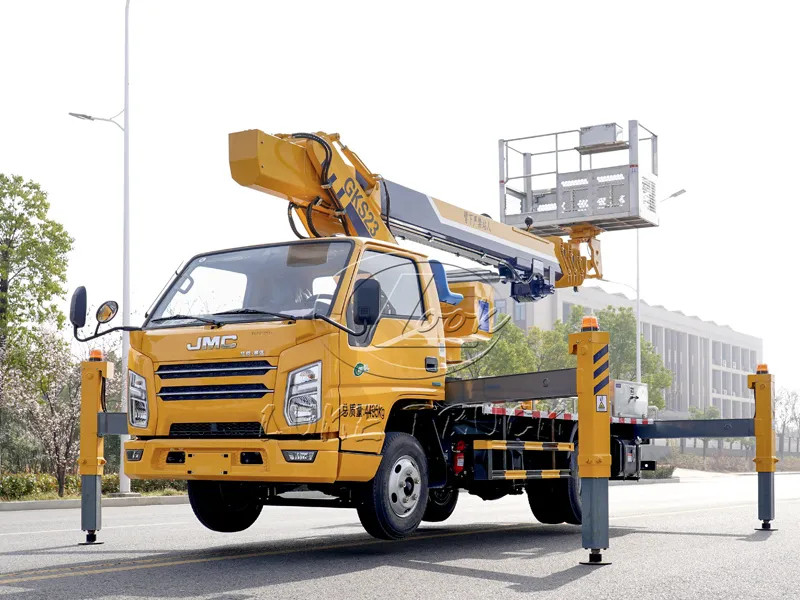

Jiangling Shunda 23-meter Aerial Working Platform Truck features an electro-hydraulic proportional control system for stepless speed adjustment, along with multiple safety configurations including a hydraulic automatic leveling system and an automatic interlock device for vehicle entry/exit.
| [Technical Parameters of Jiangling Shunda 23m Aerial Working Platform Truck] | |||
| Product trademark | Casal card | Announcement batch | 399 |
| product name | Aerial Working Platform Truck | product model | LOOK5041JGKJ6 |
| gross mass （Kg） | 4495 | outline dimension （mm） | 5998×2050×3100 |
| Number of passengers in the cab (per person) | 2 | curb weight （Kg） | 4365 |
| Approach Angle/Departure Angle (°) | 20/14 | Front/rear suspension (mm) | 1075/1563 |
| axle weight （Kg） | 1895/2600 | Maximum speed (Km/h) | 100 |
| 1. Optional chassis-mounted cab, optional hoist basket configuration, and optional support leg/control box design. 2. Side and rear protective materials are Q235 steel, with bolted connections for side guards and welded connections for rear guards. The rear guard has a cross-sectional dimension of 50×100mm, with a ground clearance of 400mm at the lower edge. 4. The vehicle is equipped with specialized devices including an operating arm and lifting platform, designed for high-altitude operations such as power line repairs, communication system maintenance, and streetlight installations. 5. Optional upper mounting structure design. 6. Optional rear lifting platform configuration. Optional armrest styles, optional work arm turntable designs, and optional winch systems. Optional aluminum alloy side guards (material: 6061-T5) with bolted connections. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | JX1041TG26 | Chassis name | truck chassis |
| brand name | Jiangling brand | manufacturing enterprise | Jiangling Automobile Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 3360 | tyre size | 7.00R16LT 10PR |
| Number of leaf springs | 7/4+6 | front gauge （mm） | 1385 |
| fuel type | diesel oil | rear track （mm） | 1425 |
| standard of emission | GB17691-2018 National VI | ||
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| JX493ZLQ6F | Jiangling Automobile Co., Ltd. | 2499 | 95 |
With their reliable performance and flexible operation, Jiangling Aerial Working Platform Trucks are widely used in various high-altitude operations. Here are the key features of some common models:

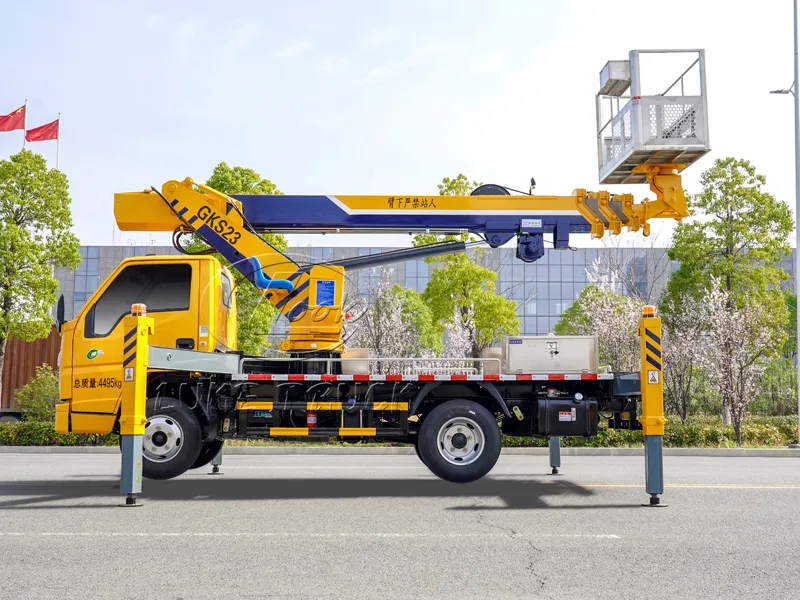

The main components: ① The working arm consists of an upper folding arm, a main arm, and a balancing mechanism. The main arm forms a maximum horizontal angle of 70° with the upper folding arm, which in turn forms a maximum angle of 140° with the main arm. This operating system supports dual-position operation on both the working bucket and the turntable. The four legs are individually adjustable, enabling the entire vehicle to level on uneven roads.

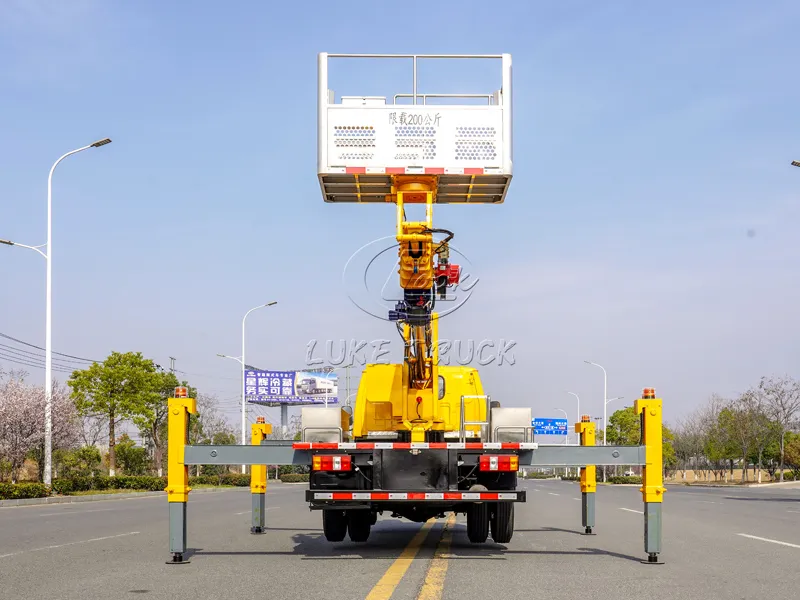

② Equipped with a four-section hexagonal working arm that extends/sinks synchronously, the turntable can be operated manually or remotely, with 360-degree rotation capability. The four hydraulic legs adopt a front V-back H configuration, adjustable individually or in linkage, and the working bucket has a rated load capacity of 200kg.
③ Equipped with an electro-hydraulic proportional control system for stepless speed regulation, along with multiple safety features including a hydraulic automatic leveling system and automatic interlock devices for boarding and alighting.
