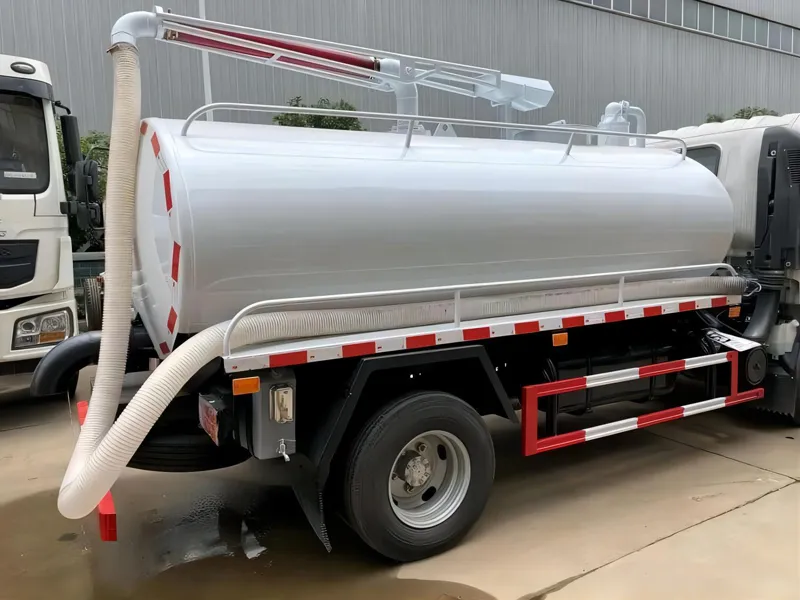

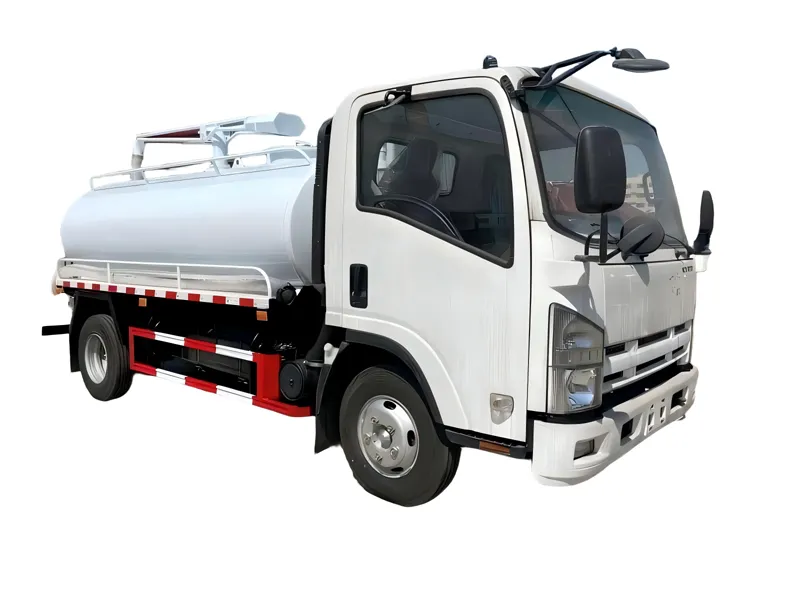

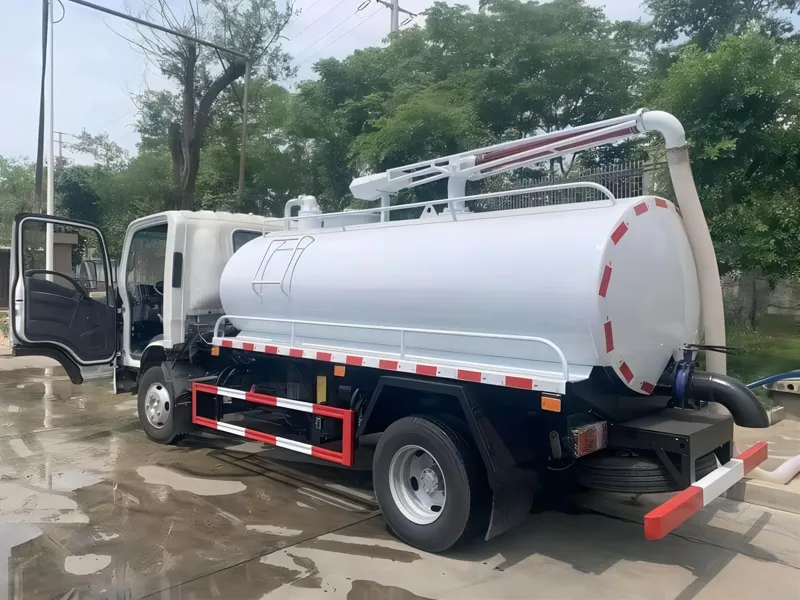

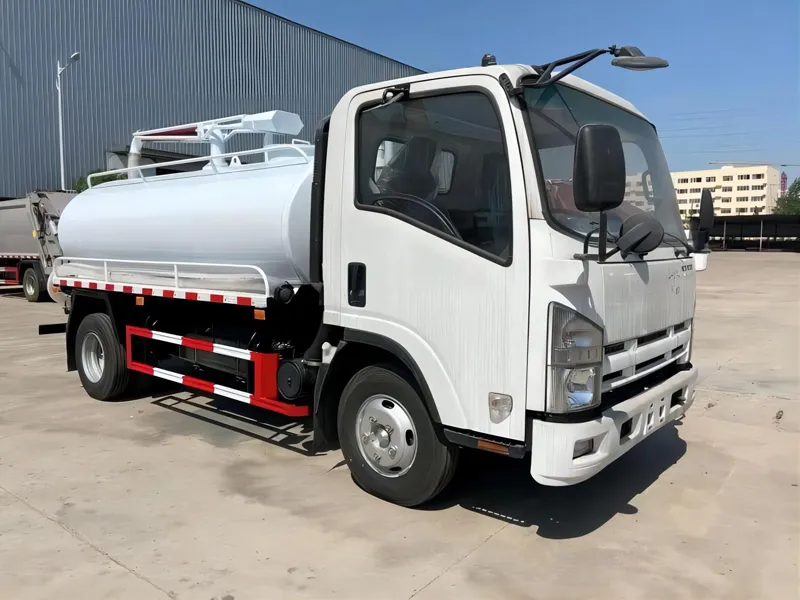

ISUZU 7 ton fecal suction truck features a reliable vacuum system, high capacity, and durable design, delivering efficient performance for urban and rural sanitation tasks.
| GVW7360kg | Driving Type 4x2 | |
Model | LK5070GXEQ | |
Cab | Isuzu 100P single row cab, tilted, air con | |
Engine(Hp) | 98 | |
Power(Kw) | 72 | |
Wheelbase | 3360 | |
Front/Rear Suspension | 1015/1620 | |
Steering | Power steering | |
Approach/departure angle | 24/16 | |
Wheels & tire | 7.00R16 | |
Tire number | 6+1 | |
Tank capacity(m3) | 4/5 | |
RHD or LHD | LHD | |
Overall Dimensions(mm) | 5990×2000×2650 | |
Curb weight (Kg) | 3660 | |
Engine | Model | 4KH1CN5LS |
Horsepower | 98 | |
Maximum output Kw | 72 | |
Maximum torque N.m | 220 | |
Type | 4 cylinders, in-line, 4-stroke, diesel engine | |
Displacement | 2.999L | |
Isuzu brand, Euro 5 | ||
Driving passenger | 2 | |
Transmission | Isuzu MSB 5 speed forward and one reverse, manual | |
Front Axle | 2T | |
Rear Axle | 4T | |
Brake System | oil brake | |
Color and LOGO | customized | |
Electric system | 24V | |

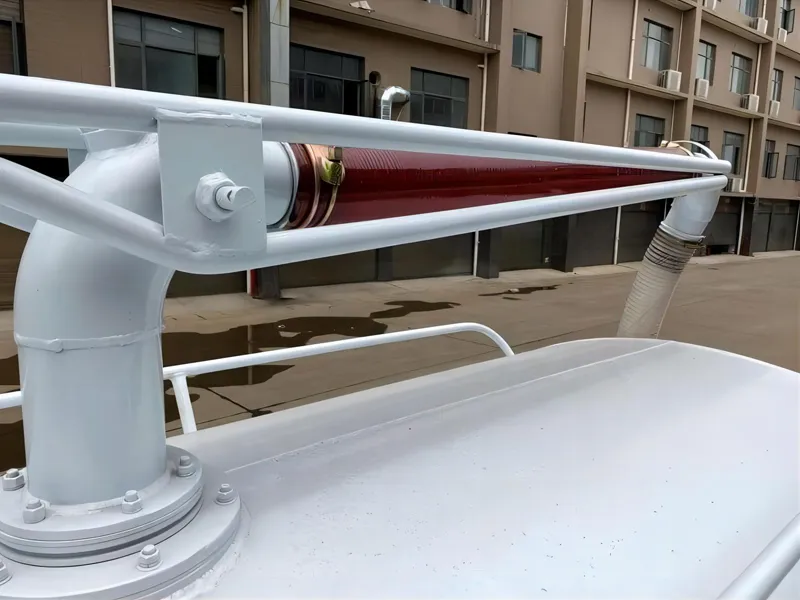

Standard configuration | carbon steel fecal tank, 6 meters fecal suction pipe, rotating arm, domestic vacuum pump, oil and gas separator, water vapor separator, anti overflow valve, observation tube, gravity flow valve | |
Optional configuration | Watering system, liquid full alarm device | |
Delivery date | Within 40 days after receipt advance | |
Packing | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |
