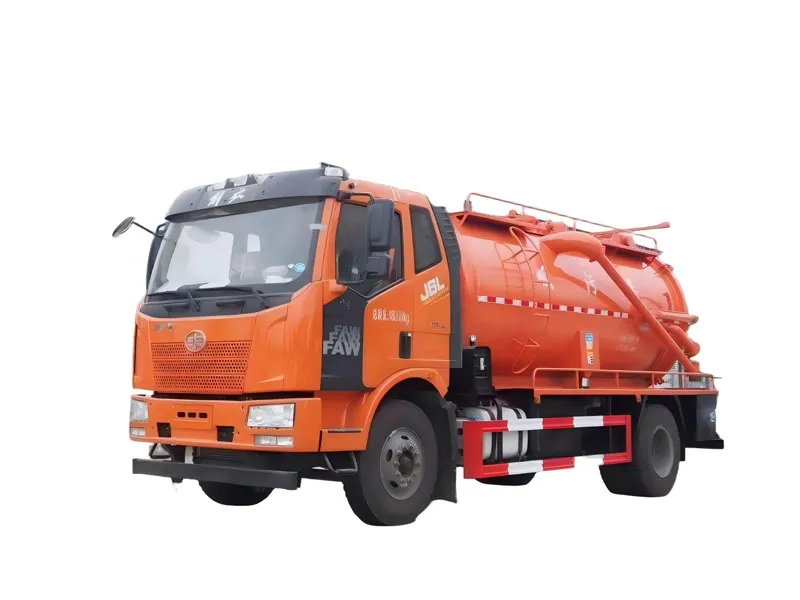

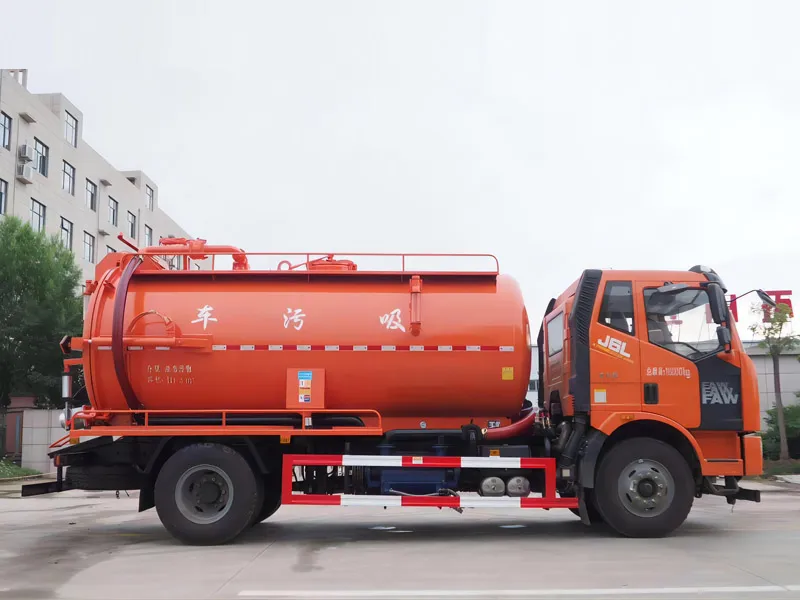

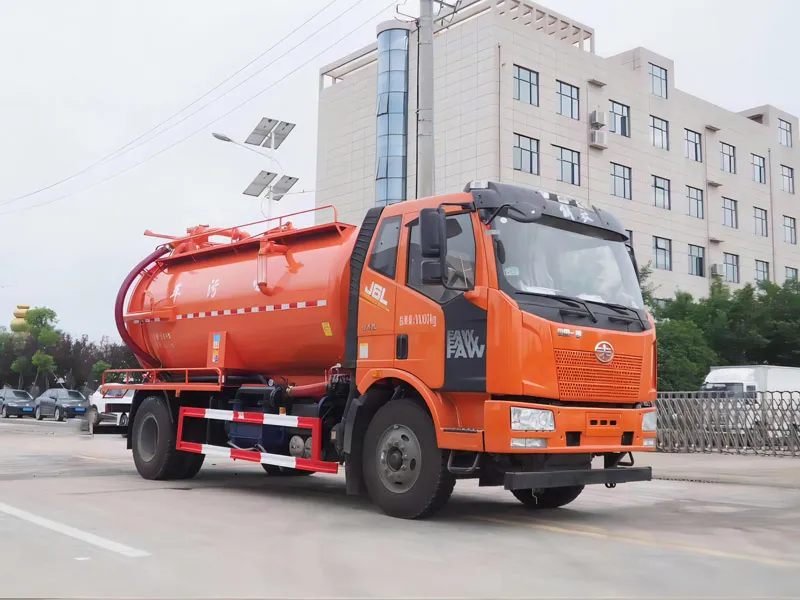

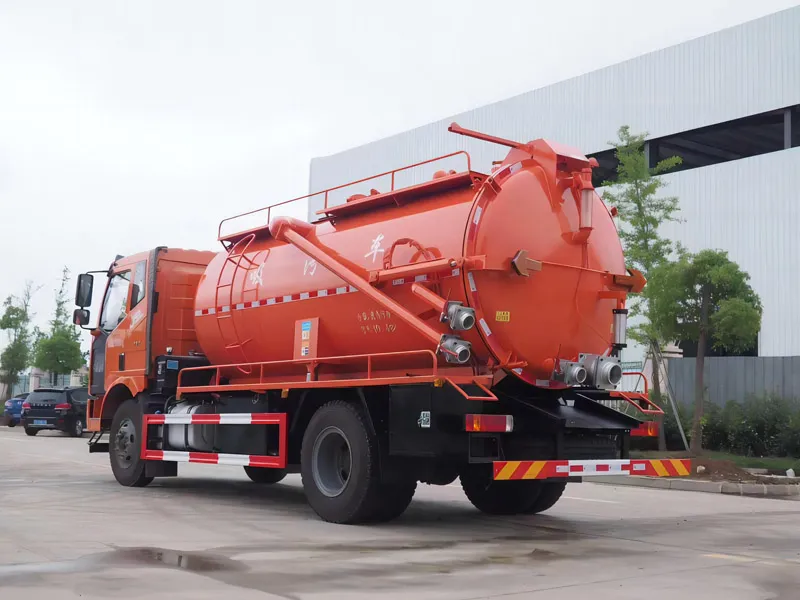

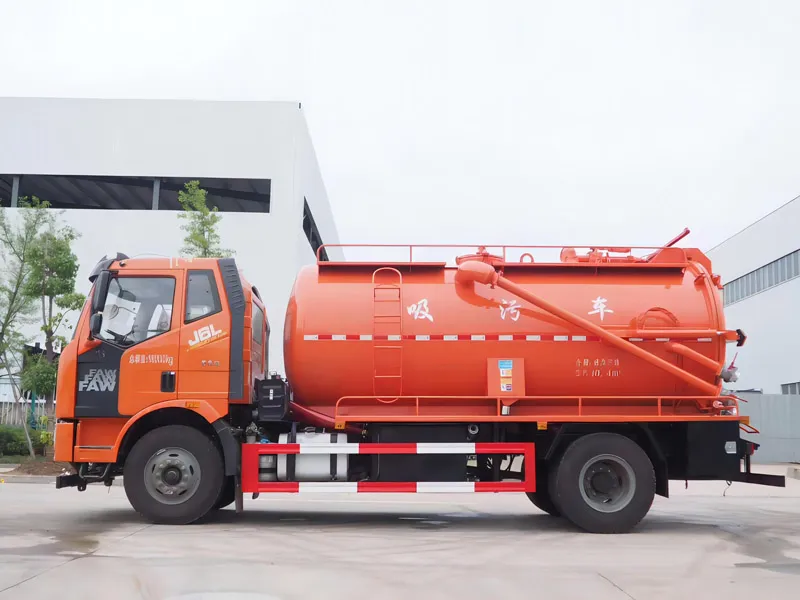

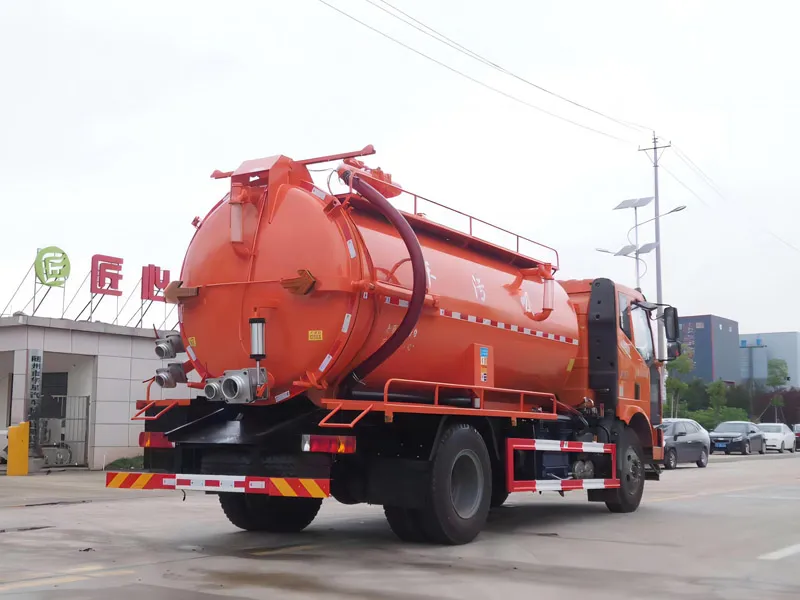

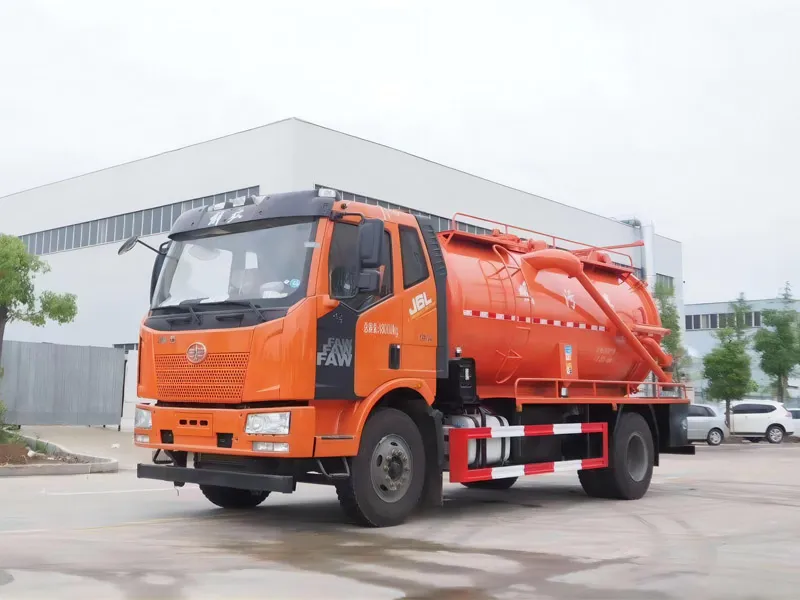

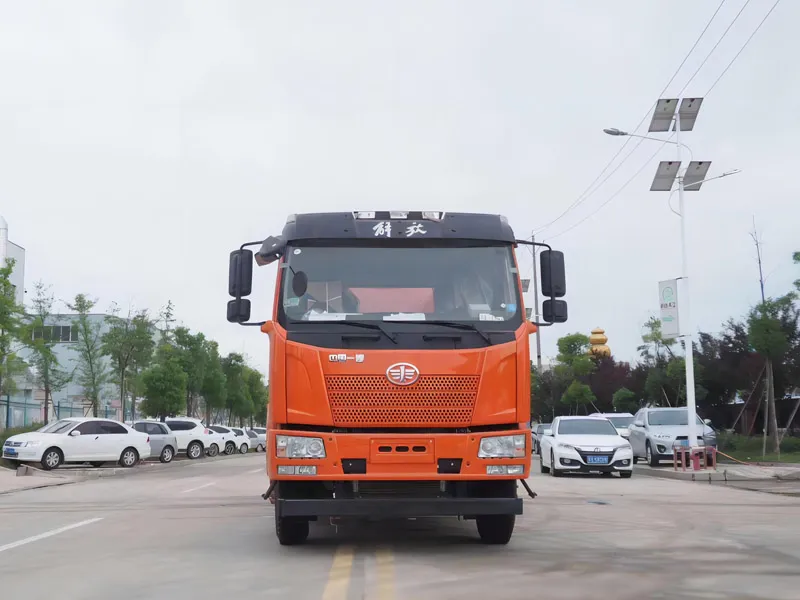

FAW 10 ton sewage suction truck features an efficient vacuum system, making it ideal for municipal sewage collection and on-site sanitation tasks.
FAW J6L 10T Sewage Suction Truck Specifications
Category | Parameter | Specification |
Basic Information | Brand | FAW (First Automotive Works) |
Model | FAW J6L 10T Sewage Suction Truck | |
Vehicle Type | Sewage suction & transportation special vehicle | |
Drive Form | 4×2 (2 driving wheels) | |
Rated Loading Capacity | 10,000 kg | |
Purpose | Collection, transportation and discharge of domestic sewage, industrial wastewater, sludge, and other liquid wastes | |
Application | Municipal sanitation, environmental protection, chemical industry, property management | |
Chassis Parameters | Chassis Model | FAW J6L |
Cab | Single row/extended cab with air conditioning, adjustable steering wheel | |
Engine Model | FAW CA6DLD-22E6 (Euro VI emission standard) | |
Engine Type | Inline 6-cylinder, turbocharged, intercooled diesel engine | |
Maximum Power | 162 kW (220 HP) at 2300 rpm | |
Maximum Torque | 850 N·m at 1200-1600 rpm | |
Transmission | 6-speed manual transmission (FAW CA6T138) | |
Clutch | Dry single-plate clutch with hydraulic assistance | |
Axle Configuration | Front axle 5.5T, rear axle 10T | |
Wheelbase | 4500 mm | |
Tire Specification | 275/80R22.5 18PR (6 tires + 1 spare tire) | |
Fuel Tank Capacity | 300 L (diesel) | |
Emission Standard | Euro VI (compliant with EU/US environmental regulations) | |
Upper Body Parameters | Tank Volume | 12-15 m³ (depending on specific configuration) |
Tank Material | High-strength Q345B carbon steel (5mm thick for main body, 6mm thick for head) | |
Tank Structure | Elliptical or cylindrical shape with anti-corrosion coating inside | |
Suction Pump Model | XD-40 vacuum pump (oil-sealed rotary vane type) | |
Pump Power | 45 kW | |
Maximum Vacuum Degree | ≥0.09 MPa | |
Suction Depth | ≥7 m (vertical) | |
Horizontal Suction Distance | ≥50 m | |
Suction Time | ≤5 minutes (for full tank) | |
Discharge Time | ≤3 minutes (for full tank) | |
Discharge Method | Rear discharge with hydraulic lifting (tilt angle ≥45°) | |
Hydraulic System | Double-acting hydraulic cylinder with high-pressure hose (working pressure: 16 MPa) | |
Control System | Manual + electric control (can operate both in cab and beside the tank) | |
Filtration System | Equipped with primary and secondary filters to prevent blockage | |
Performance & Dimensions | Gross Vehicle Weight (GVW) | 18,000 kg |
Curb Weight | 8,000 kg | |
Maximum Speed | 90 km/h | |
Minimum Turning Radius | ≤8.5 m | |
Overall Dimensions (L×W×H) | 7650 × 2500 × 3300 mm | |
Tank Dimensions (L×D) | 5200 × 1800 mm (approx.) | |
Minimum Ground Clearance | 280 mm | |
Standard Configuration | 1 set of high-pressure cleaning system (for tank self-cleaning) | |
10 m long suction hose (φ150 mm) with quick connector | ||
Rear working platform with guardrail | ||
LED working lights (front and rear) | ||
Reverse camera and radar | ||
Fire extinguisher (2 pcs) | ||
Toolbox with maintenance tools | ||
Warning signs and reflective strips (compliant with international safety standards) | ||
Note | Parameters can be customized according to customer requirements. For specific configurations and pricing, please contact our sales team. | |
