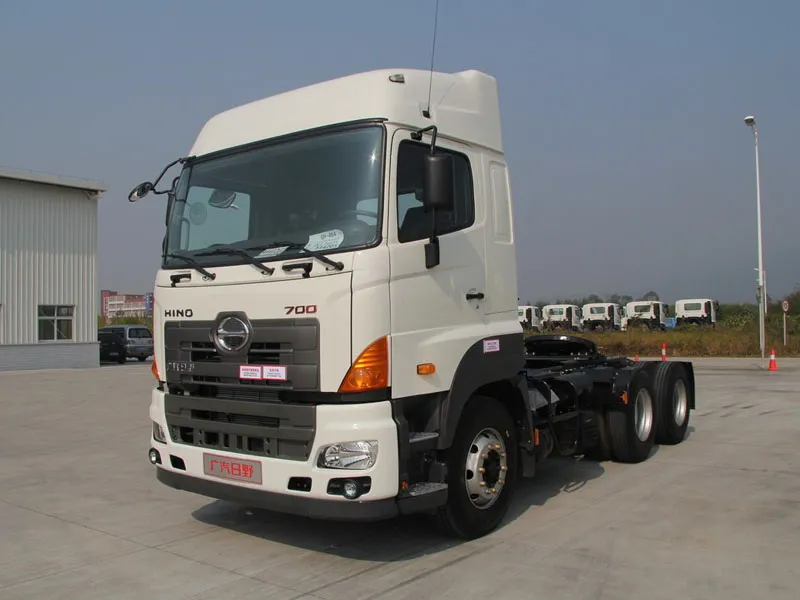

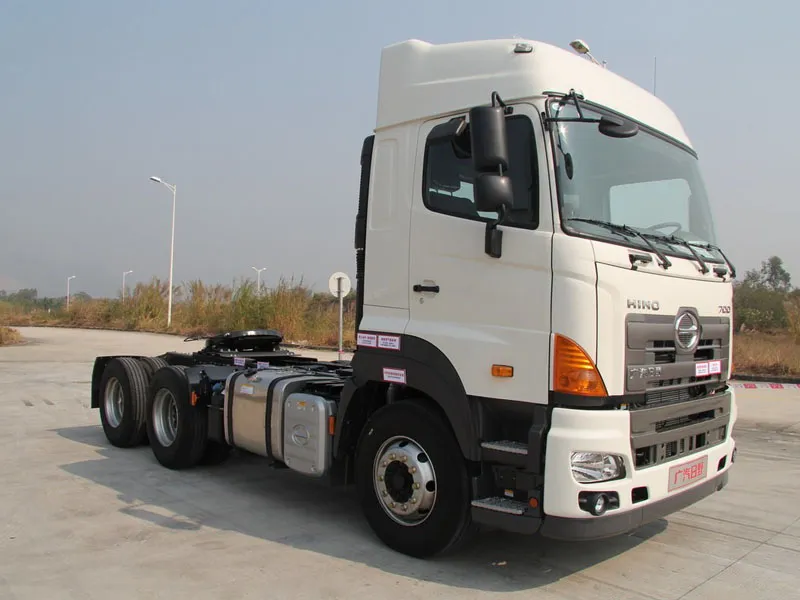

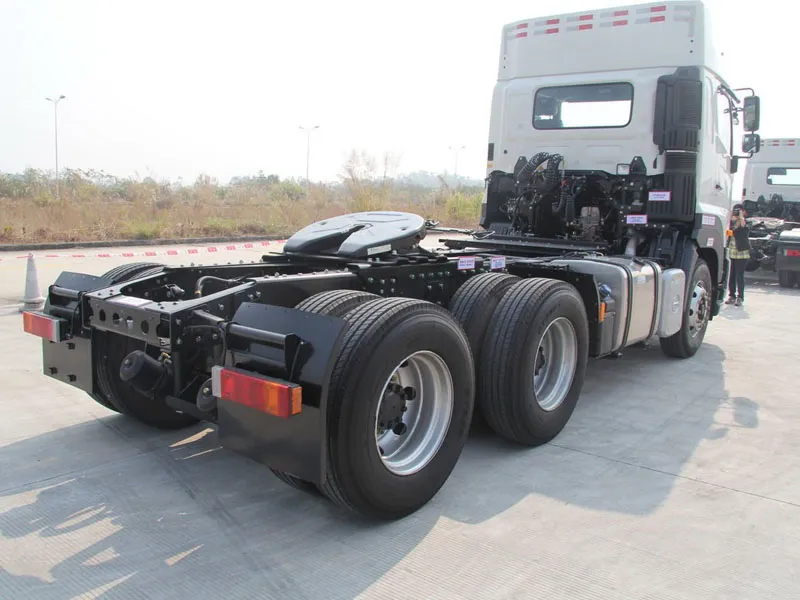

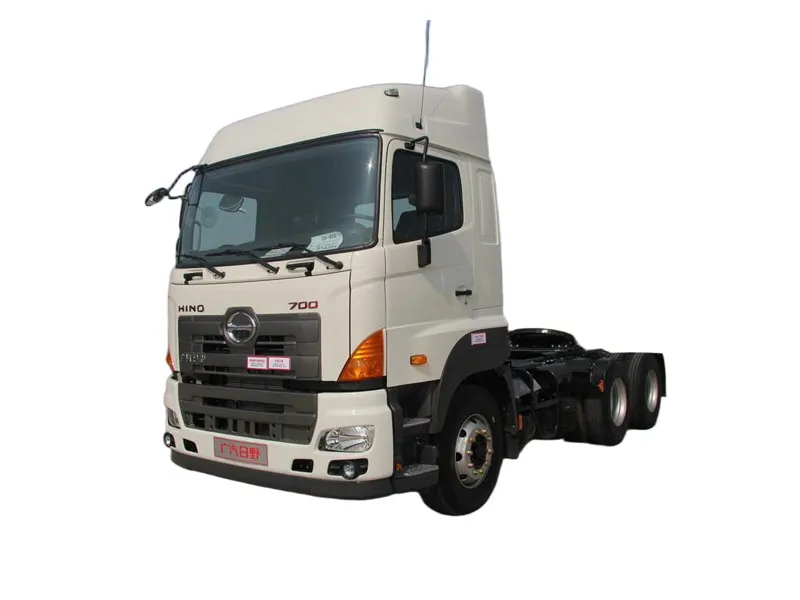

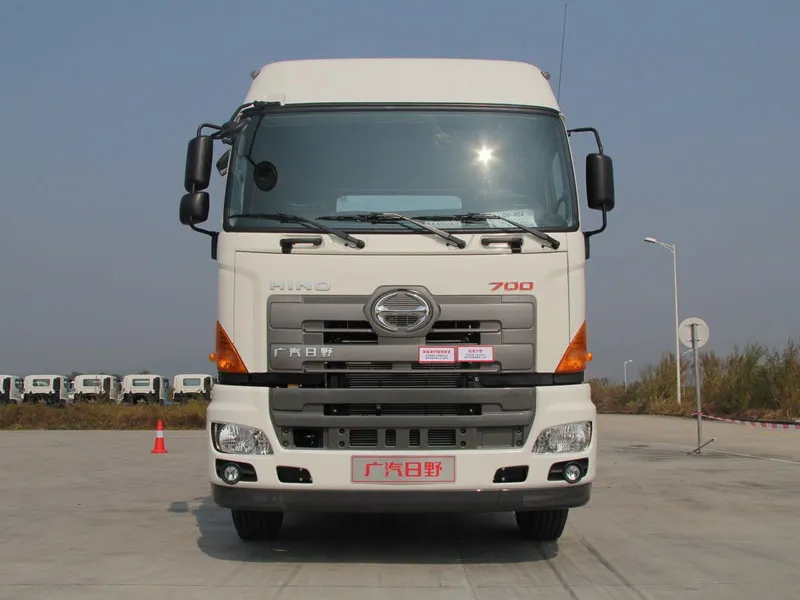

HINO 6×4 tractor head is a heavy-duty prime mover with robust power, designed to tow trailers reliably for logistics and bulk transport.
Category | Specifications |
Core Information | Brand: HINODrive Type: 6×4 (3-axle, rear dual axle drive) Cab Capacity: 2-3 persons Emission Standard: Euro 3 / Euro 4 |
Engine | Model 1: HINO A09C-VN (8.9L) - Power: 360 PS (265 kW) @ 1800 rpm - Torque: 160 kg·m @ 1100-1600 rpmModel 2: HINO E13C-BN (12.9L) - Power: 410 PS (302 kW) @ 1500-1800 rpm - Torque: 200 kg·m @ 1000-1400 rpm Model 3: Shanghai HINO P11C-UJ (10.5L) - Power: 350 HP (254 kW) @ 2100 rpm - Torque: 1460 N·m @ 1100 rpmFuel Type: Diesel Technology: Turbocharged, intercooled, electronic common rail |
Chassis & Transmission | Transmission: ZF 16-speed manual (16F+2R) / M009OD 9-speed manual (9F+1R) / HX07 7-speed manual (7F+1R) Clutch: Dry single-disc with hydraulic assist Axle: 3-axle (Front 1 + Rear 2) Wheelbase: 3400+1410 mm / 4650 mm / 5550 mm Suspension: Front - Parabolic leaf spring with dual-action shock absorbers; Rear - Multi-leaf spring Brakes: Dual-circuit full air brake, EBS+ABS+ASR; Engine retarder; Hill-start assist Tires: 11.00-20 / 11.00R20 / 12R22.5 (10 working + 1 spare) Fifth Wheel: 50# / 90# (Jost optional) |
Dimensions & Weight | Overall Length: 7100-8295 mm Width: 2490-2510 mmH eight: 3030-3520 mm Curb Weight: 8080-9400 kg Gross Vehicle Weight (GVW): 21500-25000 kg Front/Rear Axle Load: 7000 kg / 18000 kg |
Performance | Max Speed: 75-100 km/h Max Climbing Capacity: Tanθ 60% Minimum Turning Radius: 7500-8800 mm Fuel Tank Capacity: 210-380 L (aluminum alloy) Urea Tank Capacity: 28 L |
Safety & Driver Aids | Active Safety: PCS (Pre-Collision System), LDWS (Lane Departure Warning), ACC (Adaptive Cruise Control), VSC (Vehicle Stability Control) Passive Safety: LED headlamps (daytime running lights), immobilizer, anti-theft alarm Visibility: 4-camera surround view system |
Cab & Comfort | Features: Air conditioner, adjustable seats, power steering Optional: High-roof cabin, GPS, reverse camera, central locking |
Warranty & Service | Warranty: 12 months After-sales service: Available globally Documentation: English user manual |
