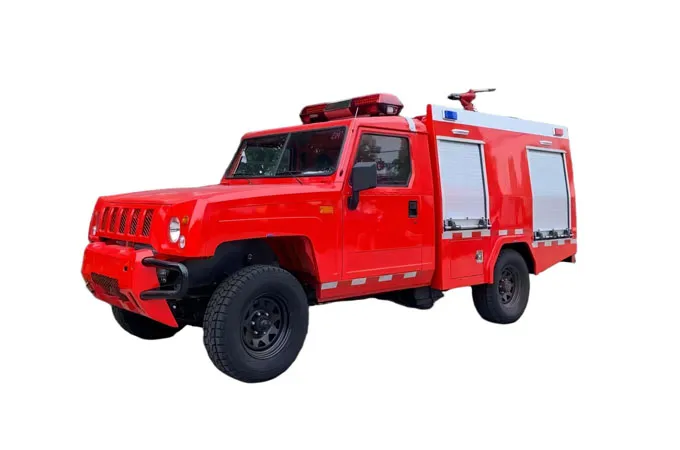

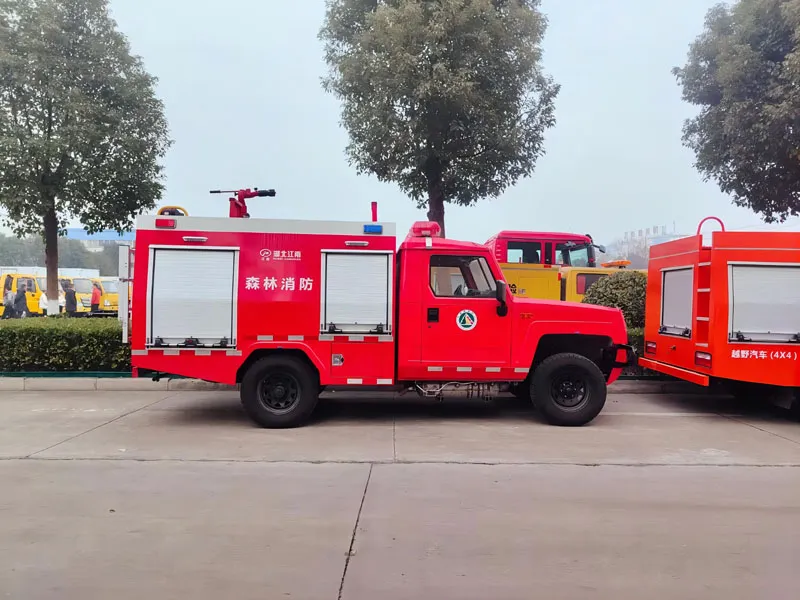

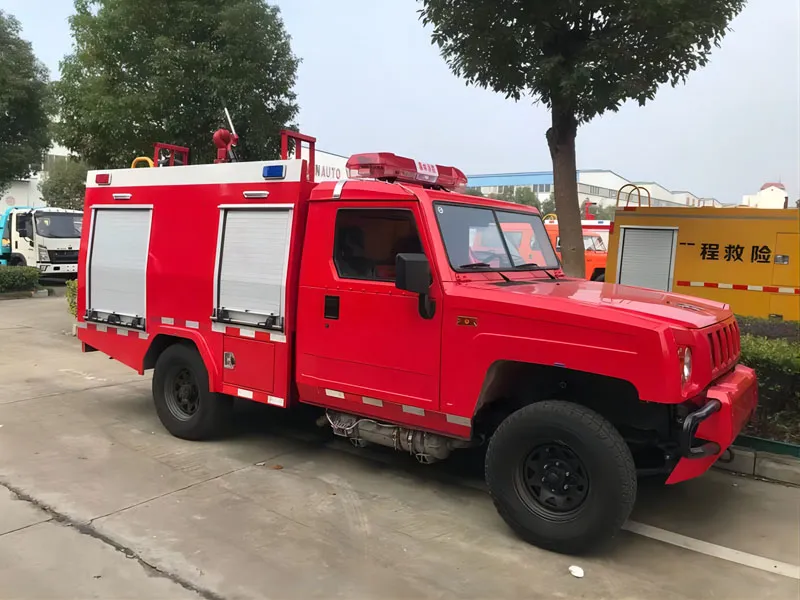

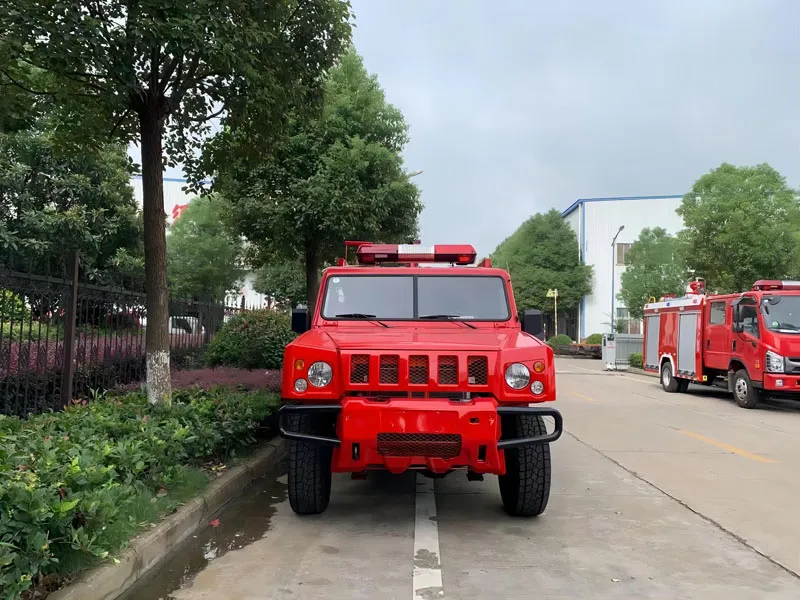

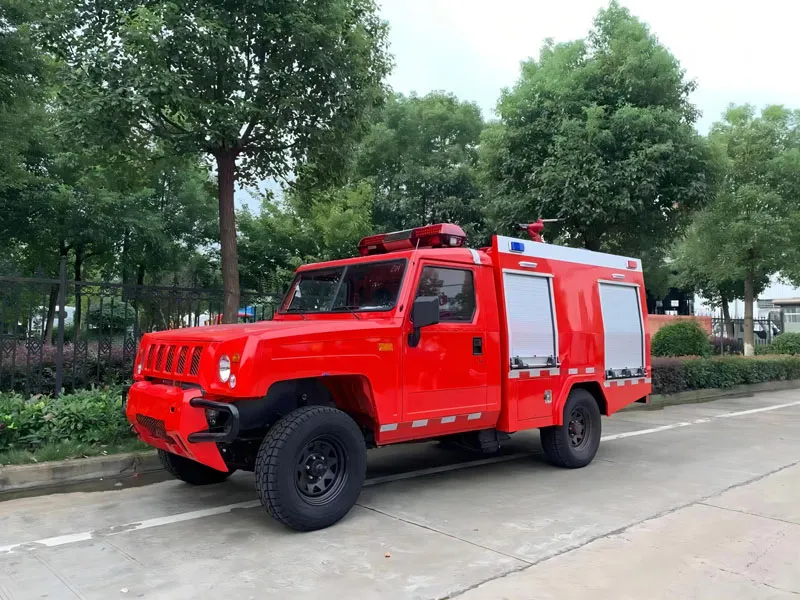

The BAIC Warrior 4×4 fire truck features all-wheel drive for rough terrains and is equipped with a ~1,500 L tank, high-pressure pump, and compact monitor, making it ideal for emergency firefighting in remote or rural areas.
Parameter Category | Specification Details |
Chassis | BAIC Warrior military-grade 4×4 chassis, full-time four-wheel drive system |
Engine | Diesel engine, Displacement: ~2.4L, Maximum Power: ~110 kW (150 hp) @ 3600 rpm, Maximum Torque: ~320 N·m @ 1800–2800 rpm |
Transmission | Manual transmission, 5 forward gears + 1 reverse gear |
Overall Dimensions | Length: ~5300 mm, Width: ~2050 mm, Height: ~2450 mm |
Wheelbase | ~3035 mm |
Tire | Off-road tire, Size: 265/75 R16 |
Water Tank Capacity | 1,000–1,500 L (varies by model) |
Foam Tank Capacity | 100–200 L (optional, for foam firefighting) |
Fire Pump | Centrifugal pump, Flow Rate: ≥ 300 L/min, Working Pressure: ≥ 0.8 MPa |
Fire Monitor | Flow Rate: 200–400 L/min, Maximum Range: ≥ 50 m |
Electrical & Warning | 24V DC system; LED emergency warning lights, siren, intercom system |
Crew Capacity | 2–3 persons (including driver) |
Maximum Speed | ≥ 100 km/h |
Gradeability | ≥ 60% (equivalent to a 31° slope) |
Ground Clearance | ≥ 210 mm |
Fuel Tank | ~85 L |
Tool Compartments | Roll-up doors with storage for hoses, nozzles, rescue tools (axes, shovels, etc.), and onboard fire control panel |
