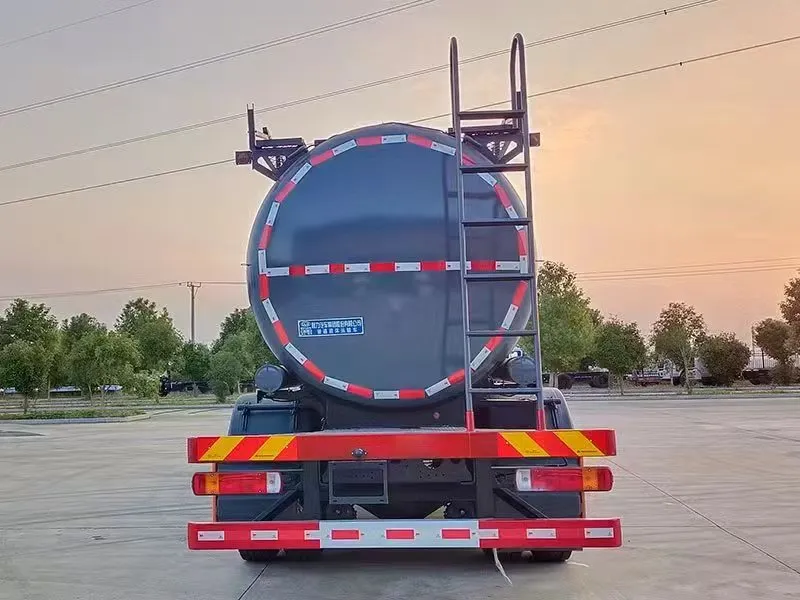

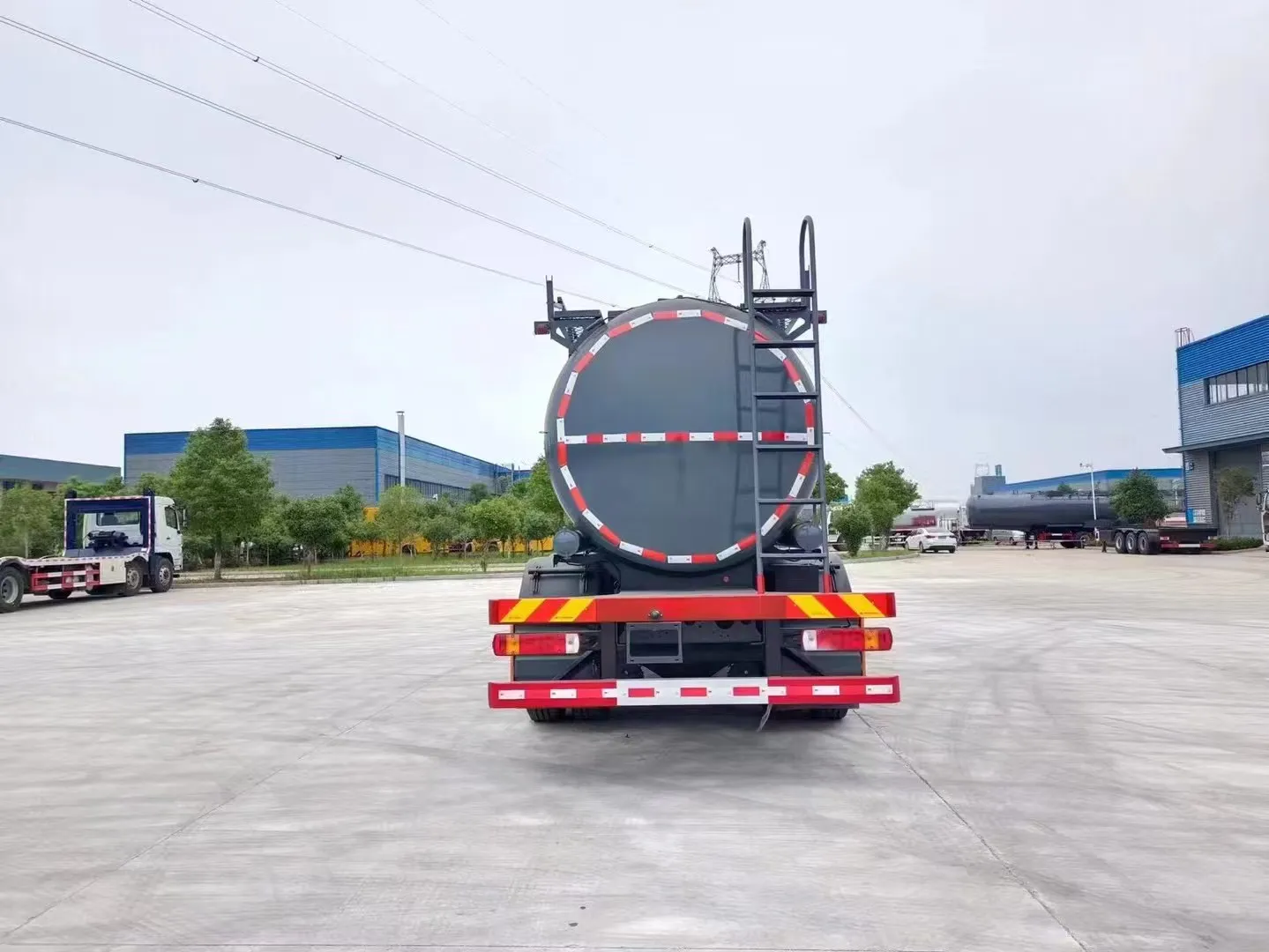

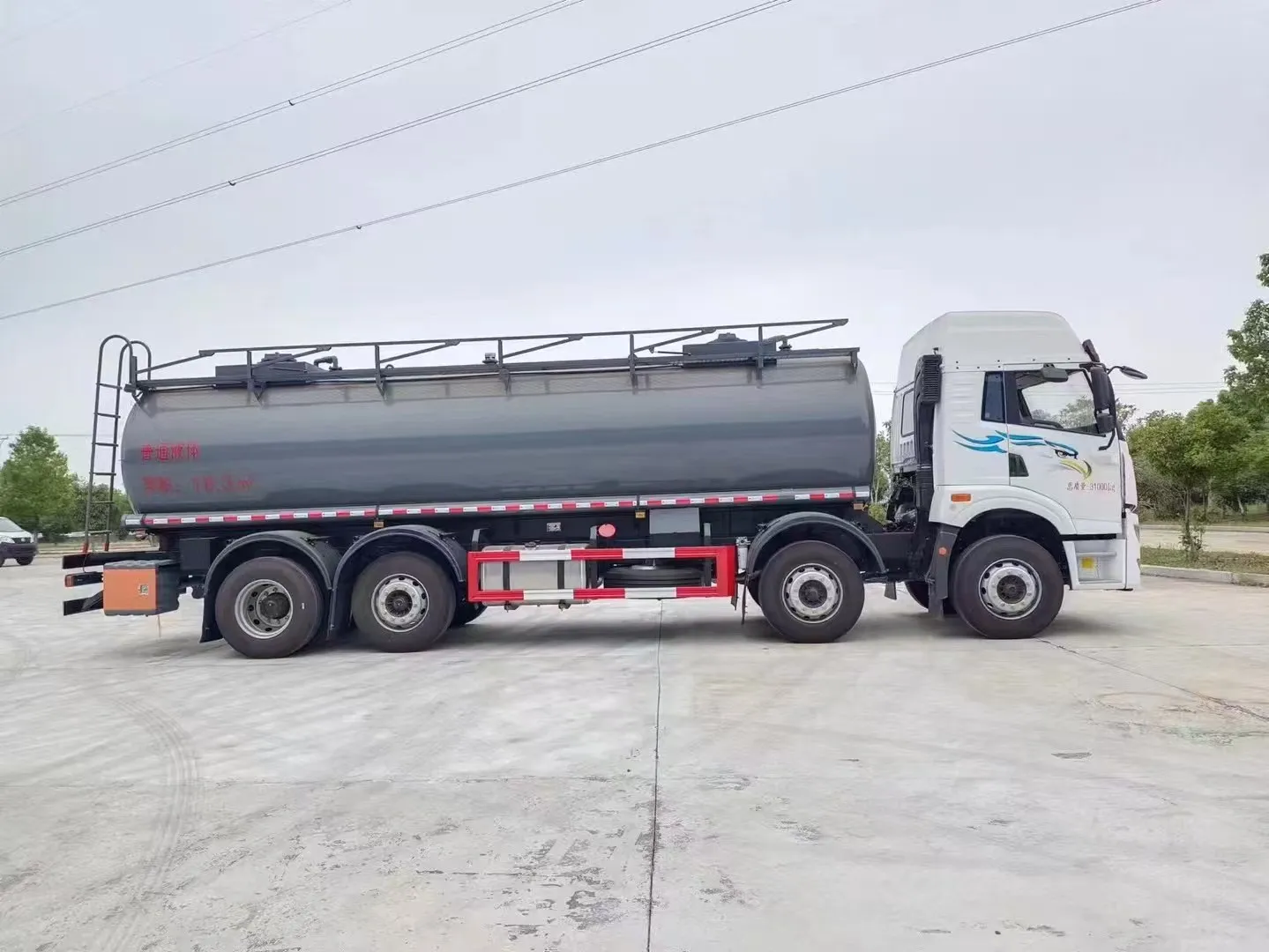

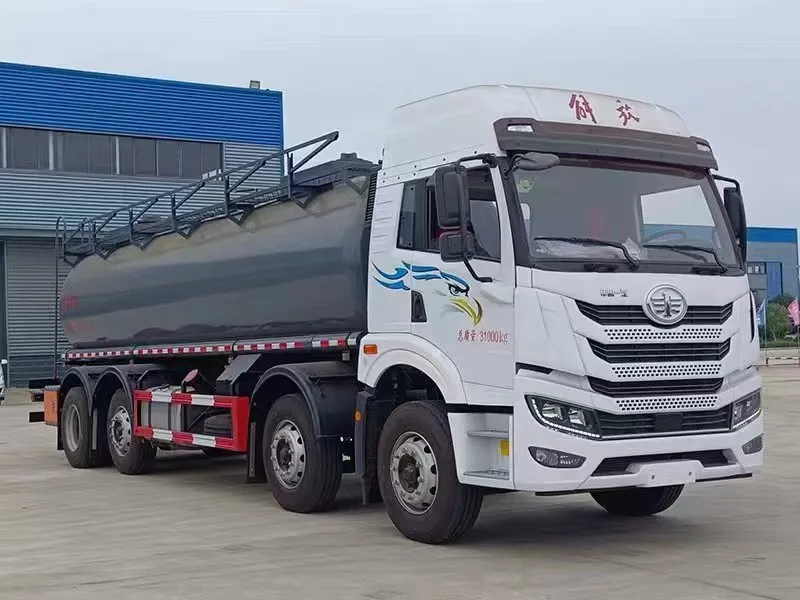

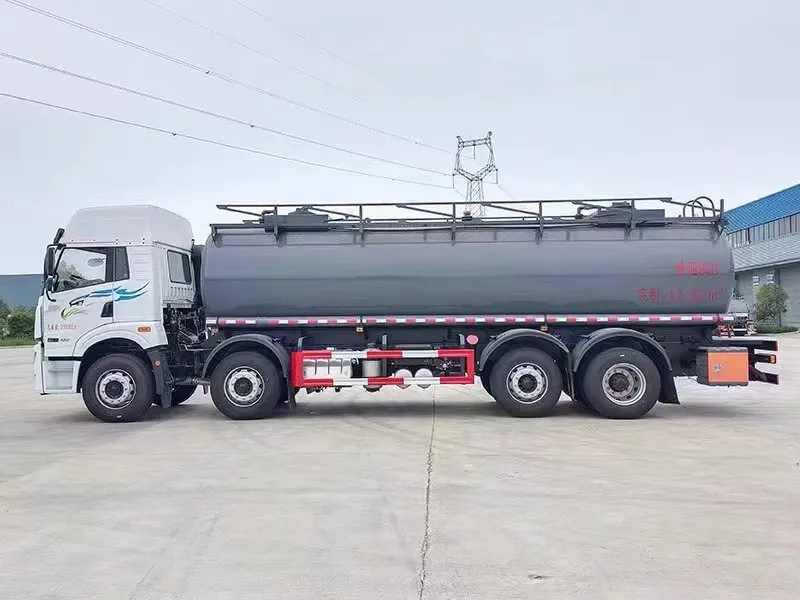

FAW 20 Cubic Meters Chemical Liquid Tank Truck

Detail of FAW 20 Cubic Meters Chemical Liquid Tank Truck

1. Basic Information

• Brand: FAW

• Model: Chemical Liquid Tank Truck

• Tank Volume: 20 Cubic Meters

• Application: Transportation of various chemical liquids (corrosive, non-corrosive, etc., subject to tank material compatibility)

• Cab Style: Heavy-duty truck cab with sleeper (optional)

• Drive Type: 8×4 (4 driving axles)

2. Chassis Parameters

• Manufacturer: FAW (First Automotive Works)

• Engine Model: FAW CA6DL3 Series (or equivalent), Euro V / Euro VI Emission Standard

• Engine Power: 350 - 420 HP (depending on configuration)

• Transmission: FAW 12-speed manual transmission (or automatic transmission optional)

• Axle Configuration: Front axle + Three rear axles (alloy steel, high load-bearing capacity)

• Tire Specification: 12.00R20 Radial Tires (6 + 1, with spare tire)

• Wheelbase: Customized according to tank length (typically around 1800+4600+1350 mm)

• Fuel Tank Capacity: 400L (Diesel)

• Braking System: Air brake system with ABS, front disc and rear drum brakes

• Steering System: Hydraulic power steering

3. Tank Body Parameters

• Tank Material:

  Carbon steel (for non-corrosive liquids)

  Stainless steel (304/316L, for corrosive chemicals)

  Lined tank (PE/PO lining, for strong corrosive media)

• Tank Volume: 20 Cubic Meters (±2% tolerance)

• Tank Structure: Single-compartment or multi-compartment (optional), with anti-wave plates to reduce liquid sloshing

• Thickness:

  Carbon steel: 6 - 8 mm

  Stainless steel: 5 - 6 mm

  Lined tank: Base steel thickness 5 mm + lining thickness 8 - 10 mm

• Inlet/Outlet: Top manhole (with anti-overflow device), bottom discharge valve (stainless steel or alloy valve)

• Safety Devices: Emergency shut-off valve, fire extinguisher bracket, static grounding device

• Coating:

  Carbon steel: Anti-rust paint + finish paint

  Stainless steel: Polished or passivated surface

4. Auxiliary Equipment

• Pumping System: Self-priming centrifugal pump (stainless steel or cast iron, flow rate ≥ 50 m³/h)

• Pipeline System: High-pressure rubber hose or steel pipe, with quick connectors

• Control System: Manual or pneumatic control for valves and pumps

• Loading/Unloading: Top loading via manhole, bottom unloading via discharge valve; optional metering device

• Safety Equipment: Emergency pressure relief device, tank pressure gauge, temperature gauge

5. Performance Parameters

• Gross Vehicle Weight (GVW): 31000 kg (as marked on the vehicle)

• Curb Weight: Approx. 16000 - 18000 kg (depending on tank material and configuration)

• Payload Capacity: Approx. 13000 - 15000 kg (20 cubic meters of liquid, based on average liquid density 0.65 - 0.75 t/m³)

• Max Speed: 85 km/h (governed)

• Climbing Ability: ≥ 30%

• Fuel Consumption: Approx. 35 - 45 L/100 km (depending on load and road conditions)

6. Compliance & Certification

• Vehicle Certification: Comply with GB (China National Standards) for special purpose vehicles

• Safety Standards: Meet requirements for dangerous goods transport vehicles (if applicable)

• Emission Standard: Euro V / Euro VI (in line with regional regulations)

• Optional Certifications: ADR (for international transport), ASME (for pressure vessels, if applicable)
