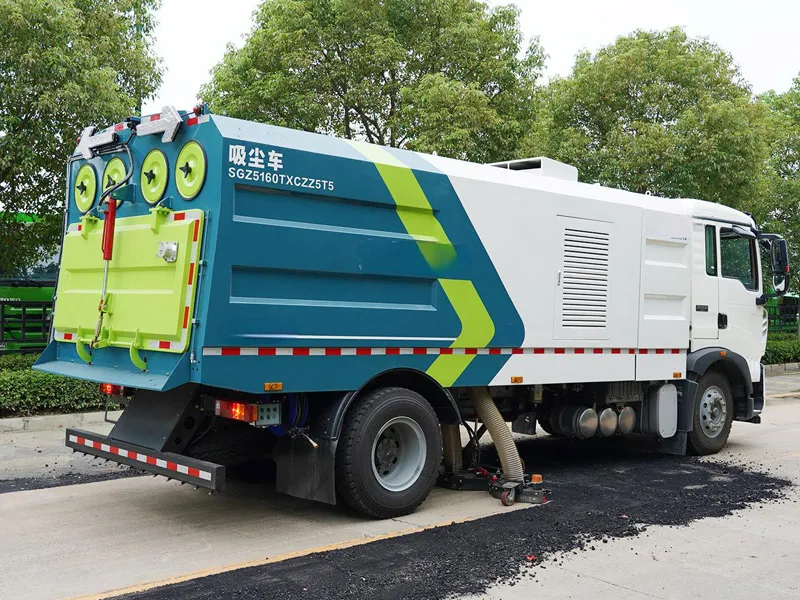

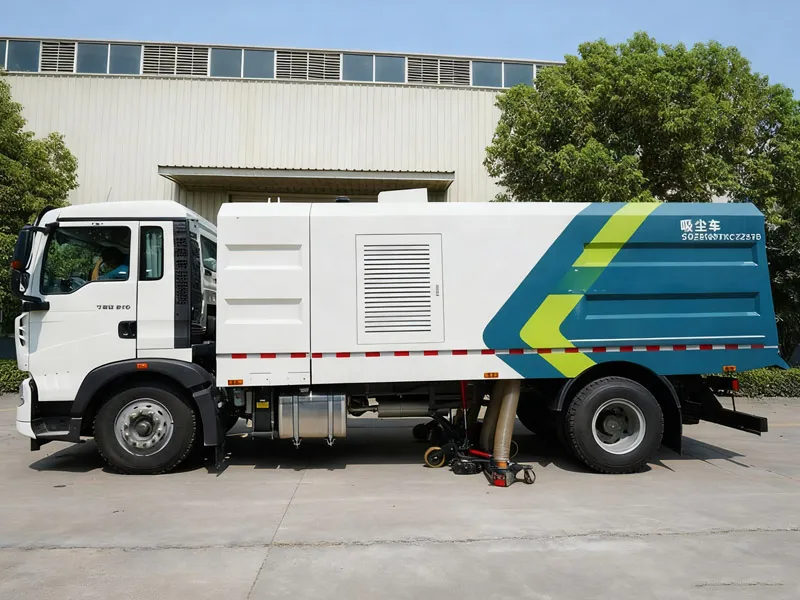

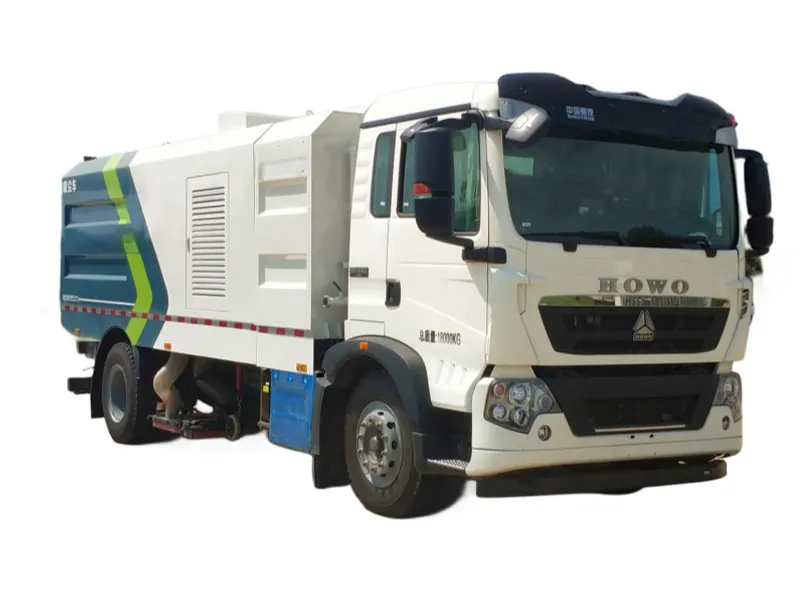

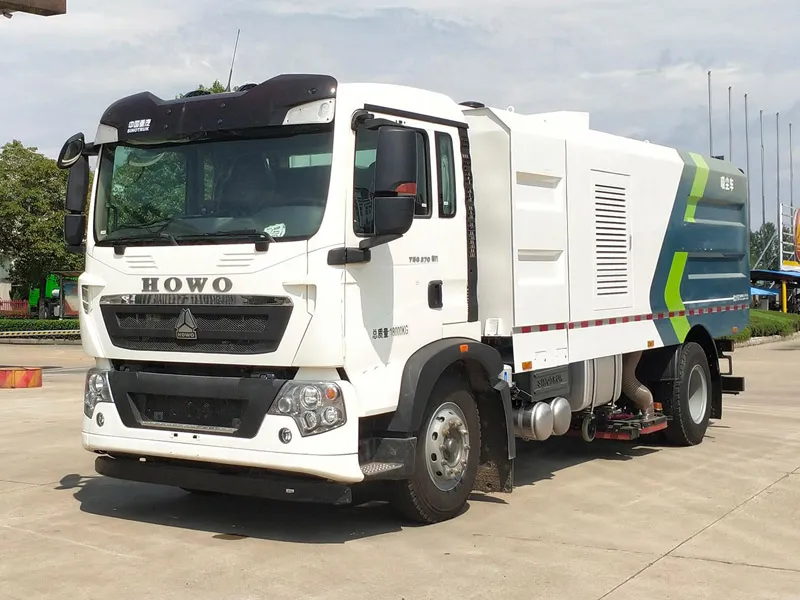

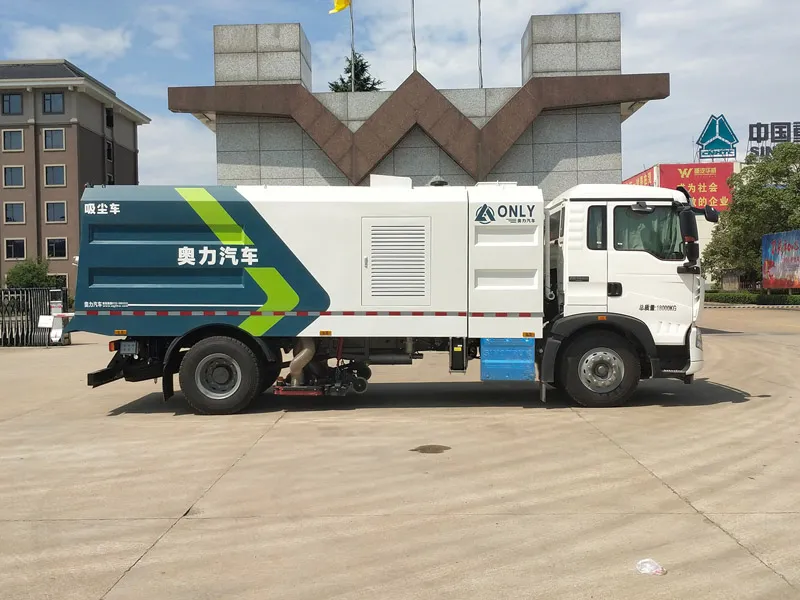

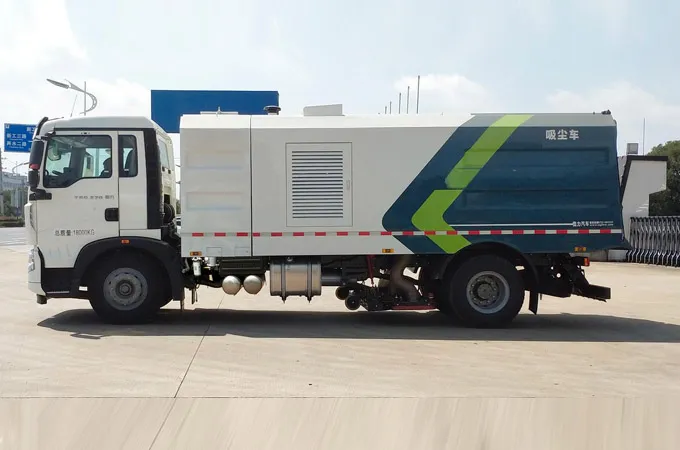

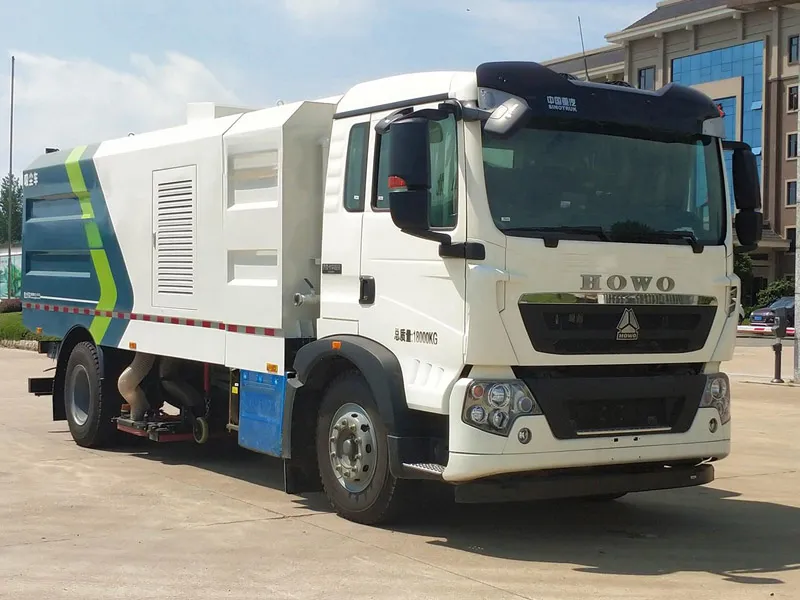

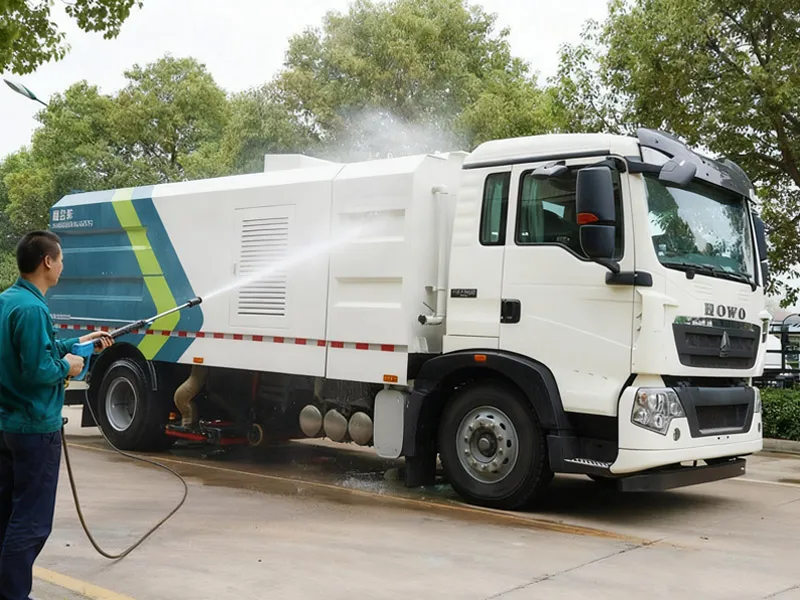

Sinotruk Howo 18tons Vacuum Cleaner Truck

Basic Information

Model Number

ZZ5187TXFK501GF1 (Standard model, customizable)

Product Name

Sinotruk Howo 18-ton Vacuum Cleaner Truck (4×2 Drive, Euro 3)

Emission Standard

Euro 3 (Compliant with ECE R49 regulation)

Application

Municipal road cleaning, mining area dust collection, large-scale debris suction (e.g., gravel, leaves)

Power System

Engine Model

Sinotruk WD615.95E (Euro 3 diesel engine)

Engine Power

162 kW (220 HP) @ 2200 rpm

Torque

850 N·m @ 1200-1600 rpm

Fuel Type

Diesel (API CF-4 or above recommended)

Fuel Tank Capacity

200 L (High-strength steel, anti-corrosion coated)

Vacuum & Suction Performance

Rear Suction Cup Specification

Φ600 mm (Wear-resistant natural rubber, replaceable)

Suction Width

3200 mm (With 2 side auxiliary brushes for edge cleaning)

Working Negative Pressure

≥9500 Pa

Airflow Rate

3800 m³/h

Dust Tank Volume

12 m³ (Q345 carbon steel / 304 stainless steel optional)

Dust Discharge Method

Hydraulic lifting (max lift height: 1800 mm) + rear door opening (discharge angle: ≥50°)

Dimensions & Weight

Overall Length × Width × Height

7800 × 2500 × 3100 mm

Wheelbase

3800 mm

Curb Weight

10500 kg

GVW (Gross Vehicle Weight)

18000 kg

Chassis Configuration (4×2 Drive)

Axle Configuration

Front axle (5 tons) + Rear driving axle (13 tons)

Suspension Type

Front: Leaf spring (9/10), Rear: Leaf spring (12/14)

Tire Specification

11.00R20 16PR (Radial tubeless tire, 6 tires total)

Braking System

Full air brake + ABS (EBS optional) + Handbrake (spring-loaded parking brake)

Other Features

Operating System

Dual-mode control (in-cab digital panel + ground manual controller)

Dust Suppression System

Optional 300 L stainless steel water tank + 4 side spray nozzles

Safety Equipment

Reverse radar, work warning light, fire extinguisher

Warranty Period

12 months or 25,000 working kilometers (whichever comes first)
