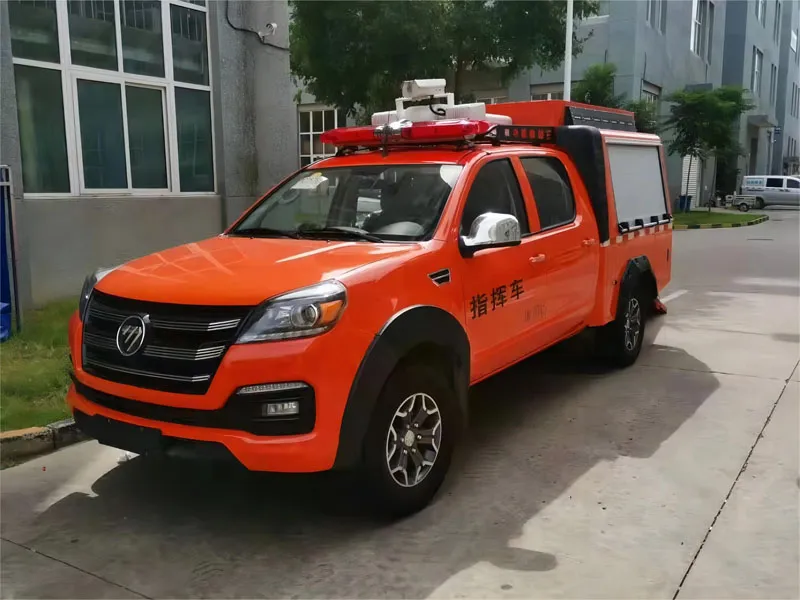

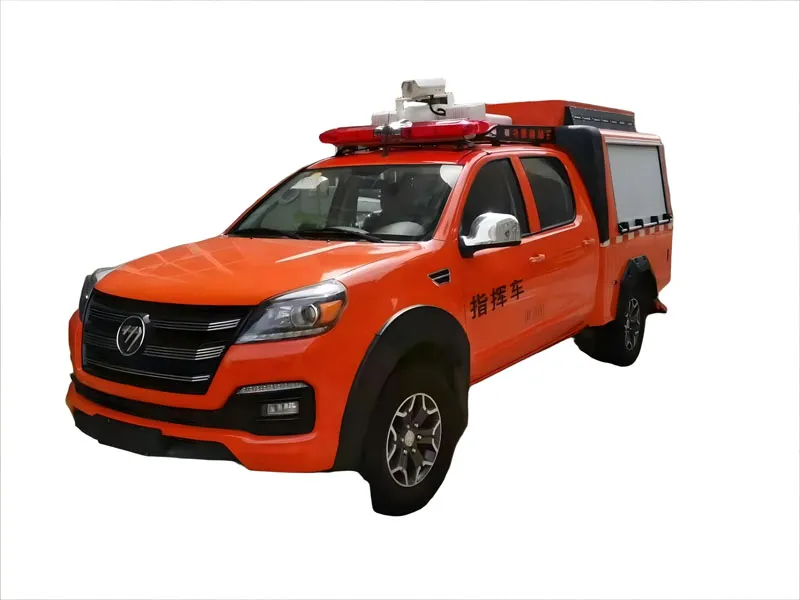

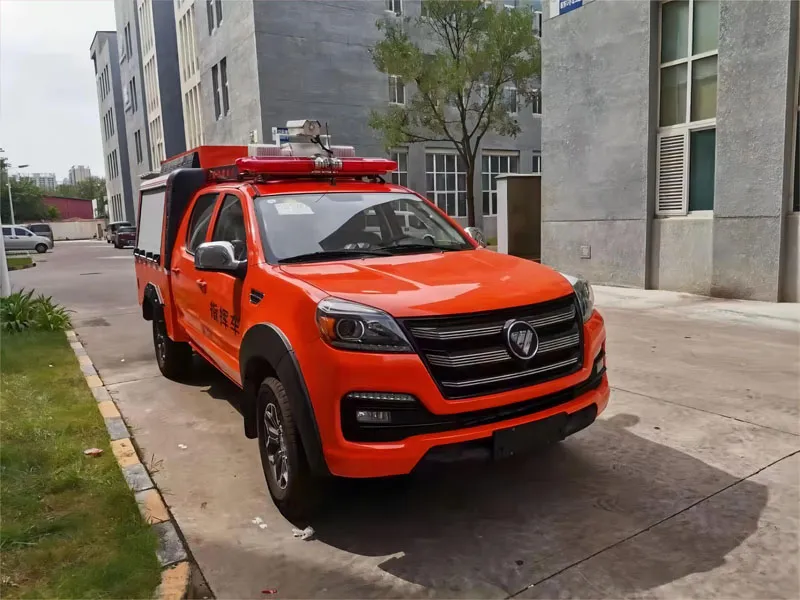

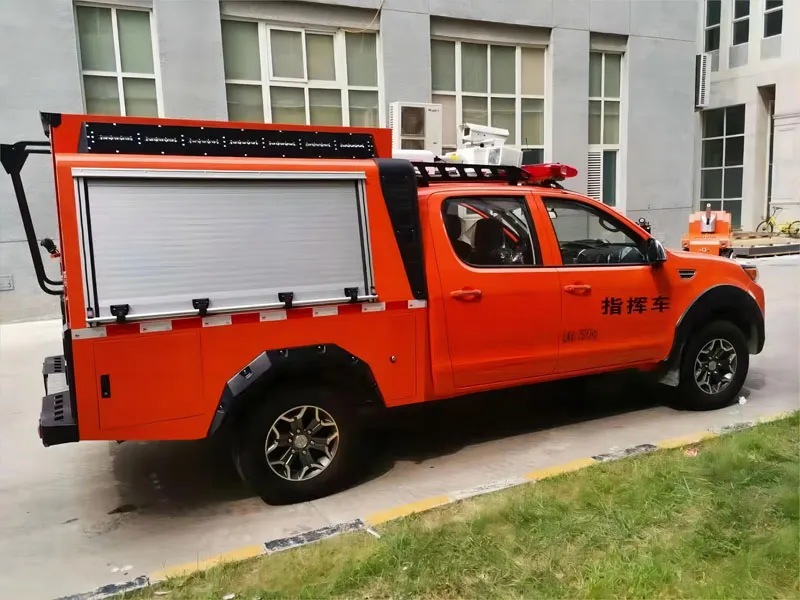

Foton pickup truck rescue vehicle, built on General G9 chassis, features 48 V diesel-hybrid power, BorgWarner AWD, and advanced tools such as lift lighting, ensuring reliable performance for all-terrain emergencies.
Foton Pickup Truck Rescue Vehicle Specifications
Category | Parameter | Details |
Chassis & Body | Platform | Foton pickup chassis (double - cab, body - on - frame structure) |
Cab Configuration | 5 - seat double - cab | |
Powertrain | Engine | 2.0T turbocharged diesel engine + 48V mild - hybrid system |
Power Output | ~160 hp (120 kW) / 360 N·m torque | |
Transmission | 8 - speed automatic transmission | |
Drivetrain | Drive System | BorgWarner full - time 4WD with low - range gearing |
Off - Road Capability | All - terrain tires, enhanced ground clearance | |

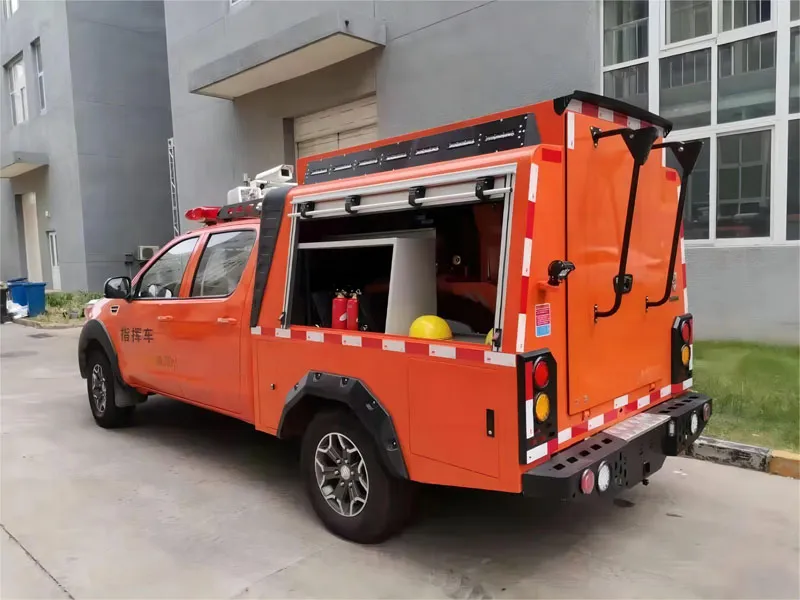

Rescue Equipment | Cargo Compartment Design | Enclosed cargo box with roll - up side doors and a rear loading ramp |
Integrated Tools | Fire extinguishers, cutting gears, communication devices, and on - board power supply | |
Lighting & Signaling | Roof - mounted LED warning beacons, extendable work lights | |
Electronics | Surveillance | Roof - mounted PTZ surveillance camera |
Dimensions | Overall Size (L×W×H) | ~5,600 mm × 1,900 mm × 2,050 mm |
Cargo Box Size (L×W×H) | ~1,500 mm × 1,550 mm × 800 mm | |
Capacity | Payload | ~1,500 kg |
Towing Capacity | ~3,500 kg (braked trailer) | |
Safety | Safety Features | ABS, EBD, stability control, and an emergency communication system |
