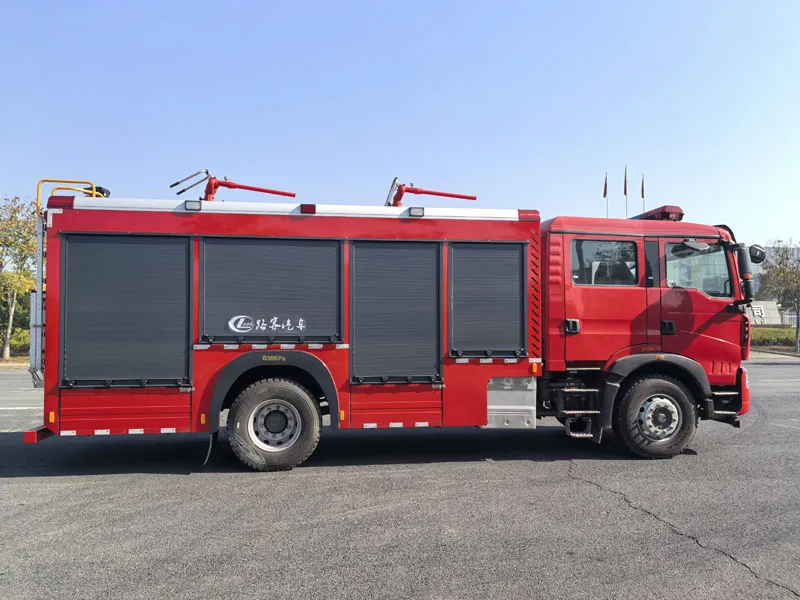

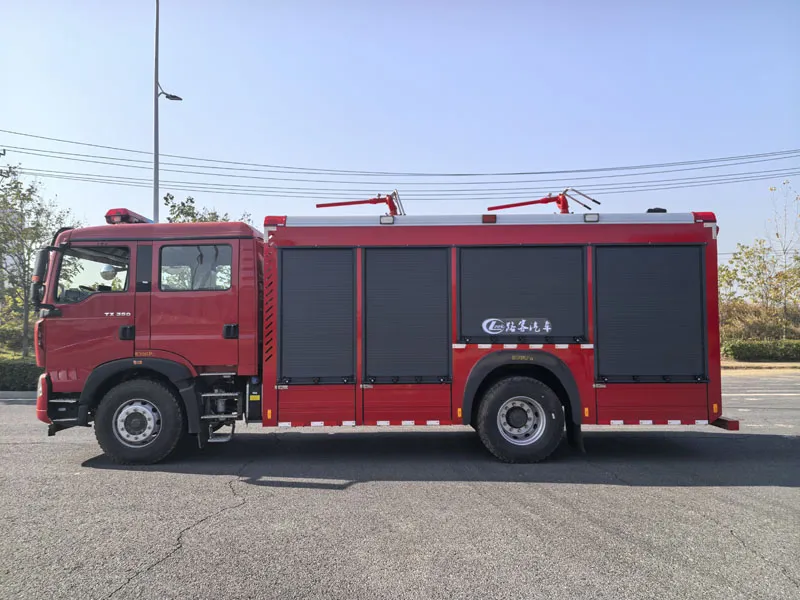

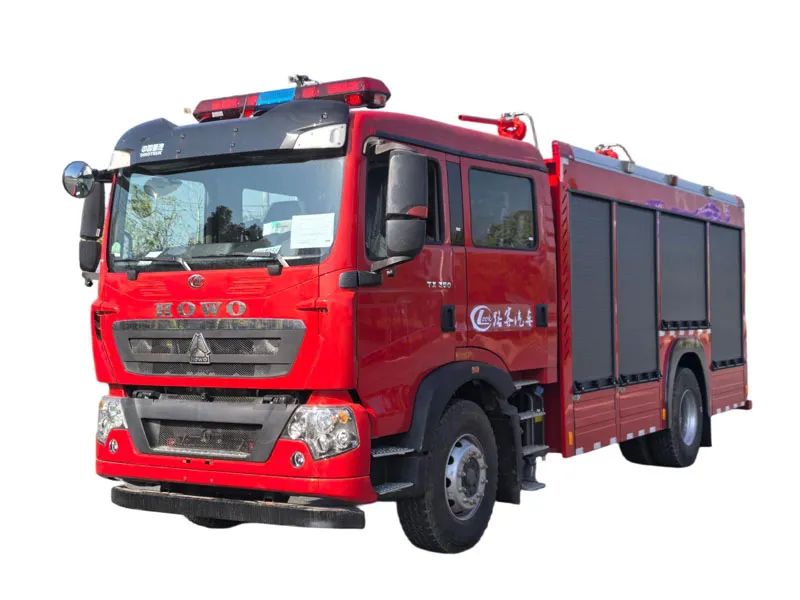

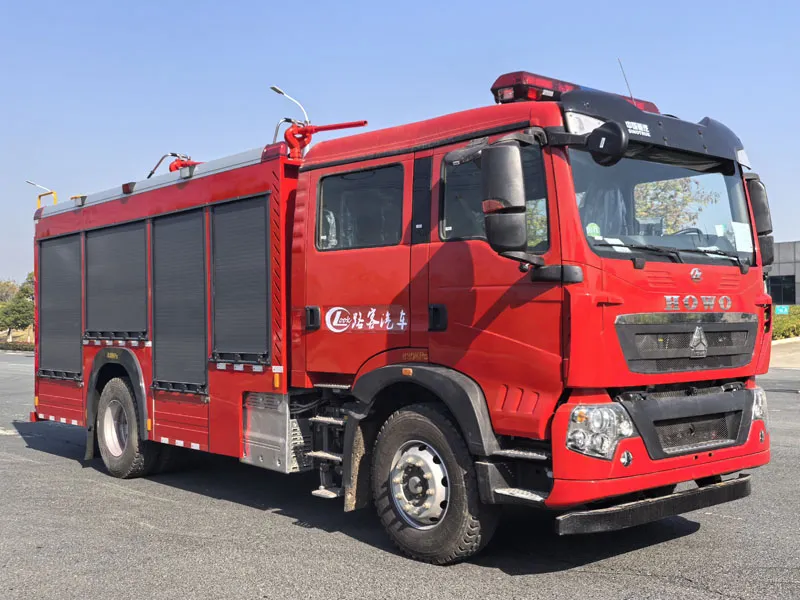

The Sinotruk Howo 4 ton Dry Powder Fire Truck carries 4,000 kg of dry powder and features a powder cannon with a range of ≥35 m. Built on Sinotruk’s robust chassis, it excels in electrical and chemical fire scenarios, making it ideal for petrochemical facilities with powerful, easy-to-operate performance.
Sinotruk Howo 4ton Dry Powder Fire Truck (Model: Luke5180GXFGF40/ASL) - English Specification Sheet
Category | Specifications |
Chassis Requirements | - Adopts domestic chassis. - Engine Power: 266 hp - Drive Type: 4×2 - Wheelbase: 5000 mm - Transmission: Original chassis mechanical manual transmission - Emission Standard: Euro 2 to Euro 5 - Fuel Tank Capacity: 200 L - Fuel Type: Diesel |
Cab | - Original 4-door double-row cab; Seating capacity: 1+1+4 - Electric/manual hydraulic tilting function - Driver’s seat: Airbag shock absorption; Co-driver’s seat: Mechanical shock absorption; Rear row: 4-seat bench - Additional equipment: Instrument panel, siren, rotating beacon switch, strobe light, clearance light control switch, power take-off (PTO) control switch, reverse image system and indicator lights - Air Respirator Racks: Installed on the rear seat backrests; Made of bent structural steel plates; Adjustable clamps; Suitable for 6.8L-9L air respirators - Handrails: Non-slip safety handrails (enhance safety and speed for rescuers getting on/off) |
Carriage | - Material: High-strength aluminum alloy profiles (for equipment boxes and inner frame); Smooth brushed anodized aluminum plates (for interior panels) - Structure: Full aluminum alloy frame welded structure (equipment boxes at front, pump room at rear); Aluminum plate bonding technology (outer skin); Aluminum alloy profile lap structure (inner equipment frame, flexible layout per user needs); Optional storage structures: New sliding brackets, pallets or high-strength plastic storage boxes (maximize space utilization) - Interior & Floor: Smooth brushed anodized aluminum plates - Rear Ladder: 1 aluminum alloy safety ladder (installed on the right side of the rear carriage, leading to the roof) |
Rolling Shutters | - Material: Lightweight high-quality aluminum alloy; Large-format shutters (flexible opening/closing, good sealing, low noise, elegant appearance, light and reliable) - Structure: Diversion channels (top); Sealing strips (both sides, good rainproof and dustproof performance); 1-point pull strap + 2-point fixing seats; Sensors (enable cab indicator lights to show shutter opening/closing status) |
Surface Treatment | - Paint: Original imported fire-fighting red paint (for carriage surface); Fluorescent reflective tapes (on vehicle body, meet safety standards for night operation) - Color: R03 bright red (per GB/T 3181 "Paint Film Color Standard", in line with GB 7258) |

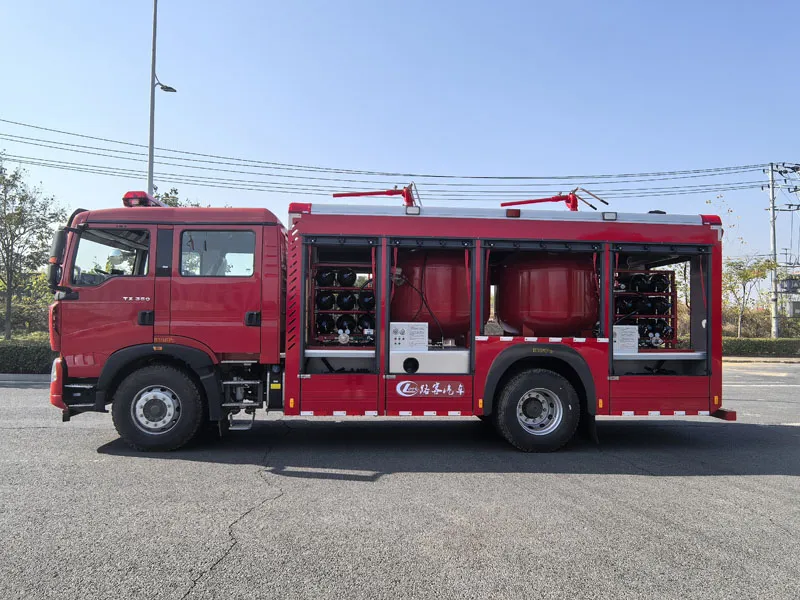

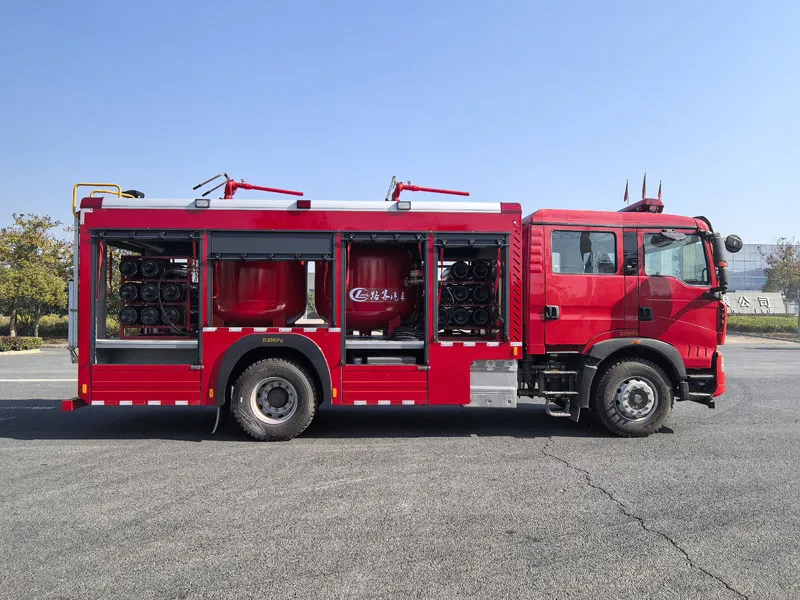

Dry Powder Tanks | - Material: High-strength pressure vessel steel plate (Q345R) - Quantity: 2 units - Extinguishing Agent Capacity: ≥2000 kg/unit - Design Pressure: MPa - Working Pressure: MPa |
Nitrogen Cylinders | - Material: Meet national industry standards - Quantity: 9 units - Capacity: ≥90 L/unit - Design Pressure: MPa - Inflation Time: ≤3.5 min |
Dry Powder Cannons | - Quantity: 2 units - Flow Rate: ≥40 kg/s - Range: ≥40 m - Installation Position: Top of the carriage - Horizontal Rotation Angle: 0°～360° - Pitch Rotation Angle: -7°～60° |
Dry Powder Hoses | - Quantity: 2 units - Hose Length: 25 mm × 40 m - Injection Rate: ≥2.5 kg/s - Range: ≥10 m |
Additional Electrical Equipment | - License Plate Lamp Socket: Meet GB standards (ensure license plate illumination) - Control Switches: Independent circuit design; Switches for siren, warning lights, marker lights and clearance lights (installed in the cab) - Warning Lights: Red long-row strobe warning lights (installed on cab roof, match vehicle appearance); Red/blue strobe lights (1 set on upper sides of vehicle body); Safety side marker lights (1 set on lower sides of vehicle body); Clearance lights (installed at rear, meet GB standards) - Lighting: Interior lights (installed in each equipment box, for night equipment access) - LED Lights: Multiple red/yellow/blue LED round lights (installed on upper sides of cab, front sides of equipment boxes and rear sides of carriage; for decoration and warning) - Reverse Monitoring System: Installed |
