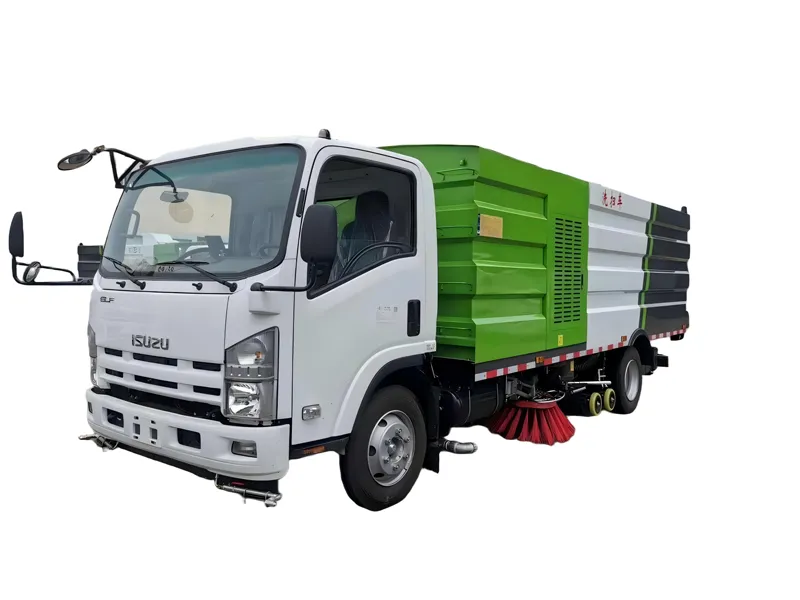

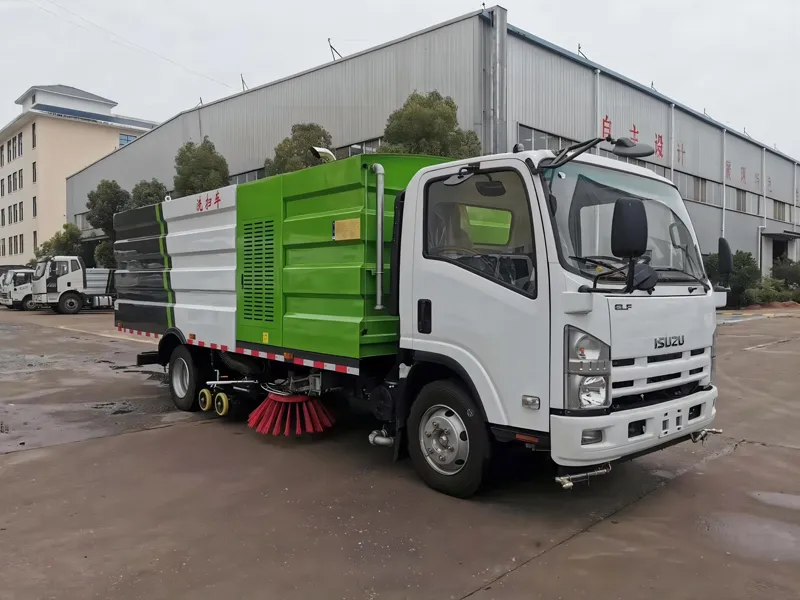

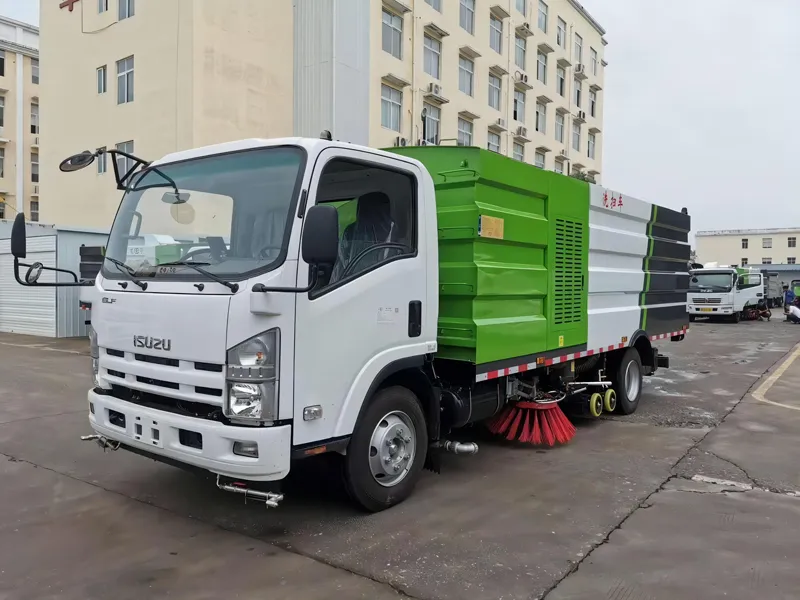

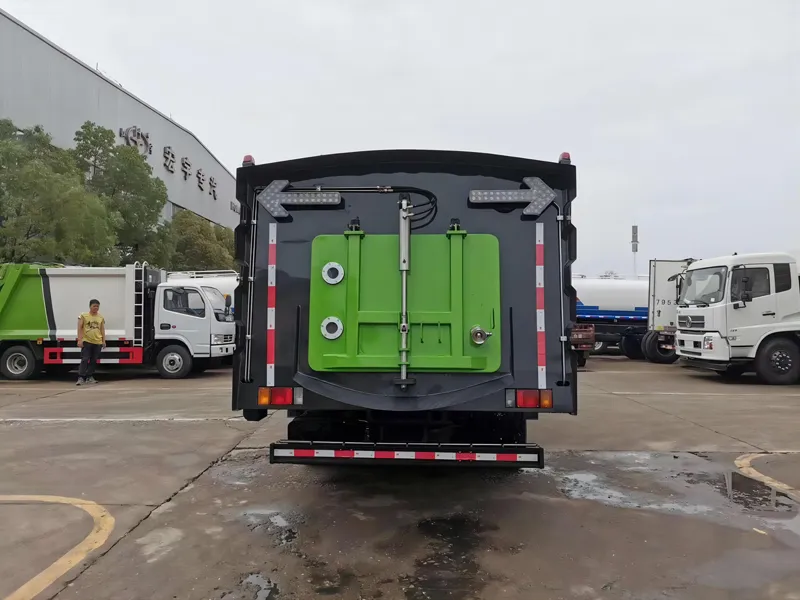

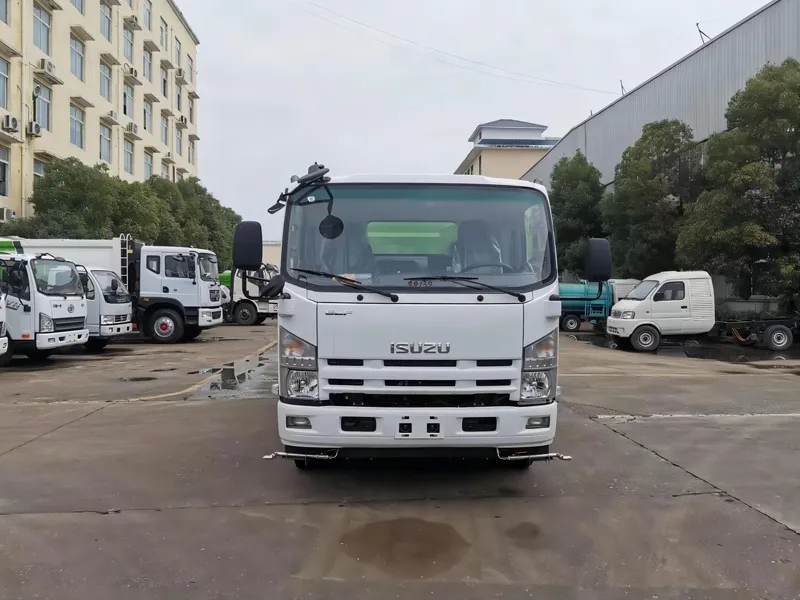

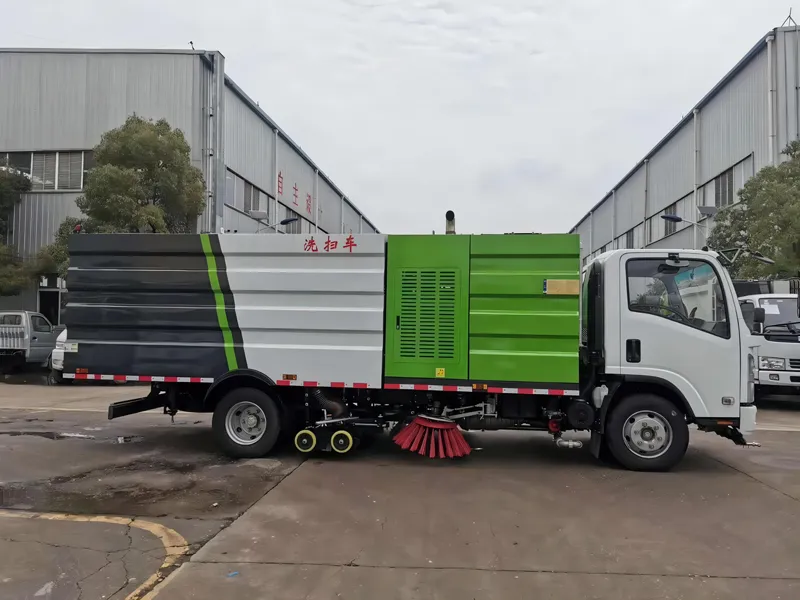

ISUZU 12 ton road sweeper truck efficiently handles road debris, providing durable performance for urban maintenance and street cleaning tasks.
| GVW7300kg | Driving Type 4x2 | ||||
Model | LK5070TXSQ | ||||
Cab | Single row, tilted | ||||
Engine(Hp) | 130 | ||||
Power(Kw) | 96 | ||||
Wheelbase | 3815 | ||||
Front/Rear Suspension | 1015/2300 | ||||
Steering | Power steering | ||||
Approach/departure angle | 15/10 | ||||
Wheels & tire | 7.0R16 | ||||
Tire number | 6+1 | ||||
Tank Dimensions(mm) | |||||
Cubage (m3) | Water tank 4, dust tank 5 | ||||
RHD or LHD | LHD | ||||
Overall Dimensions(mm) | 7200×2200×2600 | ||||
Curb weight (Kg) | 6400 | ||||
Engine | Model | 4KH1CN5HS | |||
Horsepower | 130 | ||||
Maximum output Kw | 96 | ||||
Maximum torque N.m | 290 | ||||
Type | 4 cylinders, in-line, 4-stroke, diesel engine | ||||
Displacement | 2.999L | ||||
ISUZU brand, Euro 5 | |||||
Driving passenger | 2, 3 | ||||
Transmission | ISUZU MSB 5 speed forward and one reverse, manual | ||||
Front Axle | 2.5T | ||||
Rear Axle | 4.8T | ||||
Brake System | oil brake | ||||
Color and LOGO | customized | ||||
Electric system | 24V | ||||
Sweeper and washing | Water tank | 4m3 | Dust tank | 5m3 | |
Sweeping width | 3.2m | Cleaning efficiency | 98% | ||
Unloading angle | 45° | Maximum suction particle | 120mm | ||
Max cleaning ability | 70000 m2/h | Sweeping speed | 3-25km/h | ||
Standard configuration | 2 sweeping brushes, vacuum tank, water tank with anti-overflow or low water level alarm, German high pressure water pump, front and rear road flushing system, garbage tank self cleaning system. auxiliary engine, Siemens control switch, American sensor, hydraulic system and electrical system, reversing and cleaning state indoor monitor led arrow lamb and 18m high pressure cleaning reel and so on. | ||||
Delivery date | Within 50 days after receipt advance | ||||
Packing | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||||
