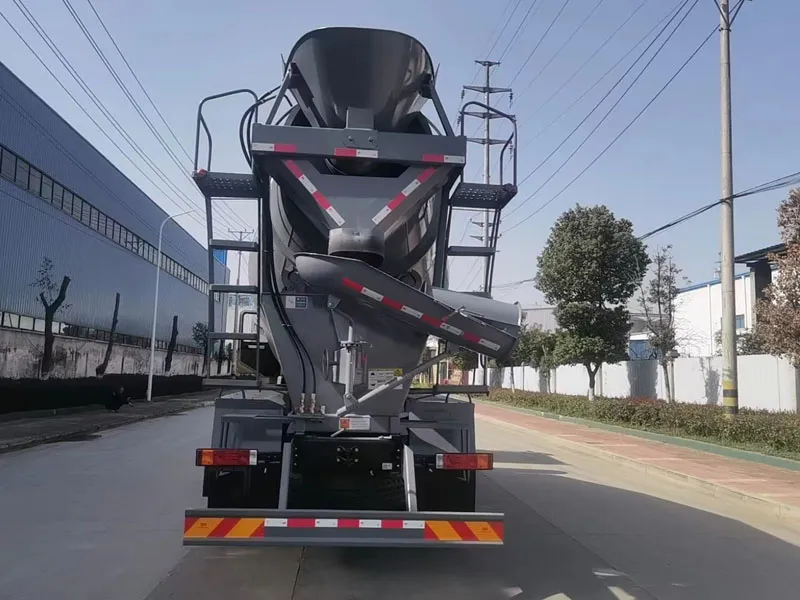

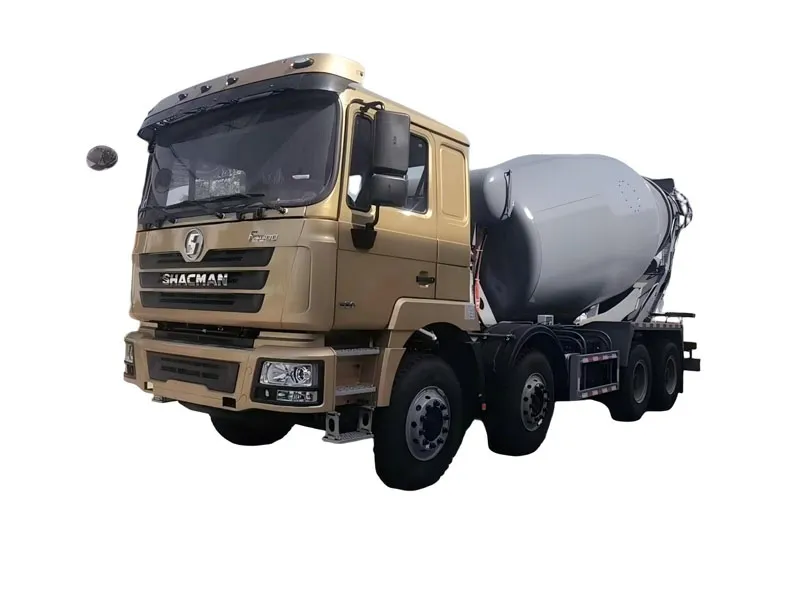

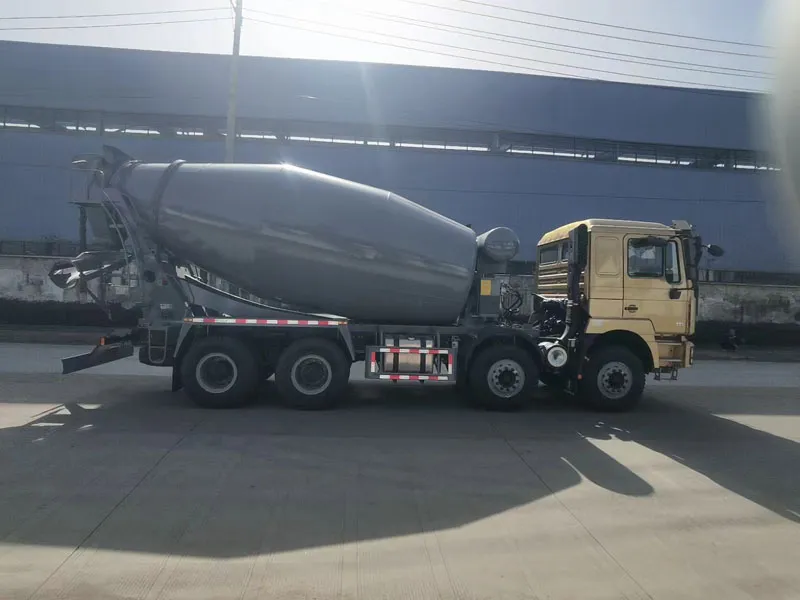

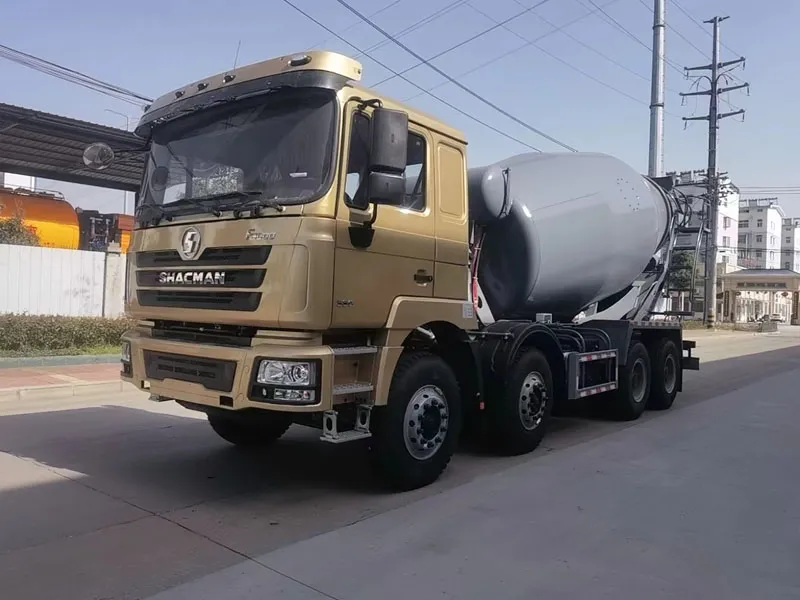

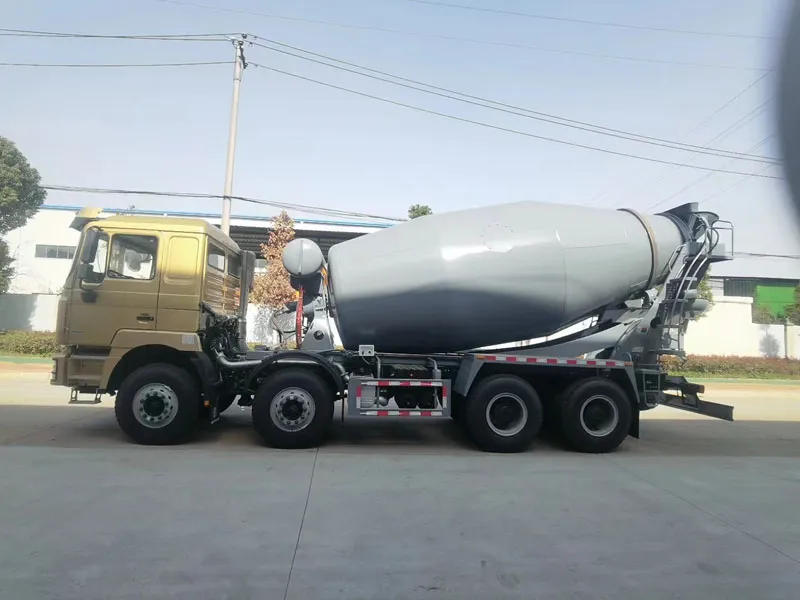

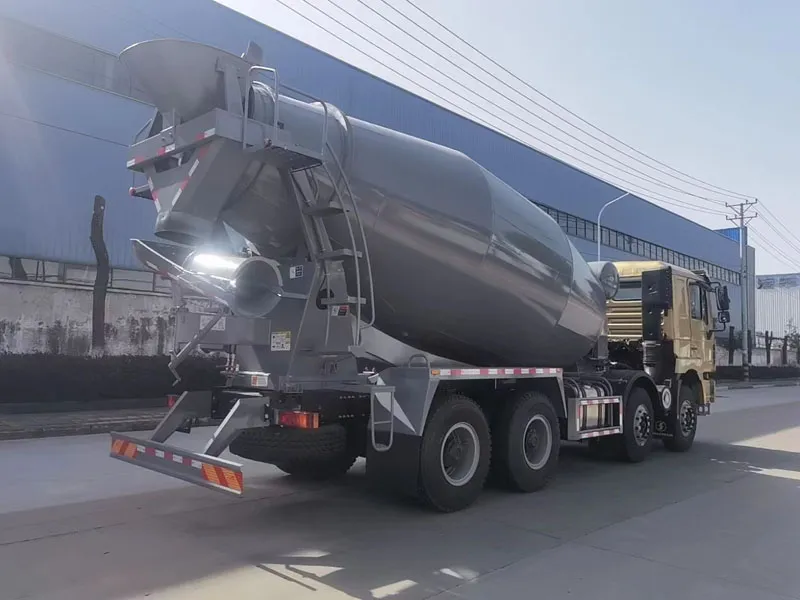

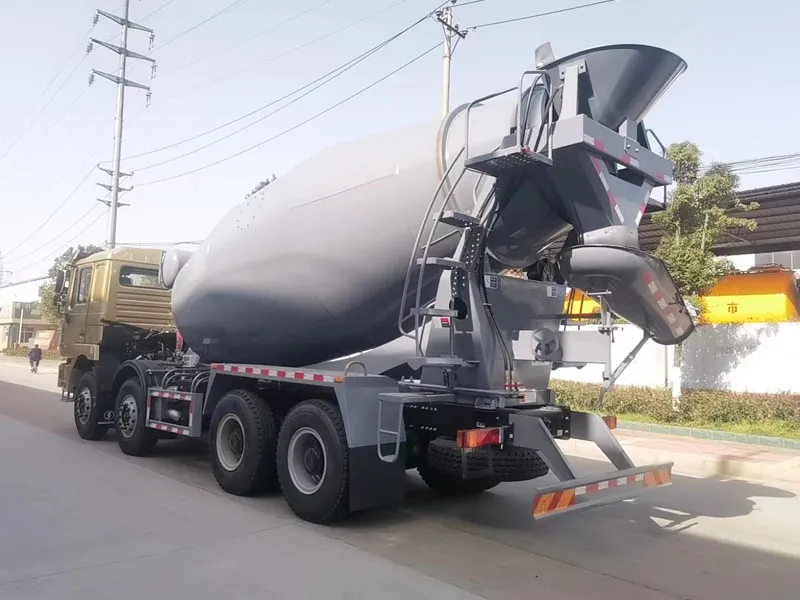

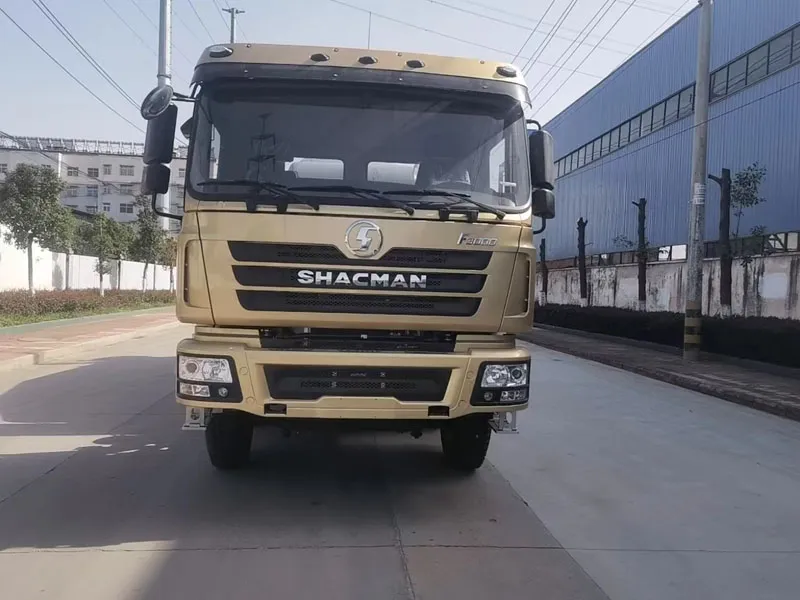

Shacman 25cbm concrete mixer truck ensures efficient, high-capacity mixing for large-scale construction projects. It offers strong power, stable operation, and reliable performance to meet demanding worksite needs.
| GVW31000kg | Driving Type 8x4 | ||
Model | Luke5253GJBS | ||
Cab | Delong F3000 standard cab, hydraulic main seat, four-point hydraulic mount cab, electric air conditioner, electric window lifter, manual flip, ordinary air filter, metal bumper, hinged pedals | ||
Engine(Hp) | 380 | ||
Power(Kw) | 280 | ||
Wheelbase | 1800+3375+1400 | ||
Front/Rear Suspension | 1525/2855 | ||
Steering | Power steering | ||
Approach/departure angle | 20/18 | ||
Wheels & tire | 12.00R20 | ||
Tire number | 12+1 | ||
Tank capacity(m3) | 16 | ||
RHD or LHD | optional | ||
Overall Dimensions(mm) | 11000×2500×3990 | ||
Curb weight (Kg) | 16500 | ||
Engine | Model | WP10.380E22 | |
Horsepower | 380 | ||
Maximum output Kw | 280 | ||
Maximum torque N.m | 1460 | ||
Type | 6cylinders, in-line,4-stroke,water-cooled,directly injection, diesel engine | ||
Displacement | 9726ml | ||
Weichai brand, Euro 2 | |||
Driving passenger | 2,3 | ||
Transmission | FAST 10 speed forward 2 reverse | ||
Front Axle | 9.5Tx2 | ||
Rear Axle | 16Tx2 | ||
Brake System | air brake exhaust brake | ||
Color and LOGO | customized | ||
Electric system | 24V | ||
Tank material | alloy steel | ||
Standard configuration | Mixer tank, reducer, hydraulic pump, hydraulic motor, radiator, water tank, cleaning hose ,feed port, discharge port, climbing ladder, air pressure water supply device. | ||
Equipment | Tank capacity | 16m3 | |
Hydraulic pump | Italy or German or America brand | ||
Hydraulic motor | Italy or German or America brand | ||
Reducer | Italy or German or America brand | ||
Water supply ststem | 400L tank , air pressure supply | ||
Radiator | Kaitong brand | ||
Charging speed | ≥3M3/ min | ||
Discharging speed | ≥3M3/ min | ||
Discharging residual rate | ≤0.5% | ||
Delivery date | Within 40 days after receipt advance | ||
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||
