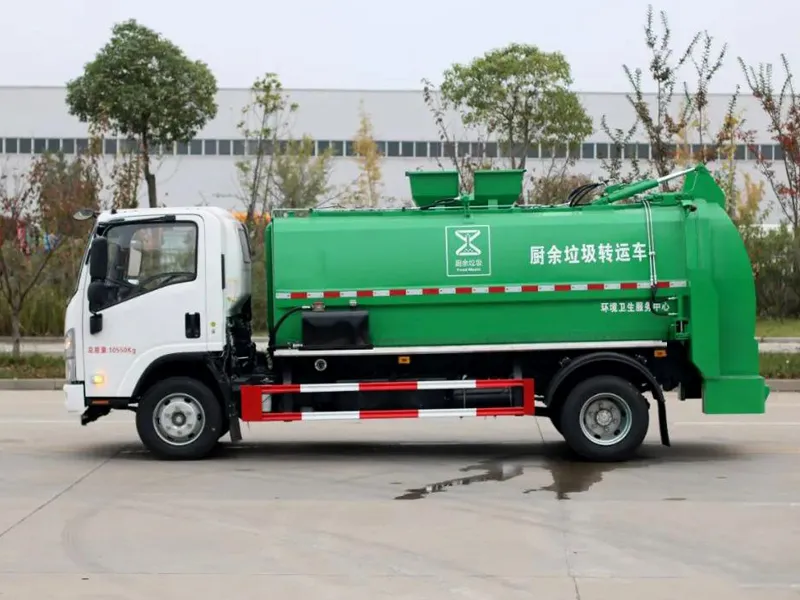

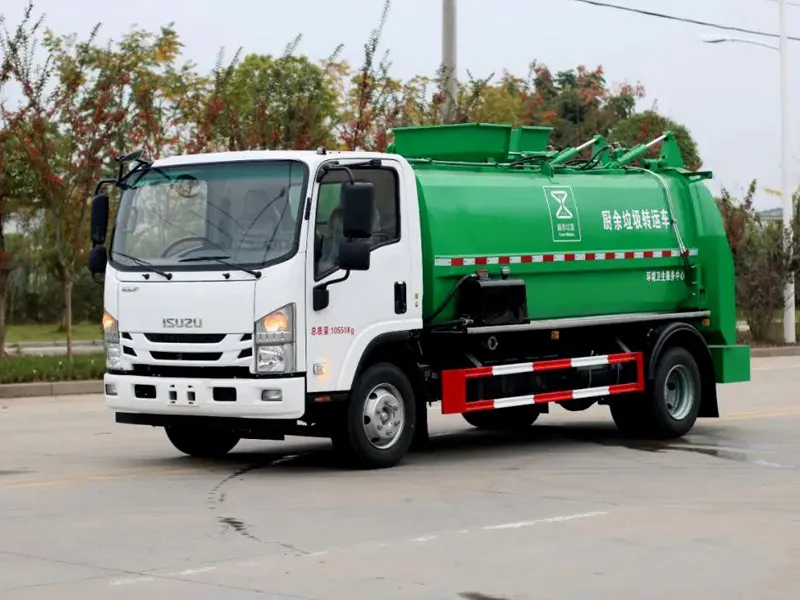

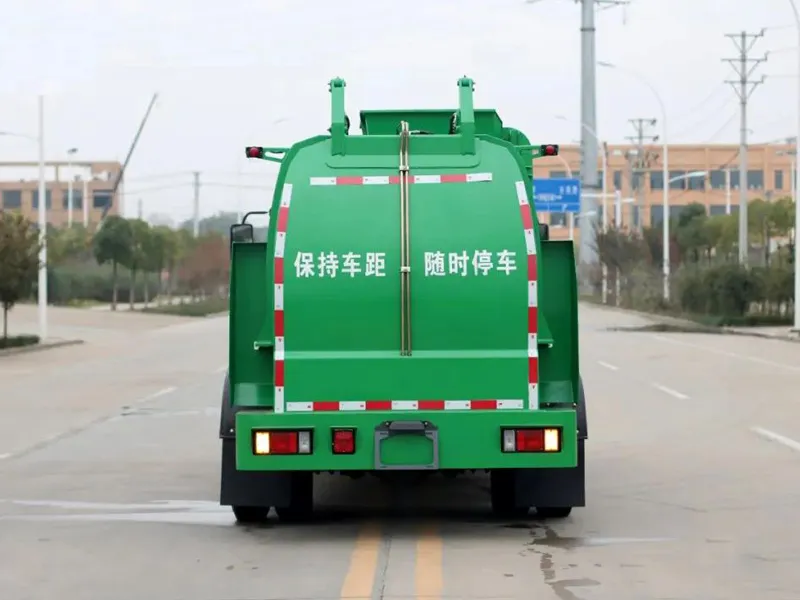

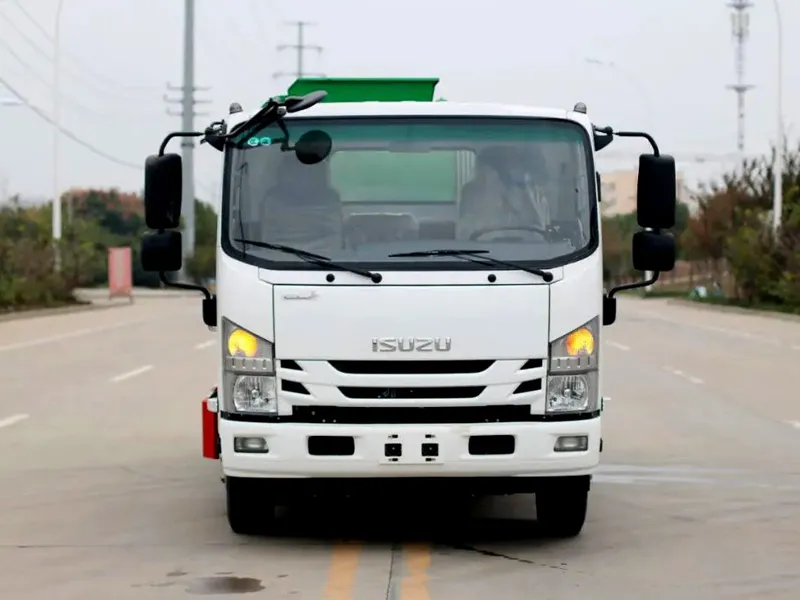

ISUZU kitchen waste garbage truck is designed for efficient catering waste collection, featuring a leak-proof design and reliable performance.
Parameter Category | Technical Specifications |
Basic Vehicle Information | |
Model Number | ISUZU QL5120TCA6HA (4×2 drive, dedicated for kitchen waste; customizable based on regional requirements) |
Product Name | ISUZU Kitchen Waste Garbage Truck (4×2 Drive, Euro 3 / Euro 5 Emission Standards) |
Emission Compliance | - Euro 3: Compliant with ECE R49 Regulation Stage III- Euro 5: Compliant with ECE R49 Regulation Stage V (requires ultra-low sulfur diesel ≤10 ppm) |
Intended Application | Collection & transportation of commercial/resident kitchen waste, catering waste; designed for leak-proof and odor-controlled operation to avoid secondary pollution |
Power Train System | |
Engine Model (Euro 3) | ISUZU 4HK1-TC (4-cylinder in-line, turbocharged, intercooled diesel engine) |
Engine Model (Euro 5) | ISUZU 4HK1-TCN5LS (4-cylinder in-line, turbocharged, intercooled, with SCR + DPF after-treatment system) |
Rated Power | - Euro 3: 129 kW (175 HP) @ 2800 rpm- Euro 5: 139 kW (189 HP) @ 2800 rpm |
Maximum Torque | - Euro 3: 600 N·m @ 1600-2200 rpm- Euro 5: 650 N·m @ 1600-2200 rpm |
Fuel Type | Diesel (Euro 3: 0#/-10# diesel; Euro 5: Ultra-low sulfur diesel ≤10 ppm) |
Fuel Tank Capacity | 180 L (High-strength aluminum alloy tank, anti-corrosion, with fuel level sensor) |
After-Treatment System (Euro 5) | SCR (Selective Catalytic Reduction) + DPF (Diesel Particulate Filter) + DOC (Diesel Oxidation Catalyst) |
Kitchen Waste Handling System | |
Tank Material | 304 food-grade stainless steel (tank wall thickness: 5 mm; tank bottom thickness: 8 mm for wear resistance) |
Effective Tank Volume | 10 cbm (optimized for 4×2 chassis, with volume scale on tank side) |
Loading Method | Rear suction + manual auxiliary feeding (suction inlet diameter: Φ200 mm, with anti-clogging filter screen) |
Discharging Method | Hydraulic tank lifting (maximum lifting angle: ≥48°) + rear door opening (hydraulic locking); equipped with tank self-cleaning system (high-pressure spray nozzles inside tank to remove residual waste) |
Leak-Proof Design | - Double-layer EPDM seal on rear door (resistant to oil and high temperature)- Integrated sewage collection box (100 L capacity) to collect leachate, avoid leakage during transportation |
Crushing & Stirring Function | Built-in spiral stirring blade (made of wear-resistant manganese steel) to crush large food residues and homogenize waste, preventing tank blockage |
Odor Control (Optional) | Activated carbon filter at tank vent (reduces odor emission) |
Dimensions & Weight | |
Overall Length × Width × Height | 6950 mm × 2300 mm × 3200 mm |
Wheelbase | 3815 mm |
Curb Weight | 7800 kg |
Gross Vehicle Weight (GVW) | 12000 kg |
Front Axle Load | 4000 kg |
Rear Axle Load | 8000 kg |
Chassis Configuration (4×2 Drive) | |
Drive Type | 4×2 (2 front steering wheels, 2 rear driving wheels; suitable for urban roads and narrow lanes) |
Suspension System | - Front: Parabolic leaf spring (2 main leaves + 1 auxiliary leaf)- Rear: Multi-leaf spring (9 main leaves + 3 auxiliary leaves) (strong load-bearing capacity for wet kitchen waste) |
Tire Specification | 7.50R16 14PR (radial tubeless tires, 6 tires in total; 1 spare tire optional; good traction on wet roads) |
Braking System | - Service Brake: Full air brake (dual-circuit)- Auxiliary Brake: Engine exhaust brake- Parking Brake: Spring-loaded brake (rear axle)- Safety Device: ABS (Anti-lock Braking System, compliant with ECE R10) |
Steering System | Hydraulic power-assisted steering (light operation, minimum turning radius: 7.8 m, suitable for urban maneuvering) |
Safety & Additional Features | |
Warning Devices | - Front/rear LED work warning lights (yellow, high visibility in urban traffic)- Reversing radar + rearview camera (with 7-inch display in cab, avoids blind spots) |
Hydraulic System Protection | Pressure relief valve + overload protection (prevents hydraulic cylinder damage due to excessive load) |
Cab Configuration | Single-row standard cab (with air conditioning, adjustable driver seat, power windows); operation panel for waste system integrated in cab (with status indicators: tank level, hydraulic pressure) |
Maintenance Access | Easy-to-open tank manhole cover (Φ500 mm) for internal cleaning; accessible hydraulic oil filter and fuel filter |
Warranty Period | - Euro 3: 18 months or 30,000 working kilometers (whichever comes first)- Euro 5: 24 months or 40,000 working kilometers (whichever comes first)Coverage: Main components (engine, hydraulic pump, tank structure); excludes consumables (tires, brake pads, seals) |
