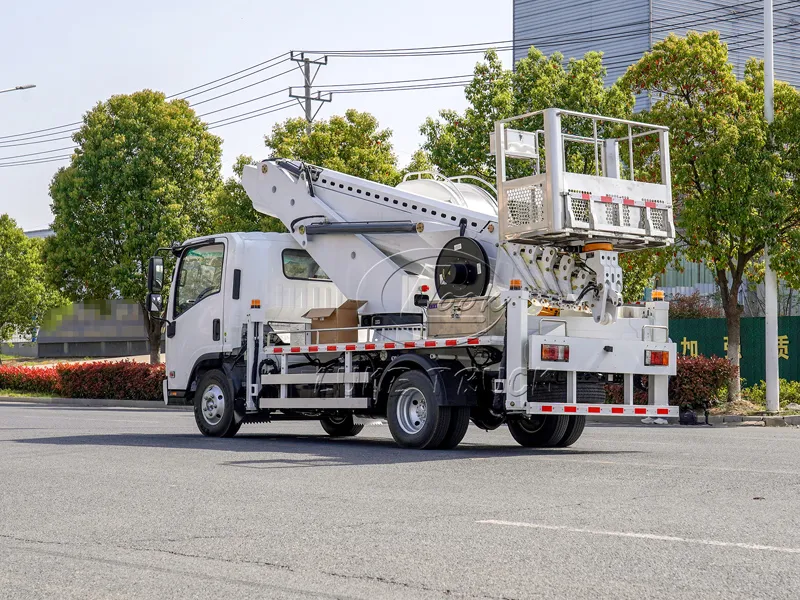

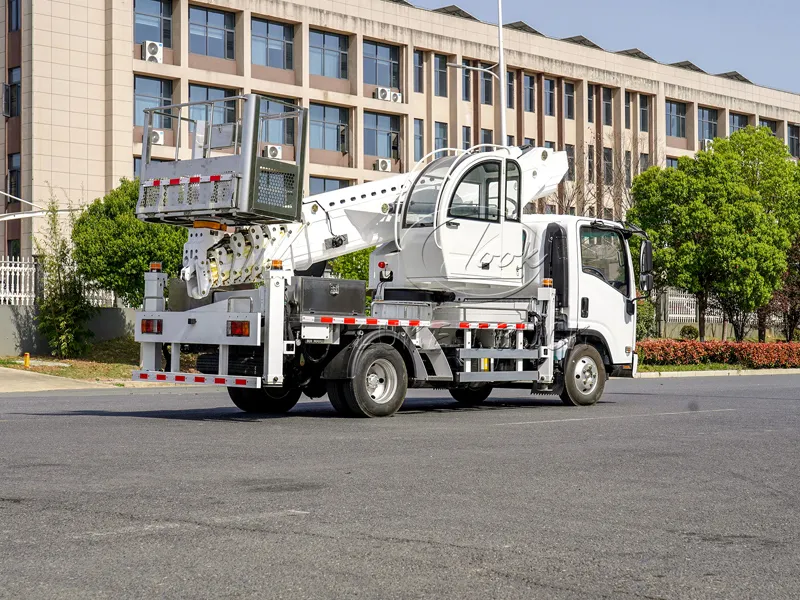

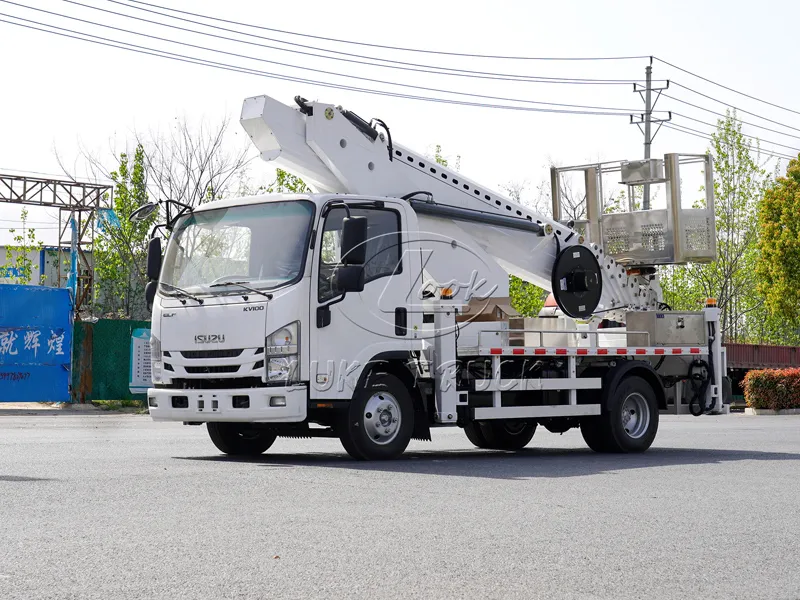

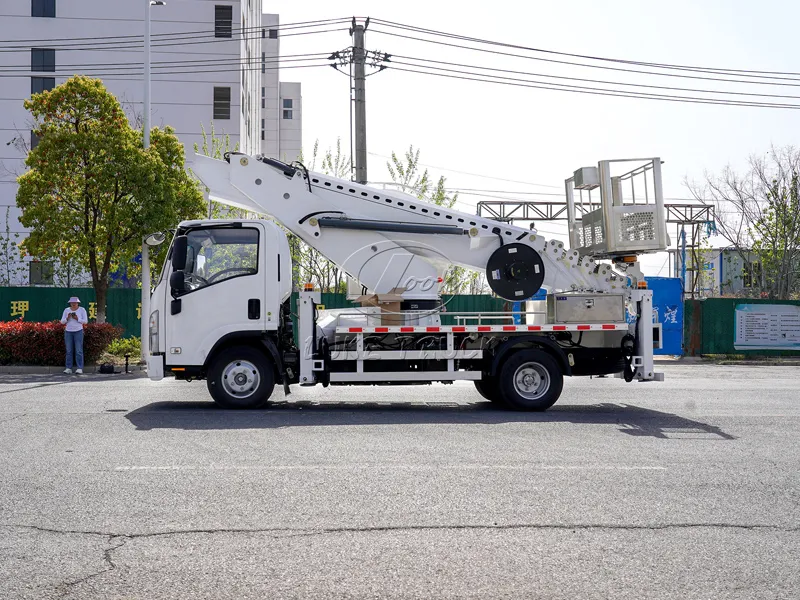

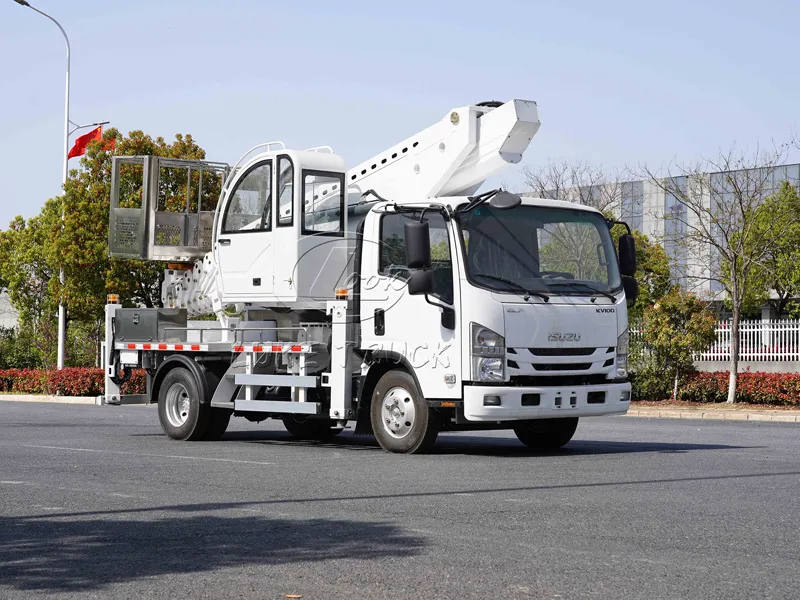

White Isuzu 33-meter Aerial Working Platform Truck leverages Isuzu's global service network to deliver professional maintenance and spare parts. With its exceptionally low failure rate, it ensures reliability for long-term high-intensity operations, making it a trusted aerial work partner for users worldwide.
| Technical Parameters of White Isuzu 33m Aerial Working Platform Truck | |||
| Product trademark | Casal card | Announcement batch | 400 |
| product name | Aerial Working Platform Truck | product model | LOOK5044JGKA6DS |
| gross mass （Kg） | 4495 | outline dimension （mm） | 5975×2050×3150 |
| Number of passengers in the cab (per person) | 2 | curb weight （Kg） | 4365 |
| Approach Angle/Departure Angle (°) | 19/12 | Front/rear suspension (mm) | 1015/1815 |
| axle weight （Kg） | 1700/2795 | Maximum speed (Km/h) | 100 |

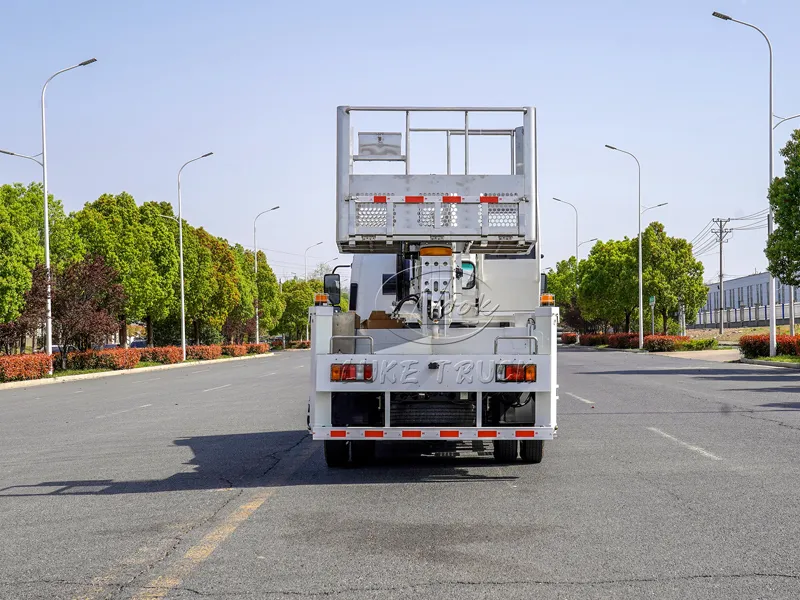

| This vehicle is primarily designed for high-altitude operations including power grid repairs, communication infrastructure maintenance, and street lighting installations. Its specialized components comprise a lifting platform and working arm, with a rear extension length of 350mm. The side protective panel is fabricated from Q235 steel and secured via welding and bolted connections. The rear lower protective panel also uses Q235 steel with welded joints. Dimensions: 50×100mm (width×height), with a ground clearance of 405mm. ABS systems are supplied by Zhejiang Asia-Pacific Electromechanical Co., Ltd. (APG3550500A) and Guangzhou Ruilike Mi Automotive Electronics Co., Ltd. (CM4YL). Optional configurations include: 1) Direct power supply ETC on-board unit; 2) Working arm styles; 3) Working bucket styles; 4) Turntable-specific control cabin styles; 5) Rear exterior styles; 6) Upper exterior and operation styles; 7) Hoist and sensor styles; 8) Cab and wheel hub styles; 9) Cab options available with chassis. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | QL1041BUFAY | Chassis name | truck chassis |
| brand name | Isuzu brand | manufacturing enterprise | Qingling Automobile Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 2795 | tyre size | 7.00R16LT 8PR |
| Number of leaf springs | 2/3+2 | front gauge （mm） | 1377 |
| fuel type | diesel oil | rear track （mm） | 1425 |
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| 4KK1N6SD | Isuzu (China) Engine Co., Ltd. | 2499 | 97 |
With a century of industrial heritage, Isuzu has established itself as a performance benchmark in aerial operations through its cutting-edge technological DNA. The Isuzu Aerial Working Platform Truck combines world-class power technology with precision engineering, setting industry standards in power output, operational accuracy, and safety protection. It has become the trusted choice for high-end applications such as municipal engineering, power maintenance, and construction, showcasing the enduring strength of a century-old brand.
The Isuzu Aerial Working Platform Truck features the globally acclaimed Isuzu custom engine, delivering a comprehensive powertrain that balances high output with fuel efficiency. Designed for medium and high-altitude operations, the Isuzu 700P model is equipped with a 5.2L 4HK1 turbocharged engine, generating 205 horsepower to effortlessly propel 36-meter-class equipment. It maintains stable power output whether handling heavy loads or navigating complex terrains.
Designed for urban mobility, the new Isuzu 100P Blue Plate model features an upgraded 2.5L 4KB1 engine that inherits the technical strengths of the classic 4JB1 engine, delivering a precise 131-horsepower output paired with 360N·m torque. This combination ensures rapid acceleration in city driving and fuel efficiency at low speeds, while the Isuzu Gold Powertrain significantly reduces long-term operating costs. The 3.0L 4KH1 series engine, widely used in 16-30m class models, provides 120 horsepower output adaptable to various working heights. It also complies with multiple regional emission standards including Euro 5 and China VI, demonstrating exceptional global compatibility.
The chassis is constructed from high-strength alloy steel, paired with a precision-tuned suspension system and 7.00R16 alloy wheels. This combination ensures smooth maneuverability in urban streets while handling rough off-road terrain with ease, delivering seamless performance across all terrains.

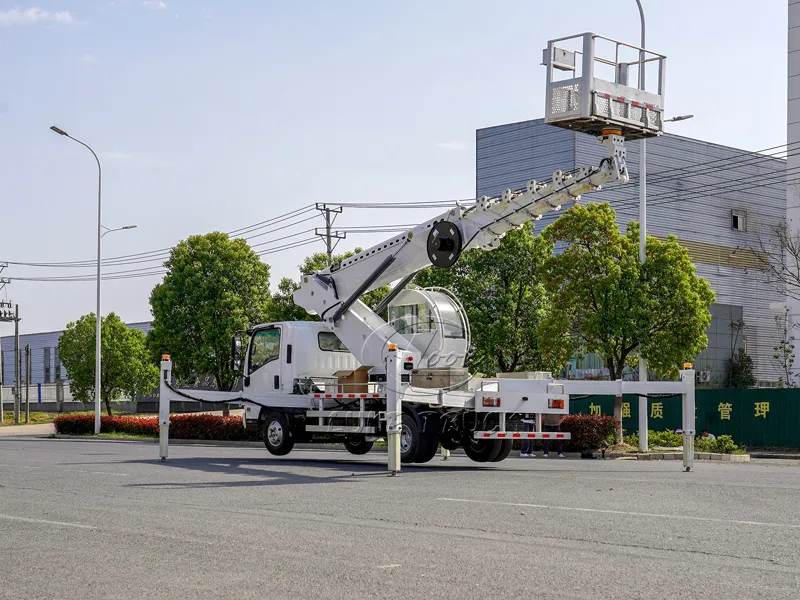

Powered by Isuzu's precision manufacturing expertise, the system achieves dual breakthroughs in height and accuracy. The model series spans 16-31 meters with six-section telescopic arms, delivering 31-meter reach and agile maneuverability to effortlessly access high-altitude blind spots. The 30-meter variant features hexagonal six-section arms with significantly enhanced torsional strength compared to conventional designs, complemented by 360° continuous rotation capability to ensure comprehensive coverage without blind spots.

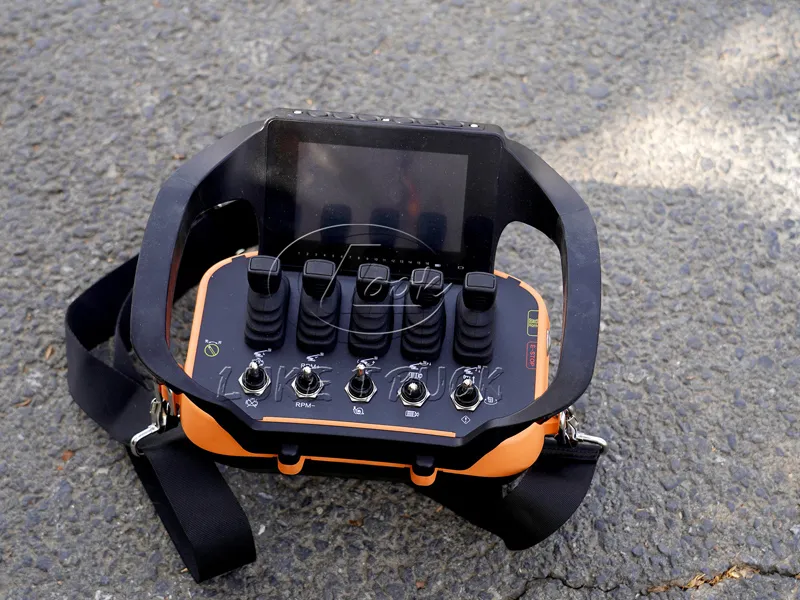

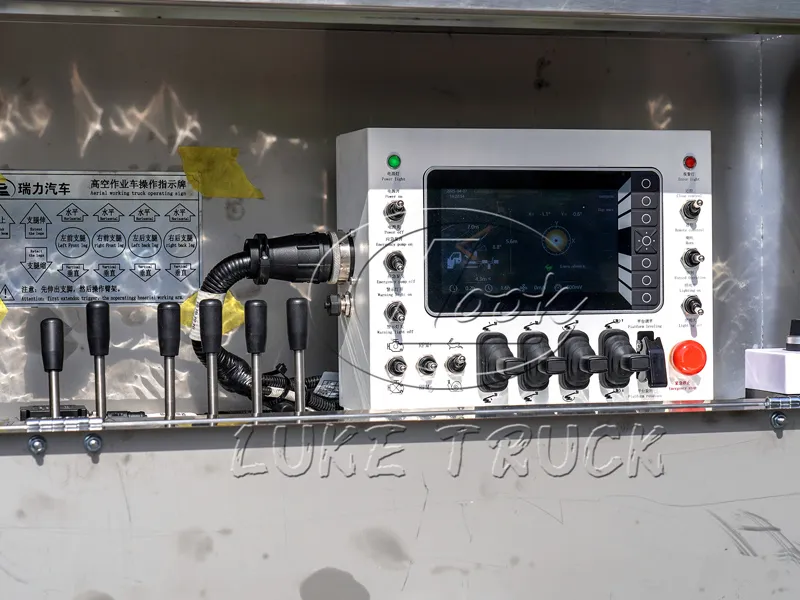

The control system combines intelligence with convenience, featuring a triple-mode configuration of wireless remote control, platform operation, and manual emergency mode as standard across all models. Operators can select the optimal control method based on operational scenarios, while remote operation effectively mitigates risks associated with high-altitude work. Core hydraulic components employ precision calibration technology, paired with German-imported balance valves, enabling stepless speed adjustment and smooth lifting of the boom. With millimeter-level operational accuracy, the system ensures precise lifting of heavy loads and pinpoint positioning operations.

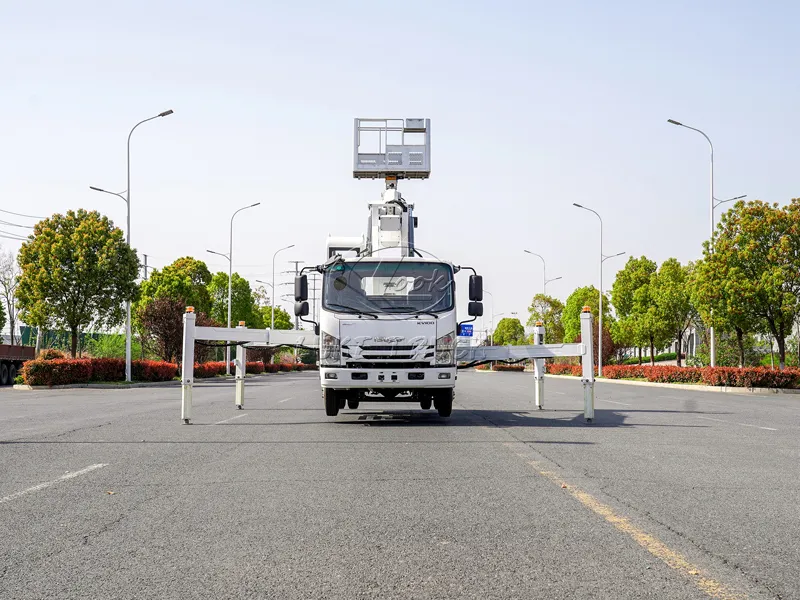

The innovative front-V rear-H hydraulic outriggers extend the maximum span to 6 meters, featuring both manual adjustment and automatic leveling. They securely anchor the vehicle even on 15° inclines. The smart interlock mechanism between the outriggers and working arm eliminates operational risks at the source.
Isuzu has built a comprehensive safety system through "redundant safety design," with all critical structures and configurations meeting international safety standards. The boom is crafted from high-strength alloy steel through precision heat treatment, equipped with hydraulic cylinder bidirectional balance valves and locking mechanisms to effectively prevent accidental retraction or drop, ensuring rock-solid stability during operations. For electrical work scenarios, some models feature insulated booms that safely approach live equipment, eliminating the risk of electric shock at its source.
The entire series comes standard with multiple active safety features: Hydraulic leg locks and hazard lights provide dual protection to alert the surroundings and stabilize the vehicle; Emergency electric pumps and manual emergency systems ensure safe evacuation during power outages or other emergencies; The stainless steel work platform, rated for 200kg, accommodates 2-3 operators and tools, with guardrails and seat belts further enhancing safety.
Leveraging Isuzu's global service network, we provide professional maintenance and spare parts supply. With vehicles boasting an exceptionally low failure rate, we guarantee reliability for long-term high-intensity operations, establishing ourselves as a trusted aerial work partner worldwide.
