The German MAN Smoke Exhaust Fire Truck is built on the TGS33.480 chassis with a 485 hp engine and a high-power exhauster, designed for efficient fire smoke removal.
Fire engine for smoke extraction | ||||||
The German MAN Smoke Exhaust Fire Truck is modified from the German Mann TGS33.480 chassis, with a flat head single row with a horizontal cab and hydraulic flip. The German Mann D2676LF40 engine, 485 horsepower, is mainly used for fire smoke exhaust. | ||||||
product name | German MAN Smoke Exhaust Fire Truck | |||||
gross mass | 30400(Kg) | outline dimension mm | 11390×2510×3950 | |||
Rated load mass | (kg) | No. of driver's seats | 2 (person) | |||
curb weight | 27750 (kg) | Front suspension / rear suspension | 1500/2810 | |||
Approach Angle/Departure Angle | 14/11(°) | wheel base （mm） | 5100+1400 | |||
axle weight (Kg) | 7000/11700/11700 | speed of a motor vehicle | 95(Km/h) | |||
[Base technical parameters] | ||||||
Chassis type | TGS33.480 | |||||
Fuel types | diesel oil | tyre size | 315/80R22.5 | |||
front gauge | 2048(mm) | rear track | 1804/1804 (mm) | |||
effluent standard | GB17691-2005, GB3847-2005 | |||||
engine type | Engine manufacturer | displacement (ml) | power (Kw) | |||
D2676LF40 | Germany Mann Commercial Vehicle Co., LTD | 12419 | 356KW | |||
Crew room description | Flat head all metal enclosed single row with horizontal cab, panoramic curved glass. | |||||
Tank volume | Two cubic metres | |||||

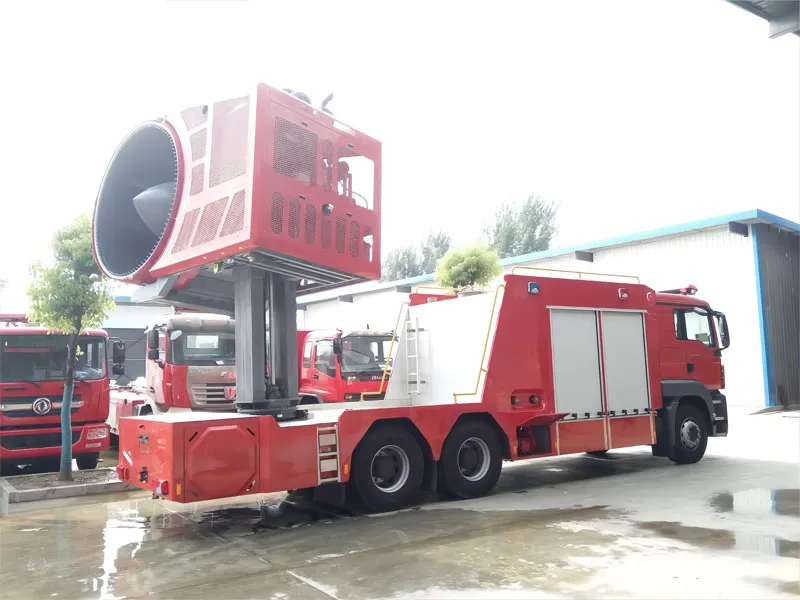

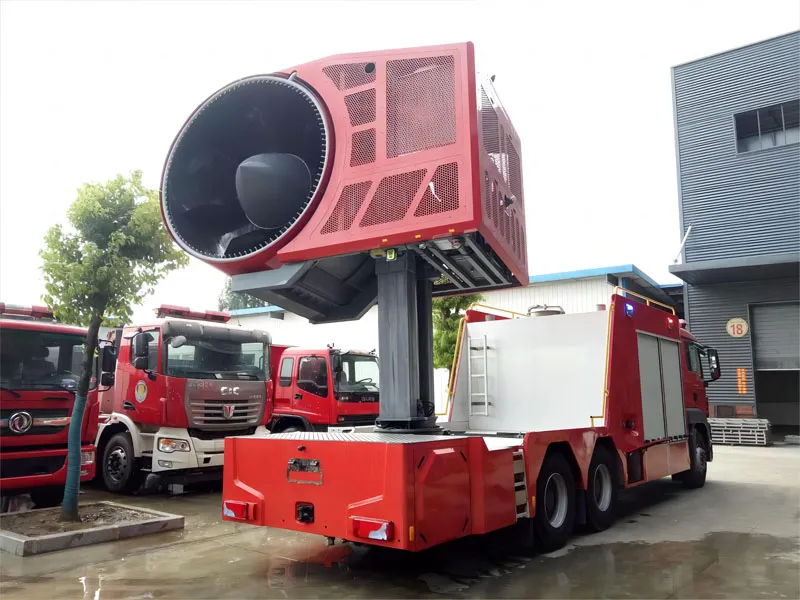

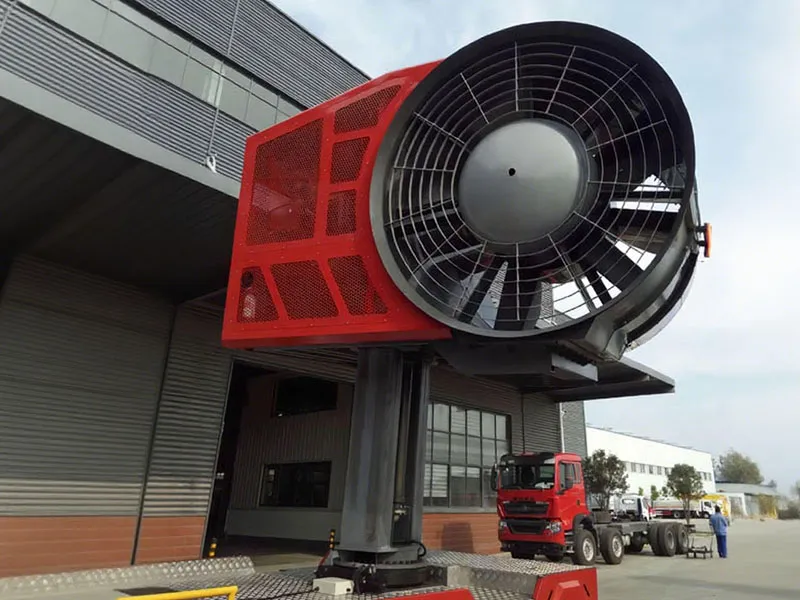

induced draft fan | Equipped with high power smoke exhaust fan | |||||
