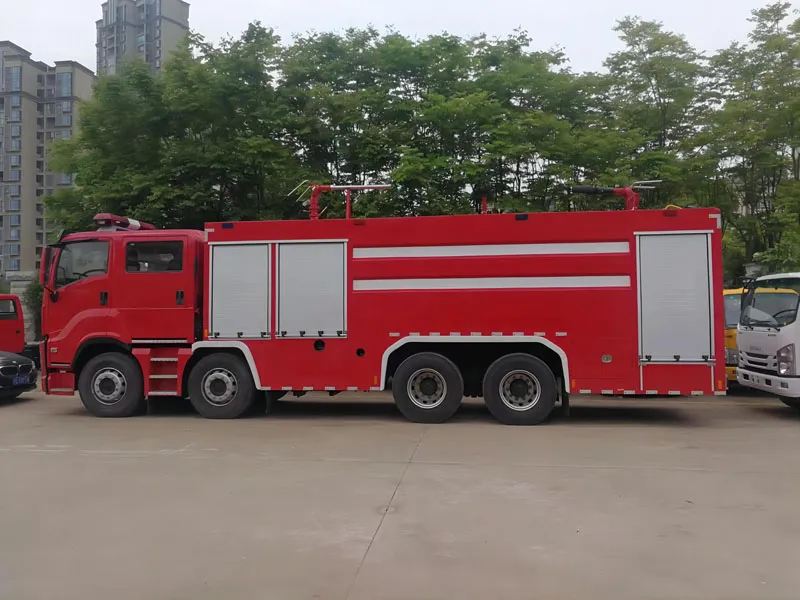

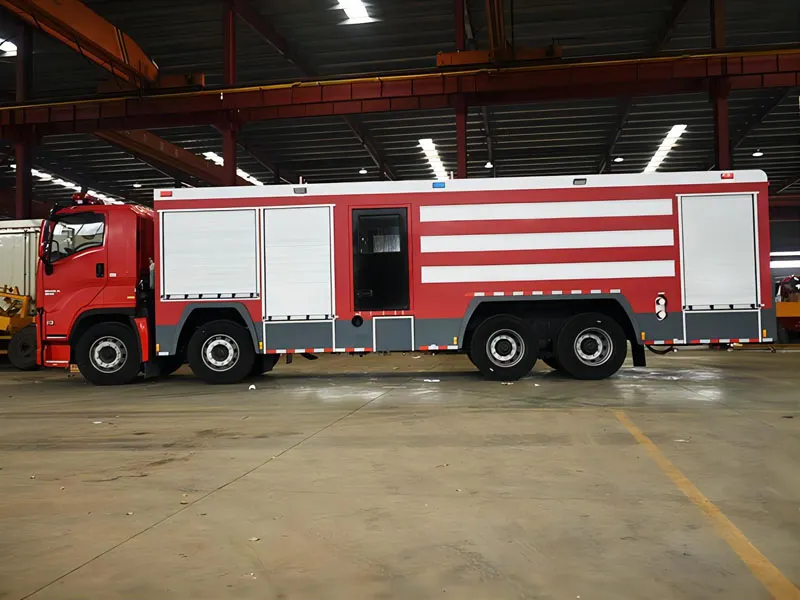

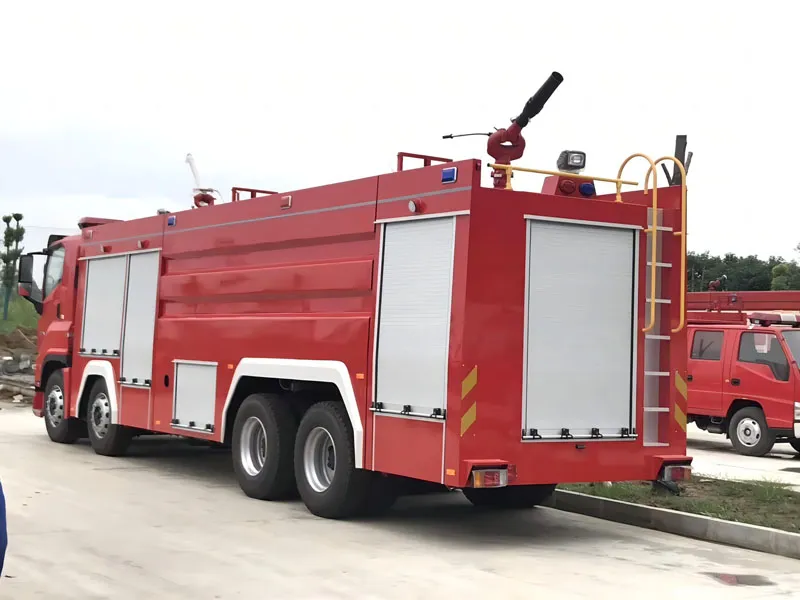

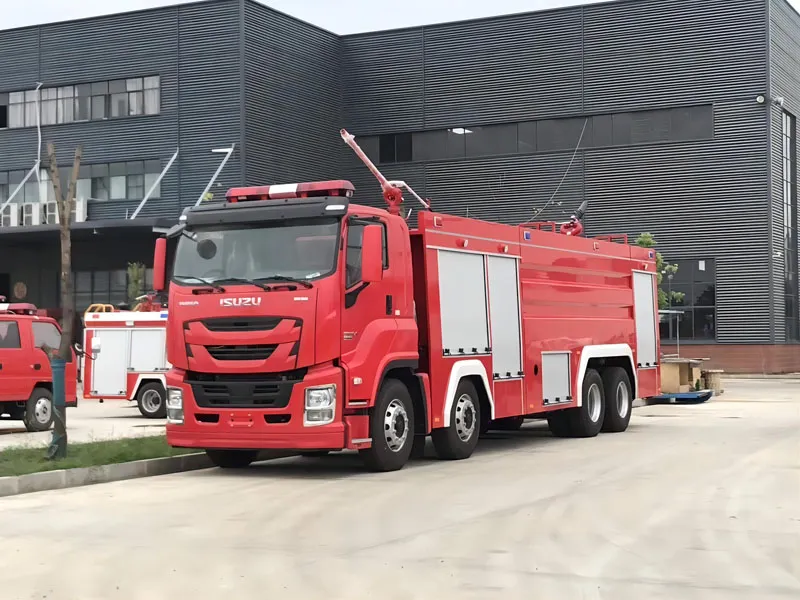

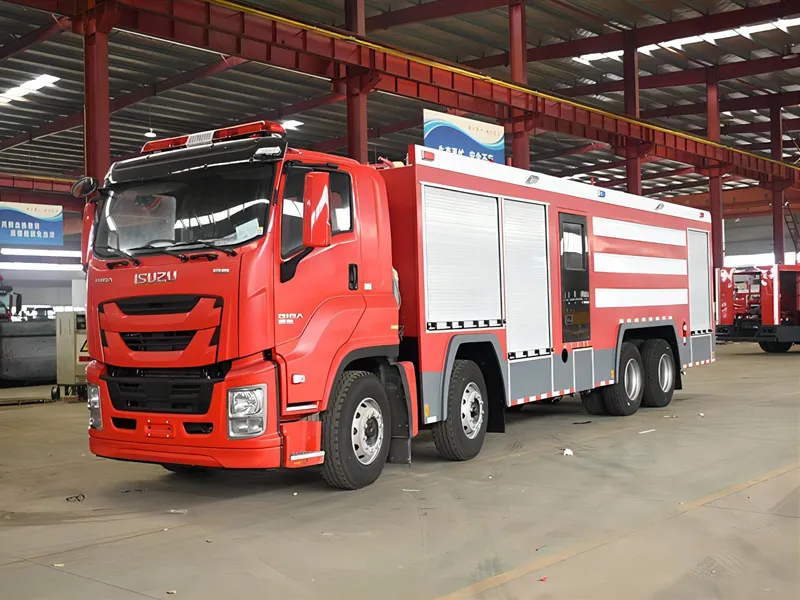

ISUZU GIGA 20,000 L fire truck is a heavy-duty firefighting vehicle equipped with a 20,000 L water tank, a CB10/100 pump delivering 100 L/s, and a PL80 fire monitor with a range of over 65 m. Powered by a 350 hp diesel engine and 6×4 all-wheel drive, it offers reliable performance for urban and industrial emergencies. Its robust steel frame combines high capacity with efficient fire suppression capabilities.
| GVW39800kg | Driving Type 8x4 | ||
Model | Luke5410GXFSG60 | ||

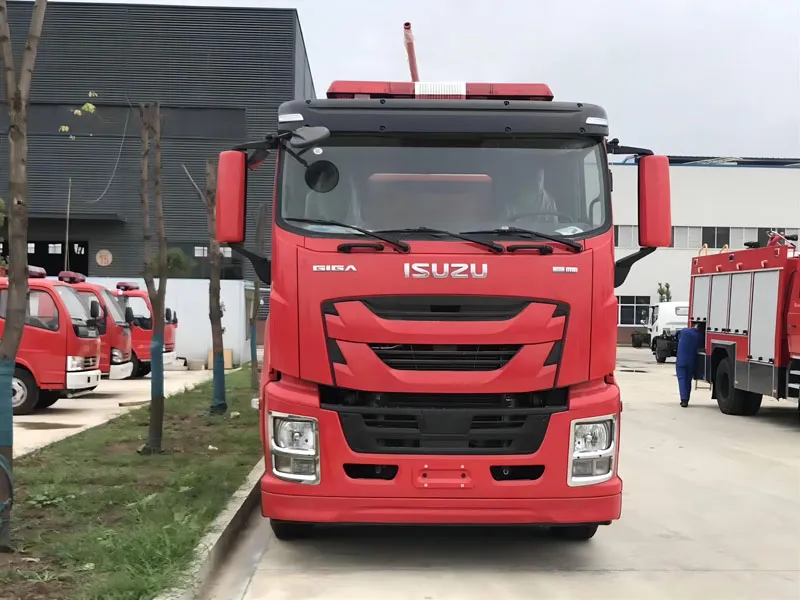

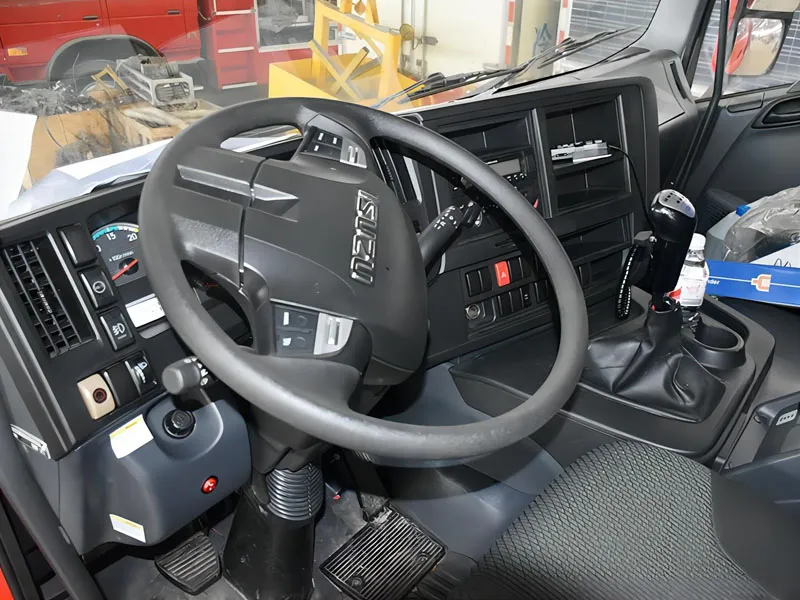

Cab | Isuzu GIGA double row, air con, multi-function instrument, multi-function steering wheel, power window, centrol lock, allowable 2+4 passengers | ||
Engine(Hp) | 350 | ||
Power(Kw) | 257 | ||
Wheelbase | 1850+4565+1370 | ||
Front/Rear Suspension | 1370/2580 | ||
Steering | Power steering | ||
Approach/departure angle | 14/11 | ||
Wheels & tire | 315/80R22.5 | ||
Tire number | 12+1 | ||
Tank Dimensions(mm) | |||
Cubage (m3) | 20 | ||
RHD or LHD | LHD | ||
Overall Dimensions(mm) | 11830×2500×3720 | ||
Curb weight (Kg) | 19150 | ||
Engine | Model | 6UZ1-TCG51 | |
Horsepower | 350 | ||
Maximum output Kw | 257 | ||
Maximum torque N.m | 1422 | ||
Type | 6 cylinders, in-line, 4-stroke, diesel engine | ||
Displacement | 9.839L | ||
Isuzu brand, Euro 5 | |||
Driving passenger | 2+4 | ||
Transmission | FAST 12 speed forward, manual | ||
Front Axle | 7Tx2 | ||
Rear Axle | 13Tx2 | ||
Brake System | Air brake Exhaust brake | ||
Color and LOGO | customized | ||
Electric system | 24V | ||
Fire equipment part | Fire pump | CB10/100, rated pressure 1.0MPa, flow 100L/s | |
Fire gun | PL80, flow 80L/s, jet distance ≥65m | ||

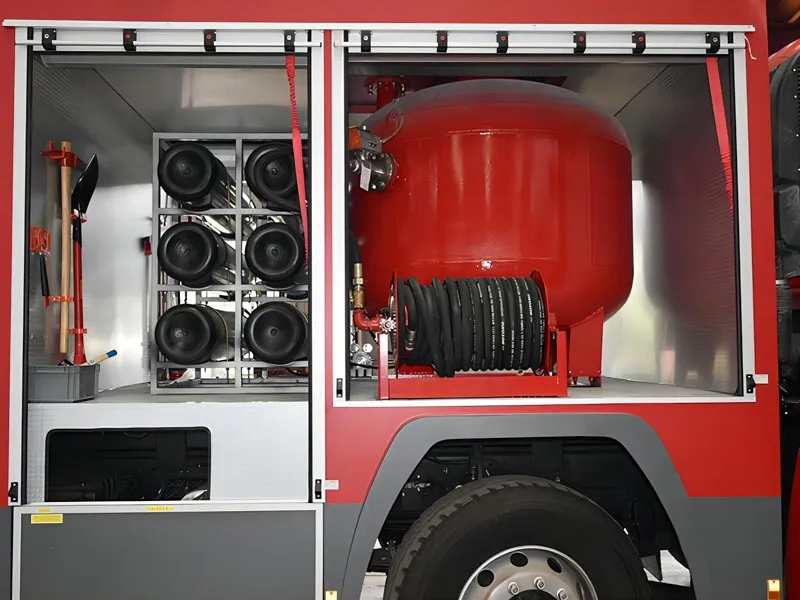

Standard configuration | national standard equipment box, full units national standard fire-fighting equipment, fire pump, fire gun, fire power take off, sliding gate, row type lights, reel, common toolsrear climbing ladder, water tank. | ||
Optional configuration | foam type, dry powder type, stainless tank, other requirements. | ||
Delivery date | Within 50 days after receipt advance | ||
Packing | Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||
