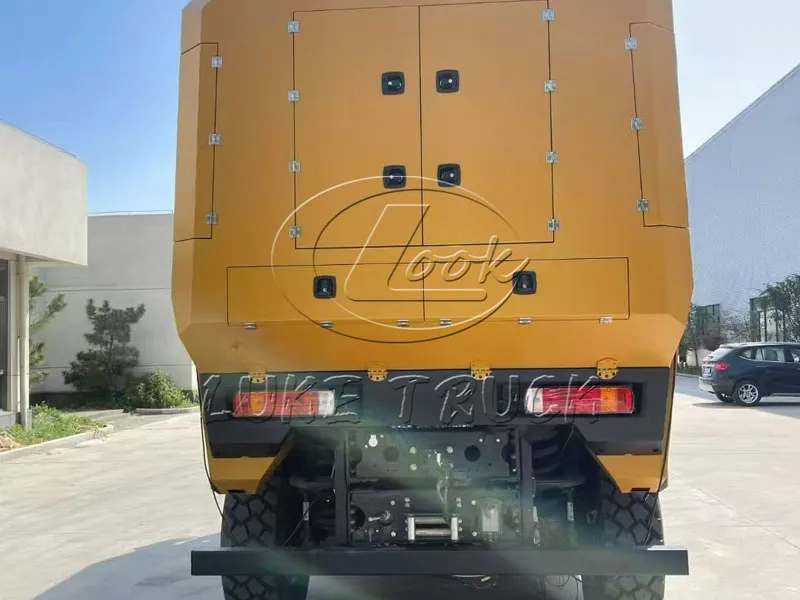

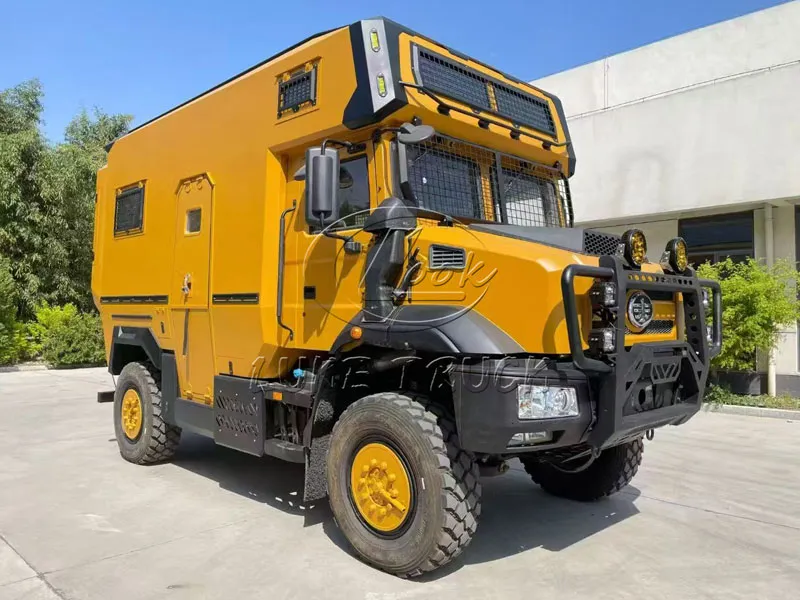

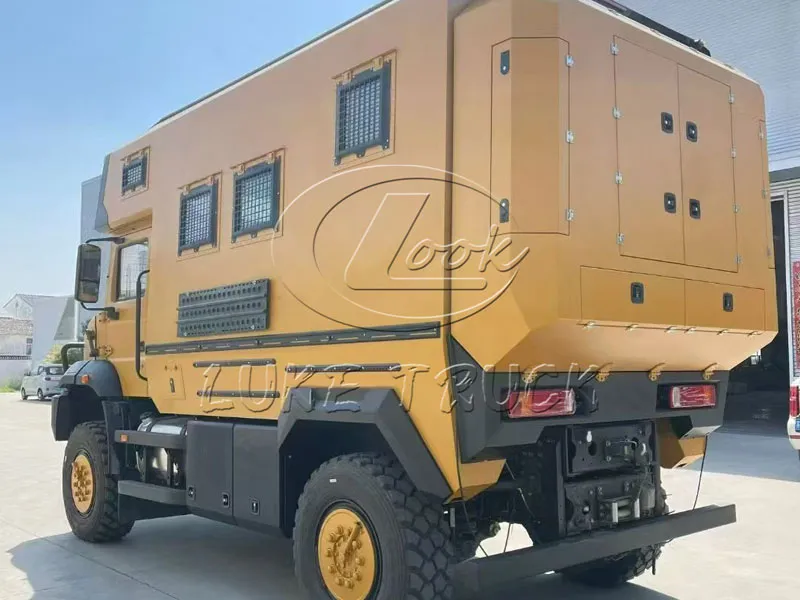

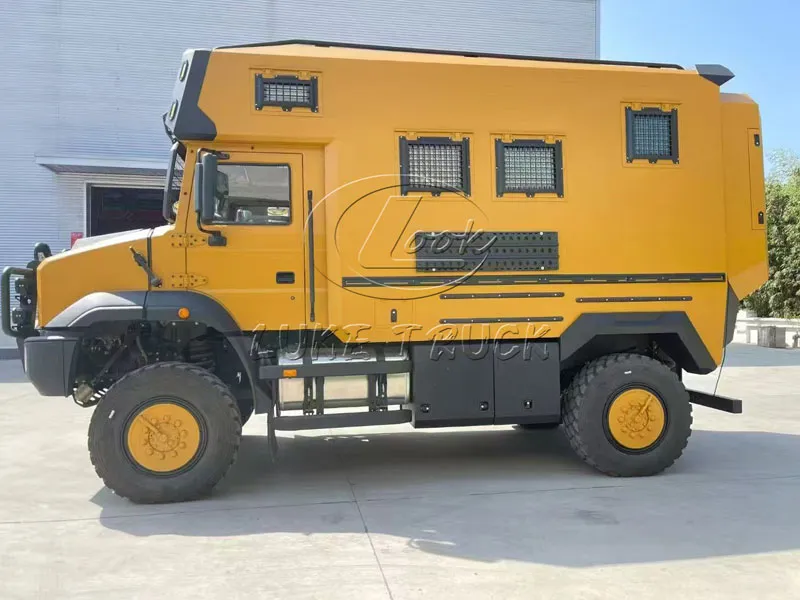

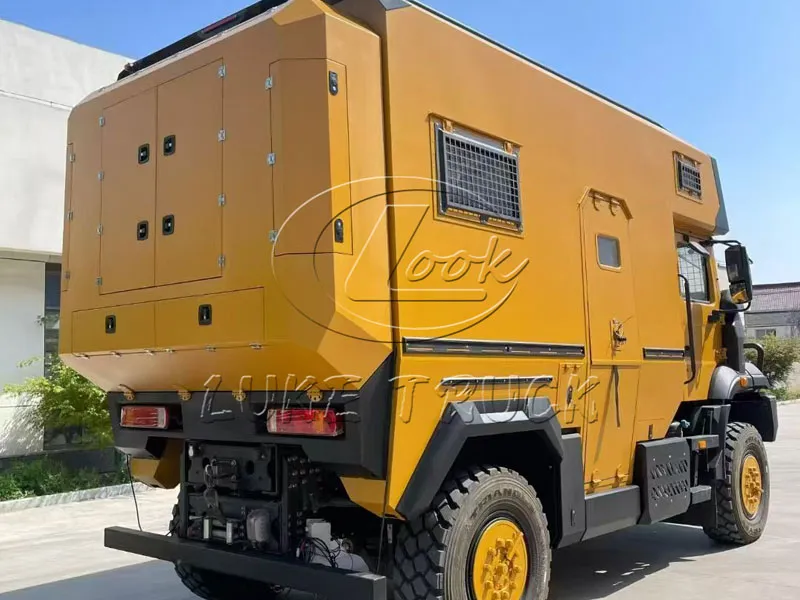

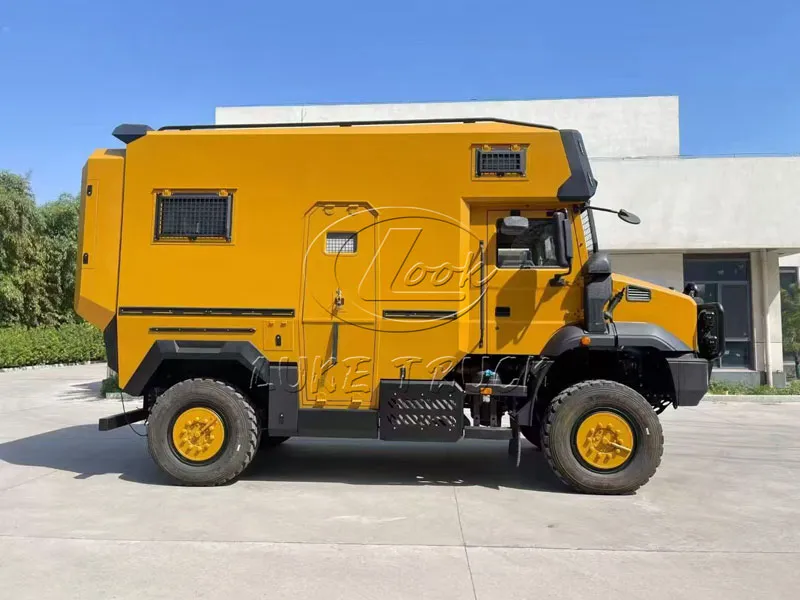

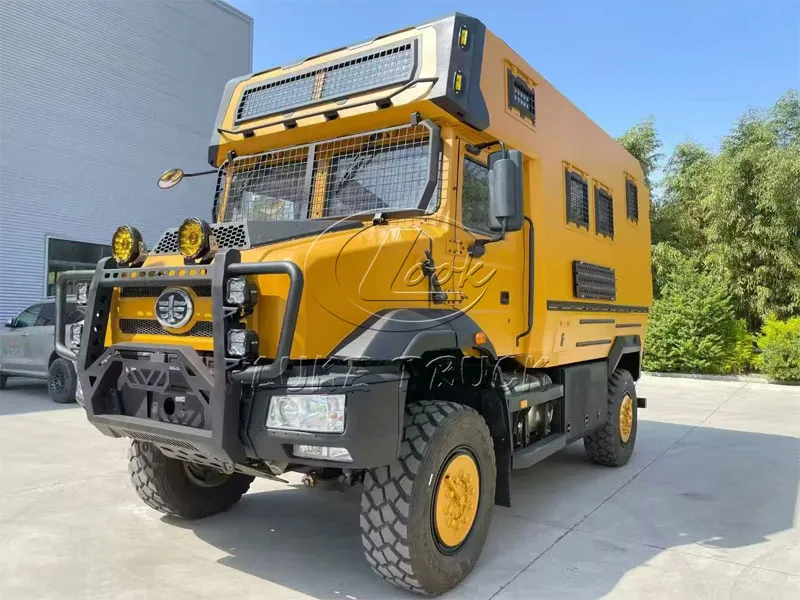

The FAW Jiefang 4x4 off-road RV is equipped with premium electrical appliances such as a Sony TV, a Siemens combination microwave-steam-oven, and a BOSE sound system. The bathroom features high-end configurations including a U.S.-imported ceramic electric macerating toilet and a German-imported thermostatic rainfall shower system.
| FAW CA5120XLJ21 RV Parameter | |||
| Product Trademark | Jiefang | Permitted Gross Vehicle Weight (kg) | 12000 |
| Product Name | RV | Curb Weight (kg) | 11595 |
| Total Mass (kg) | 11995 | Product Model | CA5120XLJ21 |
| Rated Passenger Capacity (persons) | 3, 6 | External Dimensions (mm) | 5995×2545×3770 |
| Approach Angle/departure angle (°) | 45/30 | Front Overhang/rear overhang (mm) | 1100/1045 |
| Axle Load (Kg) | 5895/5905, 5895/6100, 5600/5900 | Maximum Speed (km/h) | 99,115 |
NOTE: 1. The side protection features a double crossbeam structure made of high-strength aluminum alloy, with cross-sectional dimensions (length × width) mm: 100 × 112, and a ground clearance of 550 mm. The rear protection material is 700L, with cross-sectional dimensions (length × width) mm: 120 × 95, and a ground clearance of 420 mm. All connections are bolted. 2. The vehicle is equipped with tables, chairs, sleeping facilities, kitchenware, and sanitary facilities. 3. The ABS system is manufactured by ZF Commercial Vehicle Systems (Qingdao) Co., Ltd., and the model is ABS-E4S/4M. 4. A driving recorder with satellite positioning function is installed. 5. An optional speed limiter is available, limiting the speed to 99 km/h. 6. An upgrade device is available, for use only when parked. Another optional design with a height of 3600 mm is also available. An optional terrace device increases the overall vehicle height to 3770 mm. 7. An optional onboard ETC device is available. 8. Headlights are optional and are only for personnel use in off-road conditions for work and daily life. | |||
| Chassis Technical Parameters | |||
| Chassis Model | CA2120J1K2T5E6Z | Chassis Name | Long-Hood Diesel Off-Road Chassis |
| Trademark Name | Jiefang | Manufacturing Enterprises | China FAW Group Co., Ltd. |
| Number of Axes | 2 | Number of Tires | 4 |
| Wheelbase (mm) | 3850 | Tire Specifications | 365/80R20 |
| Fuel Types | Diesel | Front Track Width (mm) | 2107 |
| Emission Standards | GB17691-2018 NationalStandard VI | Rear Track Width (mm) | 2085 |
| Engine Model | Engine Manufacturers | Displacement (ml) | Power (kW) |
| CA6DL6-32E68 | China FAW Group Co., Ltd. | 8570 | 239 |
The CA5120XLJ21 motorhome is a Snow Eagle series off-road RV launched by Hubei Luke Automobile. The following is a detailed introduction:
Basic Information: Vehicle announcement batch number 371, Chinese brand name is Jiefang, chassis model is CA2120J1K2T5E6Z, external dimensions are 5995×2545×3770mm, gross vehicle weight is 11800Kg, curb weight is 11595Kg, rated passenger capacity is 3 people, tire specifications are 365/80R20, equipped with a CA6DL6-32E68 National VI diesel engine, displacement 8570ml, power 239kw.
Off-road performance: Equipped with a 320hp diesel engine, matched with an Allison 3000 automatic transmission, a full-time four-wheel drive system, and three differential locks (front and rear). It also features front and rear 25,000-pound electric lifting hinges and a four-wheel automatic tire inflation/deflation system, achieving a maximum climbing gradient of 60%. It can operate normally at altitudes of 5000 meters and in temperatures ranging from -40℃ to 46℃.
Interior features: The interior uses imported American cherry wood furniture, imported fabric sofas, and natural latex mattresses. It is equipped with appliances such as a Sony TV, a Siemens microwave-oven combo, and a BOSE sound system. The bathroom features high-end amenities including an imported American ceramic electric macerating toilet and an imported German thermostatic shower.
