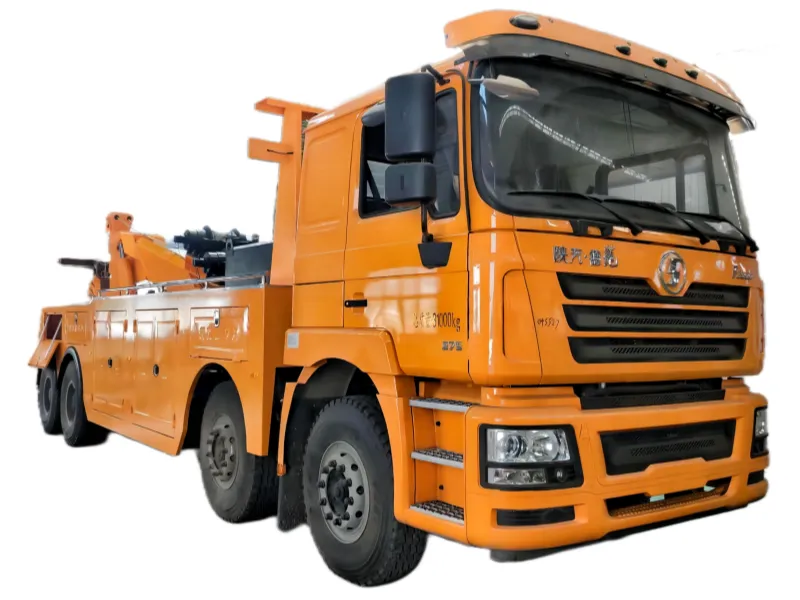

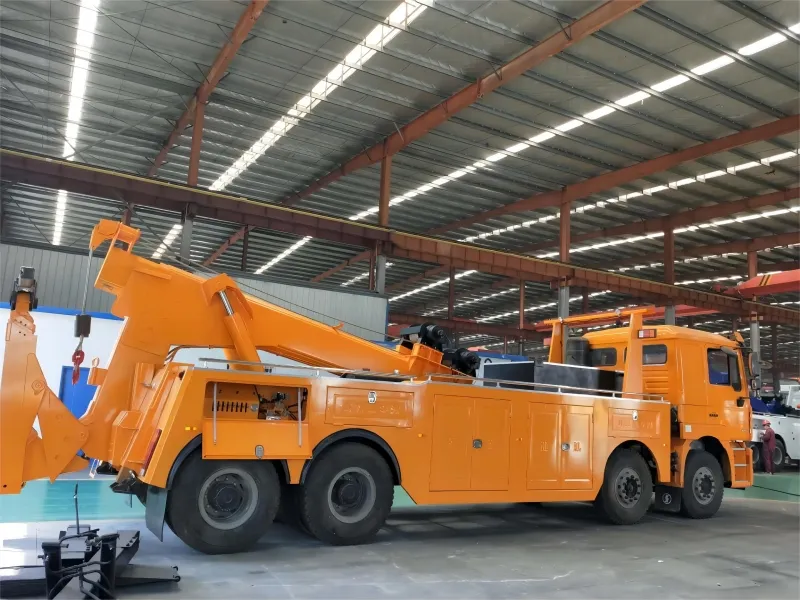

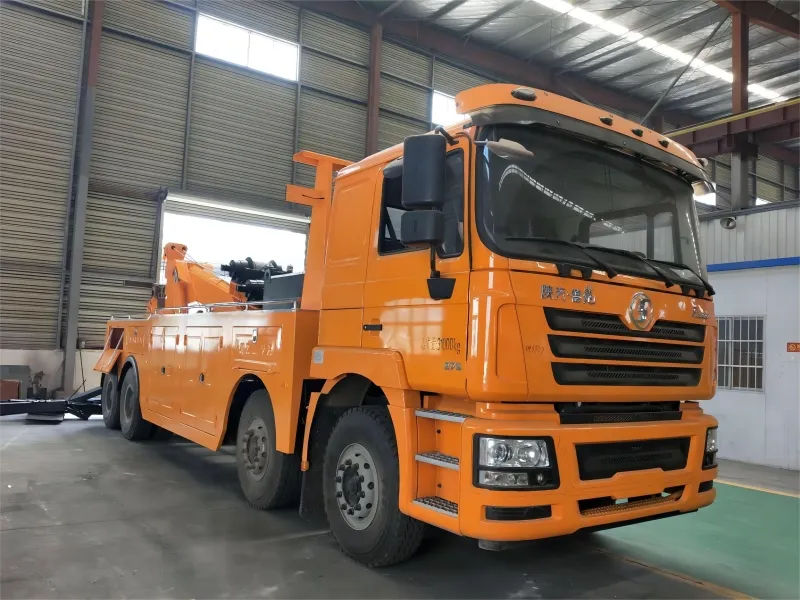

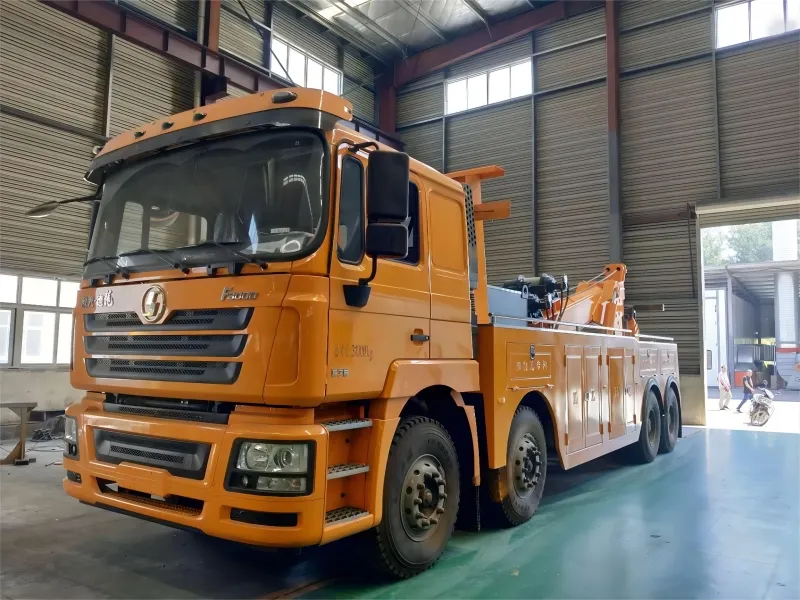

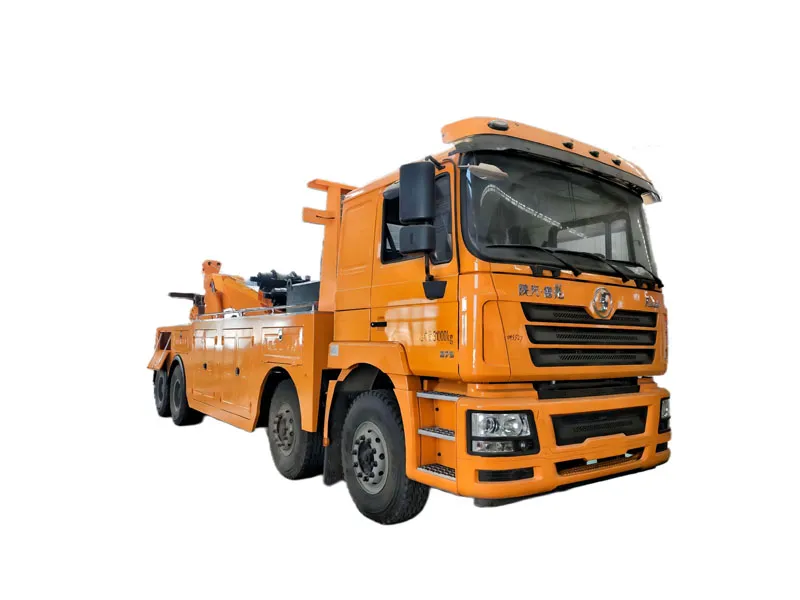

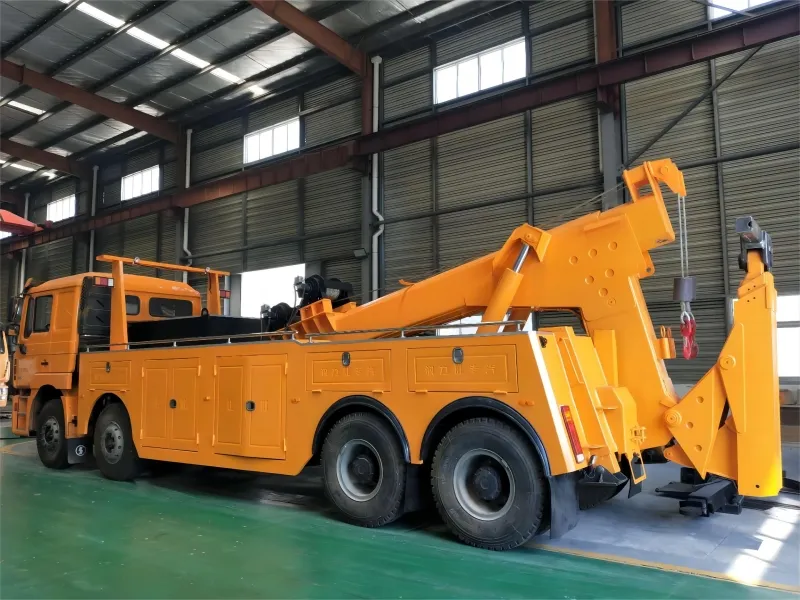

The Shcman 8×4 wrecker truck features a maximum towing capacity of 50 tons and a maximum lifting capacity of 20 tons.
|
GVW Driving Type 8x4 |
|||||
|
Model |
Luke truck |
||||
|
Cab |
SHACMAN F3000 four-point hydraulic suspension cab, electric automatic constant temperature air conditioner, power window, ordinary air filter, central lock, hydraulic major seat, tilt, metal bumper |
||||
|
Engine(Hp) |
380 |
||||
|
Power(Kw) |
280 |
||||
|
Wheelbase |
1800+4575+1400 |
||||
|
Front/Rear Suspension |
1525/2150 |
||||
|
Steering |
Power steering |
||||
|
Approach/departure angle |
18/13 |
||||
|
Wheels & tire |
12.00R20 |
||||
|
Tire number |
12+1 |
||||
|
Loading capacity(kg) |
|||||
|
Plate dimension(mm) |
/ |
||||
|
RHD or LHD |
optional |
||||
|
Overall Dimensions(mm) |
11500×2500×3300 |
||||
|
Curb weight (Kg) |
22300 |
||||
|
Engine |
Model |
WP10.380E32 |
|||
|
Horsepower |
380 |
||||
|
Maximum output Kw |
280 |
||||
|
Maximum torque N.m |
1600 |
||||
|
Type |
6cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, diesel engine |
||||
|
Displacement |
9.726L |
||||
|
Weichai brand, Euro 3 |
|||||
|
Driving passenger |
2, 3 |
||||
|
Transmission |
FAST 10 forwards 2 reserves, manual |
||||
|
Front Axle |
7.5Tx2, MAN level |
||||
|
Rear Axle |
13T x2, MAN level |
||||
|
Brake System |
air brake |
||||
|
Color and LOGO |
customized |
||||
|
Electric system |
24V |
||||
|
Major parameter |
Winch capacity |
10000kg x2 |
Max lifting capacity |
20000kg |
|
|
Max towing capacity |
50000kg |
Steel wire rope |
45m |
||
|
Standard configuration |
2 unit of 10 ton winch, 1 unit of steel wire rope, with four sets of steel forks, a set of forks cover, a set of steel ear lifting forks, a set of tires. A long row of engineering lights. A set of auxiliary lights, a set of auxiliary air pipe assemblies 1 unit of spare tire, 1 unit of jack, famous hydraulic system, crane and others |
||||
|
Delivery date |
Within 60 days after receipt advance |
||||
|
Packing |
Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. |
||||
