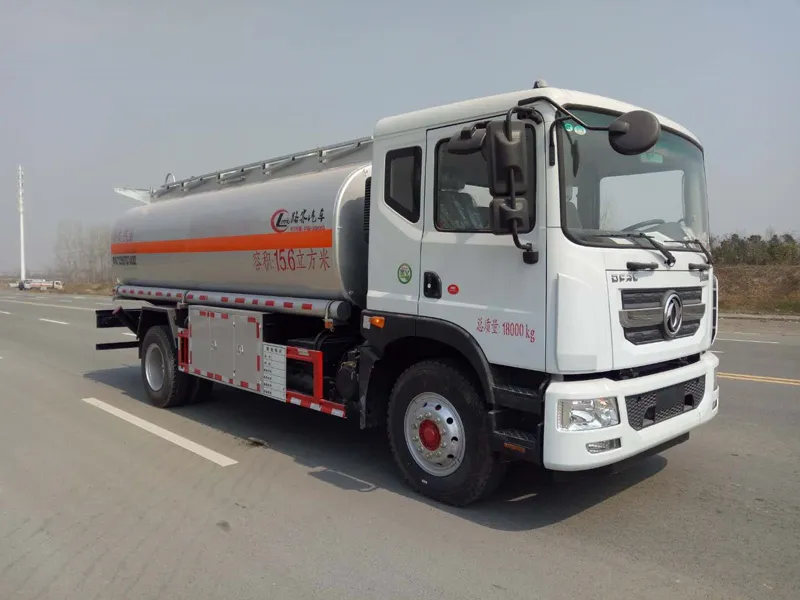

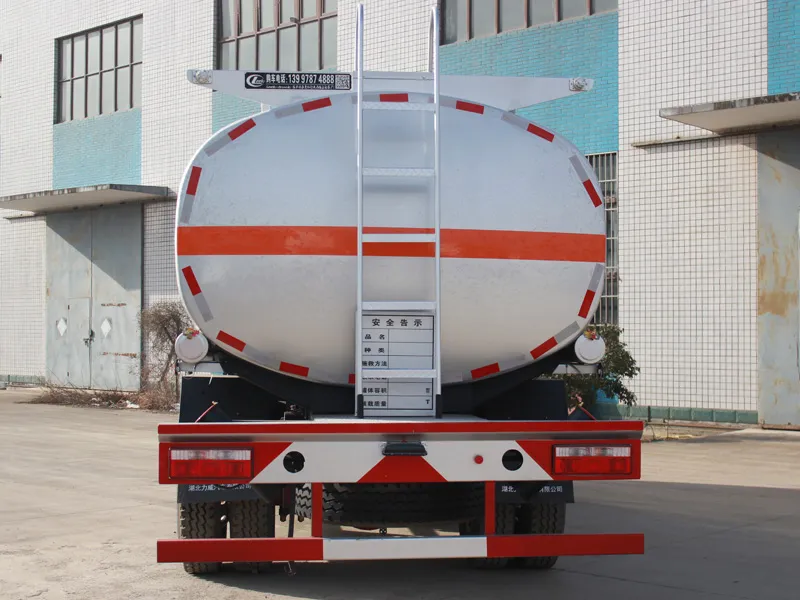

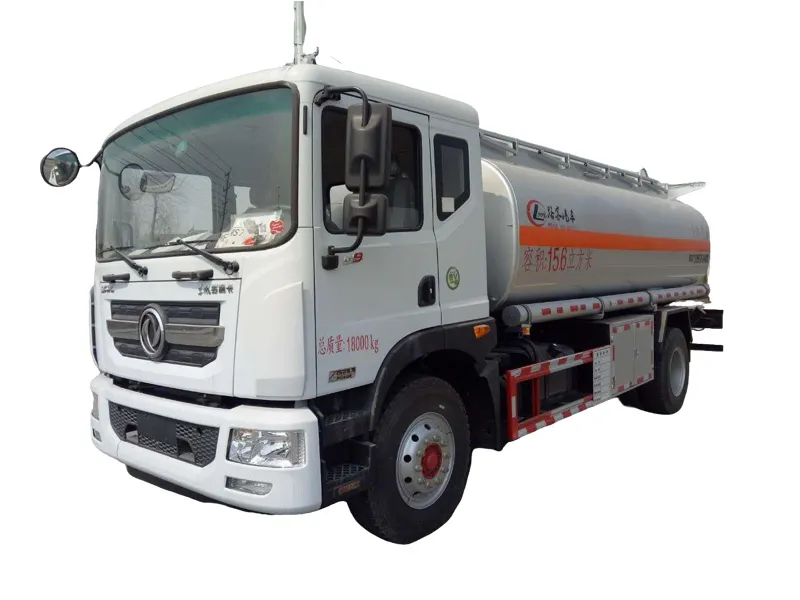

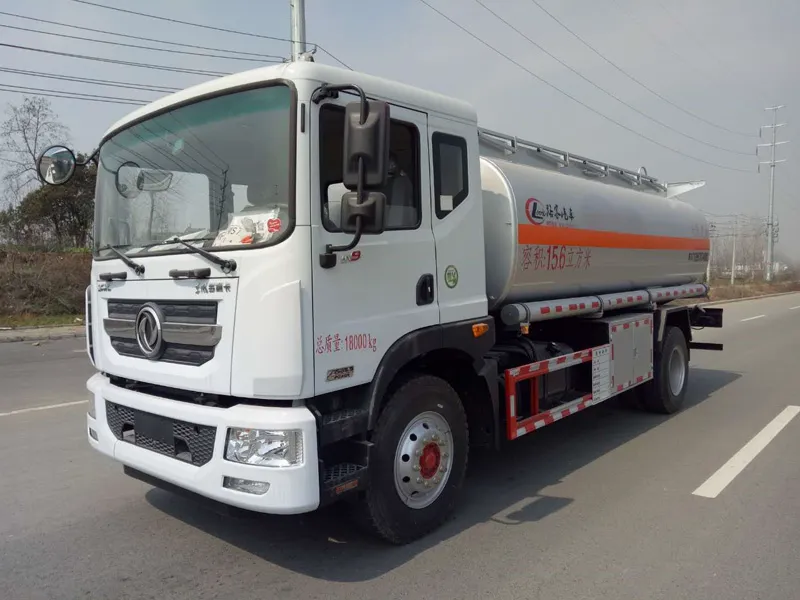

The Dongfeng 16 cubic meter mobile refueling truck can carry diesel, gasoline, aviation kerosene and other media. The tank can be made of various materials such as carbon steel, stainless steel and aluminum alloy. It is a popular choice for mobile transportation of various oil products.
| Vehicle Technical Specifications | |||
| Product Trademark | Chu Fei brand | Announcement batch | 398 |
| Product Name | fuel truck | Product Model | CLQ5189GJY6E |
| Total mass (kg) | 18000 | Tank volume (m3) | 15.6 |
| Rated load capacity (Kg) | 1040510470 | External dimensions (mm) | 7850×2500×3360 |
| Curb weight (kg) | 7400 | Number of passengers allowed in the driver's cab (persons) | 2,3 |
| Approach angle/departure angle (°) | 23/11,23/11,23/12 | Front overhang/rear overhang (mm) | 1475/2425 |
| Axle load (Kg) | 6500/11500 | Maximum speed (km/h) | 80 |
| This vehicle is a dangerous goods transport vehicle, specifically the FL type; the maximum permitted density of the transported medium (kg/m³) is 700; the total tank capacity is 15.6 m³, and the effective tank volume is 14.8 m³; the tank's external dimensions (length × width × height) (mm) are 5200 × 2380 × 1550; the side and rear protection devices are made of Q235 material, connected by bolts; the rear protection device's cross-sectional dimensions (mm) are 140 × 50, and its ground clearance (mm) is 480; the EBS model/manufacturer is EBS5/Dongke Knorr Commercial Vehicle Braking System (Shiyan) Co., Ltd.; the cab is optional with the chassis, and the front ladder and upper walkway are optional; the rear safety warning sign and rectangular sign are optional in different positions. | |||
| Chassis Technical Specifications | |||
| Chassis Model | EQ1188GSZ6DJ | Chassis Name | Cargo truck chassis |
| Trademark Name | Dongfeng brand | manufacturing enterprises | Dongfeng Commercial Vehicle Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| Wheelbase (mm) | 3.95045E+15 | ||
| Tire specifications | 10.00R20 18PR | ||
| Number of leaf springs | 8/-,3/- | Front track width (mm) | 19101955 |
| Fuel types | diesel fuel | Rear track width (mm) | 1.80018E+15 |
| Emission standards | GB17691-2018 Country VI | ||
| Engine Model | Engine manufacturers | Displacement (ml) | Power (kW) |
| YCS06270-60 | Guangxi Yuchai Machinery Co., Ltd. | 6234 | 199 |
Dongfeng 16 cubic meter oil tanker chassis configuration:
- Cab: Dongfeng extended cab (deluxe, extended-cab).
- Powertrain: Cummins 170 hp engine paired with a Dongfeng 6-speed gearbox. Other engine options include Cummins 190 hp and 210 hp.
- Running gear: 4700mm wheelbase, 295 tubeless tires, 6-ton front axle, 9-ton rear axle.
- Safety features: Original air conditioning, ABS, speed limiter, front disc brakes.
Dongfeng 16 cubic meter oil tanker superstructure configuration:
- Tank parameters: Announced volume 16.6 cubic meters, actual volume 17.7 cubic meters, tank thickness 6mm, end caps 6mm thick, made of high-quality aluminum alloy plate, gasoline medium.

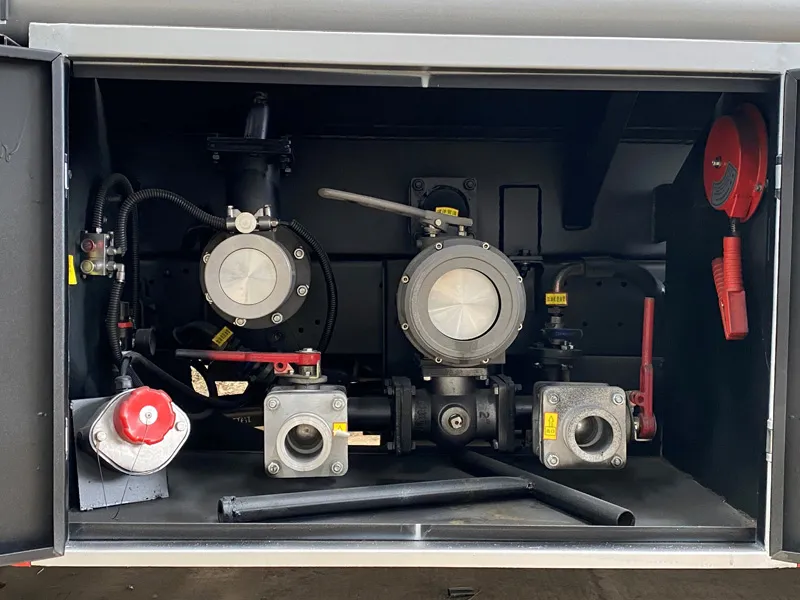

- Loading/unloading system: Equipped with a self-priming and self-draining pump, capable of pumping in and out, with European standard tank opening and bottom valve.
- Refueling Equipment: Equipped with a high-flow fuel dispenser, a 20-meter automatic rewind hose reel, and fuel nozzles.
- Safety Accessories: Includes a full set of European standard equipment, including one bottom loading port, one vapor recovery system, two overflow prevention probes and probe holders. Also includes one fire cap, two 2-inch diameter fuel hoses of equal length, and two fire extinguishers.
- Appearance Markings: Painted silver-pink, with reflective strips and tape, safety warning signs, and three "Flammable Liquid" markings.
