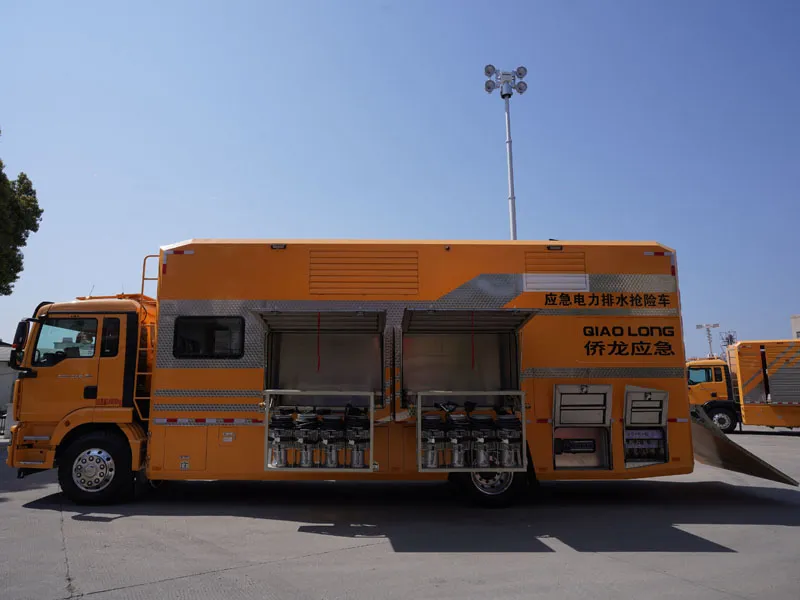

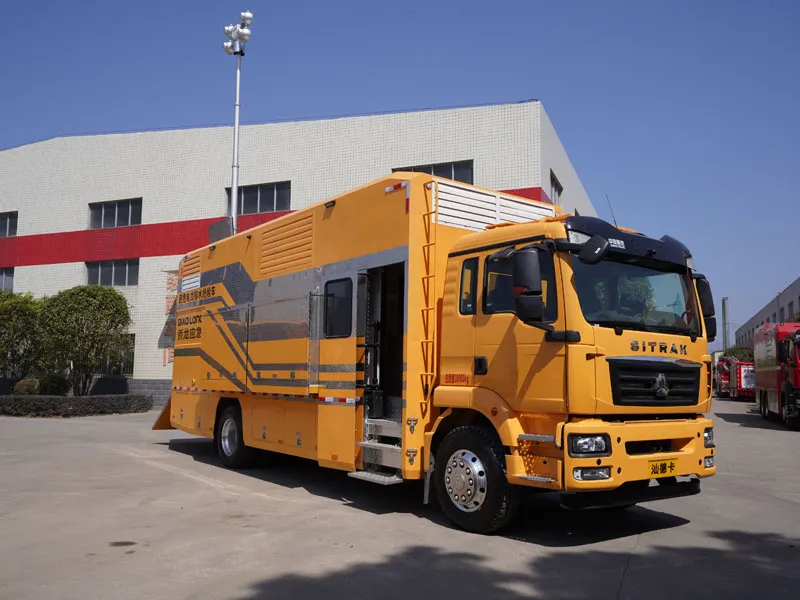

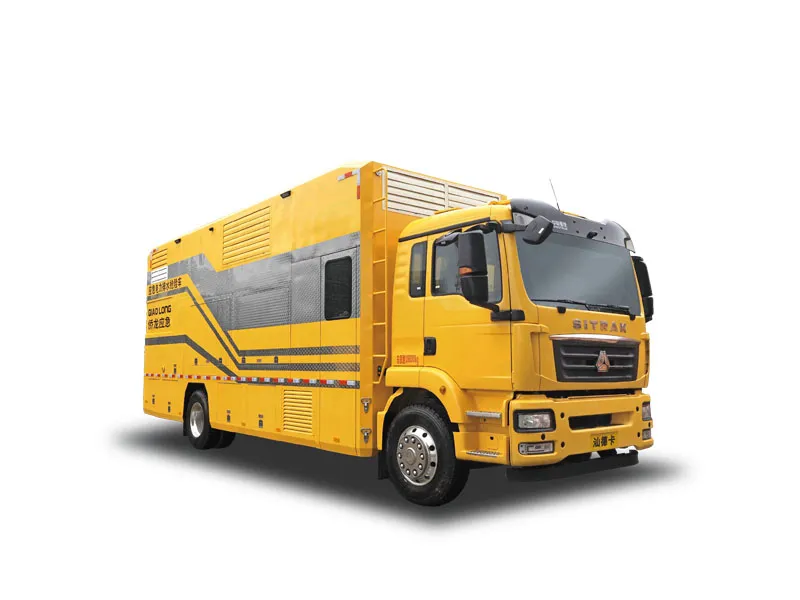

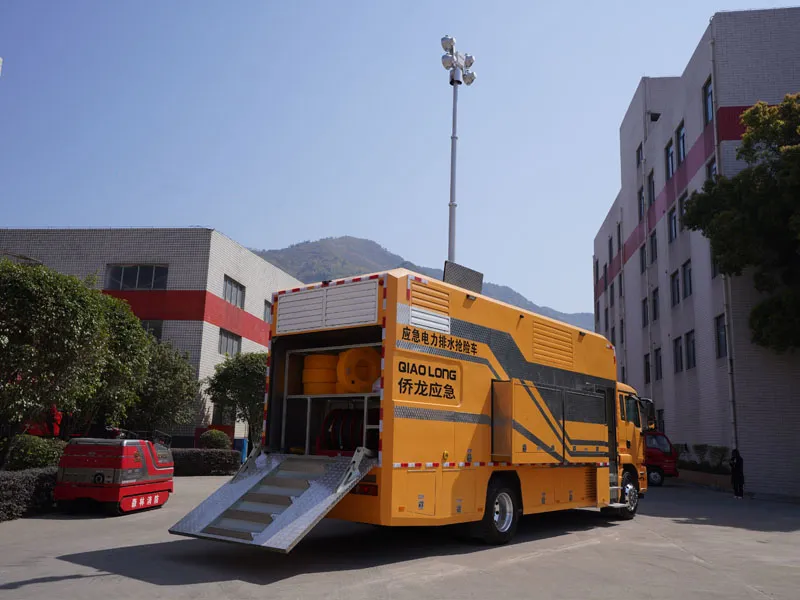

Sinotruk high-flow drainage truck provides efficient emergency flood control with a maximum water discharge capacity of 5,000 m³/h.
Category | Specification |
Product Overview | Multifunctional rescue equipment integrating drainage, power supply, and lighting. Composed of chassis, carriage, generator set, drainage system, electric control system, hydraulic system, lighting system, cable reel, etc. |
Diesel Generator Set | - Rated power: 300kW (standby: 320kW)- Rated line voltage: 400V- Rated phase voltage: 230V- Rated current: 541A |
Drainage Pump | - Rated power: 22kW- Single pump flow: 500–600 m³/h- Total flow: 3000–5000 m³/h- Head: 10m- Weight: 32KG- Outlet diameter: 200mm (8 inches) |

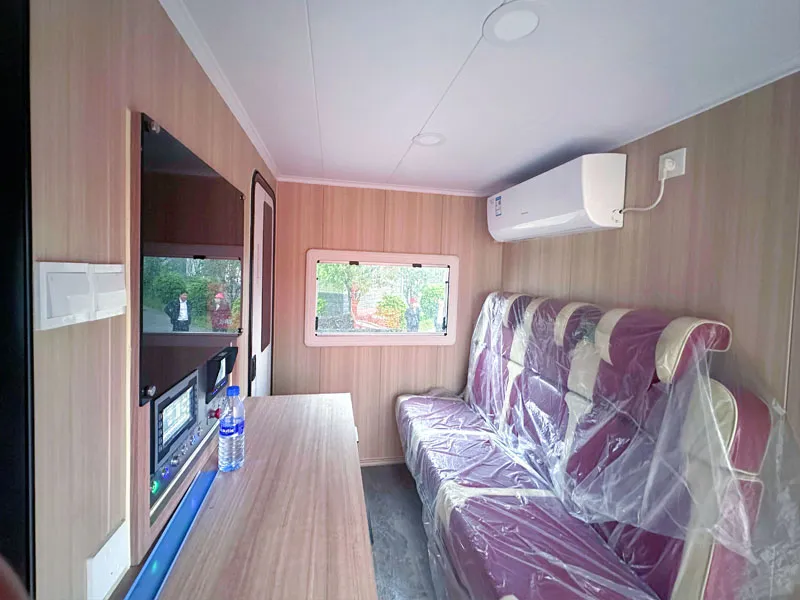

Additional Features | Command room and smart large screen in the carriage for real-time on-site condition monitoring. |
Total Displacement (m³/h) & Matching Schemes | 1. 5000: - 2 submersible pumps (1000 m³/h each, 10m head); Optional high-lift hydraulic parts (500 m³/h each, 20m head). - 6 submersible pumps (500 m³/h each, 10m head); Optional high-lift hydraulic parts (150 m³/h each, 35m head).2. 4000: - 8 submersible pumps (500 m³/h each, 10m head); Optional high-lift hydraulic parts (150 m³/h each, 35m head).3. 3000: - 6 submersible pumps (500 m³/h each, 10m head); Optional high-lift hydraulic parts (150 m³/h each, 35m head). |
