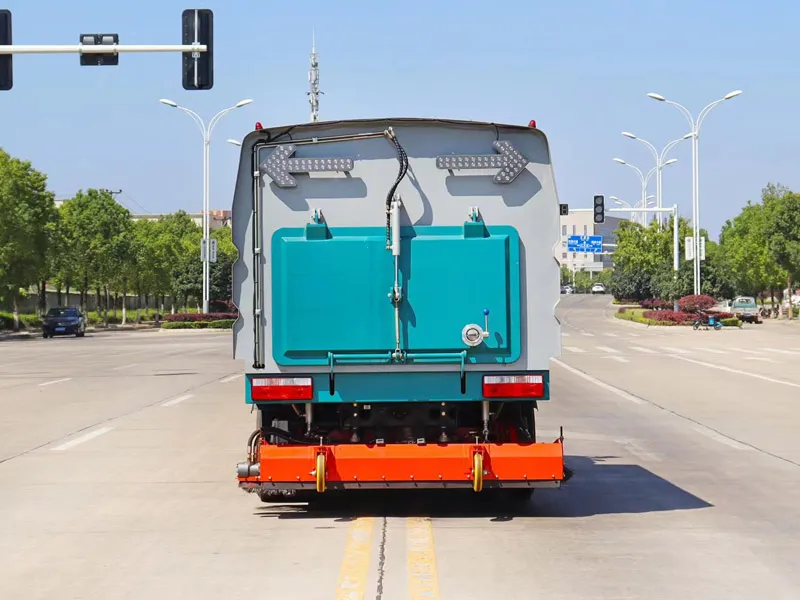

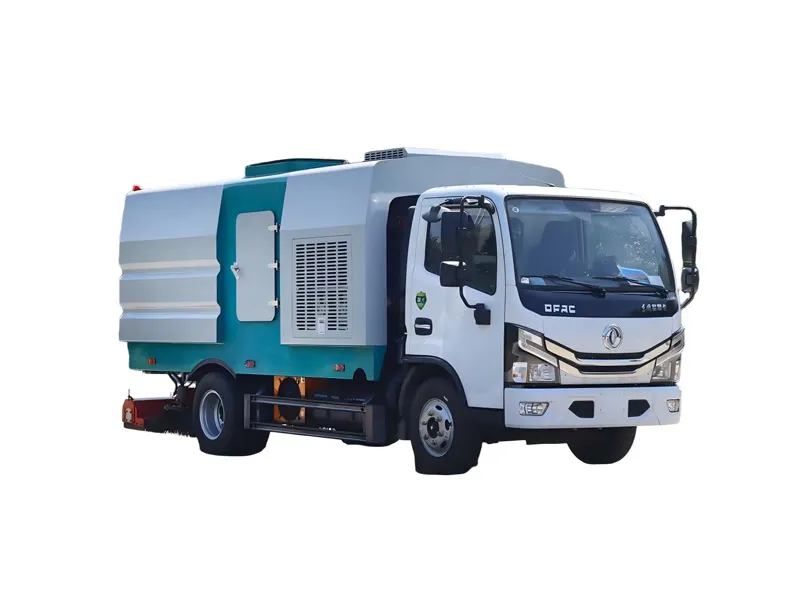

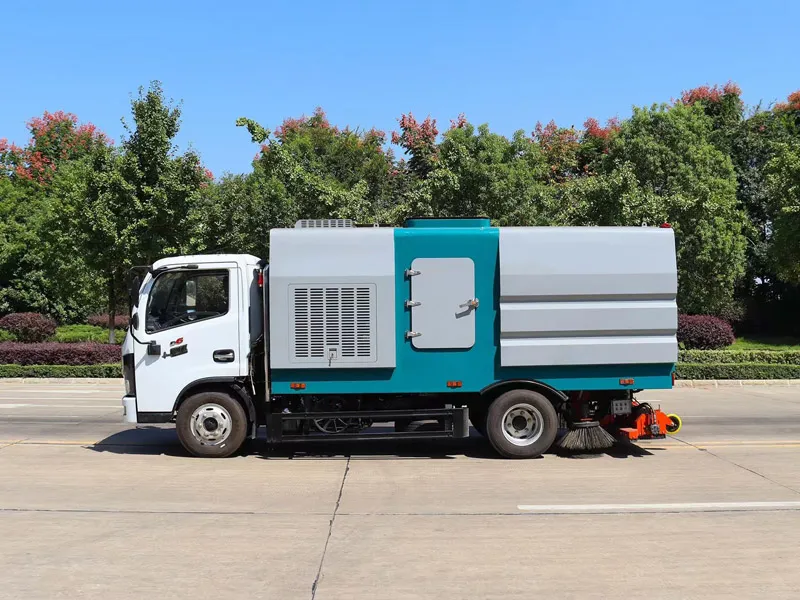

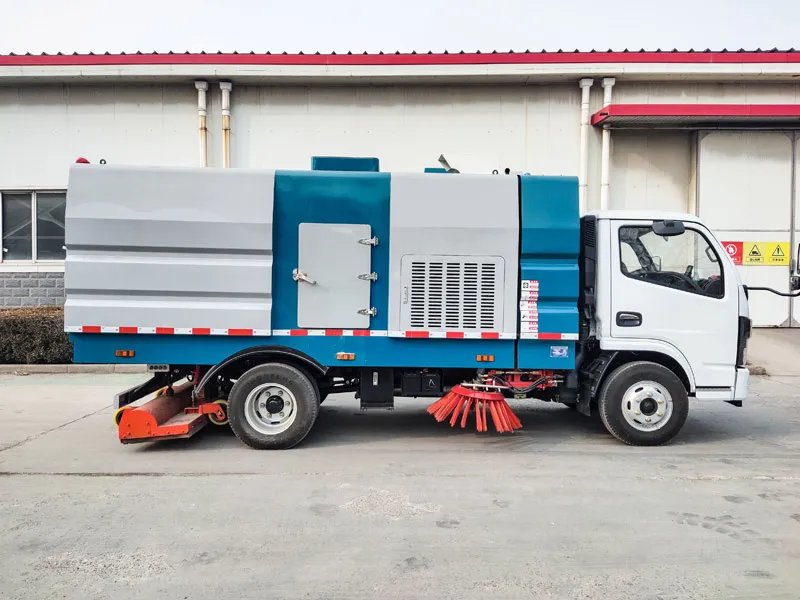

Dongfeng 5 cbm rear-suction vacuum cleaner truck is ideal for urban road maintenance, efficiently collecting debris and delivering thorough street cleaning.
Parameter Category | Details |
Basic Information | |
Model Number | EQ5070TXC-DL (Customizable per order) |
Product Name | Dongfeng Duolika Rear-Mounted Suction Cup Vacuum Truck (Euro 3) |
Emission Standard | Euro 3 (ECE R49) |
Application | Urban road debris cleaning, dust collection, small garbage suction |
Power System | |
Engine Model | Yuchai YCD4F35-10 / Chaoyang CY4102-C3F (Euro 3 diesel engine) |
Engine Power | 75 kW (102 HP) @ 3200 rpm |
Fuel Type | Diesel |
Fuel Tank Capacity | 120 L |
Vacuum & Suction Performance | |
Rear Suction Cup Size | Φ500 mm (High-wear rubber material) |
Suction Width | 2800 mm (Adjustable via side auxiliary brushes) |
Working Negative Pressure | ≥9000 Pa |
Airflow Rate | 3200 m³/h |
Dust Tank Volume | 5 m³ (Carbon steel / Stainless steel optional) |

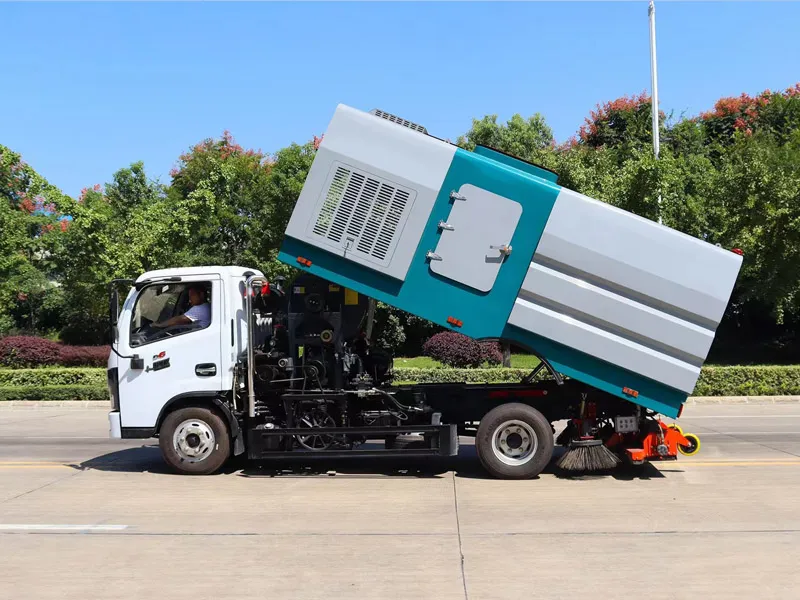

Dust Discharge Method | Hydraulic lifting + rear door opening (discharge angle: ≥45°) |
Dimensions & Weight | |
Overall Length × Width × Height | 6250 × 2100 × 2450 mm |
Wheelbase | 3308 mm |
Curb Weight | 4950 kg |
GVW (Gross Vehicle Weight) | 7300 kg |
Chassis Configuration | |
Axle Configuration | 4×2 (2 front wheels, 2 rear driving wheels) |
Suspension Type | Front: Leaf spring (3/4), Rear: Leaf spring (6/8) |
Tire Specification | 7.00R16 14PR (Radial tire, optional tubeless tires) |
Braking System | Air-over-hydraulic brake + Handbrake (parking brake) |
Other Features | |
Operating System | Electric control panel (with in-cab & ground operation modes) |
Dust Suppression | Optional 200 L water tank + 2 side spray nozzles |
Warranty Period | 12 months or 20,000 working kilometers (whichever comes first) |
