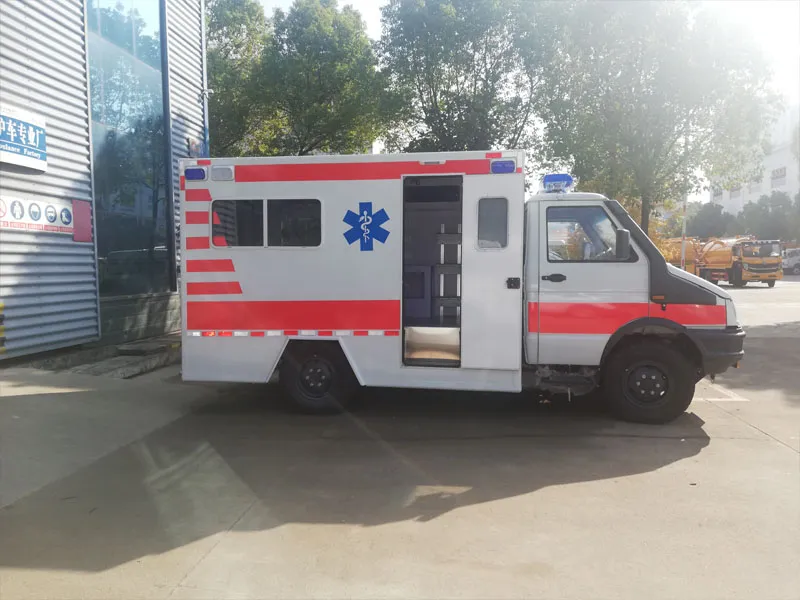

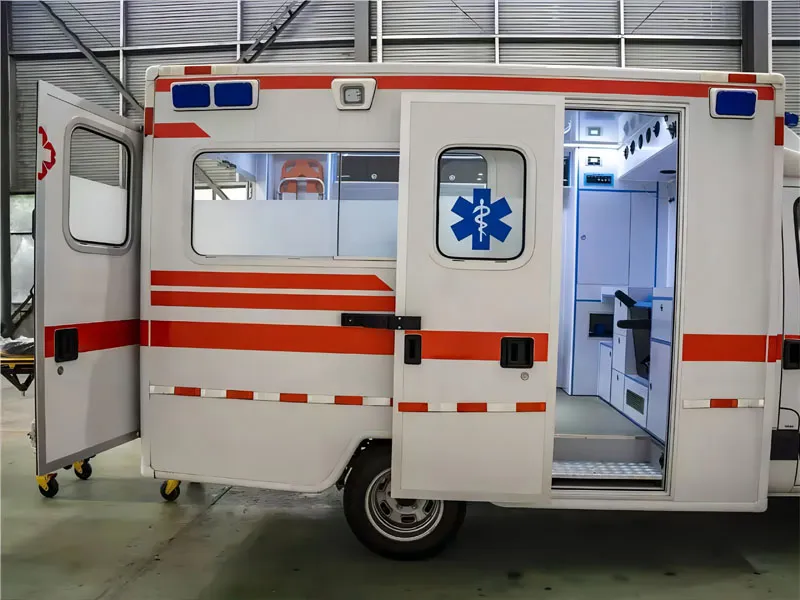

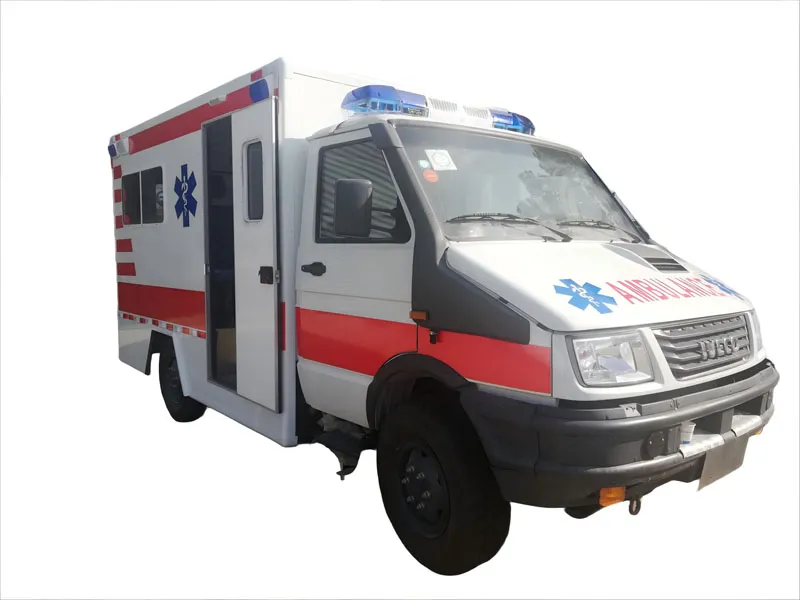

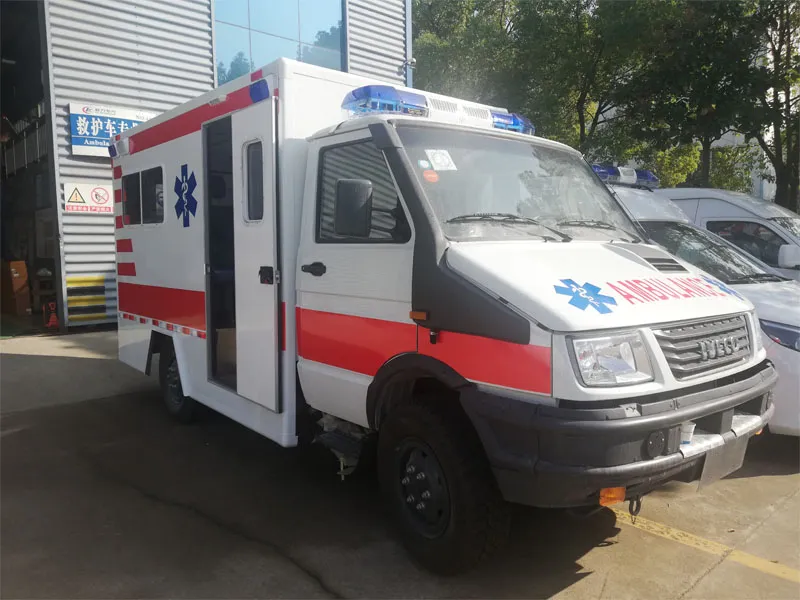

IVECO 4×4 Cabin Ambulance features an off-road diesel chassis and an aluminum cabin equipped with oxygen supply and UV disinfection, enabling reliable performance in tough terrains for critical rescues.
Category | Specifications |
Basic Information | |
Model | IVECO 4×4 Cabin Ambulance |
Brand | IVECO |
Drive Type | 4×4 All-Wheel Drive |
Performance | |
Engine | 3.0L Turbocharged Diesel Engine |
Max Power | ~146 hp / 109 kW |
Max Torque | ~350 N·m |
Max Speed | ~120 km/h |
Fuel Tank Capacity | 100 L |
Off-Road Clearance | ≥ 200 mm |
Approach Angle | ≥ 30° |
Departure Angle | ≥ 25° |
Dimensions (mm) | |
Overall Length | ~5990 |
Overall Width | ~2000 |
Overall Height | ~2800 |
Wheelbase | ~3310 |
Curb Weight (kg) | ~4200 |
Gross Vehicle Weight (kg) | ~6000 |

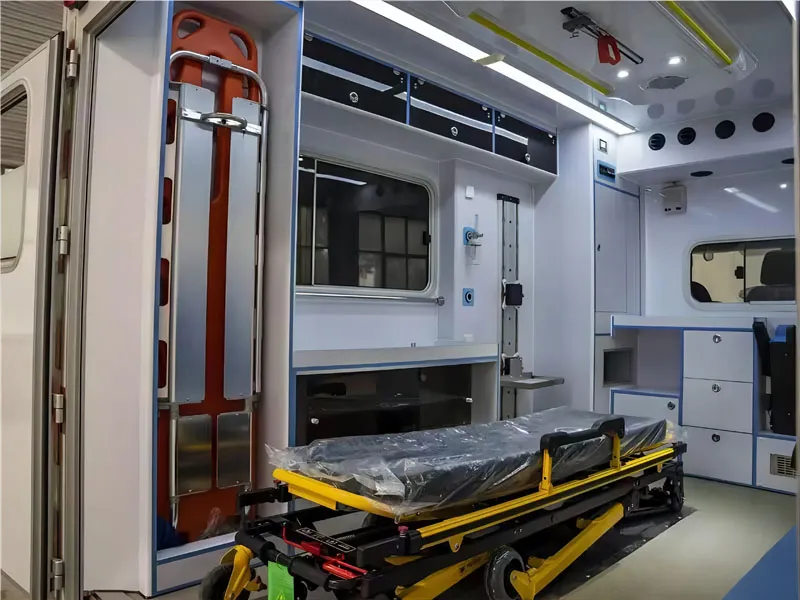

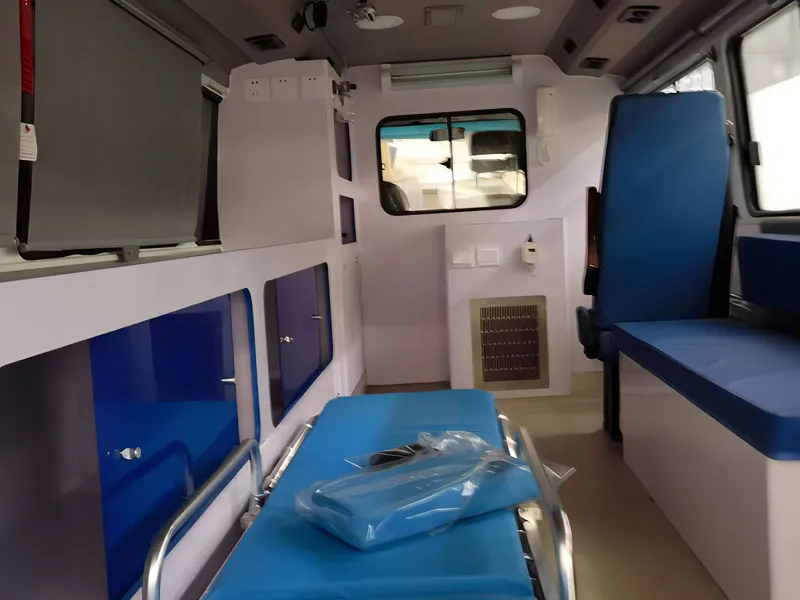

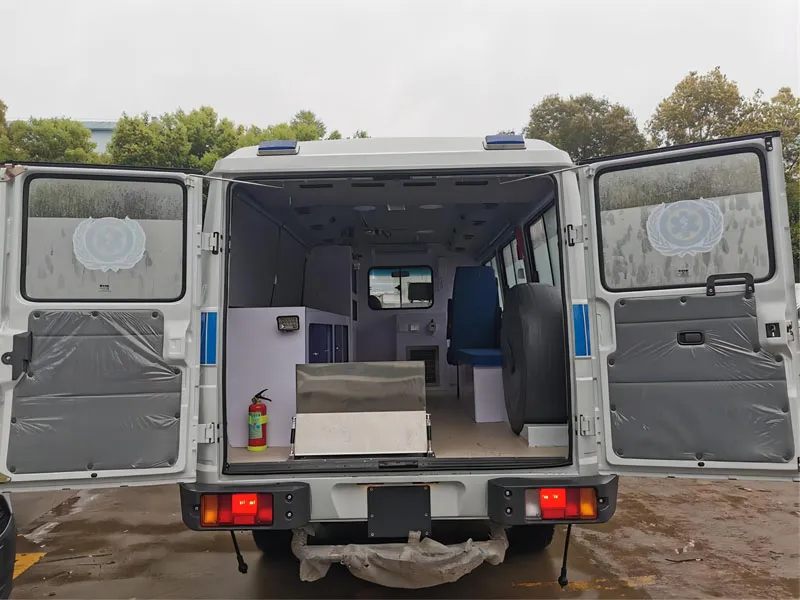

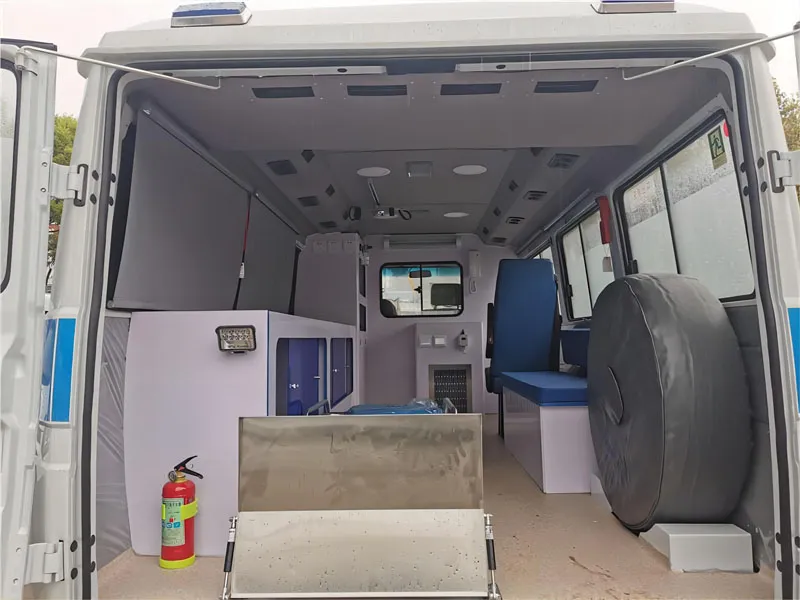

Medical Cabin & Equipment | |
Cabin Structure | Insulated aluminum alloy sealed cabin |
Core Medical Gear | Oxygen supply system (10L/40L tank), UV disinfection lamp, automatic stretcher |
Interior Layout | Separated driver/medical cabins; 2-3 medical staff seats |
Surfaces | Antimicrobial interior materials |
Electrical Support | Independent power supply, AC/DC outlets for devices |
Safety & Lighting | LED emergency lights, siren, fire extinguisher, smoke detector |
