Equipped with a customizable 8,000 L tank and adjustable water-foam ratio, this fire truck features a CB series pump (60 L/s) and a PL fire monitor with a range of ≥65 m. Powered by a 266–350 hp engine, it delivers efficient performance for large-scale firefighting operations.

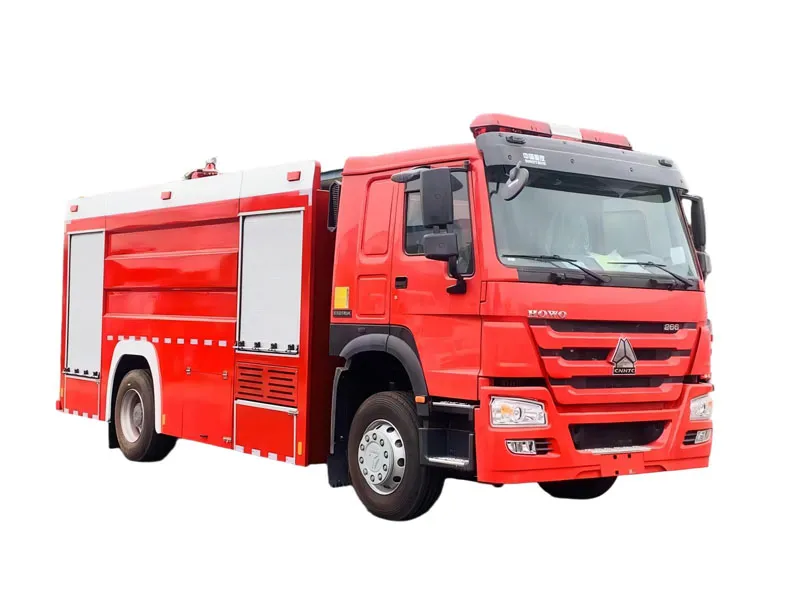

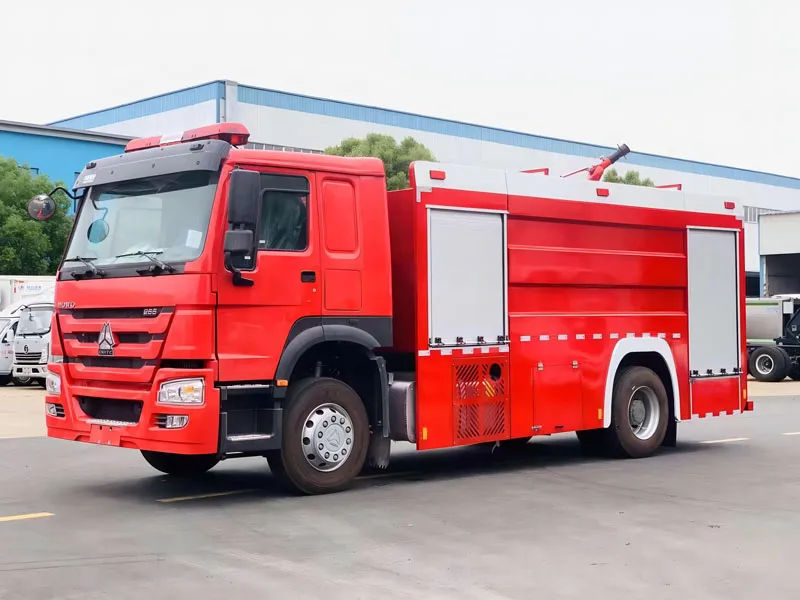

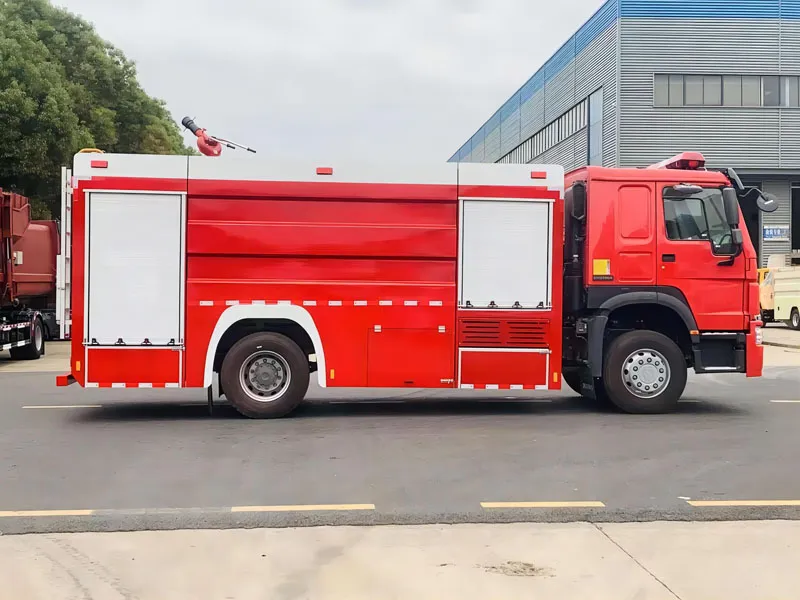

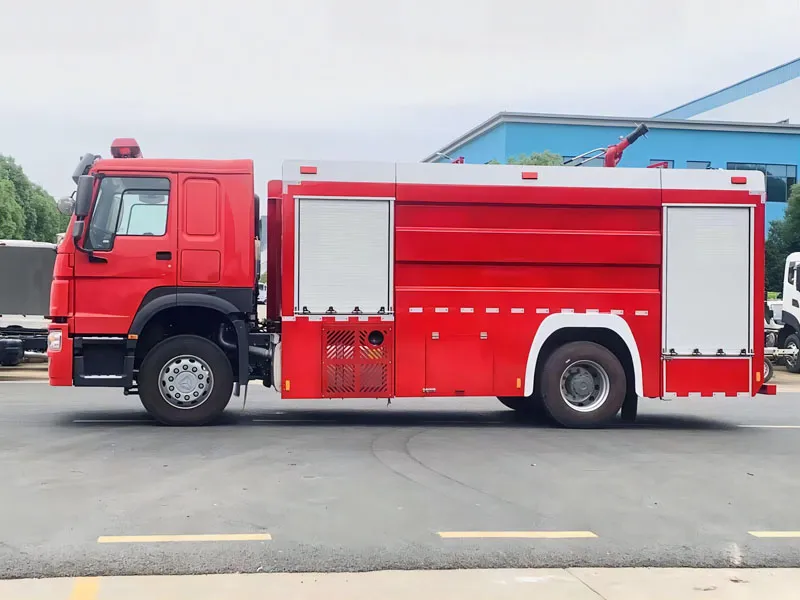

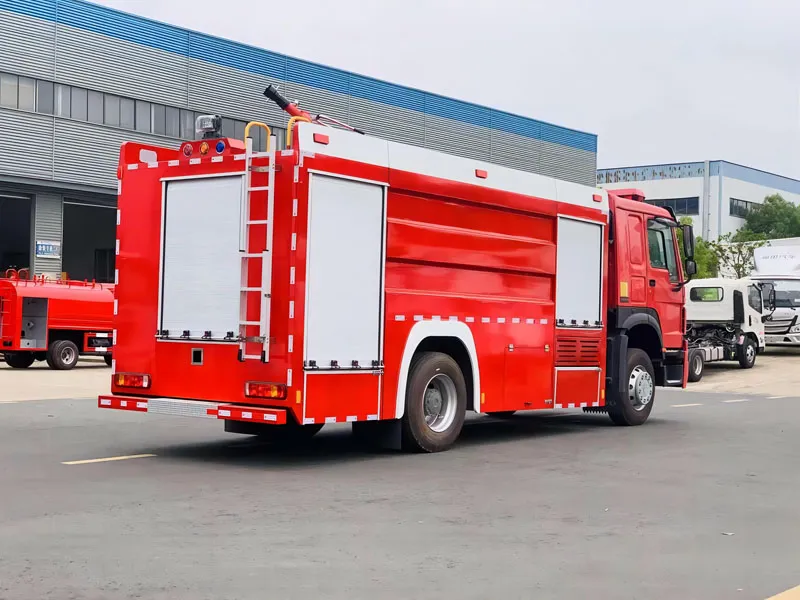

Sinotruk HOWO 8000L Water-Foam Fire Truck (4×2) - Technical Specification Sheet
Category | Parameters |
Basic Info | Product Name: Sinotruk HOWO 8000L Water-Foam Fire Truck (4×2) Model: ZZ1187K4617F1 (Customizable) Application: Urban firefighting, industrial parks, logistics hubs, medium-scale fire emergencies |
Chassis | Chassis Brand: Sinotruk HOWOChassis Model: ZZ1187K4617F Engine: Weichai WP6. 270E61 (270hp/199kW), Transmission: 8-speed manual (HW15710) Drive Form: 4×2 (2 axles, rear-wheel drive) Wheelbase: 5600mm Tires: 10.00R20 16PR Tubeless (6 pcs + 1 spare) |
Tank System | Total Capacity: 8000L (Customizable, split into water & foam tanks) Ratio Adjustment: Water-foam ratio adjustable (1:4 to 4:1) via manual/automatic proportioner Material: High-strength carbon steel (5mm thickness), optional 304 stainless steel (anti-corrosion) Structure: Seamless welding, with anti-sloshing baffles; Inspection hole: φ500mm quick-opening cover with gasket |

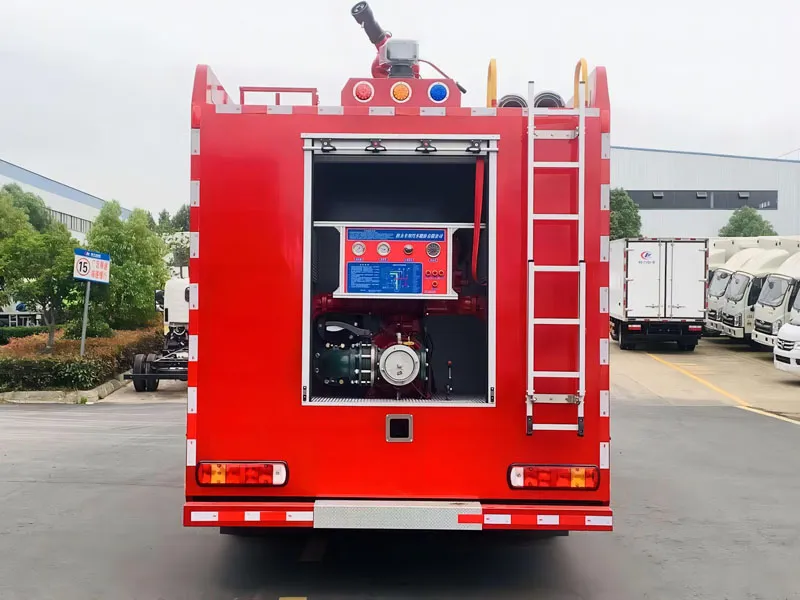

Firefighting System | Fire Pump: CB6/60 (Flow: 60L/s @ 1.0MPa; Max Pressure: 1.5MPa; Suction lift: ≥7m) Fire Monitor: PL40 (Max Flow: 40L/s; Horizontal range: ≥65m; Vertical range: ≥30m; 360° rotation, -15°~+80° elevation) Foam Proportioner: Adjustable mixing ratio (3%-10%), integrated with pump system Pipeline: Galvanized steel (φ80mm main pipe, φ65mm branch pipes) with anti-rust coating Hoses: 3×20m φ65mm high-pressure hoses (with Storz quick connectors); 1×30m φ80mm hose Nozzles: 2×φ19mm straight jet nozzles; 1×φ25mm fog nozzle (for cooling/smothering) |
Performance | Max Speed: ≥90km/h Climbing Ability: ≥25%Min Turning Radius: ≤8.5mFuel Tank Capacity: 200L (diesel) Operating Temperature: -20°C ~ +50°C |
Dimensions & Weight | Overall Length: 8200mm Overall Width: 2490mm Overall Height: 3350mm Gross Vehicle Weight (GVW): 18000kg Curb Weight: 10500kg Payload Capacity: 7500kg |
Safety & Accessories | Safety: ABS + EBD, reversing camera with 7" display + 4 rear radars, 2×4kg ABC dry powder fire extinguishers Warning System: 360° LED emergency light bar (120W), 100W electronic siren, front/rear strobe lights (amber/red) Operator Comfort: 2-seat cabin with air conditioning, adjustable steering wheel, anti-slip floor mats Tools: Stainless steel toolbox (800×500×400mm), 3m aluminum folding ladder, fire axe, crowbar |
Customization | Optional: 304 stainless steel tank, higher-flow pump (80L/s), remote-controlled fire monitor, thermal imaging camera, foam concentrate tank heater (for cold regions) |
