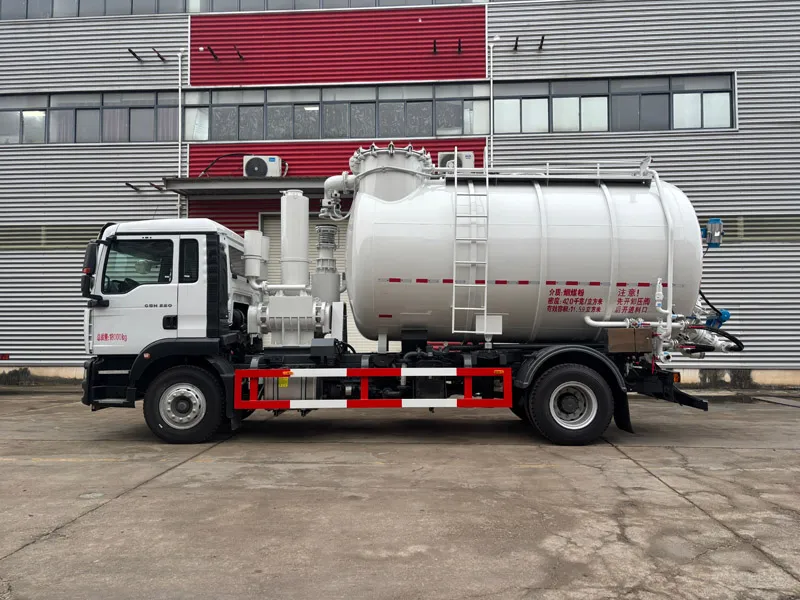

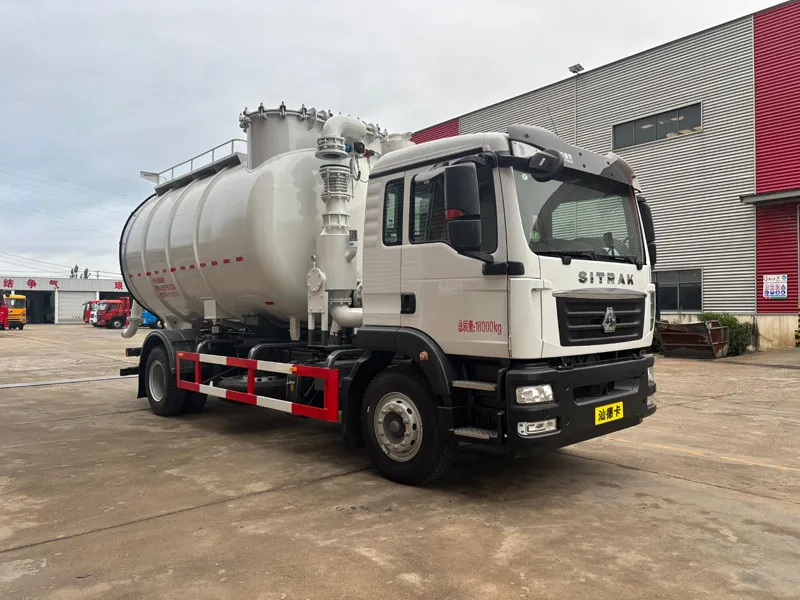

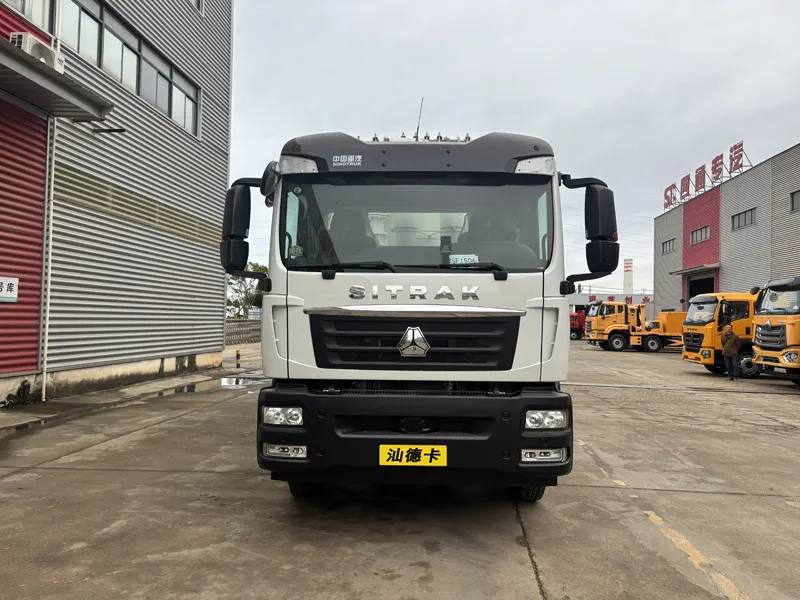

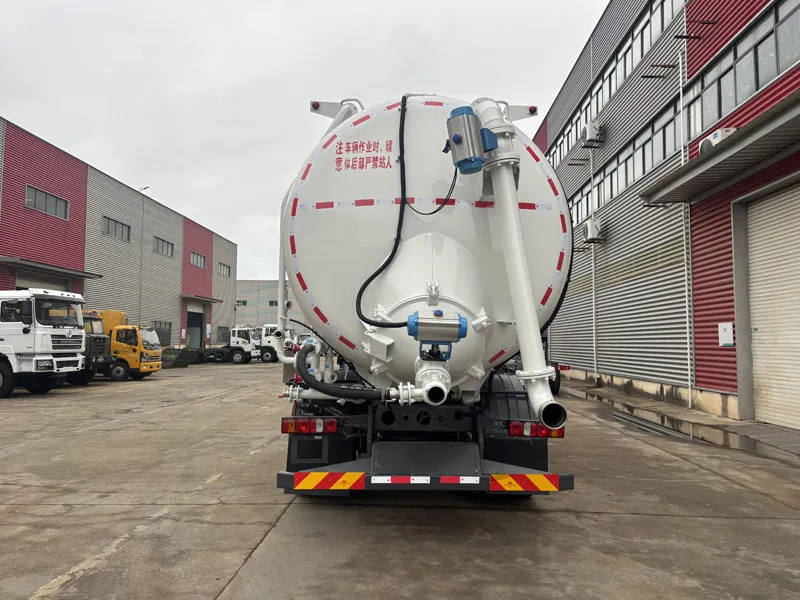

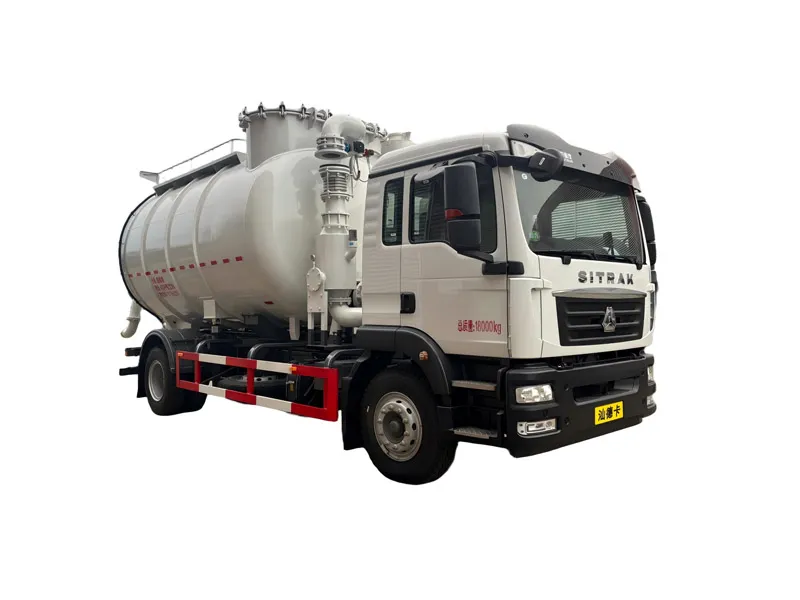

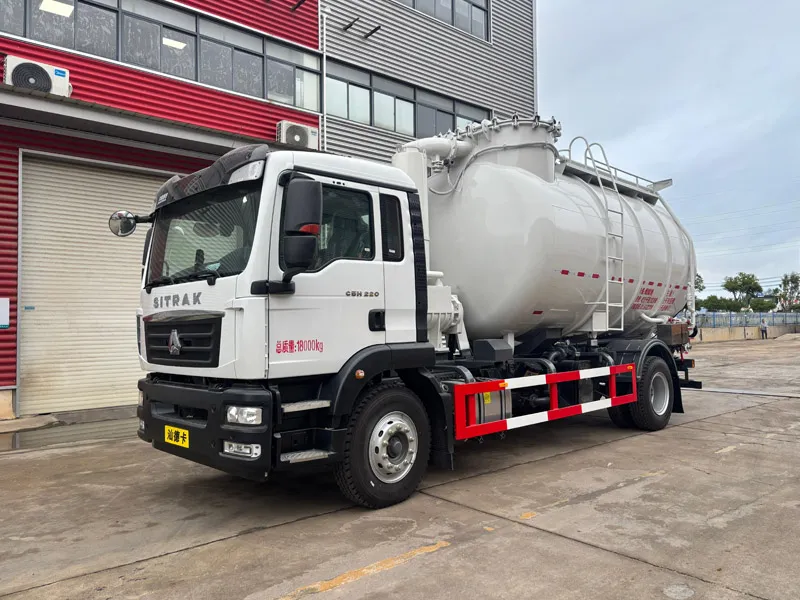

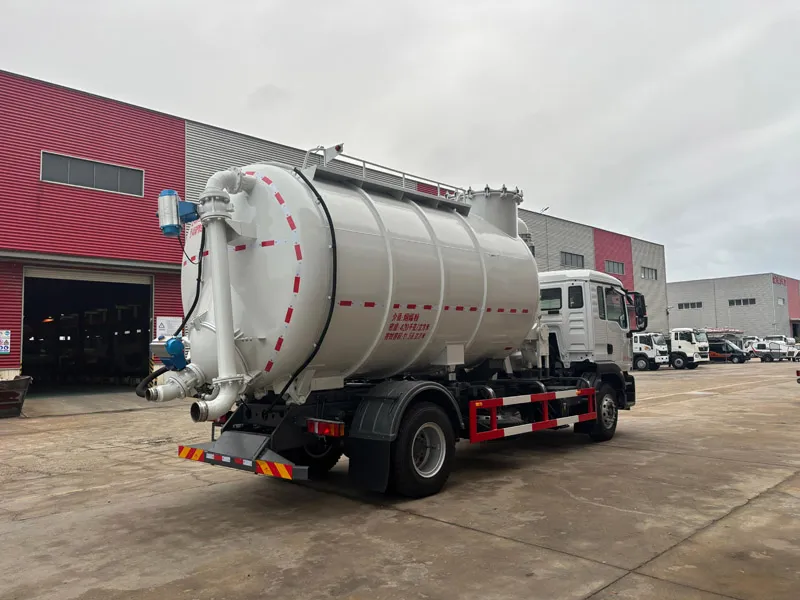

Sinotruk 14 cbm vacuum truck features a sealed system for collecting and transferring powders such as dust, ore, and cement, ideal for metallurgy, chemical, and energy industry applications.
Item | Parameter | Item | Parameter |
Vehicle Model | STD5180GXYZZX6 | Product Name | 14cbm Vacuum Truck |
Chassis Model | ZZ5186XXYK501GF1 | Chassis Brand | Sinotruk Sitrak |
Gross Vehicle Mass (GVM) | 18000kg | Curb Weight | 13000kg |
Engine Model | WP4.6NQ220E61 | Engine Power | 162KW |
Transmission | 8-speed | Wheelbase | 5000mm |
Front Axle | 4.5T | Rear Axle | 9T |
Tires | 10.00R20 18PR | Optional Tires | 295/80R22.5 18PR |
Overall Vehicle Dimensions | 9050×2500×3900mm | Tank Material | Q355 |
Approved Volume | 14 m³ | Tank Dimensions | Total Length 4980mm × Diameter 2400mm |
Tank Cylinder Thickness | 6mm | Tank Head Thickness | 6mm |
Vacuum Pump | Approved Model: RSR250D | Air Compressor | Fuda 7.0 |
Ash Suction Pipe | 5m | Ash Discharge Pipe | 7m |
Internal Tank Compartment | Single Compartment | Internal Tank Structure | Fluidized Bed Structure |
Suction Valve | Jiegao DN150 Pneumatic Ball Valve | Discharge Valve | Jiegao DN100 Pneumatic Ball Valve |
Others | Side lifting cylinders installed on both sides of the tank; ceramic elbows used for key wear parts | ||
Supplementary Notes on Upper Mounting Configuration The upper mounting system consists of transport tank assembly, sub-frame assembly, filtration system, power transmission system, and operation control system. -Transport Tank Assembly:Cylindrical Q355 steel tank with integrated filter, external ladders, top platform, safety valves, lifting lugs, manholes, and level gauges -Sub-frame Assembly:Welded structure with vacuum pump base plate, bolted to chassis frame -Filtration System:Multi-stage filtration for environmentally compliant air discharge -Power Transmission System:Vacuum pump and hydraulic oil pump powered by PTO from vehicle engine -Operation Control System:Program-controlled with instrument display for suction, discharge, and tailgate functions | |||
