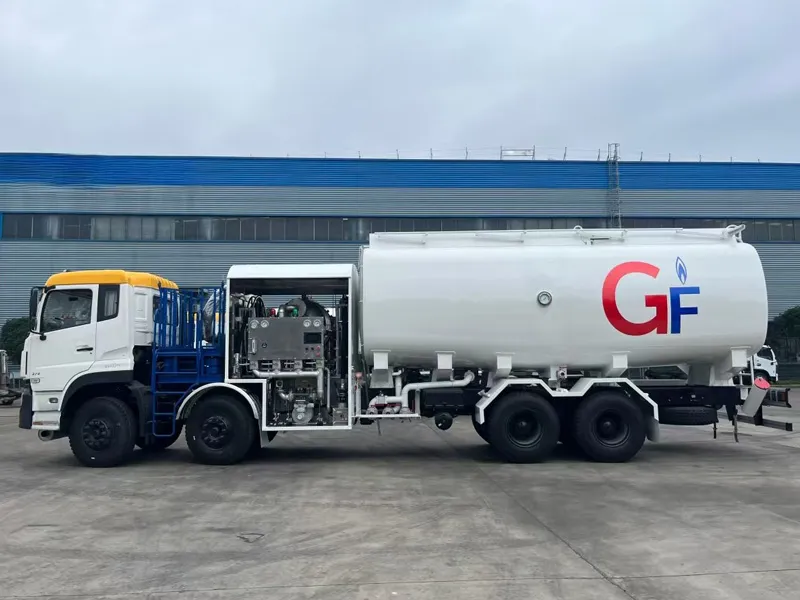

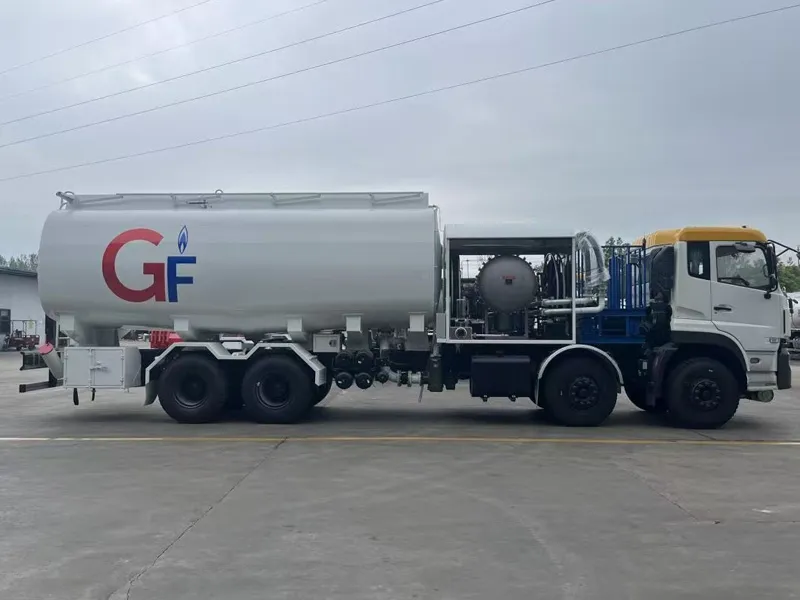

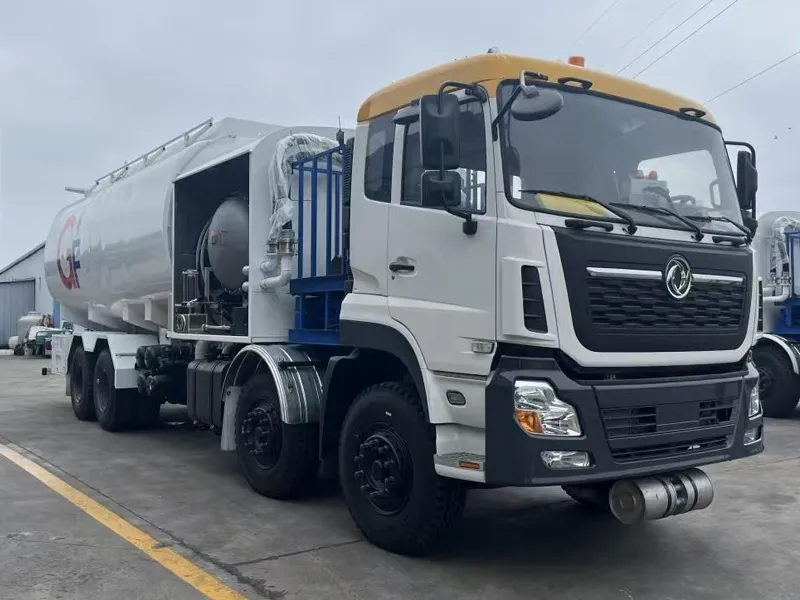

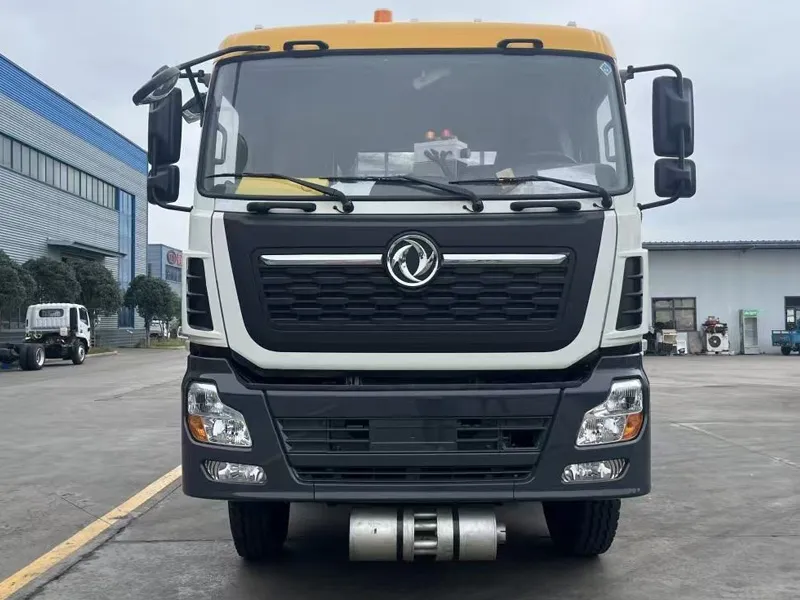

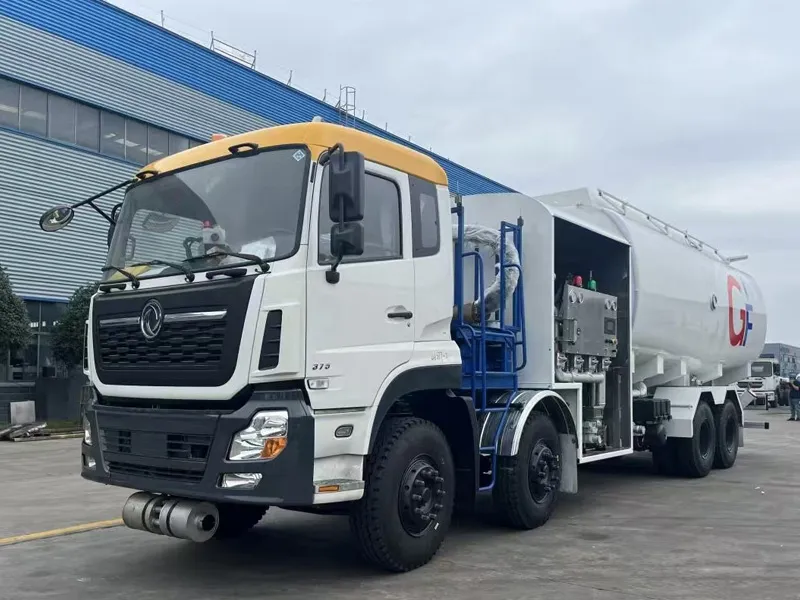

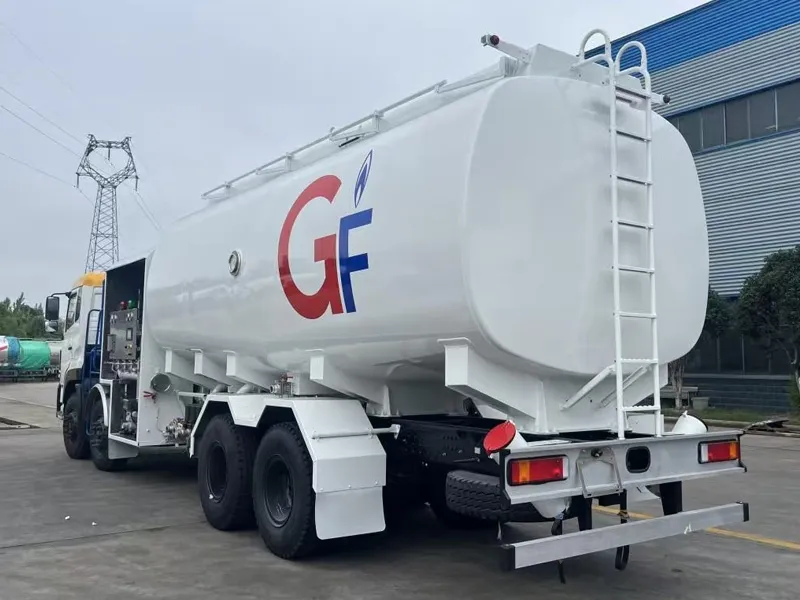

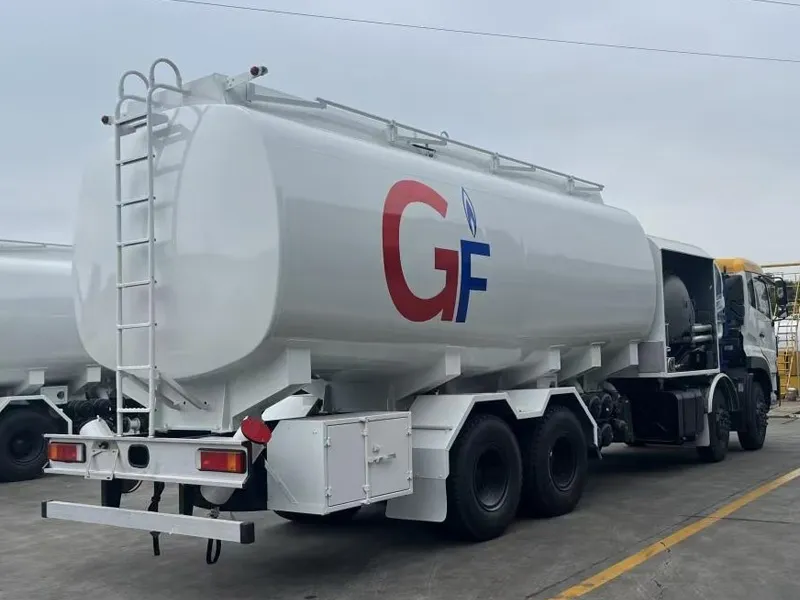

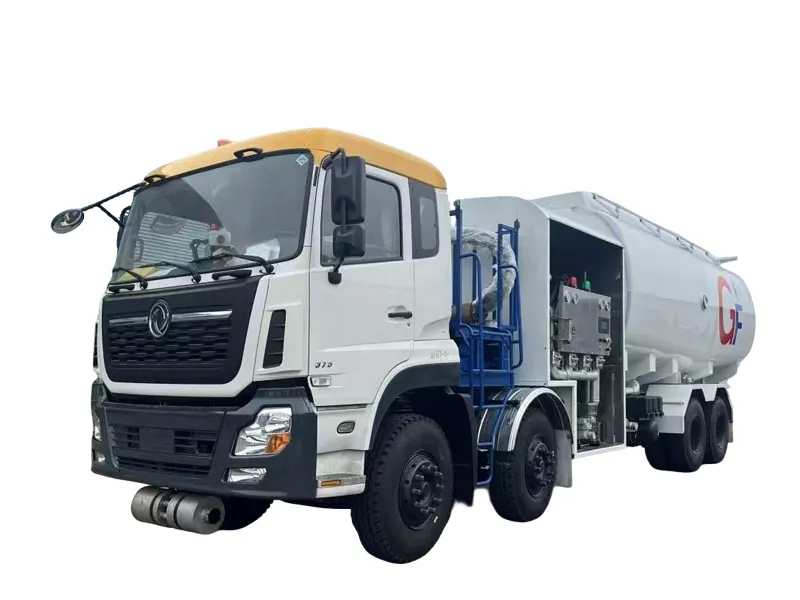

Tianlong 30 Cubic Meter Aircraft Refueling Truck

Vehicle Model

30 cubic meter aircraft refueling truck

Loading medium

Aviation kerosene

Overall vehicle dimensions

According to design

According to design

Aluminum alloy（5182）

Tank thickness

5.6mm

Head thickness

5.7mm

Lining thickness

/

Number of partitions

According to the manufacturer's label

Distributed warehouse details

/

Ladder requirements

Back ladder

feed inlet

2 European standard can openings

Installation location

According to the manufacturer's label

Breathing valve

2

Tank body 5.6mm, end cap 5.7mm, baffle 5.7mm, single compartment, one set of refueling truck-specific nozzle, DN38 hydraulic reel 20 meters, flow rate ≥350L/min, [optional DN50 hydraulic reel 20 meters, flow rate ≥500L/min]; dedicated DN65 hydraulic reel 20 meters with aviation pressure stabilizing connector (single pipe flow rate ≥1200L/min), with large-character code flow meter 0.2 grade accuracy; explosion-proof light; with coalescing separator (150F/hour); self-priming centrifugal pump (pump in, pump out) with auxiliary drive shaft driving hydraulic station; 6-inch float level gauge; one HYJ-63X connector valve each on the left middle and tail, flexible soft connection; operating equipment box: remote magnetic control switch, hand throttle (including cylinder); DeadMan control system; in-pipe pressure control valve; venturi tube, high level control valve, magnetic refueling programmable controller. Vacuum gauge, pressure gauge, differential pressure gauge, Venturi pressure gauge, hydraulic pressure gauge. Pre-/post-filter/sewage sampling (closed-circuit sampler); and a self-made sampling recovery cylinder. [Optional: Hydraulic lifting platform installed between the equipment compartment and the driver's cab, equipped with two sets of 4-meter DN65 hoses (stainless steel swivel joint connection) including pressure regulating valves and two Venturi tubes, equipped with distance sensors], protective netting on the tank top, with movable guardrails, internal/external ladders; two unloading boxes/one toolbox/one operating equipment box; two sets of single-bridge folding mudguards, complete side/rear protection/pipelines/ball valves/gaskets/bolts; other accessories according to factory standards; passivation treatment inside the tank, clean surface, markings/reflective stickers according to factory standards.

Design Standards

GB18564.1-2006 "Tanker Vehicles for Road Transport of Liquid Dangerous Goods - Part 1: Technical Requirements for Metal Atmospheric Pressure Tanks"

Loading medium

Class 3 hazardous materials (FL type vehicle)

Loading and unloading methods

Bottom loading and unloading and top direct charging

Reference vehicle dimensions(mm)

12500*2550*3950

Reference total mass

32000(kg)

Reference curb weight

10800(kg)

Reference rated load capacity

21200(kg)

Actual tank volume

30 cubic meters (referring to the volume when filled with water)

Tank cross-section

Elliptic-like (according to the announcement)

cylinder

Aluminum alloy 5182, 5.6mm

end cap

Aluminum alloy 5182, 5.8mm

Wave break board

Aluminum alloy 5182, 5.6mm

Pumping system

2500L/min

Filter separator

2500L/min

HEPCV underwing refueling nozzles

(Single tube 1200L/min, double tube 2200L/min)

fuel tube

DN63

Flow meter

Equipped（2500L/min ）

Manholes and their quantity

European standard aluminum alloy explosion-proof manhole (2 pieces)

Breathing valve

Aluminum alloy material, 4 sets

Loading and unloading

Aviation kerosene interface

Oil and gas recovery

With oil and gas recovery system

overflow prevention

With overflow prevention system

Safety foot valve

One 8-inch sea valve and one high liquid level valve.

Tank top guardrail

Segmented lifting guardrail, anti-slip netting on tank top

External ladder

Internal ladders and external ladders of the tank

fender

Factory-assembled aluminum alloy integral type (modular stamping type)

Side railing

Factory-supplied aluminum alloy profiles

Rear bumper

Factory-supplied aluminum alloy profiles

Fire protection devices

Two 8 kg fire extinguishers.

Antistatic device

One anti-static cable strip and one anti-static junction box.

Lighting fixtures

24V system, 7-pin socket, LED lighting fixtures

Circuit System

Explosion-proof junction box

The rear bumper is equipped with turn signals, brake lights, reverse lights, daytime running lights, and fog lights on the left and right sides, respectively.

Wire

All electrical wires are encased in corrugated tubing.
