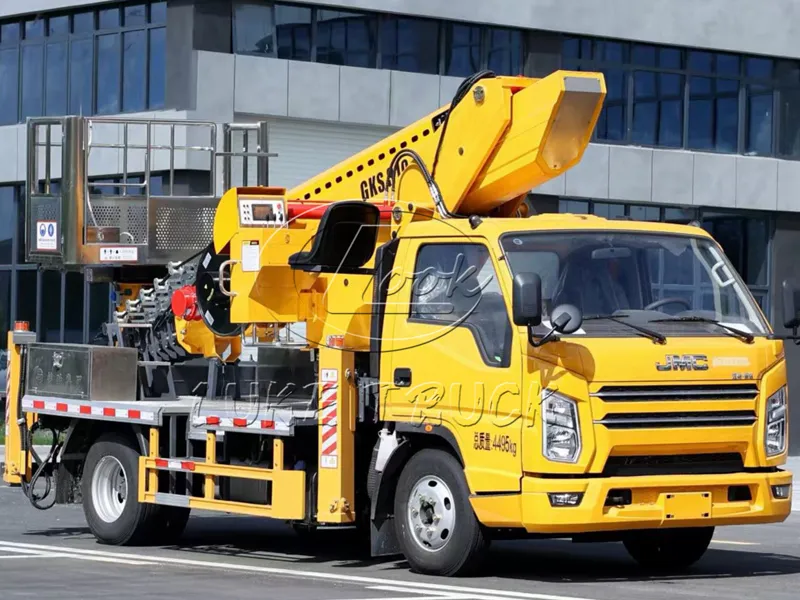

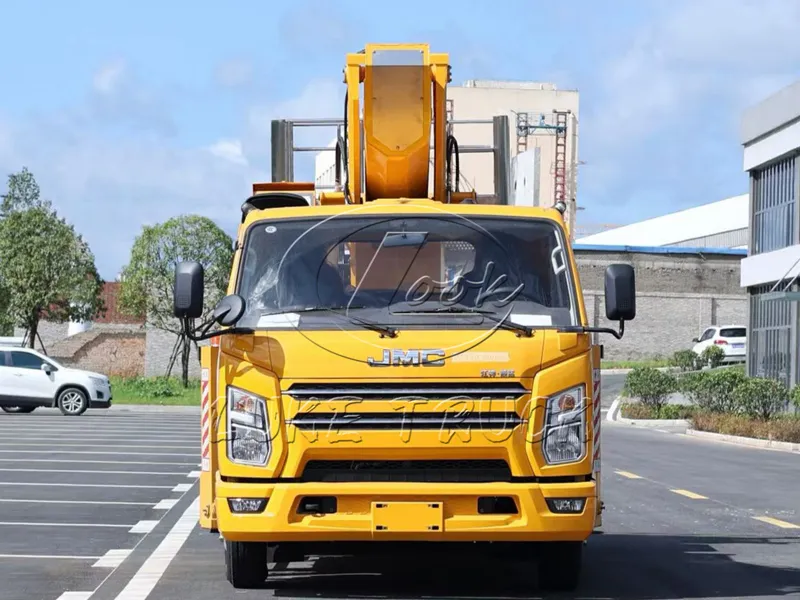

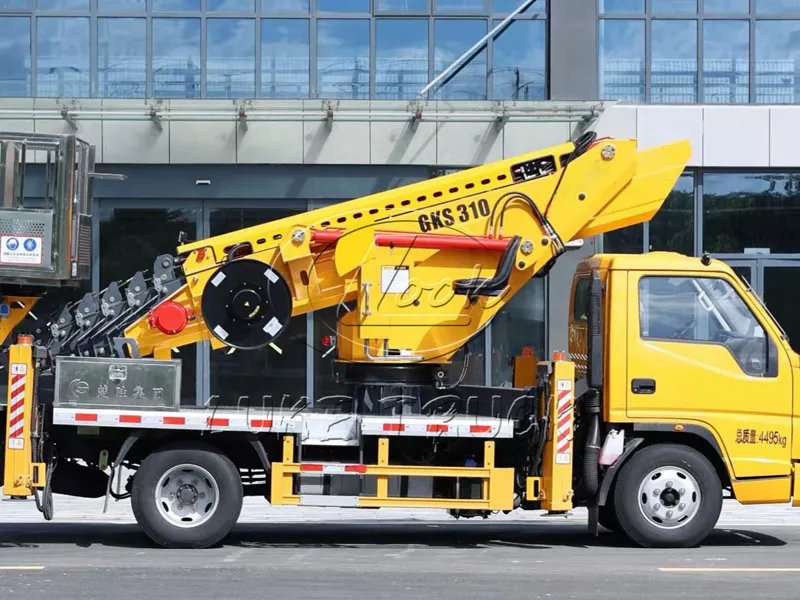

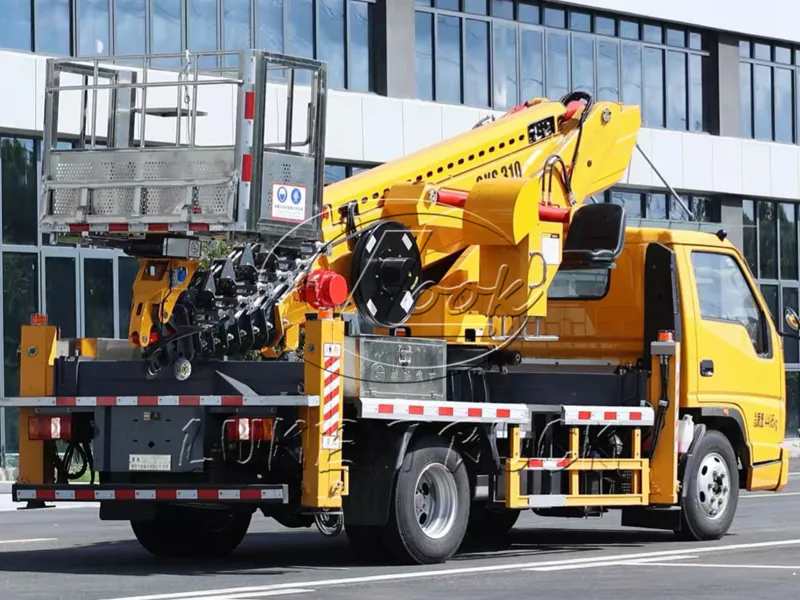

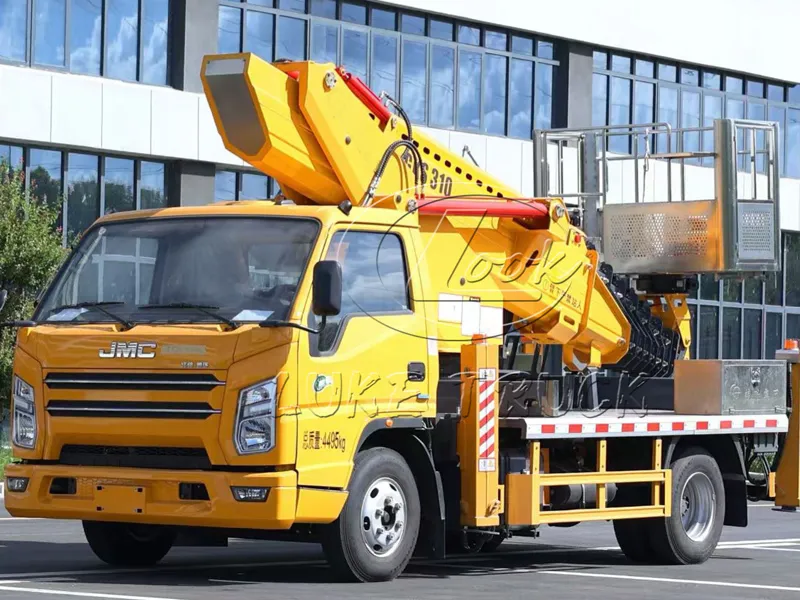

Jiangling 31-meter Aerial Working Platform Truck consists of a working arm, an upper folding arm, a main arm, and a balancing mechanism. The main arm forms a maximum horizontal angle of 70° with the upper folding arm, while the upper folding arm forms a maximum angle of 140° with the main arm.
| [Jiangling 31m Straight-arm Aerial Working Platform Truck Technical Parameters] | |||
| Product trademark | Casal card | Announcement batch | 399 |
| product name | Aerial Working Platform Truck | product model | LOOK5042JGKJ6 |
| gross mass （Kg） | 4495 | outline dimension （mm） | 5998×2100×3200 |
| Number of passengers in the cab (per person) | 3 | curb weight （Kg） | 4300 |
| Approach Angle/Departure Angle (°) | 18/16 | Front/rear suspension (mm) | 1160/1478 |
| axle weight （Kg） | 1885/2610 | Maximum speed (Km/h) | 100,80 |
| 1. The rear protective welding connection features a 50×100mm cross-sectional dimension with the lower edge positioned 440mm above ground. 2. This vehicle's specialized system comprises an operating arm and lifting platform, designed for high-altitude maintenance tasks including power grid repairs, communication infrastructure maintenance, and streetlight installations. 3. The chassis is equipped with an optional speed limiter that restricts maximum speed to 80km/h. 4. The vehicle's outriggers are fitted with work lights that remain off during normal operation and activate exclusively during tasks. 5. Optional configurations include: rear lifting platform structure, upper mounting structure, handrail designs, rotating platform for the operating arm, winch systems, aluminum alloy side guards (material: 6061-T5) with bolted connections. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | JX1042TG26 | Chassis name | truck chassis |
| brand name | Jiangling brand | manufacturing enterprise | Jiangling Automobile Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 3360 | tyre size | 7.00R16LT 10PR |
| Number of leaf springs | 7/5+6 | front gauge （mm） | 1680 |
| fuel type | diesel oil | rear track （mm） | 1570 |
| standard of emission | GB17691-2018 National VI | ||
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| JX495ZLQ6C | Jiangling Automobile Co., Ltd. | 2478 | 105 |
With their reliable performance and flexible operation, Jiangling Aerial Working Platform Trucks are widely used in various high-altitude operations. Below are the key features of some common models:
The main components are: ① The working arm consists of the upper folding arm, the main arm, and the balancing mechanism. The main arm forms a maximum horizontal angle of 70° with the upper folding arm, which in turn forms a maximum angle of 140° with the main arm. This operating system can perform dual-position operations on both the working bucket and the turntable. The four legs are individually adjustable, enabling the entire vehicle to level on uneven roads.
② Equipped with a four-section hexagonal working arm that extends/sinks synchronously, the turntable can be operated manually or remotely, with 360-degree rotation capability. The four hydraulic legs adopt a front V-back H configuration, adjustable individually or in linkage, and the working bucket has a rated load capacity of 200kg.
③ Equipped with an electro-hydraulic proportional control system for stepless speed regulation, along with multiple safety features including a hydraulic automatic leveling system and automatic interlock devices for boarding and alighting.
