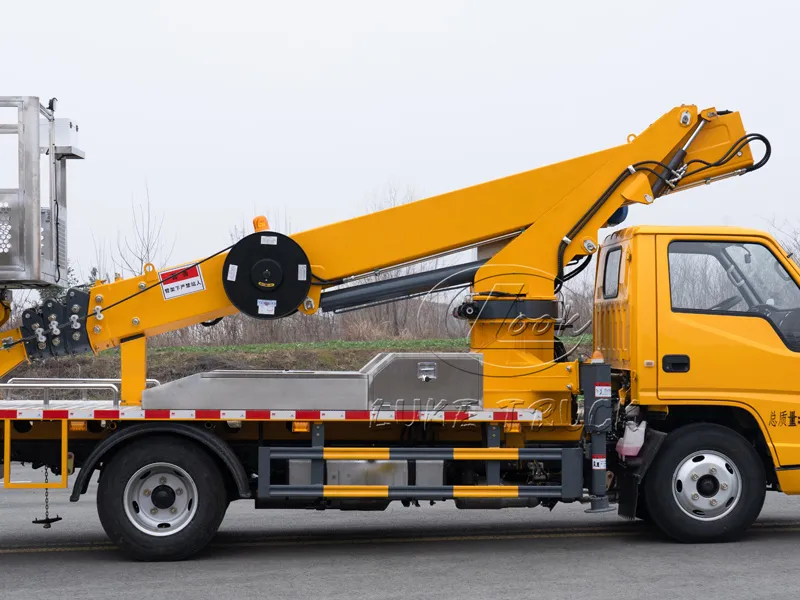

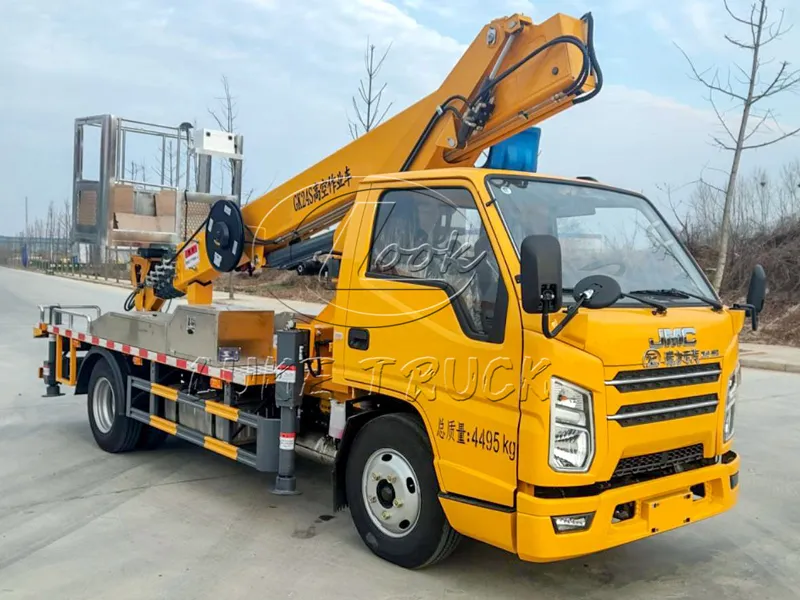

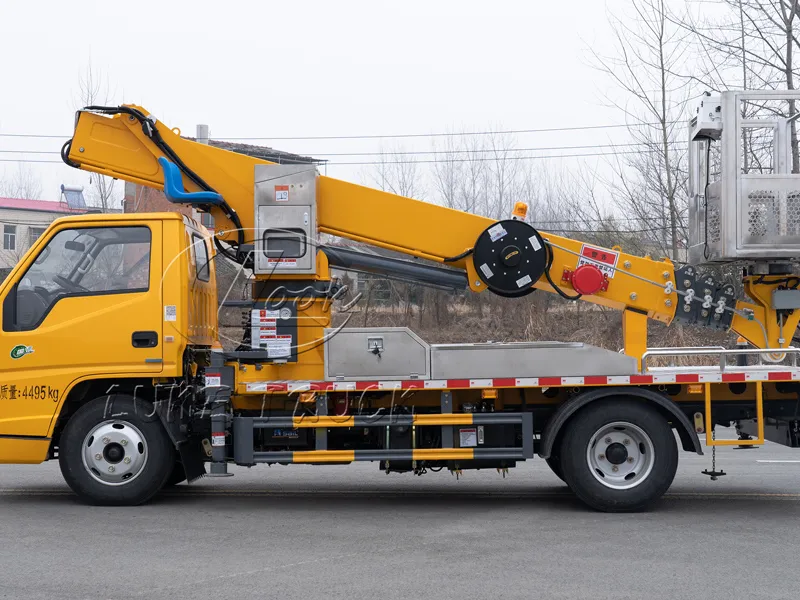

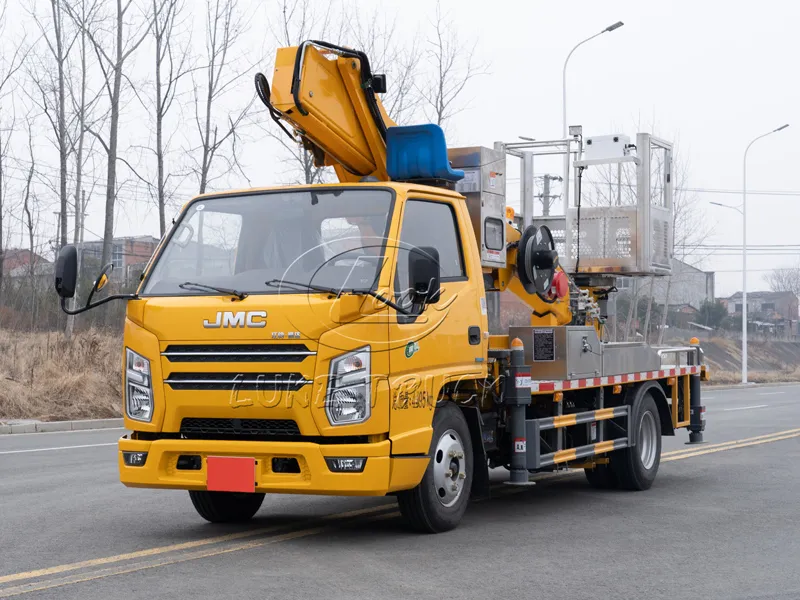

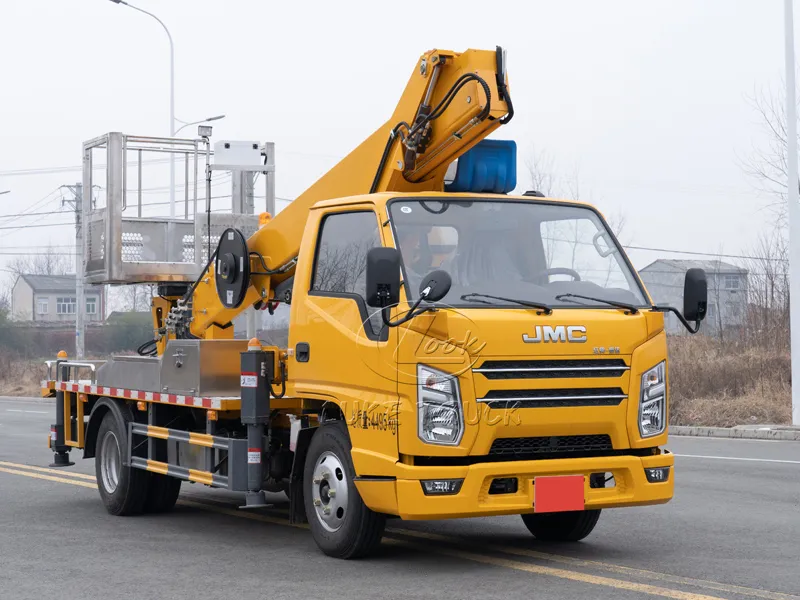

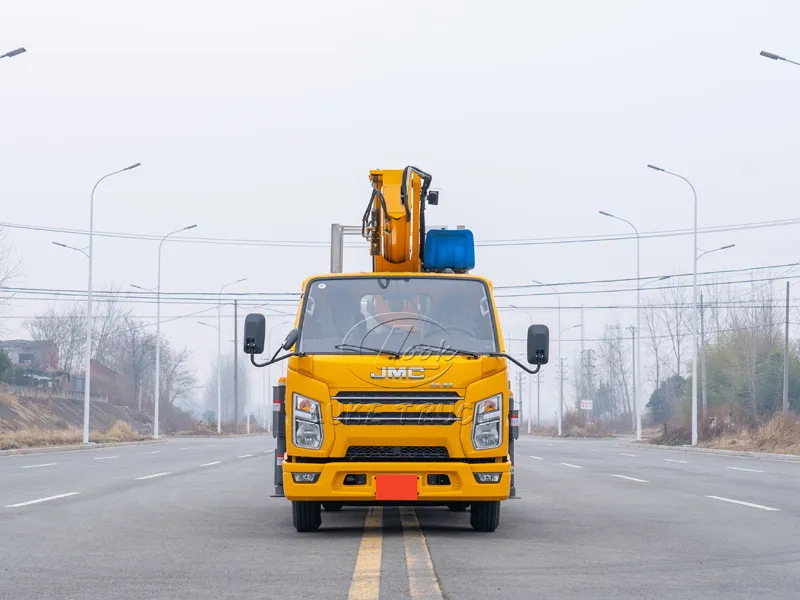

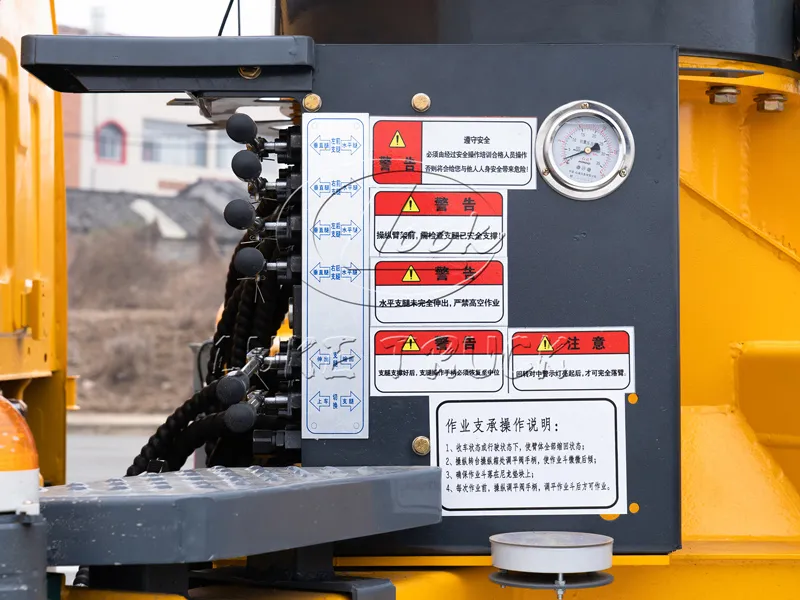

Jiangling Shunda 24-meter Aerial Working Platform Truck features four hydraulic outriggers with a front V and rear H configuration, adjustable individually or in coordination. Its working bucket has a rated load capacity of 200kg.
| [Technical Parameters of Jiangling Shunda 24m Aerial Working Platform Truck] | |||
| Product trademark | Casal card | Announcement batch | 399 |
| product name | Aerial Working Platform Truck | product model | LOOK5042JGKJ6 |
| gross mass （Kg） | 4495 | outline dimension （mm） | 5998×2100×3200 |
| Number of passengers in the cab (per person) | 3 | curb weight （Kg） | 4300 |
| Approach Angle/Departure Angle (°) | 18/16 | Front/rear suspension (mm) | 1160/1478 |
| axle weight （Kg） | 1885/2610 | Maximum speed (Km/h) | 100,80 |
| 1. Liquid brake ABS system model: APG3550500A, manufacturer: Zhejiang Asia-Pacific Electromechanical Co., Ltd.; Air brake ABS system model: VIE ABS-II, manufacturer: Zhejiang Wan 'an Technology Co., Ltd.; 2. Side and rear protective materials are Q235 steel, with side protective bolts for connection; rear protection is welded, with a cross-sectional dimension of 50×100mm and a ground clearance of 440mm at the lower edge; 3. The vehicle is equipped with a dedicated device consisting of an operating arm and a lifting platform, designed for high-altitude operations such as power line repairs, communication maintenance, and streetlight maintenance; 4. A speed limiter is optional for the chassis, with a maximum speed limit of 80km/h; 5. The working lights installed on the vehicle's outriggers remain off during operation and are activated only during tasks; 6. Optional rear lifting platform structure; 7. Optional upper mounting structure. Optional armrest styles, optional working arm turntable styles, optional winch styles. Optional aluminum alloy side protection, with 6061-T5 steel materials and bolted connections. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | JX1042TG26 | Chassis name | truck chassis |
| brand name | Jiangling brand | manufacturing enterprise | Jiangling Automobile Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 3360 | tyre size | 7.00R16LT 10PR |
| Number of leaf springs | 7/5+6 | front gauge （mm） | 1680 |
| fuel type | diesel oil | rear track （mm） | 1570 |
| standard of emission | GB17691-2018 National VI | ||
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| JX495ZLQ6C | Jiangling Automobile Co., Ltd. | 2478 | 105 |
With their reliable performance and flexible operation, Jiangling Aerial Working Platform Trucks are widely used in various high-altitude operations. Here are the key features of some common models:

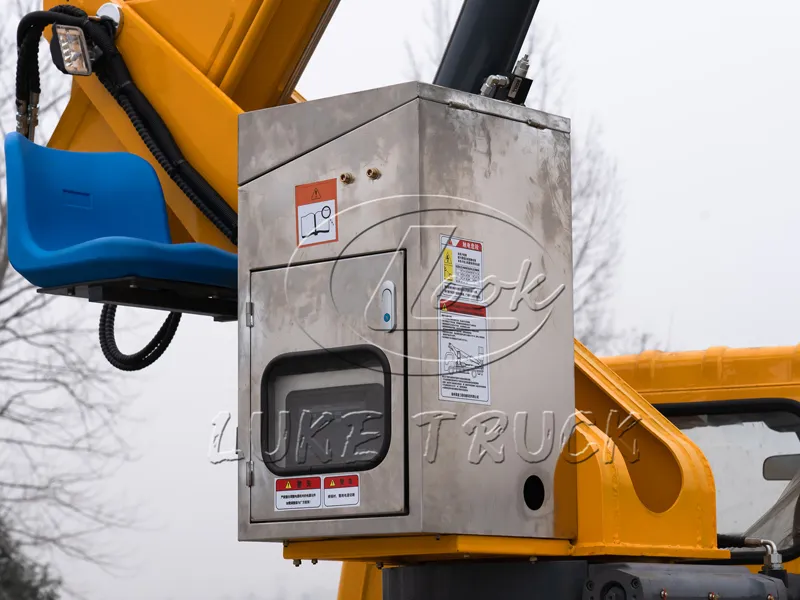

The main components: ① The working arm consists of an upper folding arm, a main arm, and a balancing mechanism. The main arm forms a maximum horizontal angle of 70° with the upper folding arm, which in turn forms a maximum angle of 140° with the main arm. This operating system supports dual-position operation on both the working bucket and the turntable. The four legs are individually adjustable, enabling the entire vehicle to level on uneven roads.

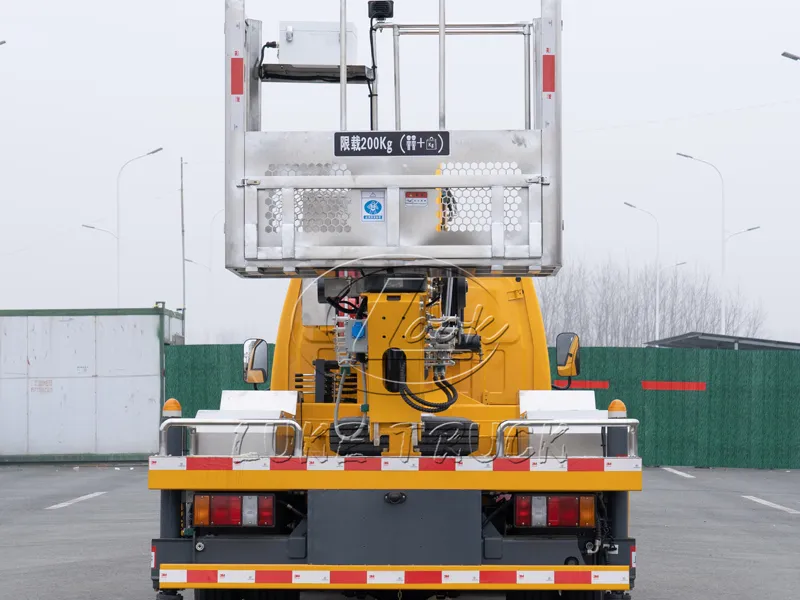

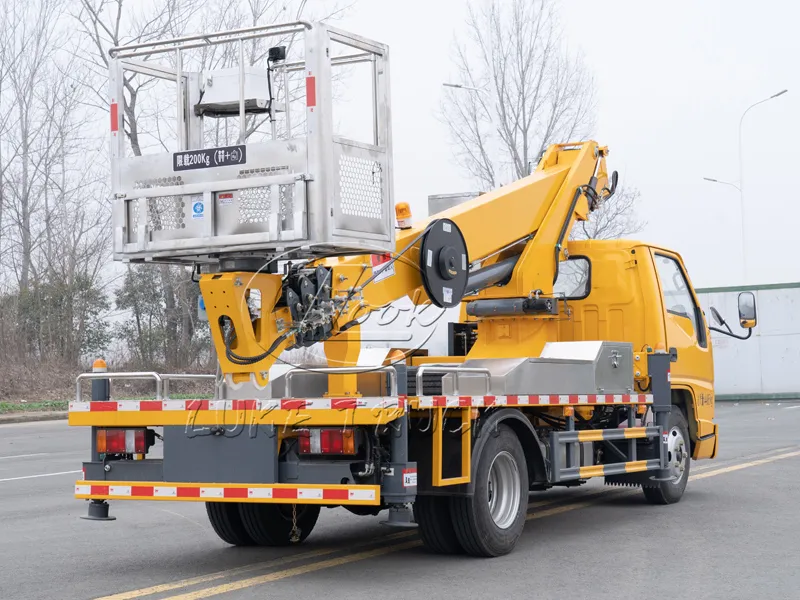

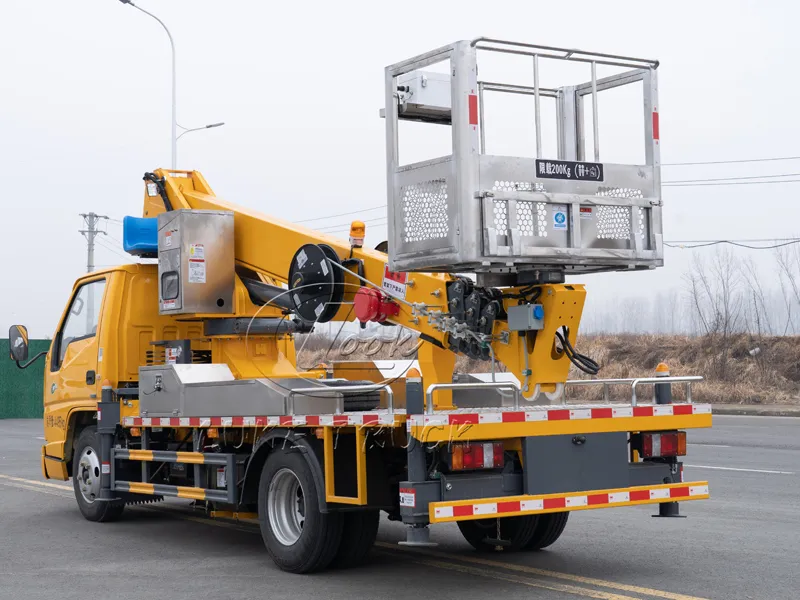

② Equipped with a four-section hexagonal working arm that extends/sinks synchronously, the turntable can be operated manually or remotely, with 360-degree rotation capability. The four hydraulic legs adopt a front V-back H configuration, adjustable individually or in linkage, and the working bucket has a rated load capacity of 200kg.
③ Equipped with an electro-hydraulic proportional control system for stepless speed regulation, along with multiple safety features including a hydraulic automatic leveling system and automatic interlock devices for boarding and alighting.
