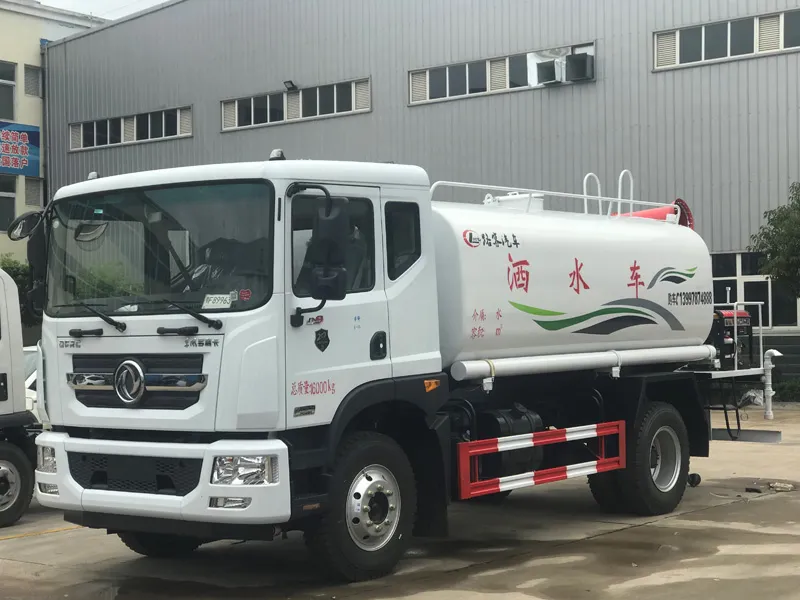

The 10-cubic-meter Dongfeng Dolica multi-functional dust suppression tanker is mainly used for large-scale watering and dust suppression and greening irrigation in scenarios such as dust reduction on urban main roads, watering on highways, dust suppression at large construction sites, and haze removal in mining areas. It is the main vehicle for sanitation operations.
| Dongfeng Dolica Multi-functional Sprinkler Truck Overall Vehicle Technical Specifications | |||
| Product Name | Green spray truck | Product Model | KLF5162GPSE6 |
| Total mass(Kg) | 16200 | Tank volume(m3) | 10.25 |
| Rated load capacity(Kg) | 9275 | External dimensions(mm) | 8420×2550×3450 |
| curb weight(Kg) | 6730 | Passenger capacity (persons) | 3 |
| Approach angle/Departure angle(°) | 19/16 | Front/Rear Suspension(mm) | 1420/2360 |
| Axle load(Kg) | 5600/10600 | Top speed(Km/h) | 89105 |
| The cab is selected according to the chassis series. The installation positions of the fuel tank, filter, battery, air tank, dryer, and urea tank can be selected according to the chassis. A speed limiter is also available, limiting the speed to 89 km/h. Optional features include a front-mounted duckbill nozzle, a high-mounted sprinkler, a front-mounted electronic water cannon, arrow lights, a toolbox, a rear counter-flushing system, a pneumatic ball valve, a square hose box, an upper arc-shaped sprayer, a lower sprayer, and a mist cannon style. The main specialized equipment consists of the tank and spraying device for landscaping spraying operations. Rear arrow lights are optional and only used during operation. | |||
| Chassis technical parameters | |||
| Chassis Model | EQ1165LJ9CDE | Chassis Name | Cargo truck chassis |
| Trademark Name | Dongfeng brand | manufacturing enterprises | Dongfeng Motor Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| wheelbase (mm) | 3950 | Tire specifications | 9.00R20 16PR |
| Number of leaf springs | 8/10+7 | Front wheel track(mm) | 1862 |
| Fuel types | diesel fuel | Rear wheel track(mm) | 1865 |
| Emission standards | GB17691-2018 Country VI | ||
| Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) |
| YCY30165-60 | Guangxi Yuchai Machinery Co., Ltd. | 2970 | 121 |

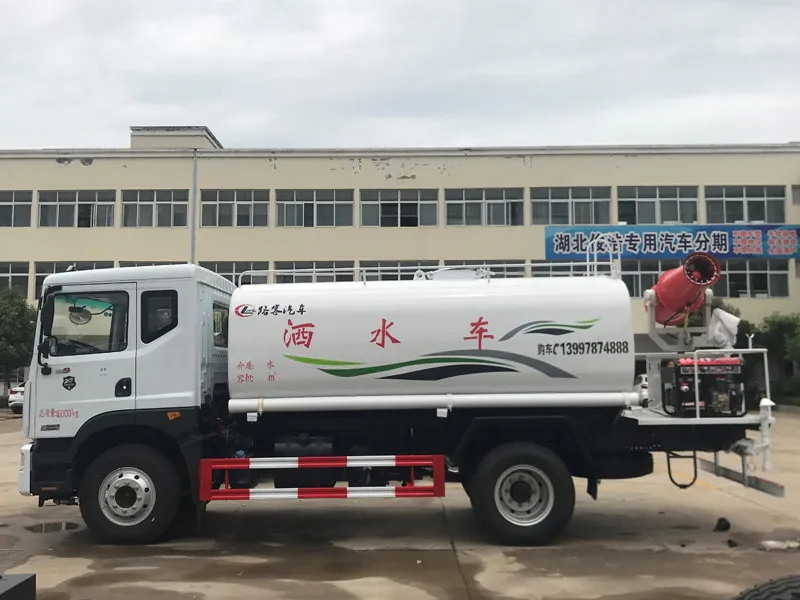

The Dongfeng Duolika mist cannon truck is a specialized vehicle integrating water spraying and dust suppression functions. With a tank volume of 10 cubic meters, it is widely used in road dust control, landscaping, disinfection, and other fields. The following is an introduction to the Dongfeng Duolika multi-functional dust suppression tank truck:
Chassis Configuration: Diesel engine, Shaanxi Fast gearbox, 3950mm wheelbase, 9.00R16 steel radial tires, air brakes, power steering, equipped with a Dongfeng Huashen 2050 single-row cab with tilting mechanism.
Upper Structure Configuration: The tank is made of 4mm carbon steel plate with internal anti-surge baffles. The vehicle comes with a dedicated water pump with a maximum vertical suction lift of 6 meters and a spraying width of 14 meters. A high-pressure water cannon for landscaping is mounted on the rear working platform, which can rotate 360 degrees and has an adjustable mist spray.

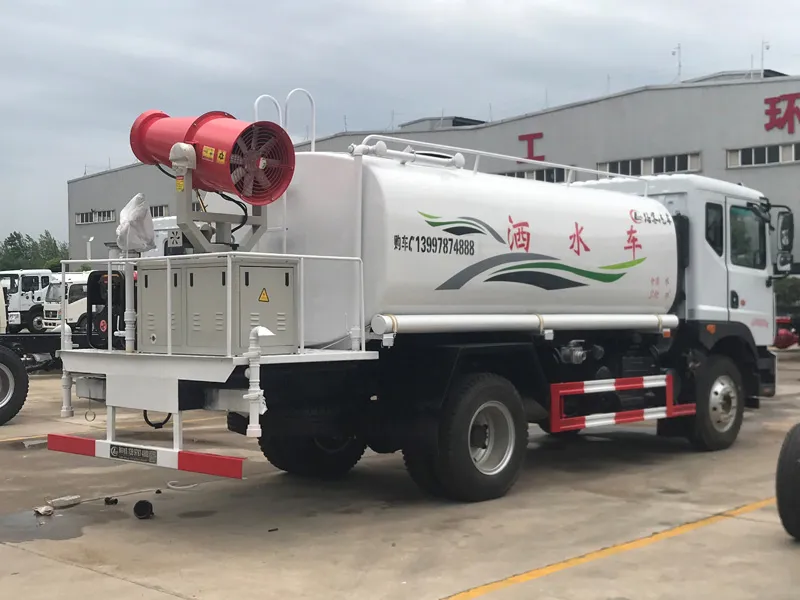

Fog Cannon Configuration: Equipped with a 50-meter sprayer, a 10.75KW diesel generator, electric start, spray flow rate 6-18L/min, horizontal range 25-50M, fog spectrum range 50-250um, elevation angle -10°～90° (remote control), and 360° rotation angle (reciprocating).
