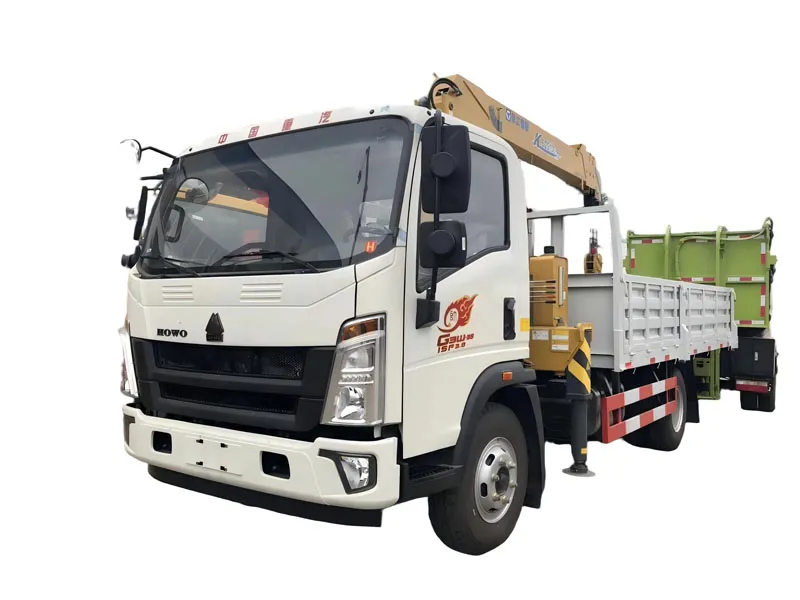

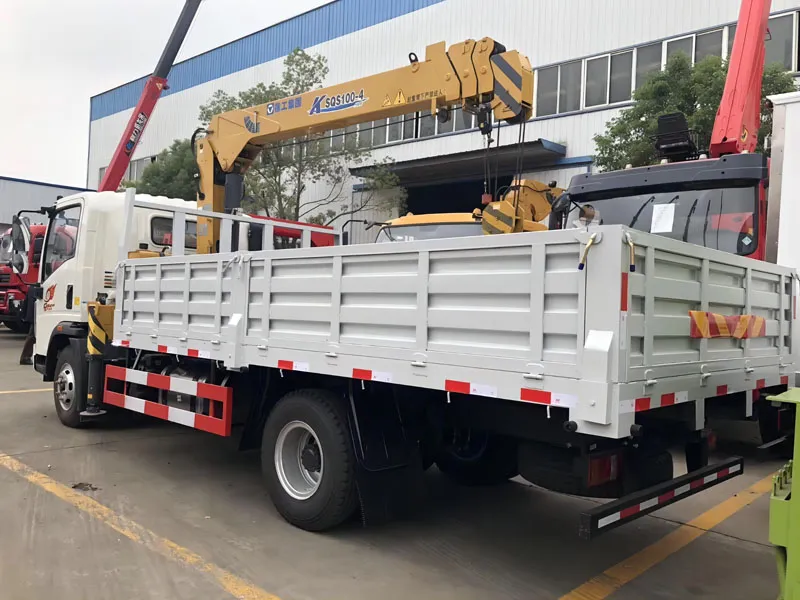

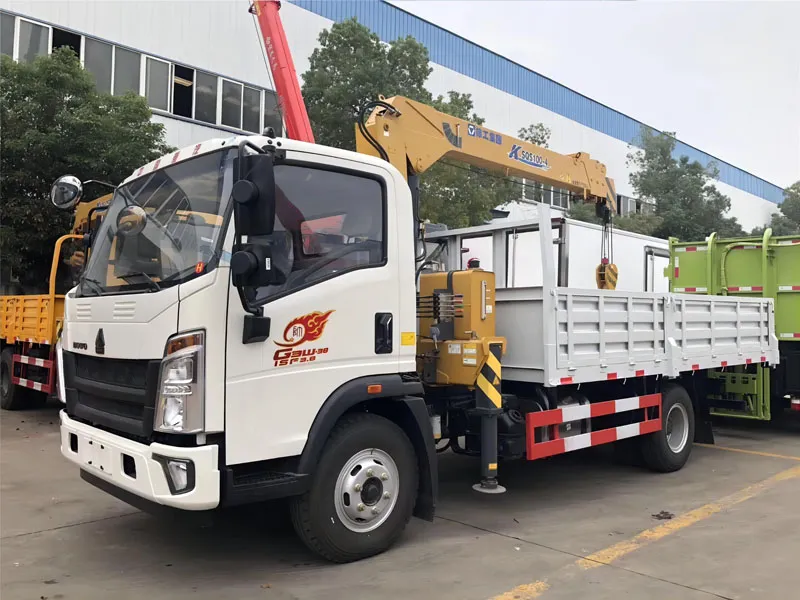

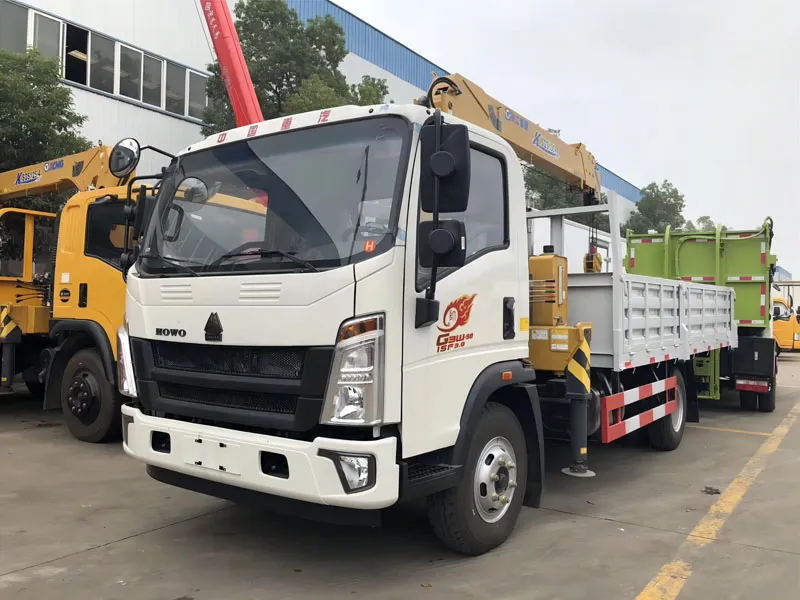

Sinotruk Howo 5-ton truck with crane combines lifting and transport functions, ideal for light construction, logistics, and material handling with high efficiency and flexibility.
Sinotruk Howo 5-Ton Truck with Crane - Product Specification Table
| Category | Item | Specifications |
| Chassis Parameters | Engine | Yuchai YC4E160-33 diesel engine (Euro II/III); 160 hp; 4.214L displacement |
| Transmission | 6-speed manual gearbox (e.g., DC6J65TC); smooth shifting; with PTO for crane activation | |
| Axle Configuration | 4x2 drive; front axle capacity: 3.6 tons; rear axle capacity: 10.5 tons | |
| Wheelbase | 4,500 mm (for balanced weight distribution and maneuverability) | |
| Tires | 9.00R20 steel radial tires; 7 pieces (including 1 spare, for terrain durability) | |
| Crane Specifications | Max Lifting Capacity | 5,000 kg (5 tons); with telescopic boom (e.g., XCMG SQ5SK3Q) |
| Working Radius & Height | Working radius: up to 11 meters; lifting height: 12.5 meters | |
| Hydraulic System | High-pressure system (20 MPa); oil flow: 40 L/min (for precise, efficient operation) | |
| Stability | H-shaped hydraulic outriggers; with adjustable legs (for safe lifting) | |
| Cargo & Dimensions | Cargo Box | 5,800x2,300x600 mm (LxWxH); 5 mm thick steel floor (for heavy loads) |
| Overall Dimensions | 9,000x2,550x3,850 mm (LxWxH); road-legal proportions with spacious design | |
| Payload & GVW | Payload capacity: 5,000 kg; Gross Vehicle Weight (GVW): 15,795 kg | |
| Safety & Comfort | Braking System | Dual-circuit compressed air brakes; with ABS and automatic gap adjustment |

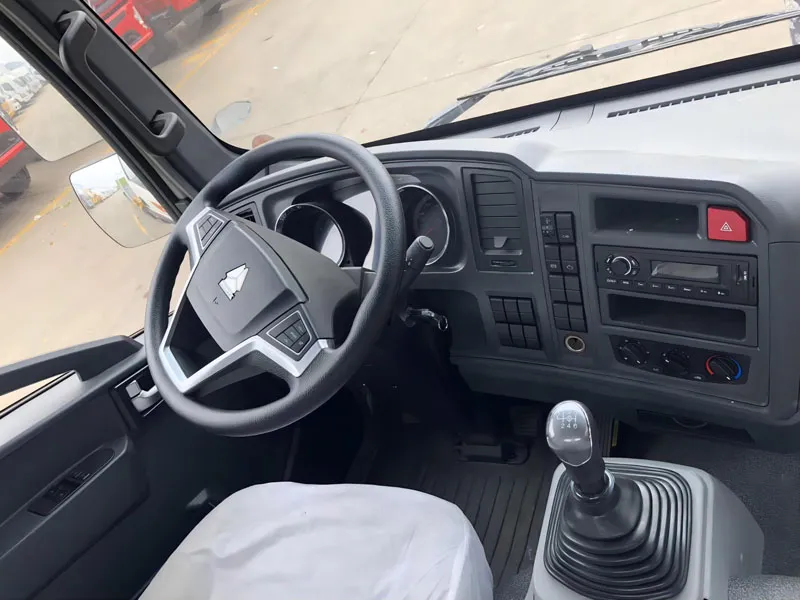

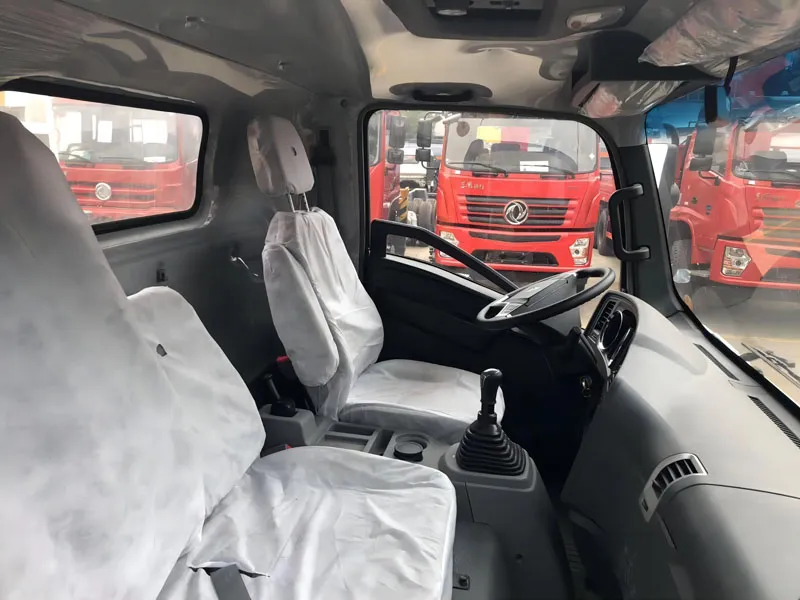

| Cab Features | 2080 mm wide cabin; air conditioning; adjustable steering wheel; ergonomic seats | |
| Emission Standards | Euro II/III (optional Euro IV-VI, to meet global environmental regulations) | |
| Applications | Suitable Scenarios | Construction sites, logistics, emergency rescue (combines hauling & lifting); optional: different crane brands (e.g., Sany, XCMG) & cab variations (single/crew cab) |
