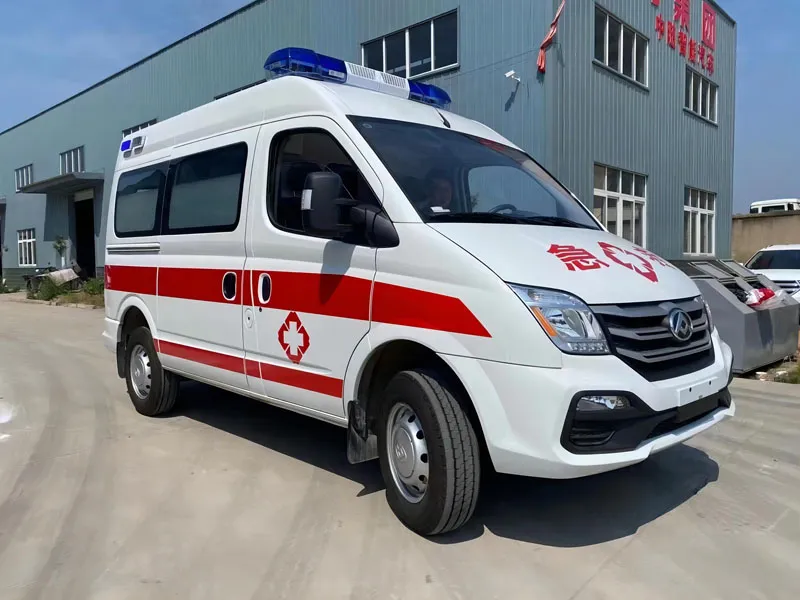

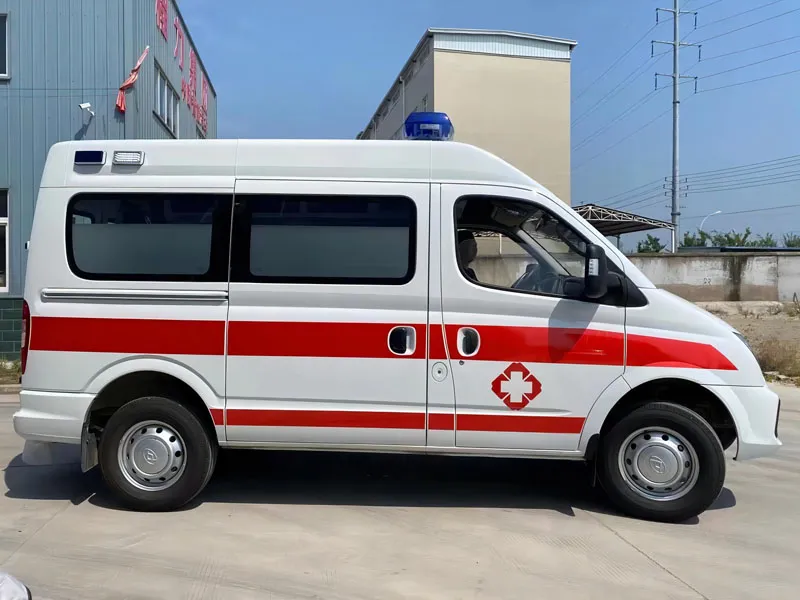

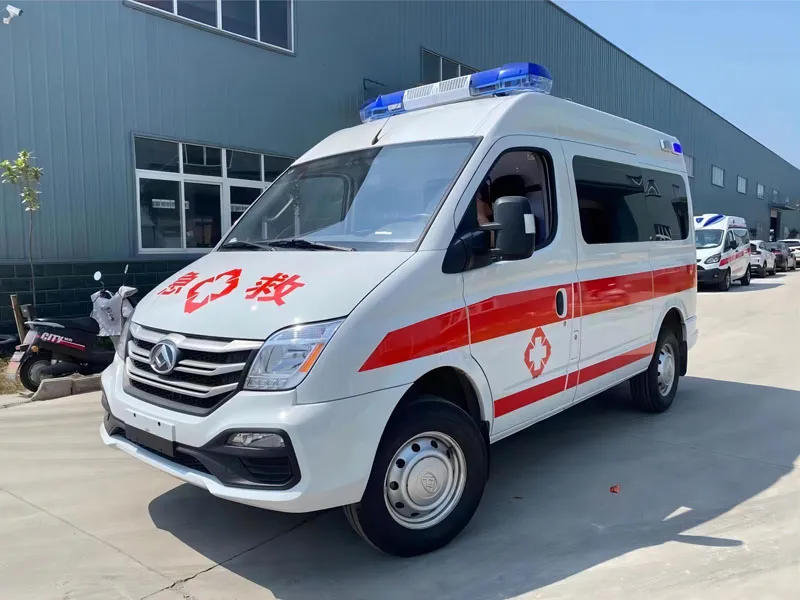

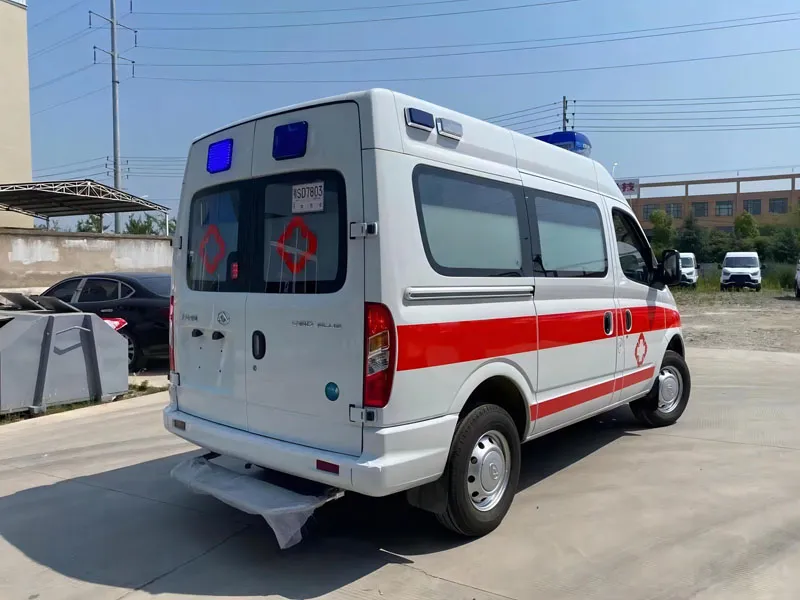

SAIC Maxus Ambulance, built on a reliable SAIC Maxus chassis, features a spacious medical cabin with essential equipment. It delivers stable performance on urban and rural roads, ensuring safe and timely patient transfer for emergency needs.
Parameter Category | Item | Specification |
Basic Information | Model Name | SAIC Maxus V80 Emergency Ambulance |
Drive Type | 4×2 Front-wheel Drive | |
Emission Standard | China National VI / Euro VI | |
Vehicle Type | Class B Emergency Ambulance | |
Dimension Parameters | Overall Length × Width × Height (mm) | 5700 × 1998 × 2520 |
Medical Cabin Internal Size (mm) | Length: 3300; Width: 1850; Height: 1780 | |
Wheelbase (mm) | 3850 | |
Power System | Fuel Type | Diesel |
Engine Model | SAIC π 2.0T Turbocharged Diesel Engine | |
Displacement (L) | 1.996 | |
Maximum Power (kW/rpm) | 109 / 3500 | |
Maximum Torque (N·m/rpm) | 375 / 1500-2400 | |
Transmission Type | 6-speed Manual / 6-speed Automated Manual Transmission (AMT) | |
Chassis Configuration | Curb Weight (kg) | 2850 |
Gross Vehicle Mass (kg) | 3700 | |
Fuel Tank Capacity (L) | 80 | |
Tire Specification | 195/75R16C 106/104R (Steel Wheel) | |
Medical Cabin Config. | Cabin Material | Environment-friendly polymer (acid/alkali resistant, easy to clean) |
Core Medical Equipment | 1× Automatic Loading Stretcher; 1× Oxygen Supply System (2×10L Cylinders); 1× UV Disinfection Lamp; 2× IV Poles | |
Power Support for Medical Gear | 1000W Pure Sine Wave Inverter; 2×220V AC Sockets; 2×12V DC Sockets | |
Safety & Comfort | Safety Systems | ABS + EBD; Driver Airbag; Front Disc Brakes |
Climate Control | Independent Air Conditioner (Driver Cab + Medical Cabin) | |
Convenience Features | Central Door Lock; Power Windows; Rear Double Doors; Foldable Medical Seat (with Seatbelt) |
