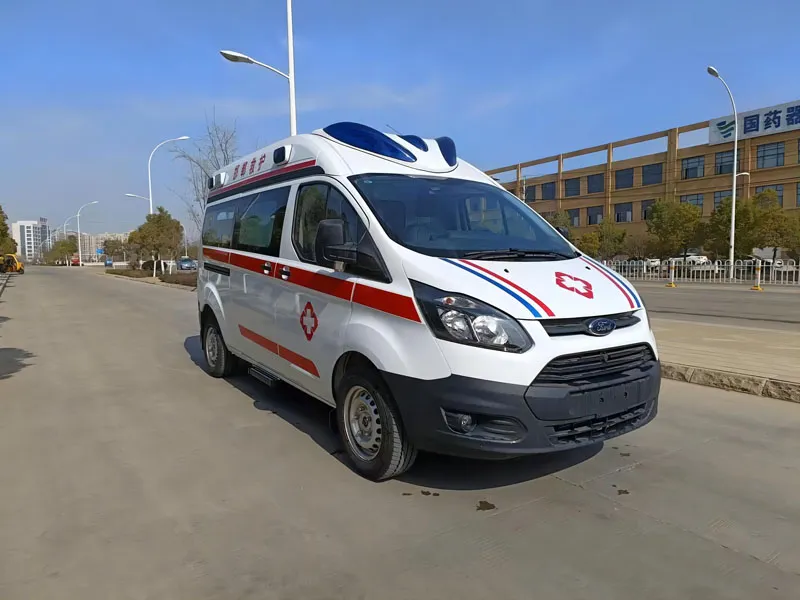

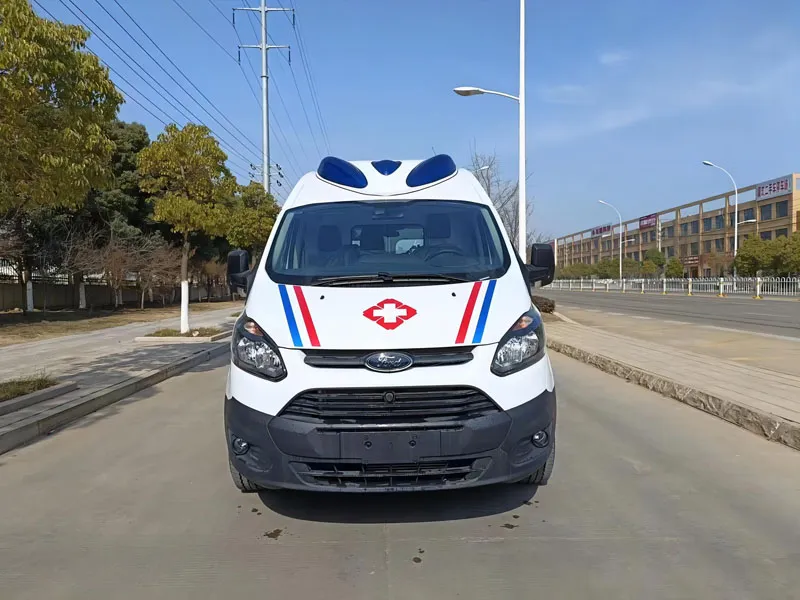

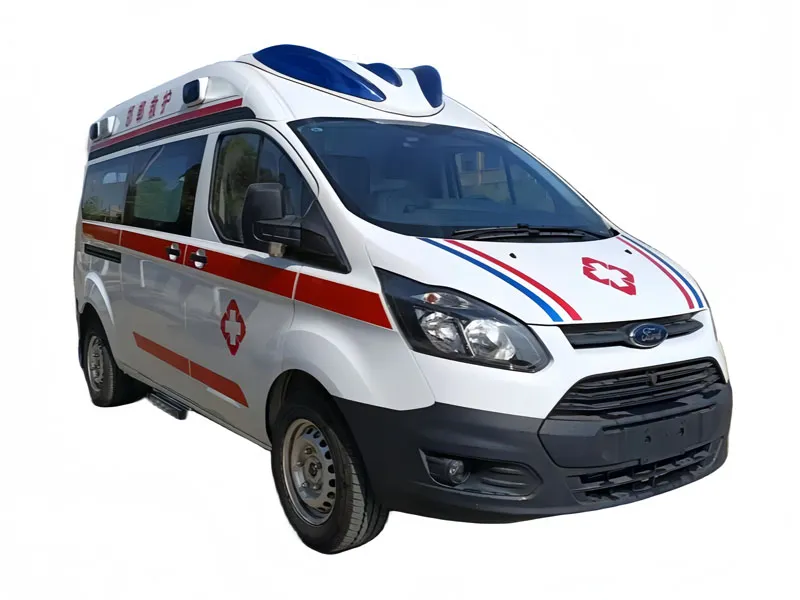

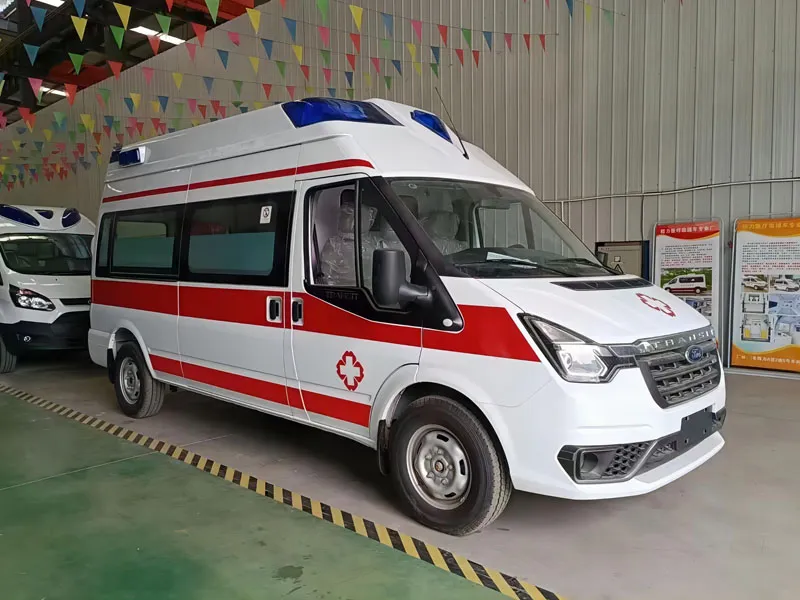

Ford Transit Ambulance is a practical emergency vehicle built on Ford's reliable Transit chassis. Its spacious interior houses essential medical gear, supporting on-site care. With dependable performance, it’s ideal for urban and suburban patient transport, ensuring safe and timely transfer.
| Section 1 Basic Vehicle Technical Parameters | (I) Vehicle Model: 1.1 Overall Vehicle Dimensions (mm): Length: 5820, Width: 1974, Height: 26851.2 Internal Dimensions of Medical Cabin (mm): Length: 3600, Width: 1750, Height: 18001.3 Exhaust Emission Standard: National VI | ||
| (II) Engine2.1 Fuel Type: Diesel2.2 Operation Mode: In-line 4-cylinder, Turbocharged2.3 Displacement (ml): 21982.4 Maximum Power (kw): 103 | |||
| (III) Chassis3.1 Wheelbase (mm): 37503.2 Gross Mass (kg): 37003.3 Curb Weight (kg): 27203.4 Fuel Tank Capacity (L): 803.5 Number of Tires: 4+1 (including spare tire)3.6 Number of Seats: 5-93.7 Tire Specification: 215/75R16LT | |||
| (IV) Standard Vehicle Configuration4.1 4*2 Rear-wheel Drive; Unibody Structure; ABS (Anti-lock Braking System) + EBD (Electronic Brakeforce Distribution); Central Door Lock with Remote Key; 4.2 Four-wheel Disc Brake System; Driver's Airbag;4.3 Front Power Windows; Double Rear Doors; | |||
| (V) Others:5.1 Maximum Speed (km/h): 1455.2 Transmission: Automatic | |||
| Section 2 Modified Configuration Plan | Section 2 Modified Configuration Plan | ||
| Serial No. | Name | Performance & Specification | Quantity |
| (I) | Exterior | 1.1 Blue reflective English lettering "AMBULANCE" pasted horizontally in the middle of the front vehicle body. | 1 set |
| 1.2 Blue/red reflective film and emergency logos attached around the vehicle body; customizable according to user requirements. | 1 set | ||
| 1.3 Dark tinted film applied to medical cabin glass. | 1 set | ||

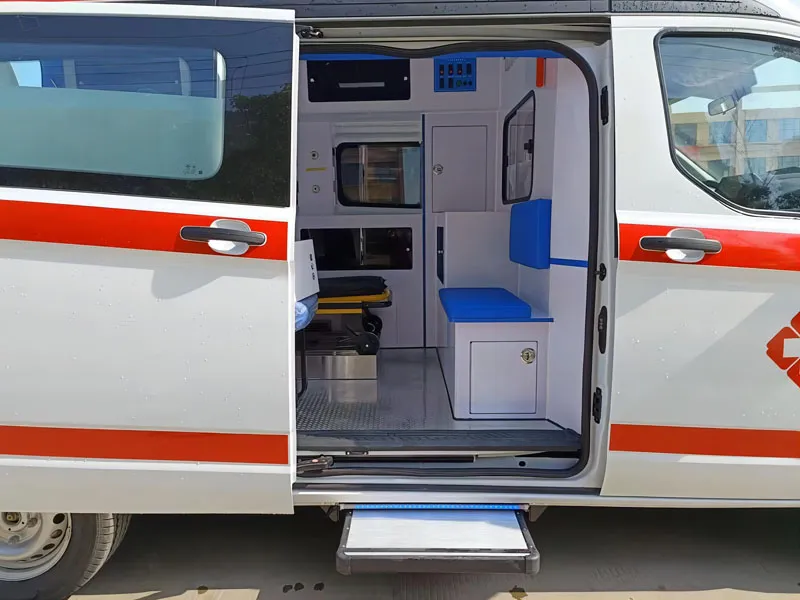

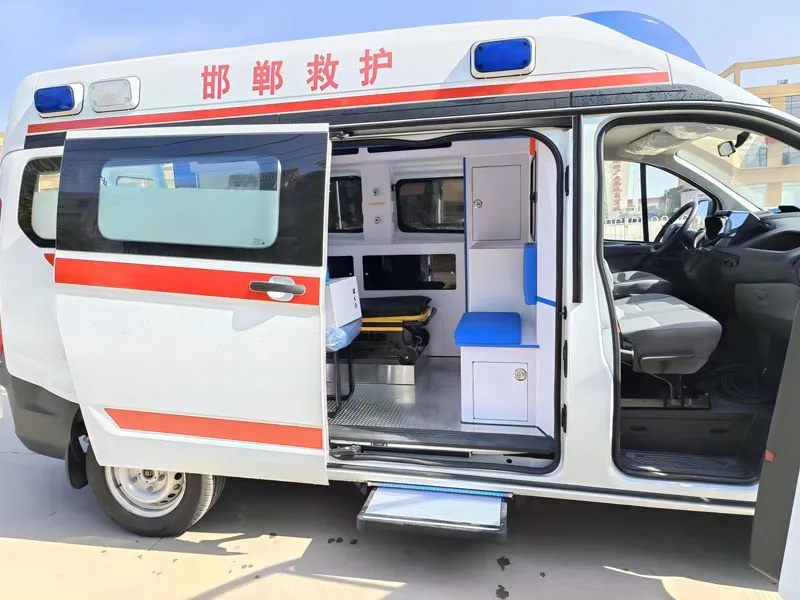

| 1.4 Mechanical step for entry via the middle door. | 1 set | ||
| 1.5 Sliding window for the middle door. | 1 set | ||
| (II) | Emergency Light & Siren System | 2.1 A siren platform installed on the front of the roof; 1 set of LED long-row siren assembly, 2 blue LED strobe lights, and 2 white utility lights mounted on the platform; lampshade made of polycarbonate material. | 1 set |
| 2.2 2 blue strobe lights installed on each side and the rear of the vehicle body. | Total: 6 units | ||
| 2.3 White strobe lights installed on both sides of the roof. | 2 units | ||
| 2.4 A 100W external loudspeaker built into the siren. | 1 set | ||
| 2.5 Siren and emergency light control buttons installed in the driver's cab. | 1 set | ||

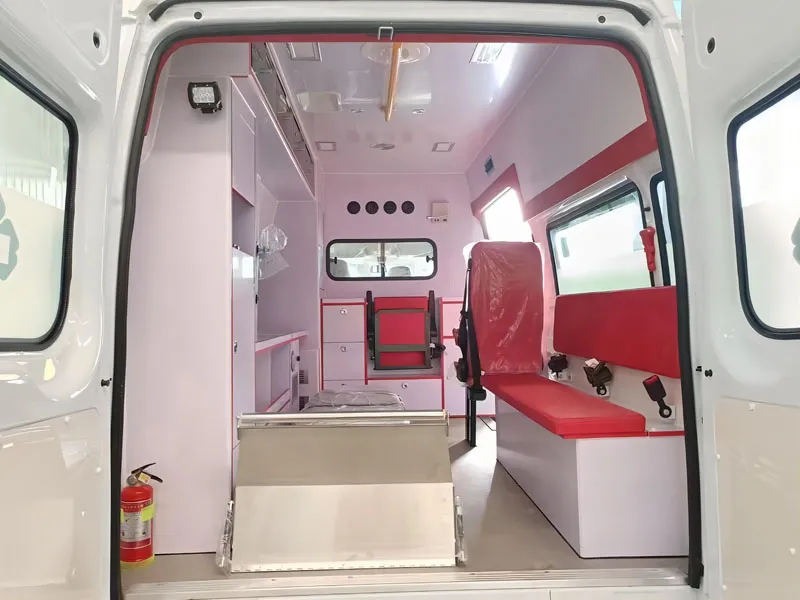

| (III) | Medical Cabin Configuration | 3.1 A partition wall installed between the driver's cab and medical cabin to separate the front and rear compartments; 2 sliding windows on the partition wall (transparent for front-rear visibility). | 1 set |
| 3.2 Walls, doors, roof, and all interior trim of the medical cabin made of environmentally friendly degradable polymer material. | 1 set | ||
| 3.3 Medical-specific floor in the medical cabin (features: easy to clean, acid/alkali resistant, fireproof, anti-slip, anti-static). | 1 set | ||
| 3.4 All medical cabinet systems in the medical cabin made of new environmentally friendly materials; all cabinet doors equipped with safety locking devices to prevent items from falling during vehicle movement. | 1 set | ||
| 3.5 A doctor's care seat (with safety belt) installed directly behind the medical cabin partition; a medical supply cabinet designed on the left side of the seat. | 1 set | ||
| 3.6 A set of multi-functional medical equipment cabinets installed on the left side of the medical cabin: overhead cabinets (with upward-opening doors) mounted on the upper part, and window-height medical cabinets (with sliding doors) on the lower part; the cabinet top serves as a doctor's operation platform. | 1 set | ||
| 3.7 An equipment rack installed on the left side of the medical cabin (3-layer, height-adjustable). | 1 set | ||
| 3.8 An oxygen cabinet installed at the left rear of the medical cabin (includes 2 x 10L oxygen cylinders, 2 pressure reducers, 1 oxygen outlet, 1 ventilator outlet, oxygen pipelines, and other components of the central oxygen supply system); equipped with a dedicated access door for convenient oxygen use by patients. | 1 set | ||
| 3.9 1 independent seat (with safety belt) installed on the right side of the medical cabin; 1 custom long padded bench seat installed at the right rear. | Total: 3 units | ||
| 3.10 Storage net pockets on the upper right side. | 3 units | ||
| 3.11 Safety handrails (yellow powder coating) installed on the top of the medical cabin. | 1 set | ||
| 3.12 Foldable IV hangers installed on the top of the medical cabin. | 2 units | ||
| 3.13 Automatic loading stretcher. | 1 unit | ||
| 3.14 Rear door foldable stretcher. | 1 unit | ||
| 3.15 2KG fire extinguisher with fixing bracket. | 1 set | ||
| 3.16 Foot-operated medical stainless steel waste bin. | 1 unit | ||
| 3.17 Front-rear intercom system (with megaphone). | 1 set | ||
| 3.18 Integrated control panel assembly. | 1 set | ||
| (IV) | Central Power Distribution System | 4.1 1000W pure sine wave on-board intelligent inverter power system, equipped with high-performance maintenance-free battery to provide 24-hour uninterrupted power supply. | 1 set |
| 4.2 Vehicle emergency start control device: enables vehicle start-up when the main battery is below 12V and cannot start normally. | 1 set | ||
| 4.3 Intelligent charging control device: ensures normal charging of the main battery; equipped with generator overload protection system to extend generator service life; auxiliary battery works independently to avoid consuming main battery power. | 1 set | ||
| 4.4 AC/DC dual-purpose sockets installed in the medical cabin (5 sets of 220V / 2 sets of 12V). | 1 set | ||
| (V) | Air Conditioning & Lighting System | 5.1 Original factory independent air conditioner installed in the driver's cab. | 1 set |
| 5.2 Original factory independent air conditioner installed in the medical cabin. | 1 set | ||
| 5.3 Heater unit installed in the medical cabin (with independent control switch) to ensure a suitable temperature inside the cabin. | 1 set | ||
| 5.4 Fixed disinfection device installed in the medical cabin (e.g., 18W UV disinfection lamp with timed disinfection function); installation and use comply with the Technical Specifications for Disinfection. | 1 set | ||
| 5.5 4 LED lighting lamps installed in the medical cabin to fully meet the work needs of medical staff; 1 rear lighting lamp installed at the medical cabin's rear door to ensure safety for passengers getting on and off at night. | 1 set | ||
