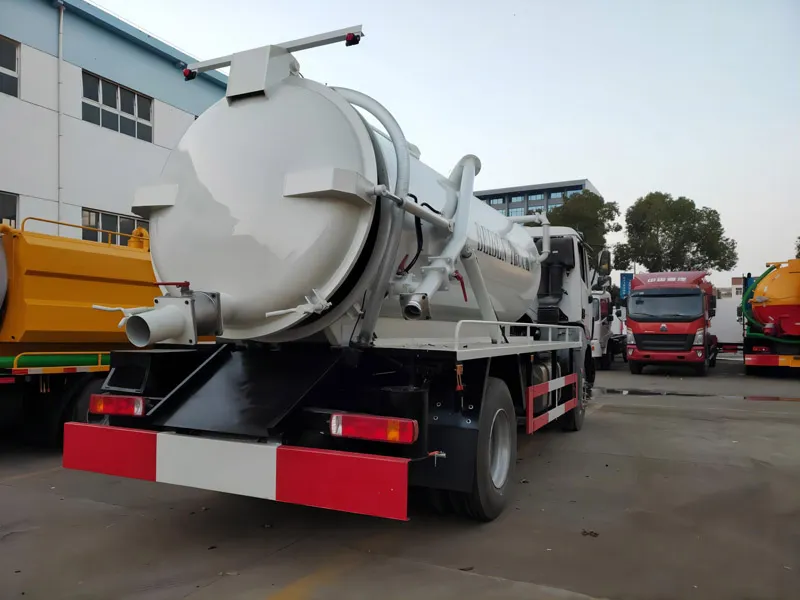

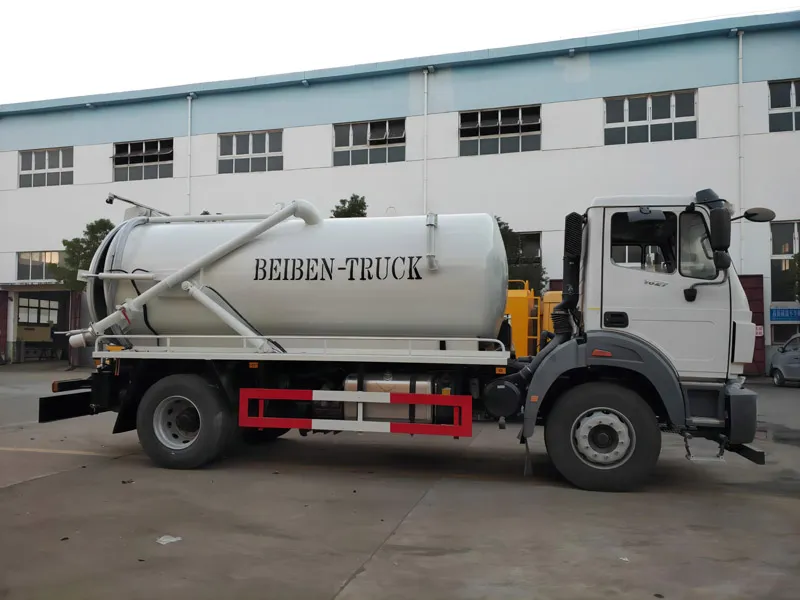

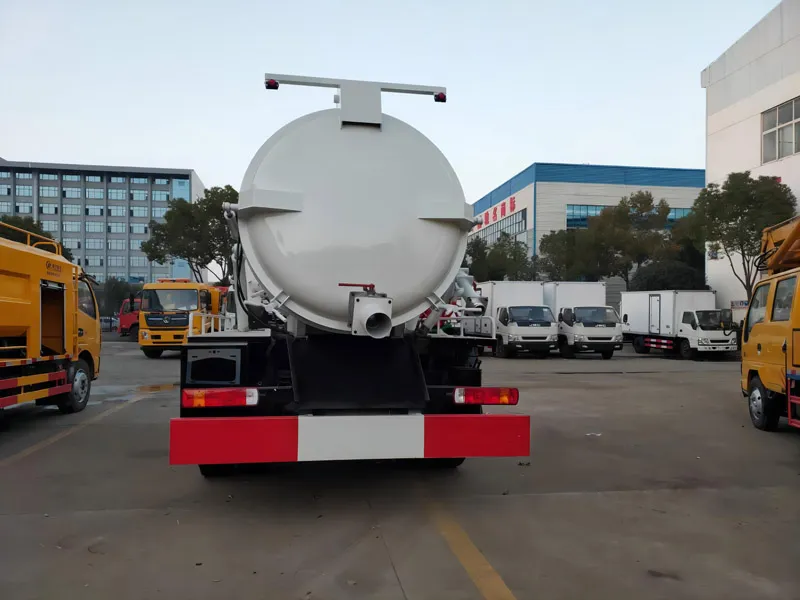

Beiben 12 cbm sewage suction truck features a Weichai engine, Mercedes-Benz chassis technology, and a high-efficiency vacuum system, delivering reliable performance for urban sanitation and wastewater management.
Parameter Category | Specific Parameters |
Basic Information | - Brand: Beiben Heavy Duty Truck- Model: ND5180GXWZ1 (typical model for 12cbm 4×2)- Product Type: Sewage Suction Truck- Drive Form: 4×2 (2 front wheels, 2 rear driving wheels)- Rated Sewage Tank Volume: 12 m³- Manufacturing Standard: GB 3847-2005, GB 17691-2018 (National VI Emission)- Application: Municipal sewage cleaning, industrial wastewater collection, community septic tank emptying |
Chassis Configuration | - Engine Model: Weichai WP4.6NQ220E68 (National VI Emission)- Engine Power: 220 hp (162 kW) @ 2200 rpm- Torque: 820 N·m @ 1200-1800 rpm- Transmission: Fast 6JS85T manual transmission (6 forward gears, 1 reverse gear)- Drive Axle: Beiben 13T single-reduction drive axle (speed ratio: 4.875)- Tire Specification: 10.00R20 18PR radial tire (4 driving tires + 1 spare tire)- Fuel Tank Capacity: 200 L (aluminum alloy material)- Wheelbase: 4500 mm- Steering System: Power-assisted steering (hydraulic) |
Upper Mounting System | - Sewage Tank Material: Q345B high-strength carbon steel (thickness: 5 mm for tank body, 6 mm for tank head)- Vacuum Pump Model: Shandong SK-12 water-ring vacuum pump- Vacuum Degree: ≤ -0.092 MPa- Suction Speed: 120 m³/h- Suction/Discharge Port Diameter: 150 mm (stainless steel pipe)- Maximum Suction Lift: 6 m- Maximum Discharge Distance: 15 m- Tank Lifting Angle: 60° (hydraulic tipping for sewage discharge)- Cleaning System: High-pressure washing gun (working pressure: 8 MPa, flow rate: 50 L/min) |
Performance Parameters | - Maximum Total Mass: 18000 kg- Curb Weight: 10500 kg- Rated Load Mass: 7300 kg- Maximum Speed: 85 km/h- Climbing Capacity: ≥ 30%- Minimum Turning Radius: 8.5 m- Fuel Consumption: 22-25 L/100 km (comprehensive working condition) |
Dimension & Weight | - Overall Length: 7800 mm- Overall Width: 2500 mm- Overall Height: 3200 mm- Tank Body Dimension (L×W×H): 5200×2400×2000 mm- Wheel Track (Front/Rear): 1920 mm / 1800 mm |
Safety & Operation | - Safety Devices: ABS anti-lock braking system, air brake (dual-circuit), reverse radar, warning lamp (amber rotating light)- Operation Configuration: Hydraulic control system, in-cab operation buttons, sewage level gauge (mechanical + electronic display)- Environmental Protection: Anti-overflow valve (prevents sewage backflow), exhaust after-treatment system (SCR + DPF) |
