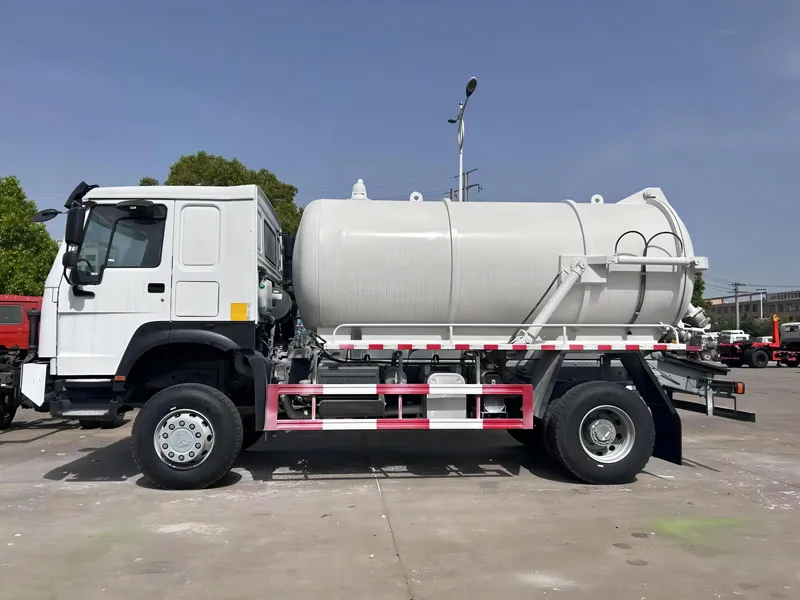

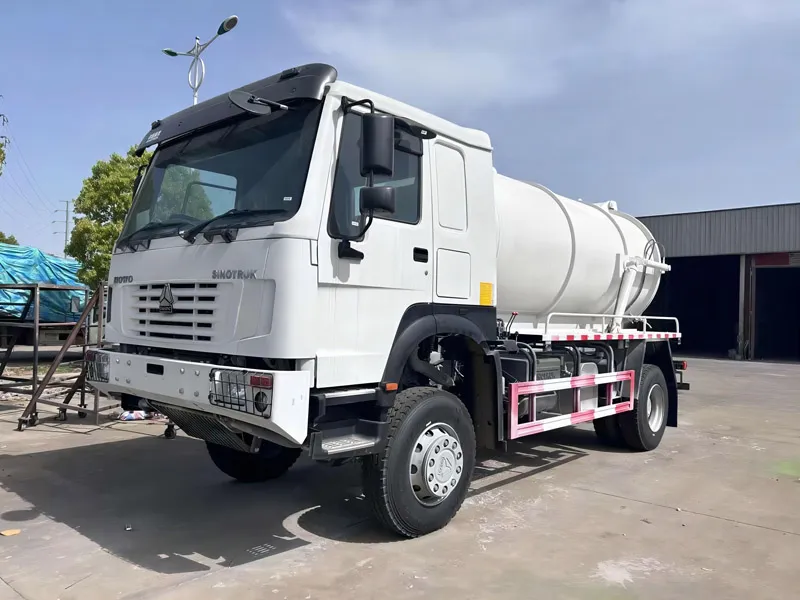

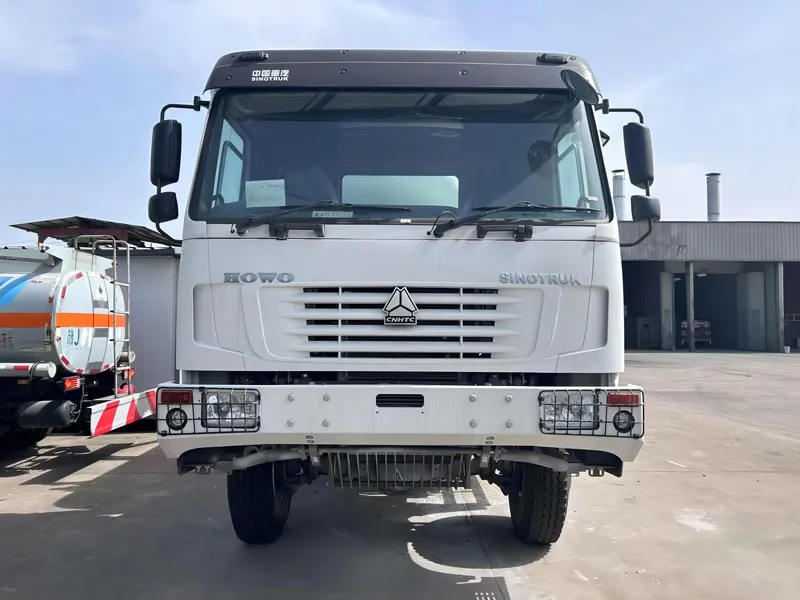

Sinotruk Howo 4×4 sewage suction truck offers strong off-road capability, ensuring efficient sewage and sludge collection for municipal and environmental sanitation tasks.
Category | Specification Item | Value/Description |
Basic Information | Brand | Sinotruk Howo |
Model | Howo 4×4 Off-Road Sewage Suction Truck | |
Vehicle Type | Special-purpose vehicle for sewage suction, transportation & discharge | |
Drive Form | 4×4 (all-wheel drive) | |
Rated Loading Capacity | 8,000 kg | |
Purpose | Collection, transportation and disposal of domestic sewage, industrial sludge, septic waste, and viscous liquids | |
Application | Municipal sanitation, rural areas, construction sites, mining areas, and off-road environments | |
Chassis Parameters | Chassis Model | Sinotruk Howo 4×4 Off-Road Chassis |

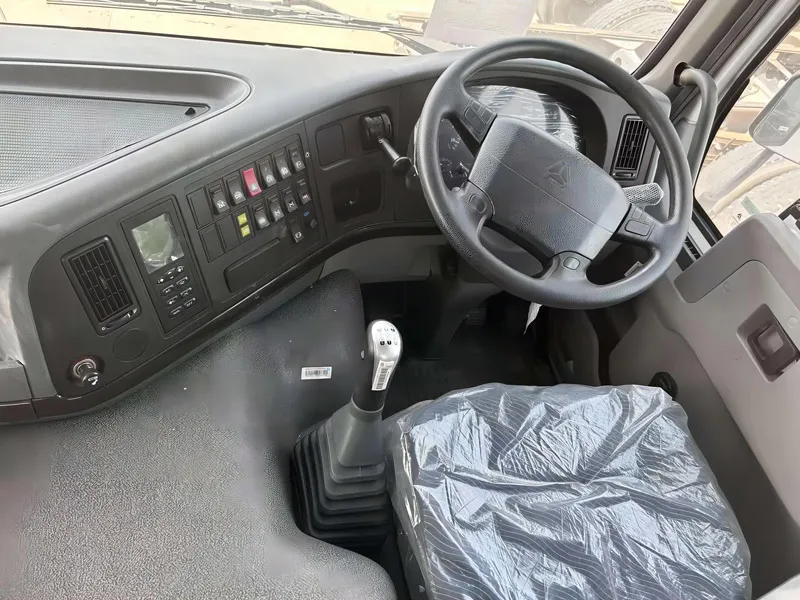

Cab Features | Double-row steel cab with AC, adjustable suspension seats, and heating | |
Engine Model | Weichai WP6.240E61 (Euro VI) | |
Engine Type | Inline 6-cylinder, turbocharged, intercooled diesel | |
Max Power | 177 kW (240 HP) @ 2200 rpm | |
Max Torque | 950 N·m @ 1200-1800 rpm | |
Transmission | 9-speed manual (HW19710) with synchronizer | |
Clutch | Dry dual-plate hydraulic clutch | |
Axle Configuration | Front 6.5T, Rear 13T reinforced axles | |
Wheelbase | 3800 mm | |

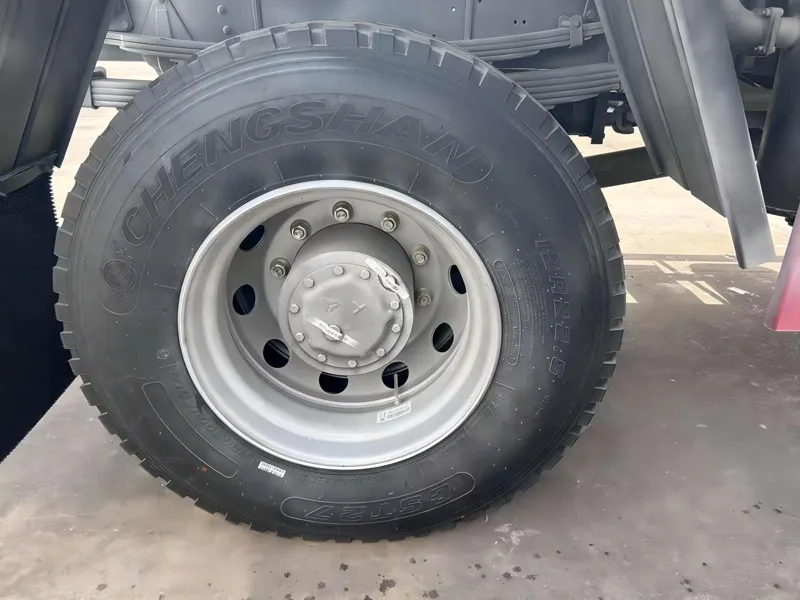

Tires | 12.00R20 18PR off-road (6+1 spare) | |
Fuel Capacity | 350 L diesel with anti-leakage | |
Brake System | Dual-circuit air brake with ABS + ASR | |
Off-Road Capability | ≥30° approach, ≥25° departure, 600 mm wading | |
Sewage System | Tank Volume | 8-10 m³ (customizable) |
Tank Material | Q355B carbon steel (6-8mm) with anti-corrosion coating | |
Tank Structure | Elliptical cross-section with seamless welding | |
Suction Pump | XD-50 vacuum pump (oil-sealed rotary vane) | |
Pump Power | 55 kW | |
Max Vacuum | ≥0.092 MPa | |
Suction Depth | ≥8 m vertical | |
Suction Distance | ≥60 m horizontal | |
Suction Time | ≤4.5 min (full tank) | |
Discharge Time | ≤2.5 min (full tank) | |

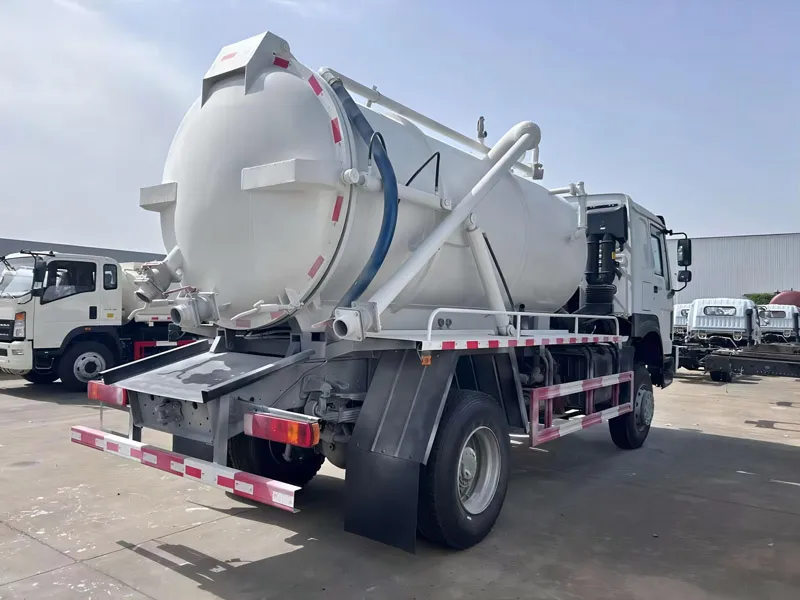

Discharge Method | Hydraulic rear discharge (50° tilt) + optional side | |
Control System | Manual + wireless remote (50m range) | |
Filtration | Three-stage filtration system | |
Self-Cleaning | 360° high-pressure tank washing system | |
Performance | GVW | 16,000 kg |
Curb Weight | 8,000 kg | |
Max Speed | 85 km/h (on-road), 30 km/h (off-road) | |
Climbing Ability | ≥40% gradient | |
Turning Radius | ≤7.8 m | |
Fuel Consumption | ≤28 L/100km (road), ≤35 L/100km (off-road) | |
Temp Range | -25℃ to +50℃ | |
Ground Clearance | 320 mm | |
Dimensions | Overall (L×W×H) | 6850 × 2500 × 3400 mm |
Front/Rear Track | 1940 mm / 1860 mm | |
Tank Dimensions | 4200 × 1700 mm (approx.) | |
Suction Hose | 15 m wear-resistant (φ160 mm) | |
Safety Features | Lighting | 4 front + 6 rear LED work lights + warning light |
Monitoring | 360° camera + reversing radar | |
Fire Protection | 2×5 kg dry powder fire extinguishers | |
Safety Signs | Reflective strips + warning signs | |
Emergency | Dual emergency stop buttons (cab & rear) |
