From defining urban landscapes to safeguarding energy infrastructure, Sinotruk Wangpai Insulated High-altitude Work Vehicle has consistently led the evolution of aerial equipment with its commanding presence and robust capabilities, writing a glorious chapter for China's heavyweights!
| Technical Parameters of Heavy Duty Truck's Insulated Aerial Working Platform Truck | |||
| Product trademark | Casal card | Announcement batch | 400 |
| product name | Aerial Working Platform Truck | product model | LOOK5090JGK6ADS |
| gross mass （Kg） | 9100 | outline dimension （mm） | 7400×2350×3900 |
| Number of passengers in the cab (per person) | 2,3 | curb weight （Kg） | 8970 |
| Approach Angle/Departure Angle (°) | 18/10 | Front/rear suspension (mm) | 1180/2420 |
| axle weight （Kg） | 3300/5800 | Maximum speed (Km/h) | 95 |

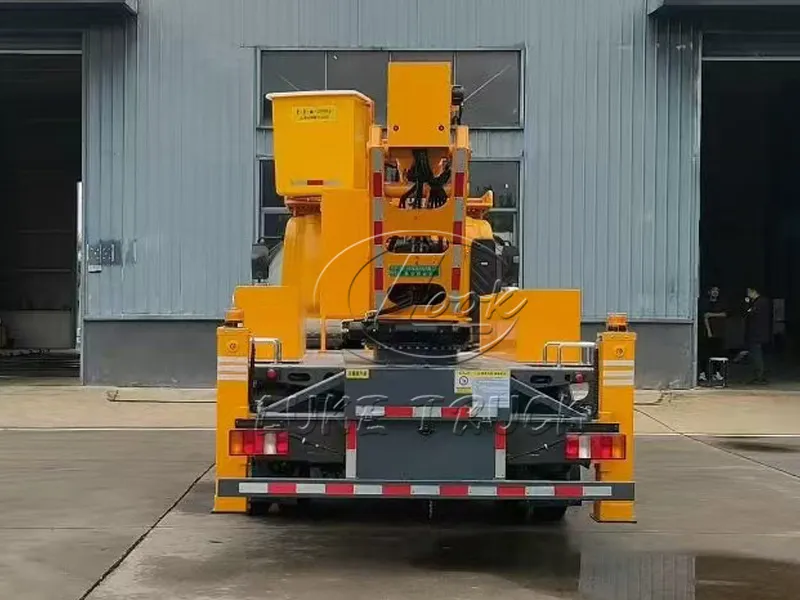

| This vehicle is primarily designed for high-altitude operations such as power grid repairs, telecommunications maintenance, and street lighting installations. Its specialized components include a lifting platform and an operational boom. The chassis is modified from a 3800mm wheelbase, with Q235 steel side guard plates bolted together and a Q235 steel rear lower guard plate welded to it. The rear guard plate measures 50×100 mm in width and height, with a ground clearance of 440 mm. A work warning light is installed, which is only activated during stationary operations and remains off during movement. | |||
| [Chassis Technical Parameters] | |||
| Chassis model | ZZ1097H3815F191Z | Chassis name | truck chassis |
| brand name | Howo brand | manufacturing enterprise | China Heavy Duty Truck Group Commercial Vehicle Co., Ltd. |
| number of axles | 2 | Number of tires | 6 |
| wheel base （mm） | 3800 | tyre size | 7.50R16LT 16PR |
| Number of leaf springs | 3/3+2 | front gauge （mm） | 1610 |
| fuel type | diesel oil | rear track （mm） | 1555 |
| engine type | engine manufacturer | displacement （ml） | power （Kw） |
| CY4SK661 | Dongfeng Chaoyang Chaocai Power Co., Ltd. | 4087 | 135 |
When extreme performance meets hardcore quality, the CNHTC Aerial Working Platform Truck stands as a champion, setting a new benchmark in the global aerial work industry. Leveraging China's decades of commercial vehicle technology expertise and integrating world-class intelligent manufacturing processes, the CNHTC Aerial Working Platform Truck series, with its thunderous power, rock-solid stability, and all-domain adaptability, has become the preferred tool for high-end scenarios such as infrastructure projects, municipal maintenance, and energy emergency repairs, showcasing the majestic presence of a nation's heavyweights.
Thunderous power delivers unimpeded performance, harnessing wind for all-terrain speed. All heavy-duty Aerial Working Platform Trucks from China National Heavy Duty Truck Corporation (CNHTC) are powered by Weichai's custom-engine solutions, boasting 3.0L-6.2L displacement with peak horsepower exceeding 220Ps and 800N·m torque. This formidable power effortlessly handles mountainous climbs, muddy terrains, and heavy-load transfers. Paired with Faust's fully synchronized transmission, the system ensures smooth gear shifts and industry-leading efficiency, striking a balance between high performance and fuel economy while achieving dual breakthroughs in range and operational duration.
The chassis is constructed from military-grade high-strength alloy steel, having passed 80,000 fatigue impact tests and achieving a 40% increase in load-bearing capacity. Whether navigating rugged mountain roads or maneuvering through urban streets, it delivers rock-solid stability. The full range of models spans from blue-plate light trucks to heavy-duty chassis, with working heights extending from 18 meters to 50 meters. This comprehensive coverage meets all operational needs—from low-altitude maintenance and mid-level construction to high-altitude emergency repairs—truly embodying the concept of "one vehicle, all scenarios covered."
Robust as a rock, precise control, and zero errors in aerial operations: Chongqing Heavy Duty Truck's Aerial Working Platform Truck prioritizes safety above all, featuring a nine-tier safety protection system that sets new industry benchmarks. Its boom is crafted from aviation-grade hexagonal high-strength profiles through integrated forging, delivering 35% enhanced torsional strength. Equipped with multi-section synchronized telescoping technology, it ensures smooth and stable lifting without wobbling. With a maximum working radius of 25 meters and 360° continuous rotation, it effortlessly reaches any operational point.
The innovative front-V rear-H hydraulic outriggers achieve a maximum span of 7.2 meters. Featuring intelligent interlocking with the vehicle body, they automatically level with a single button press, securely anchoring the vehicle even on 15° inclines to prevent rollovers. Equipped with a German-imported electro-hydraulic proportional control system, the system delivers millimeter-level precision and supports three operation modes: turntable control, basket control, and wireless remote operation, ensuring accurate performance in complex conditions. Additionally, it includes multiple safety features such as wind speed monitors, emergency braking systems, and overload protection devices, providing robust safeguards for high-altitude workers.
Hardcore quality trusted worldwide, legendary craftsmanship forged through precision engineering. As a global benchmark for premium equipment, SINOTRUK Aerial Working Platform Trucks integrate cutting-edge international supply chain resources. Their core hydraulic components are sourced from Italy's Bosch Rexroth, sealed systems utilize Germany's Parker technology, and critical bearings are SKF-branded from Sweden. Having passed extreme environment tests including-40°C freezing temperatures, 50°C scorching heat, and high-altitude oxygen deprivation, these platforms demonstrate failure rates far below industry averages with a service life exceeding 15 years.
All models are compatible with China VI, Euro V, and Euro III emission standards, and can be flexibly customized according to the regulatory requirements of different regions worldwide. They are exported to over 50 countries and regions, including Southeast Asia, the Middle East, Africa, and South America, becoming the "star equipment" for overseas infrastructure projects. Relying on China National Heavy Duty Truck Corporation's global network of over 1,000 service outlets, we provide premium services featuring 24/7 response, extended warranty, and lifetime technical support, ensuring every high-altitude operation is safeguarded by exceptional service.
From defining urban silhouettes to safeguarding energy infrastructure, SINOTRUK Aerial Working Platform Trucks have consistently set the standard for high-altitude equipment with their commanding presence and cutting-edge capabilities, writing a glorious chapter for China's national heavyweights!
