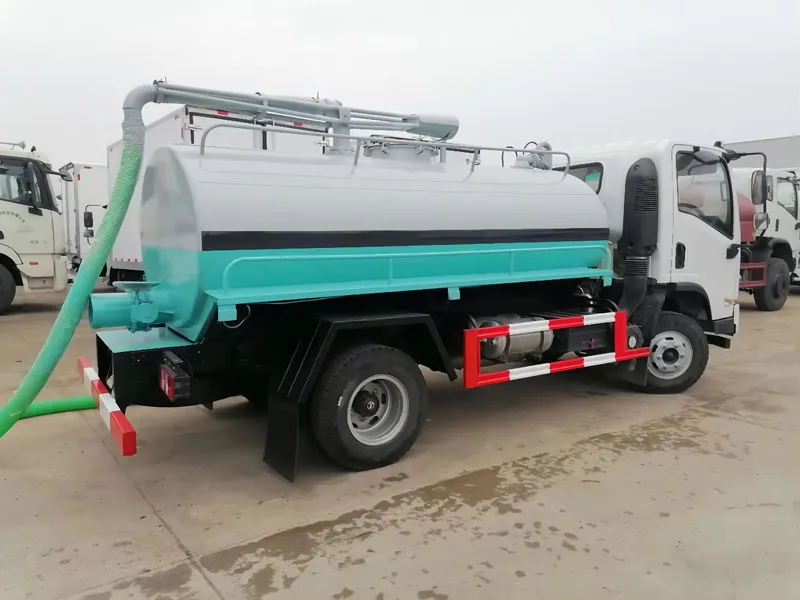

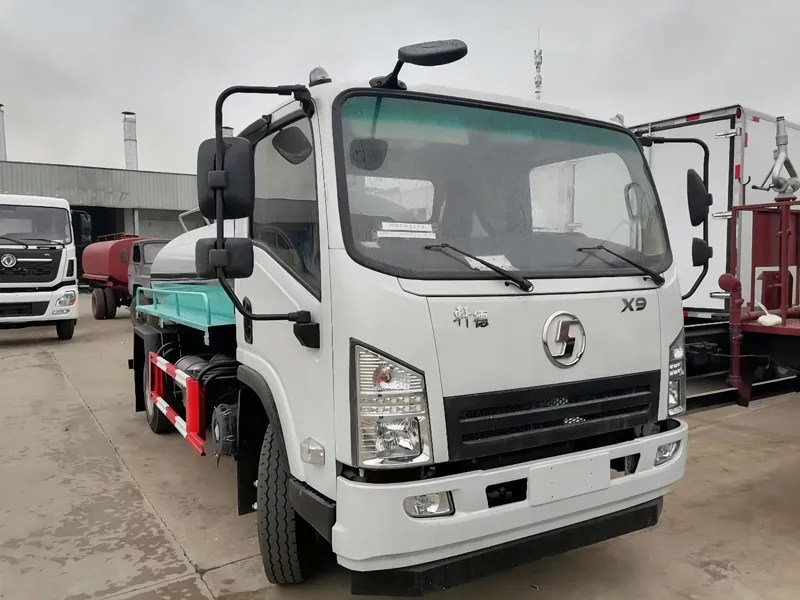

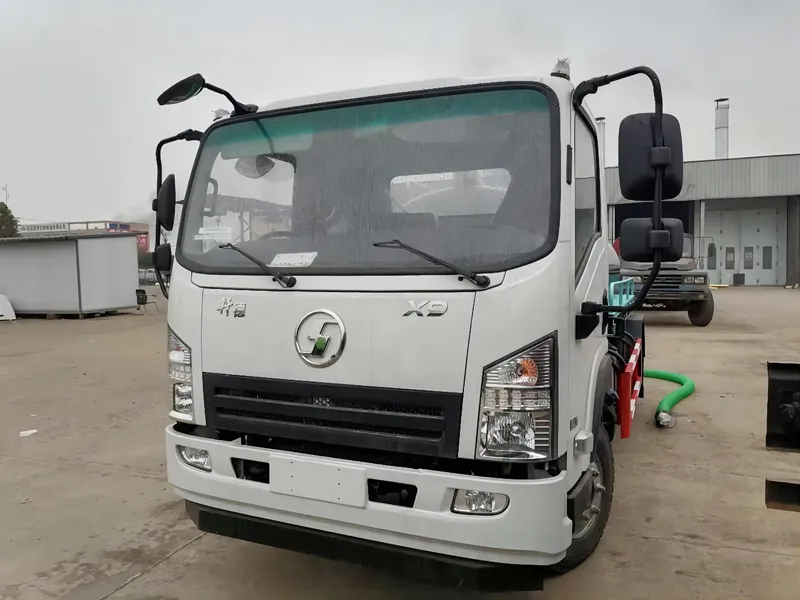

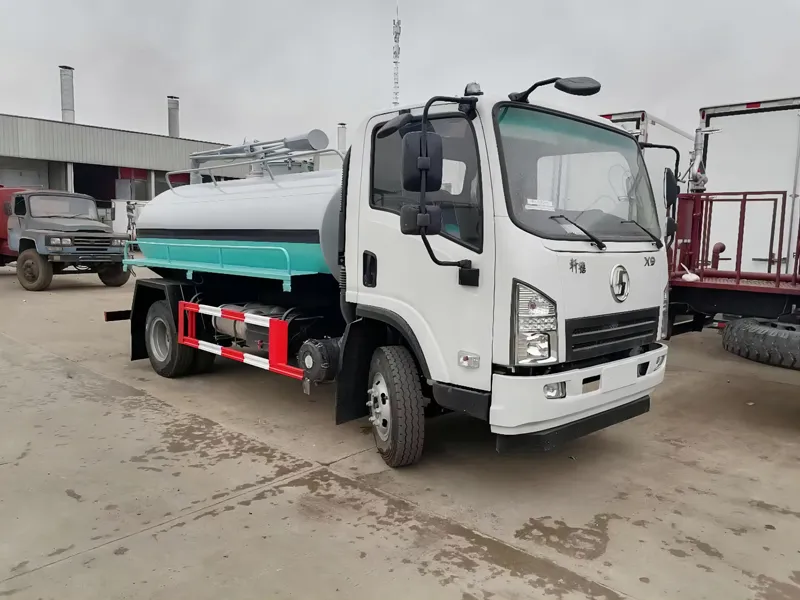

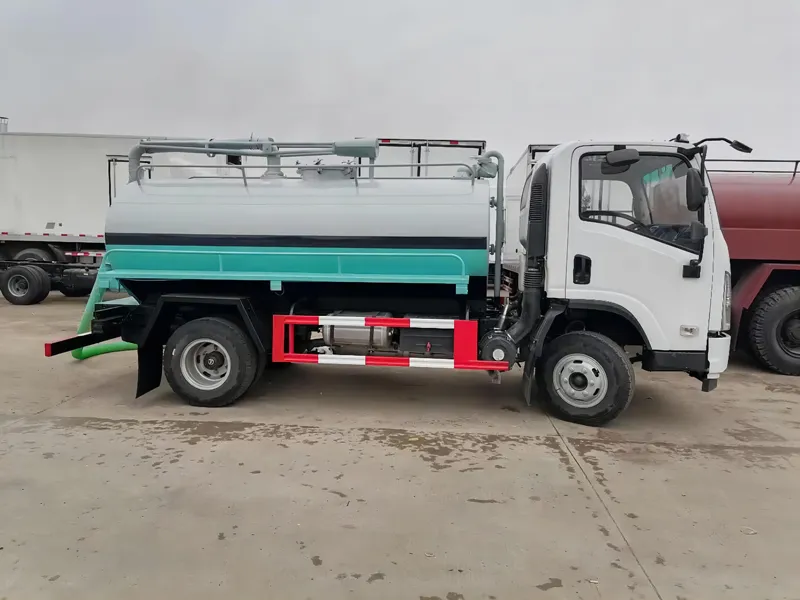

Shacman 5 ton fecal suction truck employs a vacuum system to efficiently suction and discharge waste, supporting urban and rural sanitation operations.
Shacman 5tons Fecal Suction Truck - Detailed Specification Table
Parameter Category | Specifications |
Basic Information | - Brand: Shacman- Model: Shacman 5T Fecal Suction Truck- Application: Urban/Rural Sanitation, Septic Tank Cleaning |
Tank Performance | - Rated Capacity: 5 cubic meters- Tank Material: High-strength carbon steel (4-5mm thick) with anti-rust & anti-corrosion coating- Tank Shape: Cylindrical (optimized for suction/discharge efficiency) |
Vacuum System | - Vacuum Pump Type: High-efficiency rotary vane vacuum pump- Vacuum Degree: ≥85 kPa- Suction Depth: ≤6 meters- Suction Pipe Diameter: 100-120 mm- Full Tank Suction Time: ≤4 minutes |
Power System | - Engine Model: Shacman inline 4-cylinder diesel engine- Engine Power: 130-160 HP (96-118 kW)- Emission Standard: Euro V / Euro VI- Transmission: 5-speed manual (or 6-speed optional)- Fuel Type: Diesel |
Dimensions & Weight | - Overall Length: ~6500-7000 mm- Overall Width: ~2200-2400 mm- Overall Height: ~2800-3000 mm- Wheelbase: 3300-3800 mm- Curb Weight: ~4000-4500 kg- Gross Vehicle Weight (GVW): ~8000-8500 kg |
Operation & Discharge | - Discharge Method: Gravity discharge + pressure discharge (0.3-0.5 MPa)- Control Mode: Manual operation + hydraulic control (cab & rear-side control panels)- Discharge Time: ≤3 minutes (for full tank) |
Auxiliary Configurations | - Fuel Tank Capacity: 120-150 L- Tire Specification: 7.50R16 (radial tires, 6 tires total)- Max Speed: ≤90 km/h- Braking System: Air brake (with ABS optional)- Battery: 12V/80Ah (dual batteries optional) |
Safety Features | - Overpressure safety valve (prevents tank damage)- Emergency stop button (for vacuum system)- High-visibility reflective strips (meets road safety standards)- Non-slip platform (for rear operation) |
