The 5-cubic-meter Dongfeng Furika multi-functional dust suppression tanker is mainly used for large-scale watering and dust suppression and greening irrigation in scenarios such as dust reduction on urban main roads, watering on highways, dust suppression at large construction sites, and haze removal in mining areas. It is the main vehicle for sanitation operations.
| Dongfeng Furika Multi-functional Dust Suppression Tank Truck Overall Vehicle Technical Parameters | |||
| Product Name | Green spray truck | Product Model | LOOK5040GPSE6 |
| Total mass(Kg) | 4495 | Tank volume(m3) | 3 |
| Rated load capacity(Kg) | 3520 | External dimensions(mm) | 6500×2070×2900 |
| curb weight(Kg) | 3895 | Number of passengers allowed in the driver's cab (persons) | 3 |
| Axle load(Kg) | 2640/4720 | Top speed(Km/h) | 100 |
| This vehicle is mainly used for landscaping and greening, with a dedicated spraying assembly. The total tank capacity is 5 cubic meters, and the tank's external dimensions (length × major axis × minor axis) are 3200 × 1600 × 1200 mm. It uses a 3308mm wheelbase and offers optional cab, high-mounted shower, arrow lights, toolbox, pneumatic ball valve, front-mounted duckbill valve, and mist cannon. Optional features include the installation positions of the fuel tank, battery, filter, air tank, and urea tank, as well as the rear platform piping style and mist cannon style. A rear-mounted warning light is also optional; this light is used only when the vehicle is switched to operating mode. A high-pressure water cannon style is also optional. | |||
| Chassis technical parameters | |||
| Chassis Model | EQ1075SJ3CDF | Chassis Name | Cargo truck chassis |
| Trademark Name | Dongfeng brand | manufacturing enterprises | Dongfeng Motor Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| wheelbase (mm) | 3308 | Tire specifications | 7.00R16 |
| Number of leaf springs | 6/6+5 | Front wheel track(mm) | 1525 |
| Fuel types | diesel fuel | Rear wheel track(mm) | 1564 |
| Emission standards | GB17691-2018 Country VI | ||
| Engine Model | Engine manufacturers | Displacement(ml) | power(Kw) |
| Q23-136E60 | Anhui Quanchai Power Co., Ltd. | 2300 | 100 |

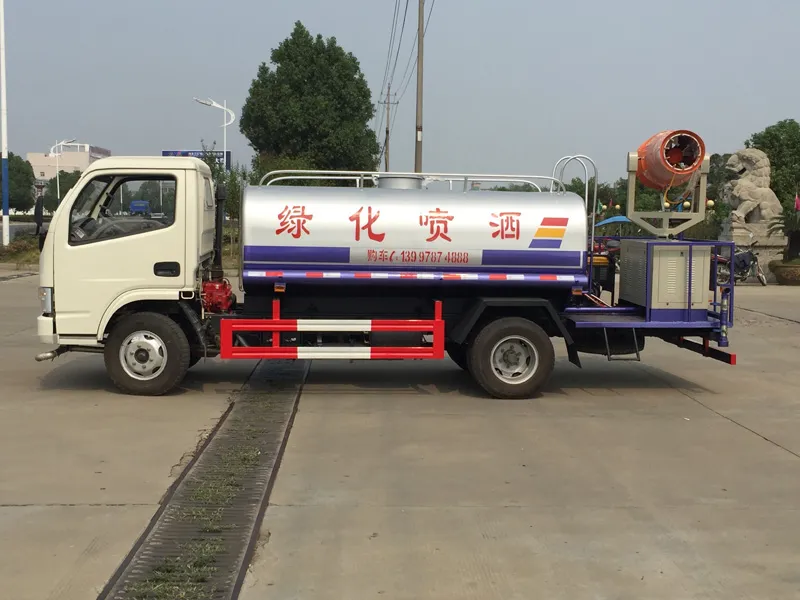

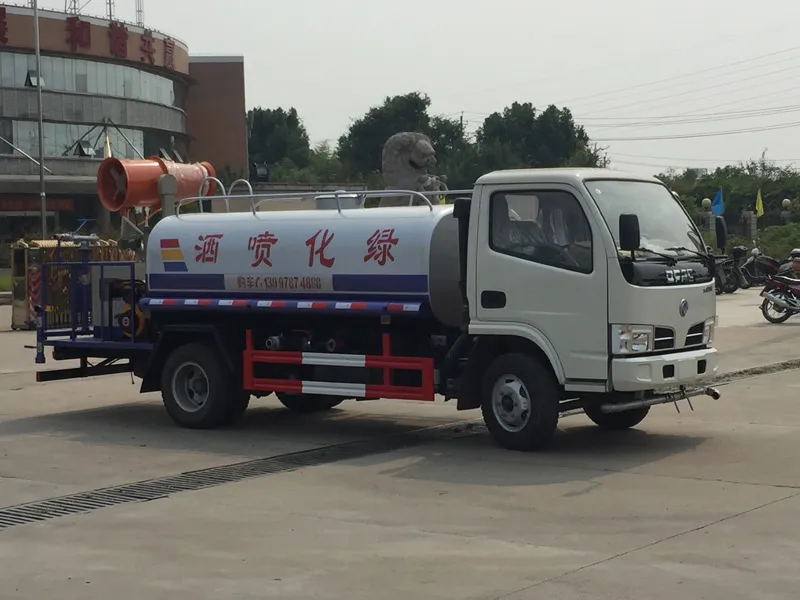

The 5-cubic-meter fog cannon truck is a specialized vehicle integrating water spraying and dust suppression functions. With a tank volume of 5 cubic meters, it is widely used in road dust control, landscaping, disinfection, and other fields. The following is an introduction to the Dongfeng Furika 5-cubic-meter fog cannon truck:

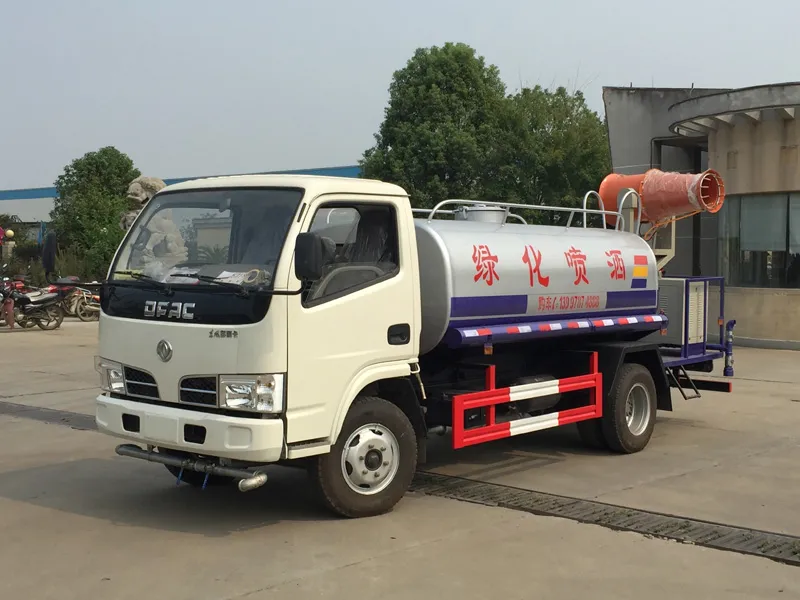

Chassis Configuration: Diesel engine, Wanliyang 5-speed gearbox, 3308mm wheelbase, 7.00R16 steel radial tires, air brakes, power steering, equipped with a Dongfeng Furika 1730 single-row cab with tilting mechanism.
Upper Structure Configuration: The tank is made of 4mm carbon steel plate with internal anti-surge baffles. The vehicle comes with a dedicated water pump with a maximum vertical suction lift of 6 meters and a spraying width of 14 meters. A high-pressure water cannon for landscaping is mounted on the rear working platform, which can rotate 360 degrees and has an adjustable mist spray.

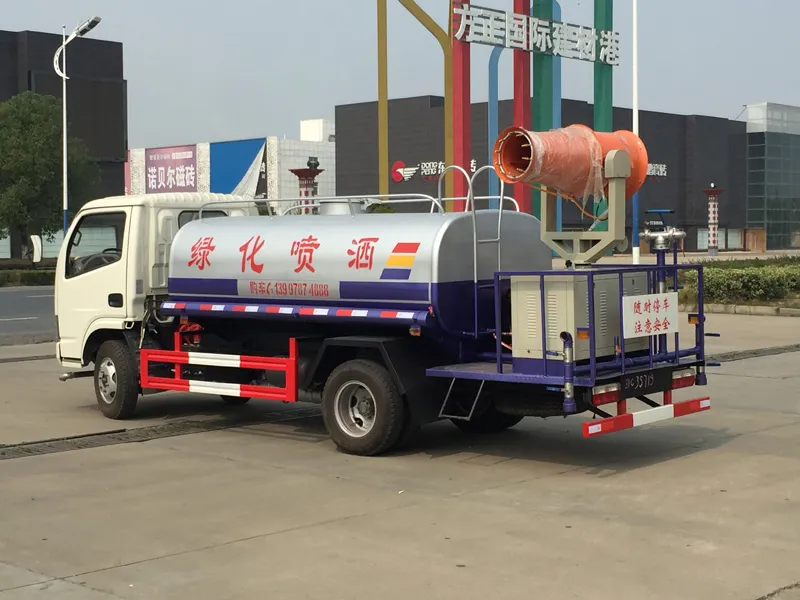

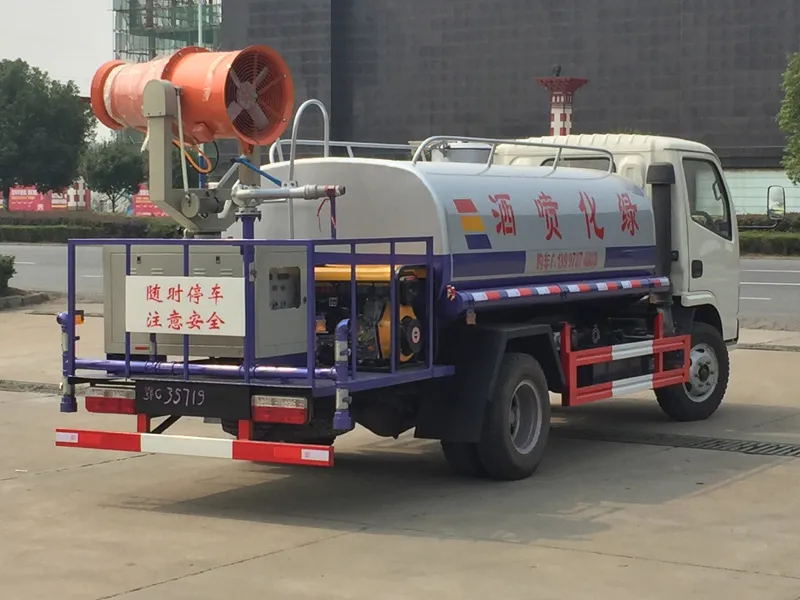

Fog Cannon Configuration: Equipped with a 30-meter sprayer, an 8.75KW diesel generator, electric start, spray flow rate 6-18L/min, horizontal range 25-30M, fog spectrum range 50-150um, elevation angle -10°～90°, remote control, and 360° rotation angle.
