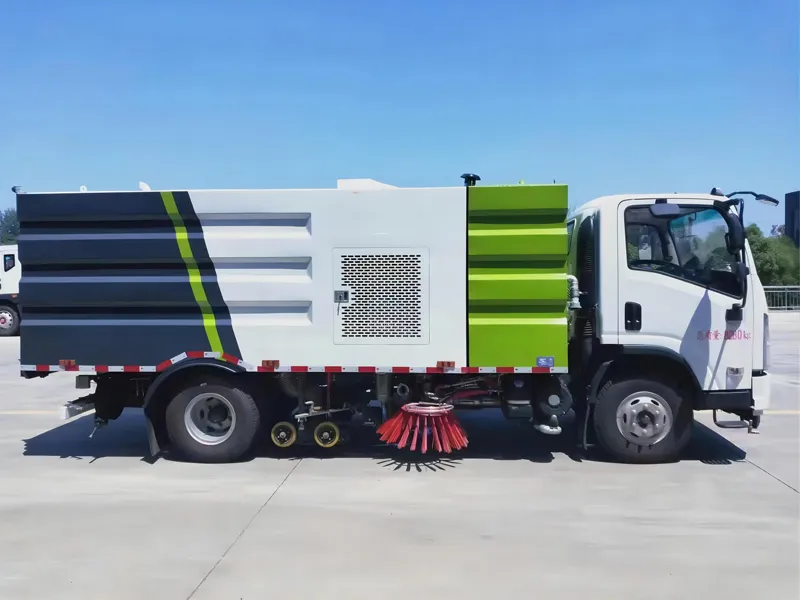

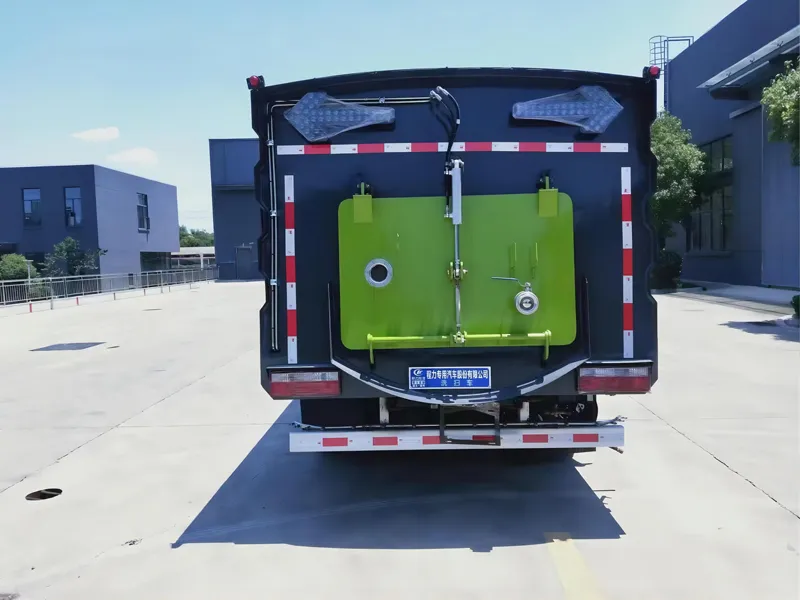

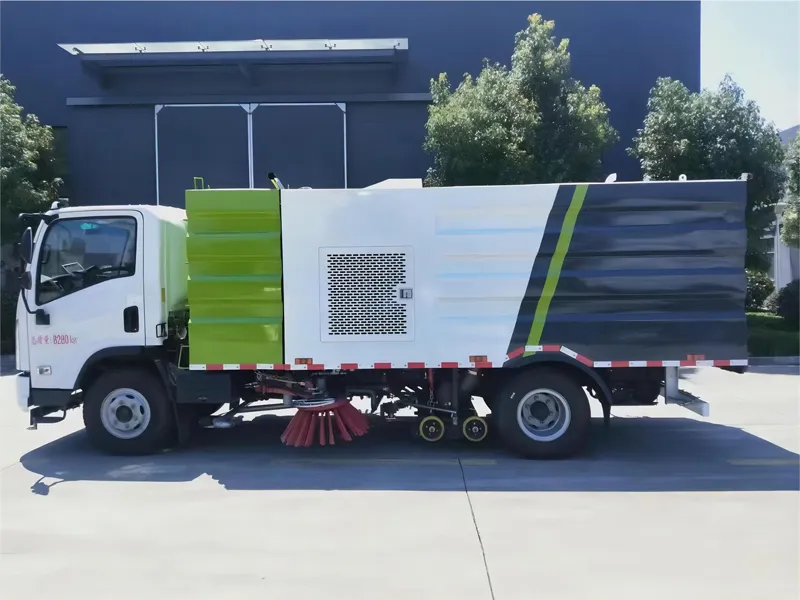

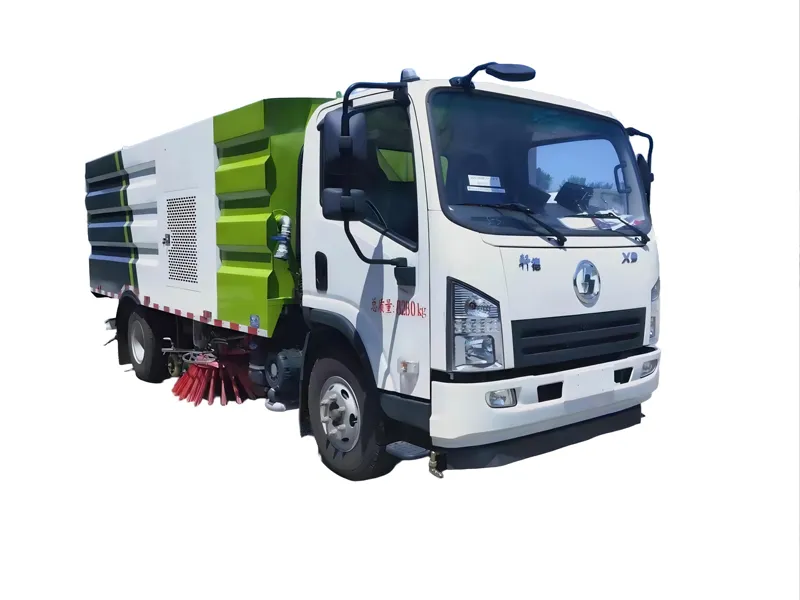

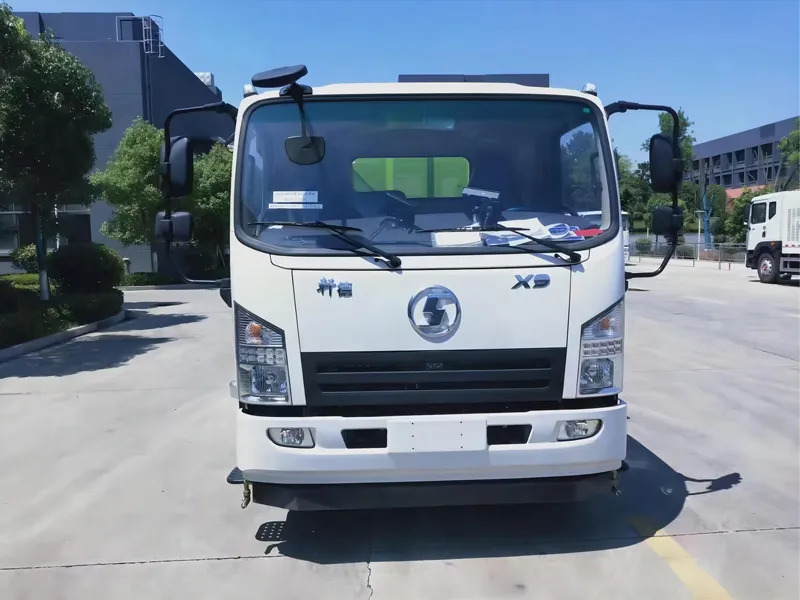

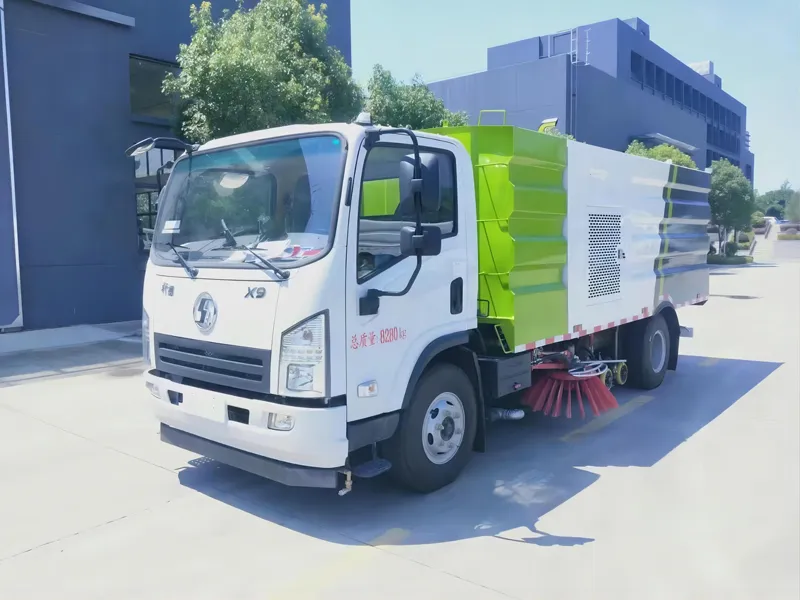

Shacman 9 cbm road sweeper truck effectively handles urban road dirt, offering durable and efficient performance for community and street maintenance.
Category | Parameter | Specification |
Basic Information | Brand | Shacman |
Model | Shacman 9cbm Road Sweeper Truck | |
Vehicle Type | Special-purpose road cleaning vehicle | |
Rated Sweeping Capacity | 8,000-12,000 m²/h | |
Application | Municipal roads, highways, industrial parks, residential areas, airport runways, plaza grounds | |
Purpose | Efficient cleaning of road surface debris, dust, sand, leaves, and light garbage | |
Chassis Parameters | Chassis Model | Shacman X9 Heavy-Duty Chassis |
Engine Model | Yuchai YC6JA220-60 / Weichai WP6.220E61 | |
Maximum Power | 162 kW (220 HP) at 2300 rpm | |
Maximum Torque | 850 N·m at 1200-1800 rpm | |
Transmission | 6-speed manual (Shacman SX6T138) | |
Axle Configuration | Front 5.5T, Rear 10T (reinforced) | |
Wheelbase | 4500 mm | |
Tires | 275/80R22.5 18PR (6+1 spare) | |
Fuel Tank | 300 L (anti-corrosion) | |
Brake System | Dual-circuit air brake with ABS + EBD | |
Emission Standard | Euro VI (EU/US EPA compliant) | |
Steering | Hydraulic power steering | |
Battery | 2×12V, 180Ah maintenance-free | |
Sweeping System | Sweeping Width | 3200-3500 mm (adjustable) |
Sweeping Method | Dual main brushes + 2 front side brushes + rear suction nozzle | |
Water Tank | 400 L (anti-leakage) | |
Garbage Bin | 9 m³ (Q345B carbon steel) | |
Garbage Discharge | Hydraulic tipping (≥45° tilt) | |
Filter System | High-efficiency cartridge (≥99.5%) | |
Dust Suppression | 12 high-pressure spray nozzles | |
Sweeping Speed | 3-15 km/h (working), 0-90 km/h (driving) | |

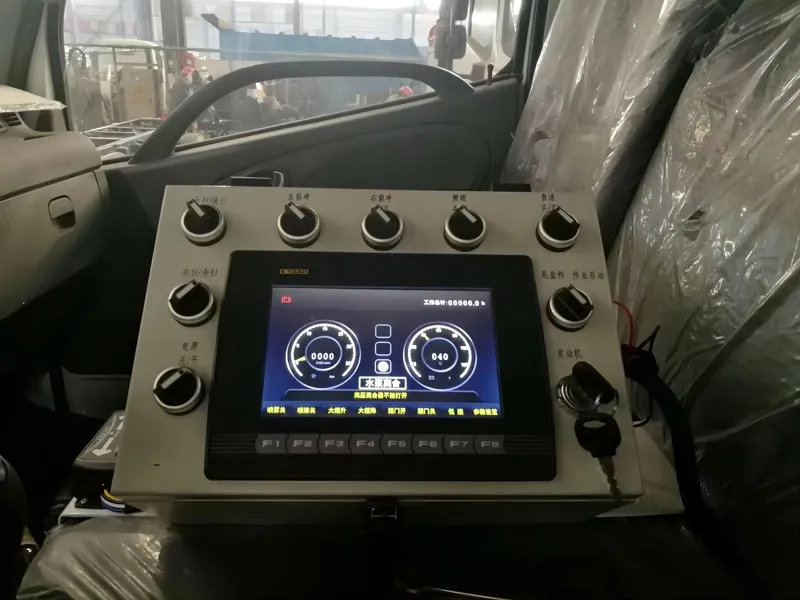

Control System | Cab controls + wireless remote (30m range) | |
Brush Material | Nylon + steel wire (≥300h life) | |
Performance | GVW | 18,000 kg |
Curb Weight | 9,200 kg | |
Max Speed | 90 km/h | |
Climbing Ability | ≥30% | |
Turning Radius | ≤8.6 m | |
Fuel Consumption | 22-25 L/100 km | |
Dimensions | Overall (L×W×H) | 7800 × 2550 × 3200 mm |
Front Track | 1920 mm | |
Rear Track | 1860 mm | |
Bin Size (L×W×H) | 5000 × 2400 × 1800 mm | |
Ground Clearance | 280 mm | |
Configuration | Brushes | 2 front side + 1 middle main |
Water System | High-pressure pump for dust control | |
Monitoring | Digital displays for water/load/speed | |
Safety | Reverse camera + 4 parking radars | |
Lighting | 6 LED work lights + warning beacon | |
Fire Safety | 2×5 kg dry powder extinguishers | |
Tooling | Weatherproof toolbox with tools | |
Compliance | Reflective strips + warning signs | |
Driver Comfort | Air-suspended cab + lumbar seat |
