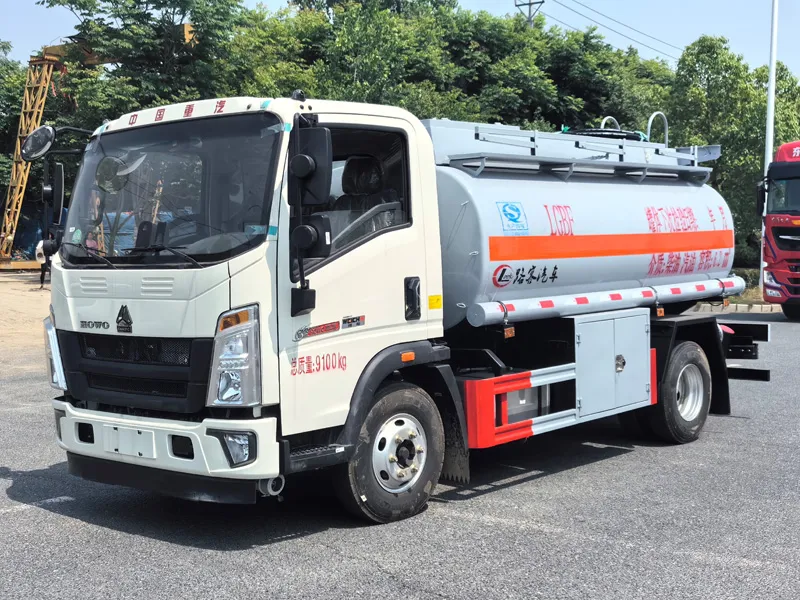

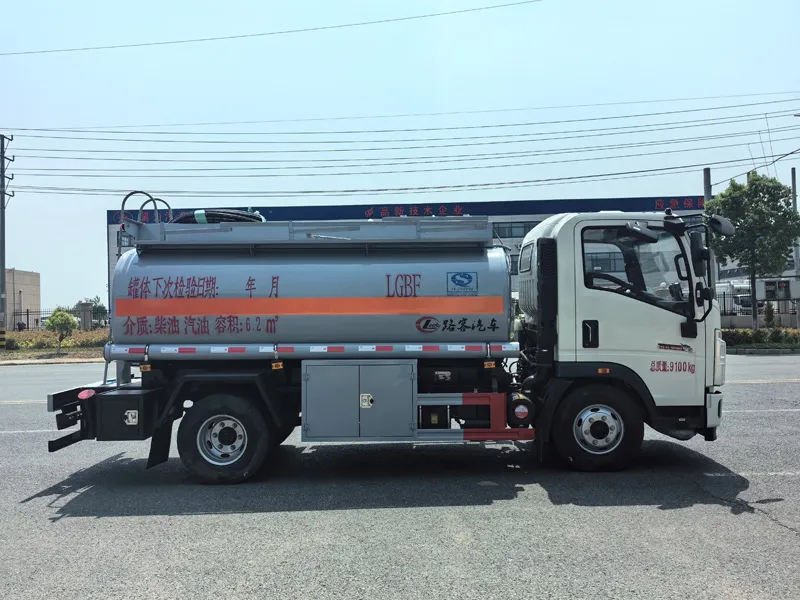

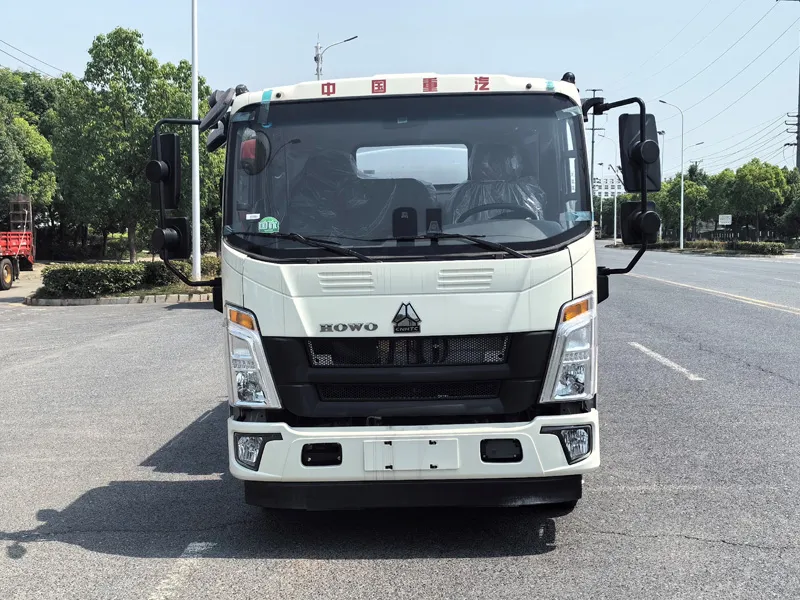

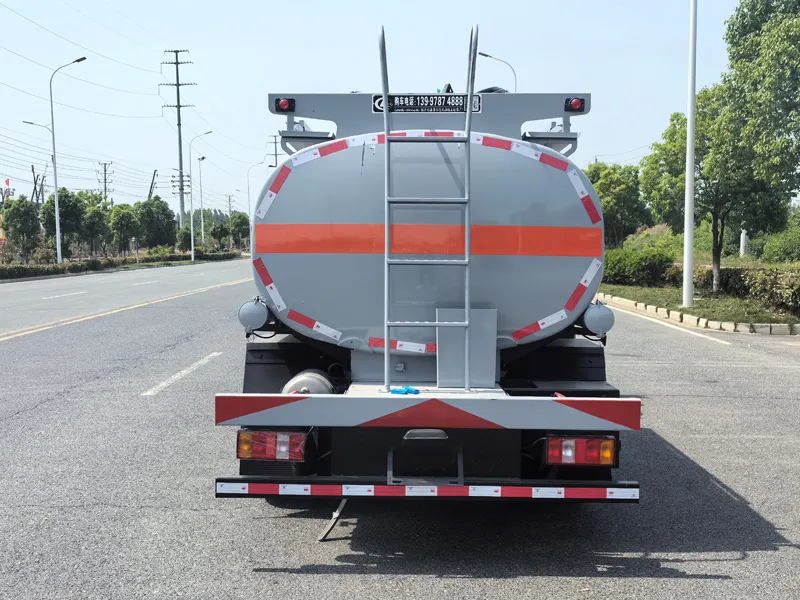

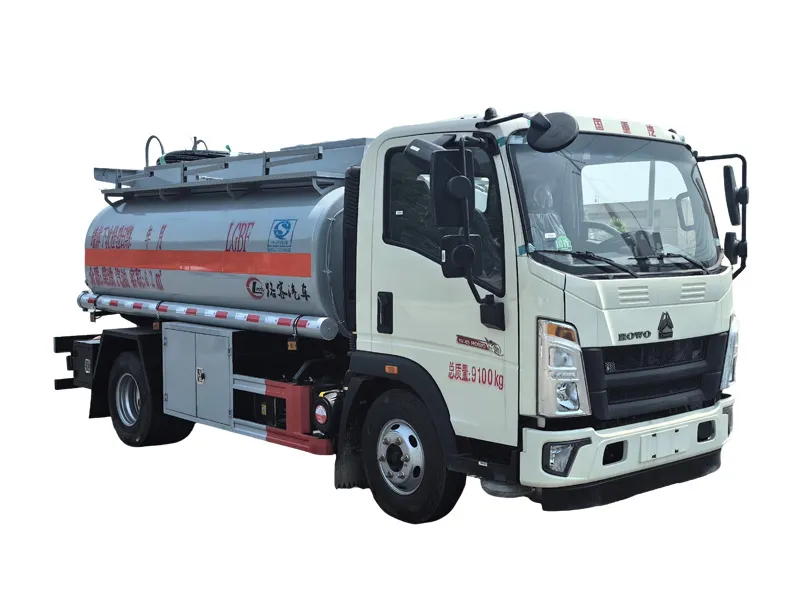

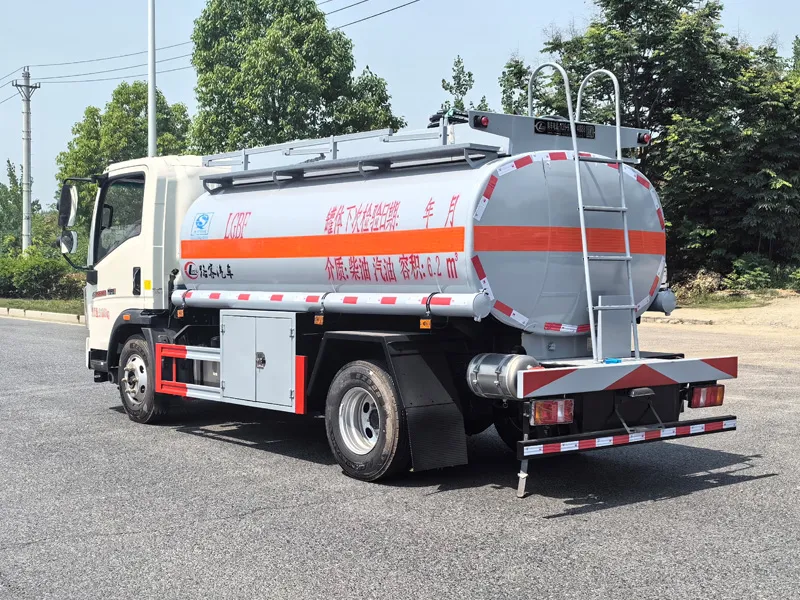

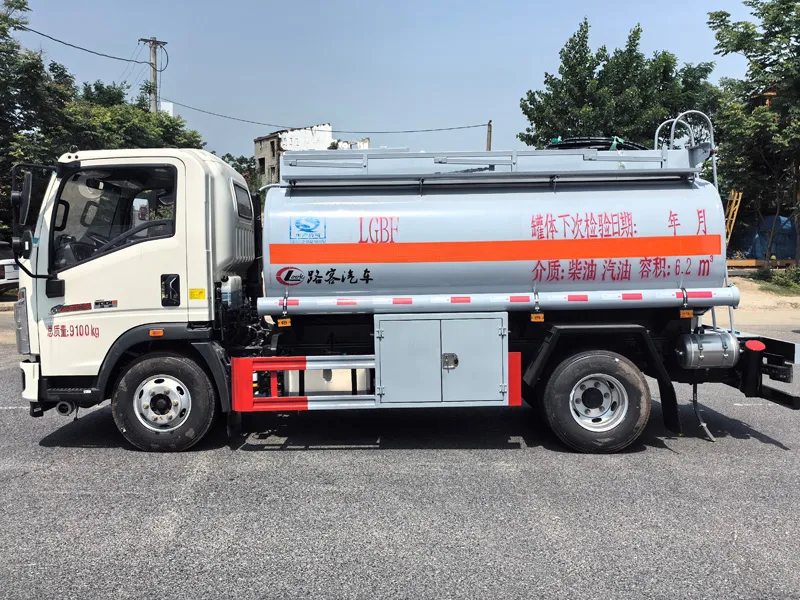

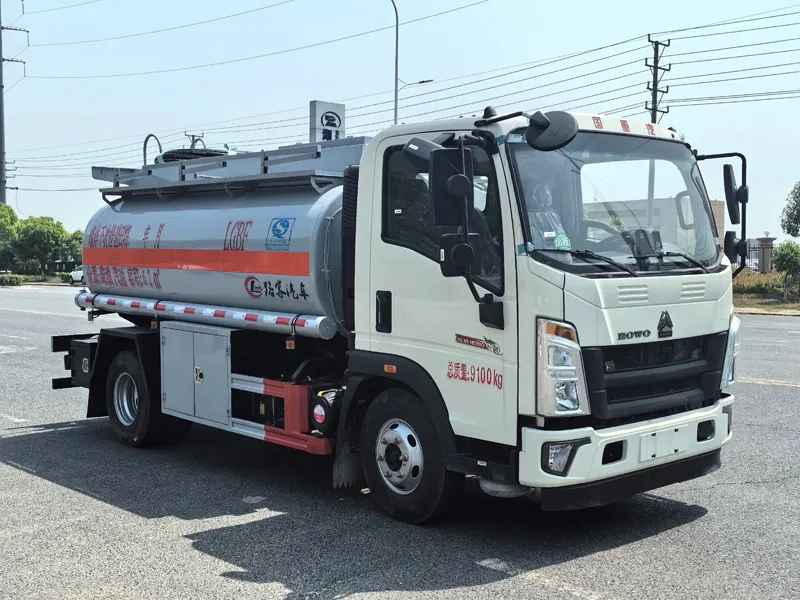

Sinotruk's Wangpai 10-cubic-meter mobile refueling truck can carry diesel, gasoline, aviation kerosene, and other media. The tank can be made of various materials such as carbon steel, stainless steel, and aluminum alloy, making it a popular choice for mobile transportation of various oil products.
| Sinotruk 10³ Fuel Tanker Truck Overall Vehicle Technical Specifications | ||||
| Product Trademark | Tianweiyuan Brand | Number of passengers allowed in the driver's cab (persons) | 2,3 | |
| Product Name | oil tanker | Product Model | TWY5098GYYZ6 | |
| Total mass (kg) | 9100 | Tank volume (m3) | 6.2 | |
| Rated load capacity (Kg) | 50004935 | External dimensions (mm) | 5950×2100,2250,2300×2700 | |
| Curb weight (kg) | 3970 | Cargo box dimensions (mm) | ×× | |
| Approach angle/departure angle (°) | 18/12 | Front overhang/rear overhang (mm) | 1160/1510,1180/1490 | |
| Axle load (Kg) | 3300/5800 | Maximum speed (km/h) | 80 | |
| This vehicle is suitable for transporting dangerous goods. The vehicle type for transporting dangerous goods is FL type, with a maximum transport medium density of 830 kg/m³. The total tank capacity is 6.2 m³, the effective volume is 5.9 m³, and the tank dimensions (length × major axis × minor axis) (mm) are 3700 × 1850 × 1200. Both side and rear protective materials are made of Q235 steel and are welded together. The rear protective cross-section dimensions (width × height) are 50 × 100 mm, with the lower edge 380 mm above the ground. The cab is optional and only chassis with a front-mounted exhaust pipe, speed limiter (80 km/h), front disc brakes, and radial tires are available. A driving recorder with satellite positioning is installed; the steering wheels are equipped with tire blowout emergency protection devices. An ETC on-board unit is optional for this model. The ABS system model is XH-KQ4S4M-E01, manufactured by Guangzhou Xihe Automotive Electronic Equipment Co., Ltd.; model CM4XL-4S/4M, manufactured by Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.; and model VIE ABS-Ⅱ, manufactured by Zhejiang Wan'an Technology Co., Ltd. Optional side protective styles, toolbox lock styles, and a tank without an upper walkway are available. | ||||
| Chassis Technical Specifications | ||||
| Chassis Model | ZZ1097H3815F191Z | Chassis Name | Cargo truck chassis | |
| Trademark Name | Howo brand | manufacturing enterprises | China National Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd. | |
| Number of axes | 2 | Number of tires | 6 | |
| Wheelbase (mm) | 33603800 | |||
| Tire specifications | 7.50R16LT 16PR,8.25R16LT 18PR | |||
| Number of leaf springs | 3/3+2 | Front track width (mm) | 1610 | |
| Fuel types | diesel fuel | Rear track width (mm) | 1555 | |
| Emission standards | GB17691-2018 Country VI | |||
| Engine Model | Engine manufacturers | Displacement (ml) | Power (kW) | |
| WP3NQ160E61 | Weichai Power Co., Ltd. | 2970 | 118 | |
As a core product of China National Heavy Duty Truck Group (CNHTC) specifically designed for oil transportation, the CNHTC Wangpai 10-cubic-meter refueling truck, with its robust powertrain, military-grade safety standards, and user-friendly design, has become the preferred equipment for logistics parks, engineering infrastructure, oil fields, and mining areas, ensuring both transportation efficiency and a robust safety barrier.
Its power configuration targets the core of efficient transportation: equipped with a Weichai 160hp National VI engine, a 6-cylinder inline layout with turbocharging technology, it delivers strong peak torque output, providing rapid acceleration and powerful climbing, easily handling complex road conditions such as urban and rural roads and construction site slopes. Matched with a 10-speed gearbox, it offers smooth and precise shifting with a transmission efficiency of over 95%. Combined with a 230mm thickened straight-through beam and a 1080mm large rear axle, it forms a golden power combination, ensuring stable and reliable load-bearing capacity, maintaining smooth and effortless operation even under full load. The entire vehicle uses 825 steel wire tires, providing excellent grip, and is equipped with 20-leaf spring damping steel plates to effectively filter road bumps, ensuring driving stability even on rough roads. Even with a fully loaded 10-cubic-meter tank, it maintains agile maneuverability. Prioritizing safety in oil transportation, this vehicle incorporates a multi-layered protection system from its structure to its configuration: the tank body is constructed from Q235R high-strength special steel plate, with 5mm thickened tank walls and 5mm reinforced end plates, making it pressure-resistant, wear-resistant, and corrosion-resistant. It has undergone rigorous pressure testing, with a design pressure of 1.61MPa, eliminating the risk of leakage. It is equipped with a full set of safety accessories: a DN80 safety valve, pressure gauge, and thermometer for real-time monitoring of the tank status; an emergency shut-off valve for rapid oil cut-off in emergencies; and a 15-meter extended filling hose with a leak-proof oil gun for safe and convenient operation. The cab integrates lane departure warning and collision avoidance warning systems, the exhaust pipe is positioned high away from ignition sources, and it is equipped with two fire extinguishers and an anti-static grounding device as standard, mitigating safety hazards from the source and fully complying with national hazardous materials transportation standards.
Balancing practicality and a user-friendly experience, this truck makes transportation more worry-free: With a precise 10-cubic-meter tank capacity, it's suitable for transporting various media such as diesel and gasoline, meeting the diverse needs of engineering fleets and gas station refueling. The tank is equipped with a manual rotary level gauge for easy monitoring of fuel levels. The toolbox integrates a complete set of devices including the pump inlet, pump outlet, vapor recovery system, and bottom loading port, offering comprehensive functionality and a rational layout for convenient and efficient maintenance. The cab features a 2080mm wide-body design, providing ample interior space. It's equipped with an air-suspension seat, factory-installed air conditioning, and electrically heated/adjustable rearview mirrors, effectively reducing fatigue during long-distance driving. The multi-function steering wheel integrates control buttons, and the center console includes storage compartments and cup holders—details designed to meet practical needs and enhance driving comfort.
With its three core advantages—strong power, high safety, and high convenience—the Sinotruk 10-cubic-meter refueling truck is perfectly suited for various oil transportation scenarios. Whether for bulk refueling or emergency delivery, its stable performance and high efficiency make it a trusted transportation partner for users. Choosing Sinotruk Wangpai means choosing professional quality and peace of mind, helping you to successfully complete every transportation mission.
