IVECO Cabin Ambulance

1

Chassis Model

IVECO Daily

1

-

2

Overall Dimensions (mm)

L×W×H

-

5445×1830×2600

3

Shelter Dimensions (mm)

L×W×H

-

2600×1750×1700

4

Shelter

Shelter Assembly

1

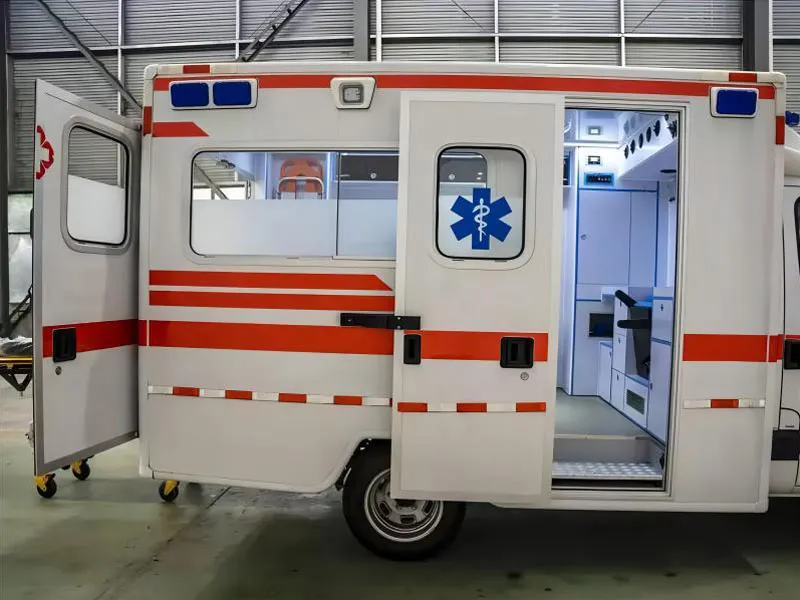

Medical shelter with sandwich panel structure (lightweight); includes double rear doors, side doors, windows, other door accessories, front wind shield, rear lights, and other components

5

LED Warning Light Pole

1

100W, color: blue/red

6

LED Square Flash Lights

6

Distribution: 2 on the left, 2 on the right, 2 at the rear; color: blue

7

Exterior

Medical Exterior

1

Reflective stickers used according to customer requirements

8

Patient Cabin

Air Conditioner

1

Supports independent control

9

Patient Cabin

Heater System

1

Supports independent control

10

Patient Cabin

Anti-Collision Headrests

2

Installed at the middle door and rear door respectively

11

Patient Cabin

Wear-Resistant & Anti-Slip Blue Medical Floor

1

Specialized floor for medical cabin, material: floor leather; features acid resistance, alkali resistance, fire resistance, anti-slip, and anti-static properties

12

Patient Cabin

Polyvinyl Chloride (PVC) Medical Cabinet

1

Includes oxygen cylinder cabinet, medicine hanging cabinet, equipment cabinet, etc.

13

Patient Cabin

Loading Handrails

3

Installed inside the side doors and rear door

14

Patient Cabin

Safety Handrail

1

Installed on the roof inside the vehicle

15

Patient Cabin

Infusion Hooks (original "blood transfusion hooks")

2

Installed on the roof

16

Patient Cabin

Waste Bin

1

Stainless steel material, mud bucket design

17

Patient Cabin

1KG Fire Extinguisher

1

-

18

Seats

Double-Seat Bench (Left Side)

1

Blue leather material; equipped with 2-point seat belts and safety armrests; ergonomic design

19

Seats

Single Seat

1

Installed on the wall at the back of the partition (facing the medical cabin); blue leather material; equipped with 2-point seat belts; ergonomic design

20

Oxygen Supply System

10L Oxygen Cylinder with Fixed Bracket

1

-

21

Oxygen Supply System

Oxygen Supply Pipeline & Accessories

1

Includes oxygen pipeline system and pressure reducing valve

22

Oxygen Supply System

Oxygen Outlets

2

1 for humidifier, 1 for emergency ventilator

23

Oxygen Supply System

Oxygen Humidifier

1

-

24

Oxygen Supply System

Ventilator Adapter

1

-

25

Rescue Equipment (original "telescopic device")

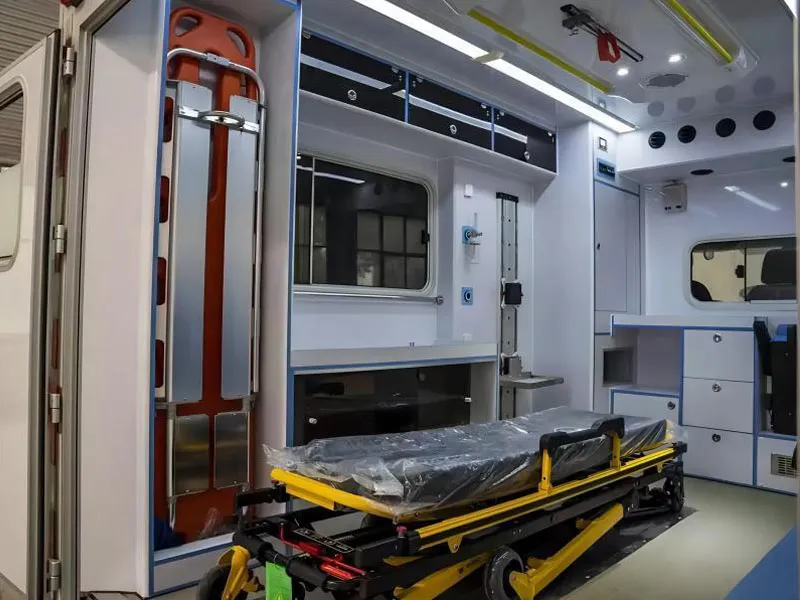

Automatic Loading Stretcher

1

-

26

Rescue Equipment

Adult Spinal Board

1

-

27

Rescue Equipment

Pediatric Spinal Board

1

-

28

Circuitry & Daily Electrical Appliances

LED Lighting Lamps

6

Distribution: 2 on the left, 2 on the right, 2 at the rear

29

Circuitry & Daily Electrical Appliances

LED Spotlights (original "LED lights")

2

LED spotlights for infusion use

30

Circuitry & Daily Electrical Appliances

Zonal Lighting Lamps (original "left/right half lighting lamps")

6

Distribution: 2 on the left, 2 on the right, 2 at the rear

31

Circuitry & Daily Electrical Appliances

Electric Ventilator Fan

1

-

32

Circuitry & Daily Electrical Appliances

Sterilization Lamp

1

-

33

Circuitry & Daily Electrical Appliances

Inverter

1

Power: 2000W

34

Circuitry & Daily Electrical Appliances

Additional Battery

1

Capacity: 100AH; equipped with dual-battery isolator

35

Circuitry & Daily Electrical Appliances

External Power Supply

1

Includes 15m charging cable

36

Circuitry & Daily Electrical Appliances

Power Sockets (original "socket (literal translation)")

6

Inside the medical cabin: 4 pcs of 220V five-hole sockets, 2 pcs of 12V sockets

37

Circuitry & Daily Electrical Appliances

Integrated Electrical Control Panel

1

-

38

Circuitry & Daily Electrical Appliances

Intercom System

1

-
