As a leading manufacturer deeply rooted in the field of special-purpose vehicles, Luke Special Bus focuses on diverse scenario needs, taking "safety as the foundation, efficiency as the core, and customization as the wings" to create high-quality travel solutions suitable for commuting, shuttle services, special operations, and other scenarios.
Vehicle parameters | Overall length (mm) | 7480 | Engine Parameters | Engine model | EQB140-20/ YCY30165-30 | |
Overall width (mm) | 2250 | Engine manufacturer | Cummins/YuChai | |||
Overall height (mm) | 2920 | Engine position/fuel | front-mounted/diesel | |||

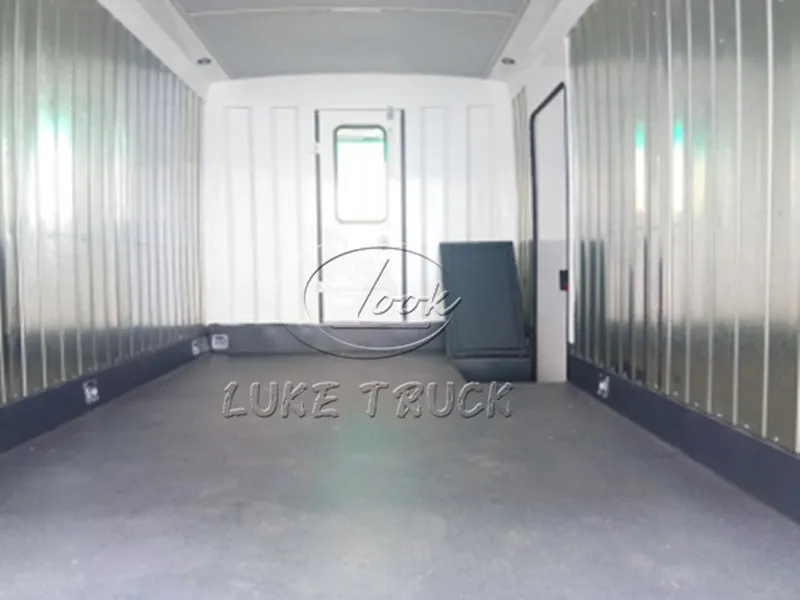

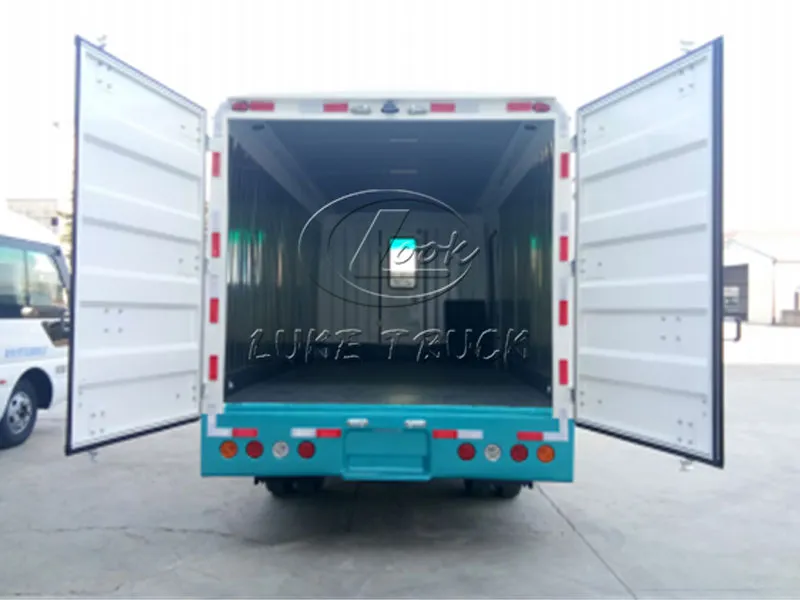

Internal dimensions of cargo compartment railin (mm) | 5500*2100*1900 | Engine type | in line, 4 cylinders | |||
Approaching and departure angle(º) | 16/9 | Power rating (kw) | 103 / 121 | |||
Gross weight (kg) | 7500 | Max. torque( N.m) | 502 / 500 | |||
Capacity (people/seats) | 2-3 | Displacement (L) | 3.9 / 2.97 | |||
Steering | LHD | Emission standard | Euro II / Euro III | |||
Item | Standard Specification | Selected Specification | ||||
Chassis parameters and configuration | Transmission | Manual speed manual gearbox | ||||
Clutch | Diaphragm type clutch | |||||
Front axle | Drum brake | |||||
Rear axle | Drum brake | |||||
Suspension | Leaf spring | |||||
Steering | Integral power steering | |||||
Brake system | Dual circuit air brake, air dryer, energy storage spring | |||||
Tire | 7.50R16(6+1) | |||||
| brake | ABS,adjustable arm, exhaust brake | |||||
| Body structure | Rectangular hollow section welded, Stamping parts | |||||
| Main body assembly | Interior trimming | Molding interior trim | ||||
Door & pump | Auxiliary driver's door and driver door, rear opening door | Optional center-opening door | ||||
Windscreen/side window | Auxiliary driver and driver sliding window | |||||
Rearview system | Manual rabbit rear-view mirror, reverse camera | |||||
Interior | The middle partition (with door and glass) is set between the driver's cab and cargo compartment | Optional driver's area air conditioning | ||||
Wiper | wiper (with scrubber) | |||||
Seats | 1 driver seat and 2 passenger seats | |||||
Paint | Plain paint (color optional ) | |||||
Other | Sun visor, Air horn, Wheel cover | |||||
The vehicles are equipped with an industry-leading powertrain system, offering both new energy and traditional energy options, balancing energy conservation and environmental protection with strong range, easily handling complex road conditions such as long-distance transportation and urban commuting. The body uses high-strength, lightweight materials, combined with multi-airbag shock absorption and a quiet interior design, ensuring a stable and comfortable driving experience. Customizable upgrades are available for different industry needs, including seat layout, storage space, intelligent monitoring systems, and accessibility features, suitable for specific scenarios such as corporate commuting, airport/high-speed rail connections, scenic area tours, and medical evacuation.
From core component procurement to vehicle assembly and testing, strict adherence to ISO quality system standards is maintained. Each bus undergoes multiple rigorous tests to ensure stability and reliability even in extreme environments. Luke offers a "customized + lifetime after-sales" service philosophy, providing customers with full-cycle support from needs assessment and solution design to maintenance and repair, ensuring every trip is safe, worry-free, efficient, and hassle-free.
