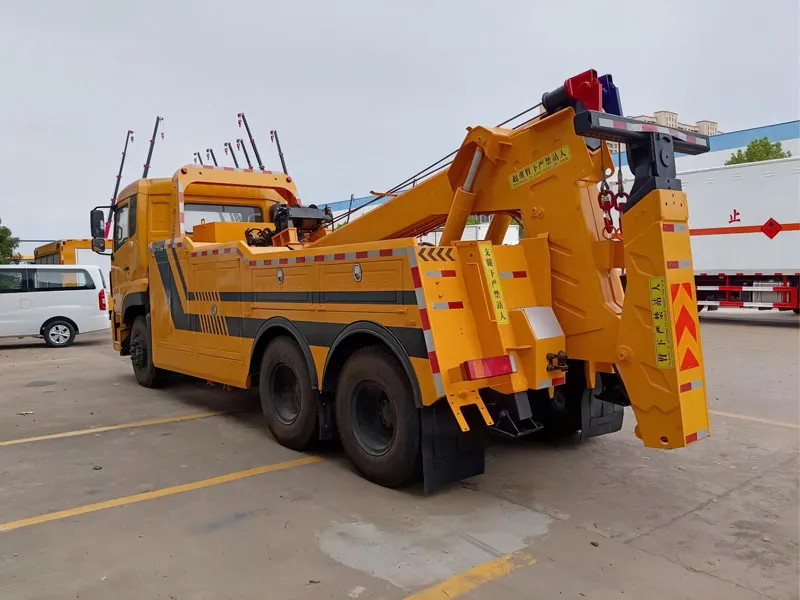

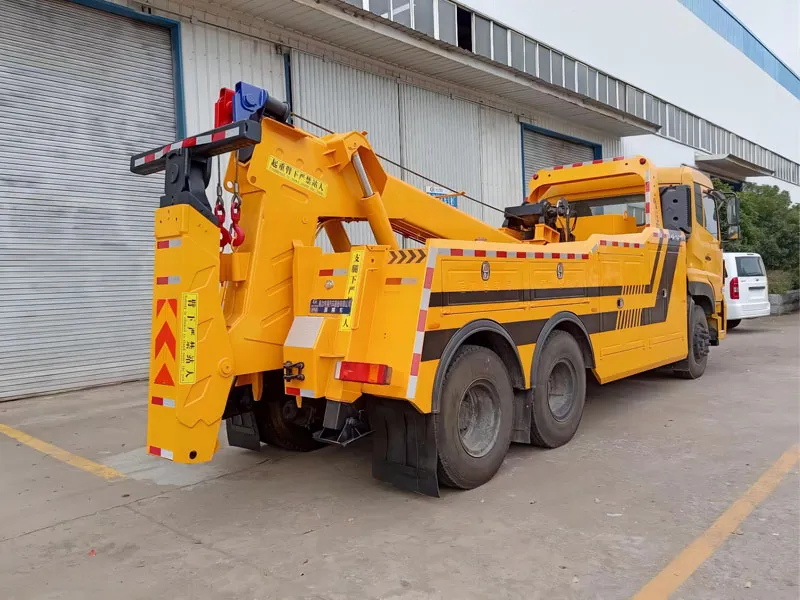

The Dongfeng Tianlong 6×4 wrecker truck features a durable chassis and a 6×4 drive system, providing excellent performance on complex road conditions. With powerful towing and lifting capacities, it is ideal for recovering medium to heavy-duty broken-down or accident vehicles on highways, ensuring stable and efficient rescue operations.
| GVW | Driving Type 6x4 | ||||
Model | Luke | ||||
Cab | Tianjin a row and a half deluxe cab(with sleeping berth), hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers | ||||
Engine(Hp) | 260 | ||||
Power(Kw) | 191 | ||||
Wheelbase | 4350+1300 | ||||
Front/Rear Suspension | 1460/2340 | ||||
Steering | Power steering | ||||
Approach/departure angle | 20/14 | ||||
Wheels & tire | 10.00R20 | ||||
Tire number | 10+1 | ||||
Loading capacity(kg) | |||||
Plate dimension(mm) | / | ||||
RHD or LHD | optional | ||||
Overall Dimensions(mm) | 9500×2500×3150 | ||||
Curb weight (Kg) | 19400 | ||||
Engine | Model | C260 33 | |||
Horsepower | 260 | ||||
Maximum output Kw | 191 | ||||
Maximum torque N.m | 1090 | ||||
Type | 6 cylinders, in-line, 4-stroke, turbo inter-cooling, diesel engine | ||||
Displacement | 8.3L | ||||
Cummins brand, Euro 3 | |||||
Driving passenger | 2, 3 | ||||
Transmission | 10 speed forward and 2 reverse, manual | ||||
Front Axle | 5T | ||||
Rear Axle | 10Tx2 | ||||
Brake System | air brake, exhaust brake | ||||
Color and LOGO | customized | ||||
Electric system | 24V | ||||
Major parameter | Winch capacity | 10000kg x2 | Max lifting capacity | 20000kg | |
Max towing capacity | 40000kg | Steel wire rope | 45m | ||
Standard configuration | 2 unit of 10 ton winch, 1 unit of steel wire rope, with four sets of steel forks, a set of forks cover, a set of steel ear lifting forks, a set of tires. A long row of engineering lights. A set of auxiliary lights, a set of auxiliary air pipe assemblies 1 unit of spare tire, 1 unit of jack, famous hydraulic system, crane and others | ||||
Delivery date | Within 40 days after receipt advance | ||||
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||||
